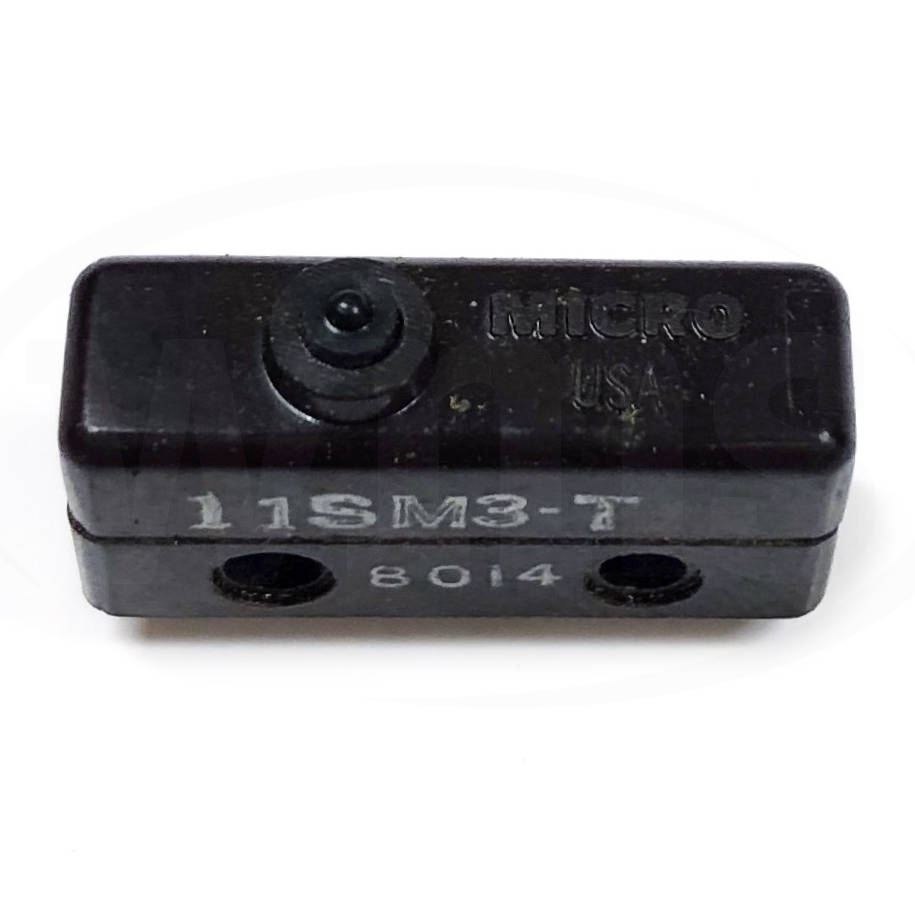

Honeywell 11SM3-T Micro Switch Subminature Basic Switch

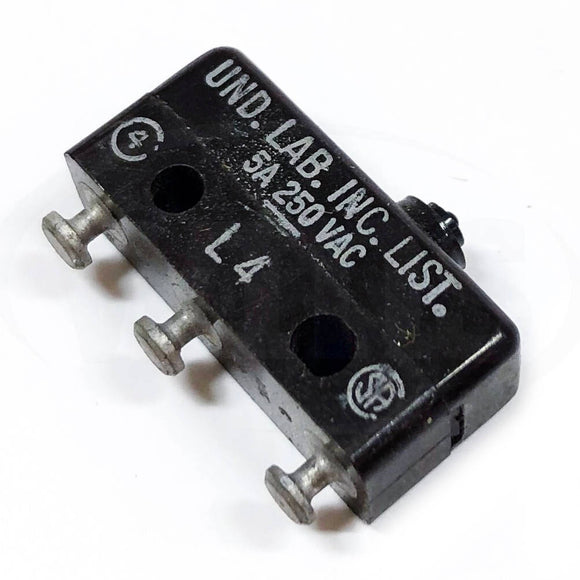

Honeywell 11SM3-T Micro Switch Subminature Basic Switch-1

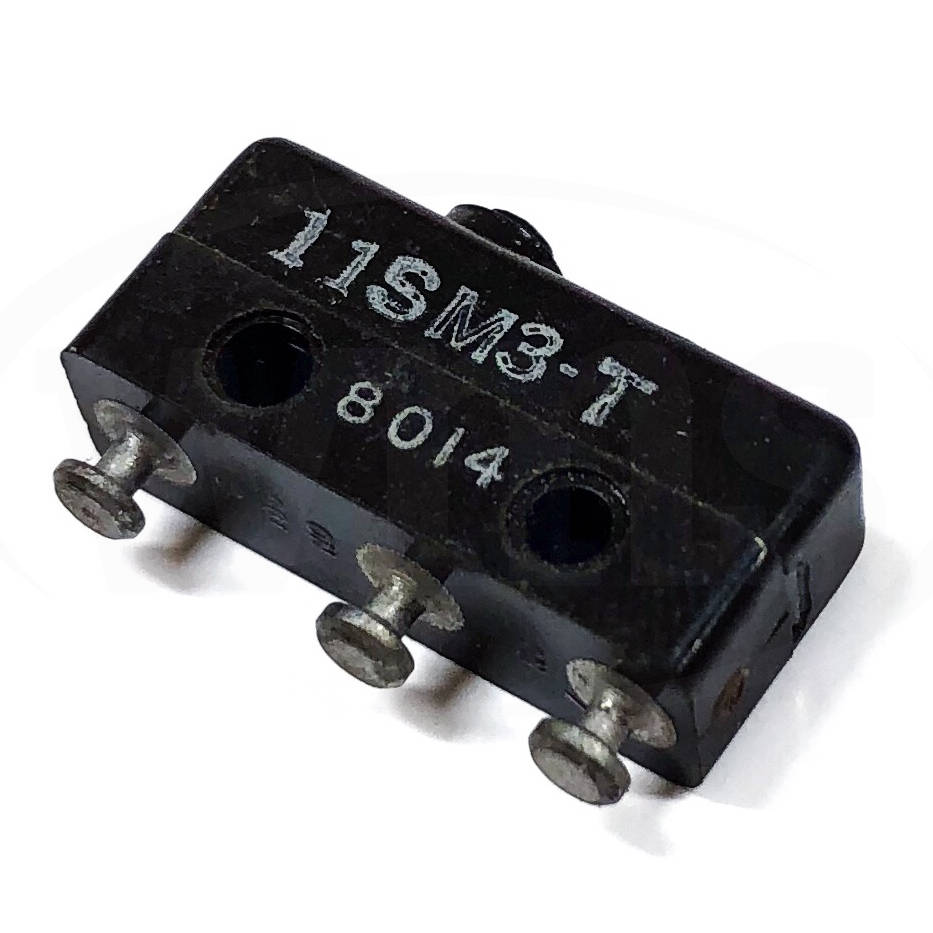

Honeywell 11SM3-T Micro Switch Subminature Basic Switch-2

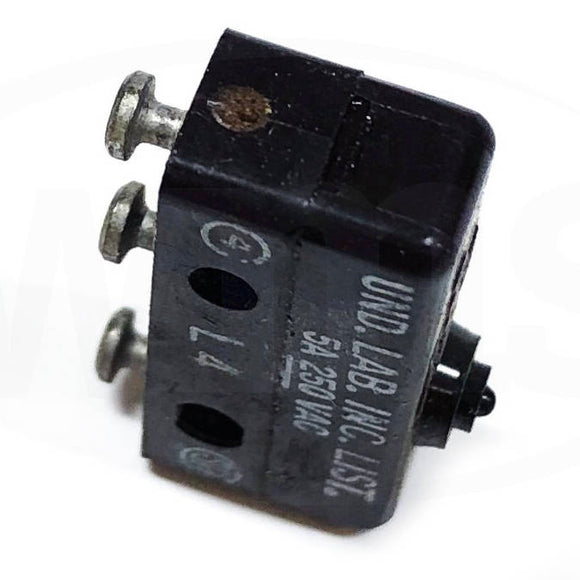

Honeywell 11SM3-T Micro Switch Subminature Basic Switch

Name: Honeywell 11SM3-T Micro Switch Subminature Basic Switch
Brand: Witmer Motor Service
SKU: 11SM3-T
Price: 4.49 USD
Availability: InStock

$4.49 $4.49 Save $0

Shipping calculated at checkout

Witmer Motor Service SKU: 11SM3-T Barcode:

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Switch Type	MICRO SWITCH Subminiature 12,7 mm H x 6,35 mm W x 20,3 mm L [0.5 in H x 0.25 in W x 0.8 in L]
Sealed	No
Actuator	Pin Plunger
Operating Temperature	-55 °C to 125 °C [-67 °F to 257 °F]
Contact Type	Silver
Release Force	0,28 N [1.0 oz] min.
Overtravel (OT)	0,13 mm [0.005 in] min.
Operating Position (OP)	8,38 mm ±0,38 mm [0.330 in ±0.015 in]
High Temperature	204°C [400°F]
Mounting Centers	9,65 mm [0.38 in]
Weight	2,72 g [0.006 lb]
Package Width	6,35 mm [0.25 in]
Recommended For	Operating in temperatures to 121 °C [250 °F]
Availability	Global

Ampere Rating	5 A
Circuitry	SPDT
Termination	Solder
Voltage	250 Vac
Operating Force (OF)	0,83 N to 1,39 N [3.0 oz to 5.0 oz]
Pretravel (PT)	0,5 mm [0.020 in] max.
Differential Travel (DT)	0,10 mm [0.004 in] max.
Housing Material	General Purpose Phenolic
Agency Approvals and Standards	UL, CE, CSA, ENEC
Tightening Torque	0,26 N m [2.3 in lb]
Package Height	12,4 mm [0.49 in]
Package Length	19,8 mm [0.78 in]
Comment	Turret type solder terminals. CE: 61058-1; UL: E12252; CSA: LR41372
Series Name	SM
