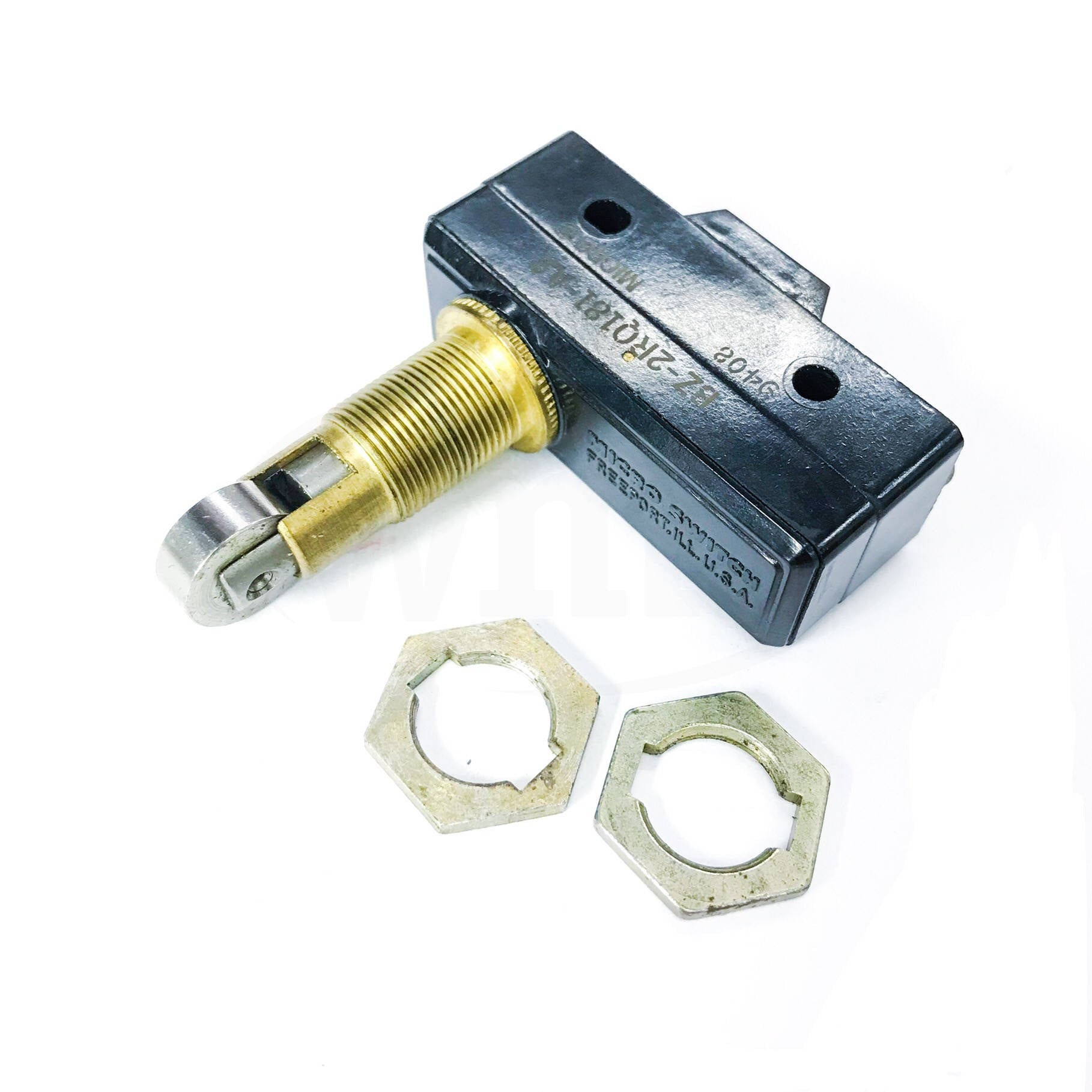

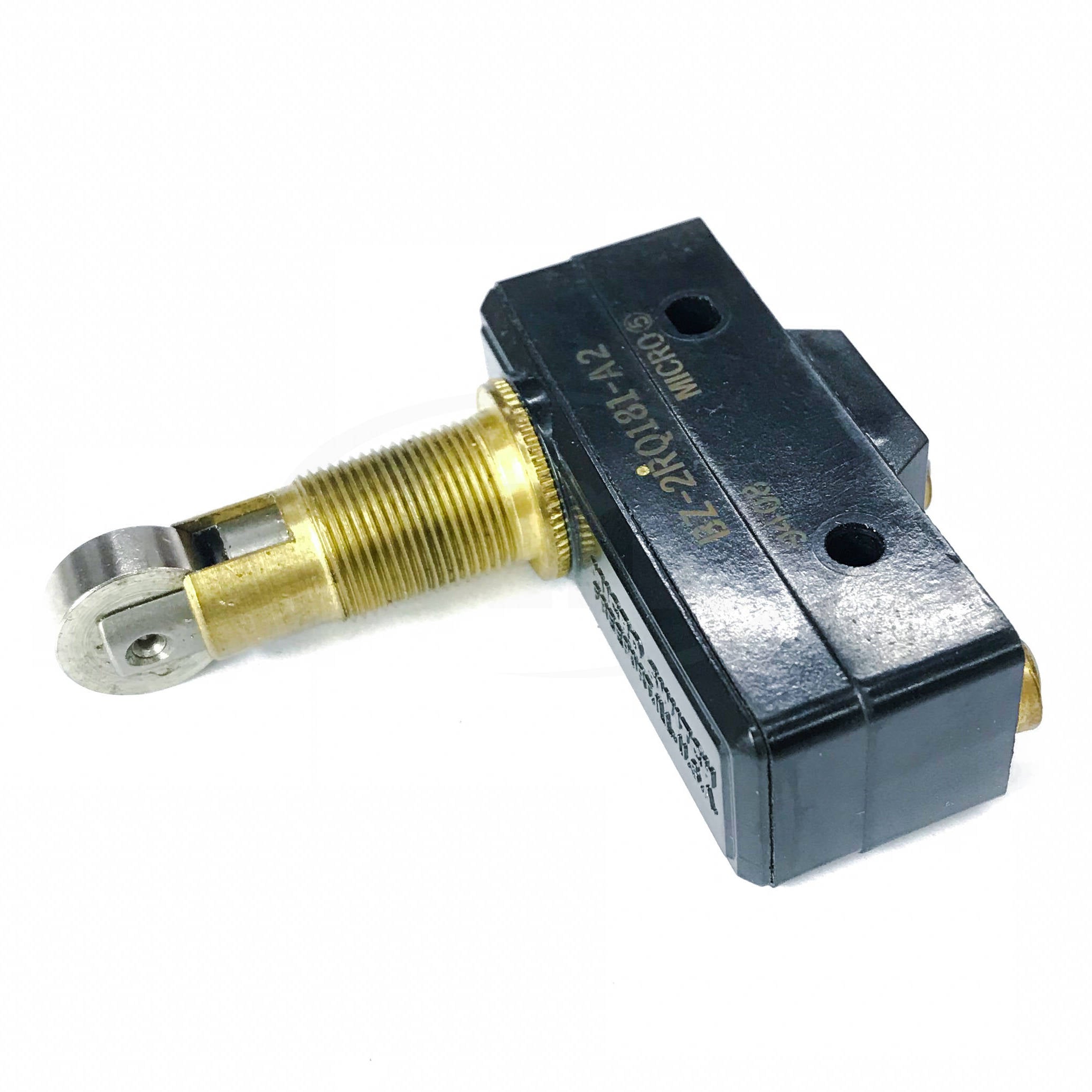

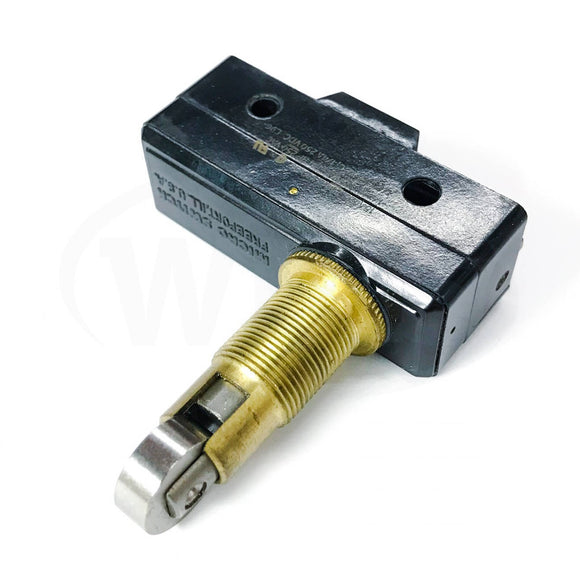

Product Features
Accepted world-wide standard "Large Basic" switch
Low operating force and differential travel
Long mechanical life up to 20,000,000 cycles at 95% survival
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Choice of actuation, termination and operating characteristics
Technical Specifications

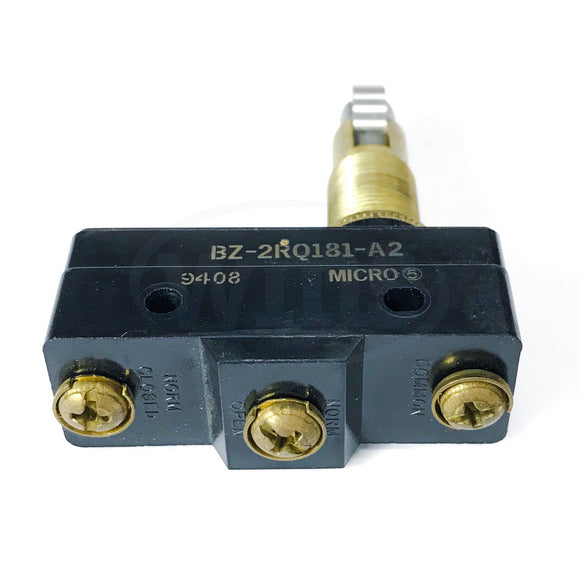

| Switch Type | MICRO SWITCH Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L] |
| Ampere Rating | 15 A |
| Sealed | No |
| Circuitry | SPDT |
| Actuator | Overtravel Plunger |
| Termination | Screw |
| Operating Temperature | -55 °C to 85 °C [-67 °F to 185 °F] |
| Voltage | 125 Vac |
| Contact Type | Silver |
| Operating Force (OF) | 2,5 N to 3,61 N [9.0 oz to 13.0 oz] |
| Release Force | 1,11 N [4.0 oz] min. |
| Pretravel (PT) | 0,38 mm [0.015 in] max. |
| Overtravel (OT) | 3,56 mm [0.140 in] min. |
| Differential Travel (DT) | 0,01 mm to 0,05 mm [0.0004 in to 0.0020 in] |
| Operating Position (OP) | 33,32 mm ±1,14 mm [1.312 in ±0.045 in] |
| Material | Plastic |
| Housing Material | General Purpose Phenolic |
| Agency Approvals and Standards | UL, CSA, CE, DEMKO |
| Mounting Screw Size | 3,53 mm [0.139 in] |
| Mounting Centers | 25,4 mm [1 in] |
| Tightening Torque | 0,33 N m [3.0 in lb] |
| Weight | 63,5 g [0.14 lb] |
| Package Height | 24,1 mm [0.95 in] |
| Package Width | 17,5 mm [0.69 in] |
| Package Length | 49,3 mm [1.94 in] |
| Recommended For | Applications requiring roller plunger 90 ° to major axis of switch |
| Comment | CE: 61058-1; UL: E12252; CSA: LR41370 |
| Availability | Global |
| Series Name | BZ/BA/WA/YZ |
