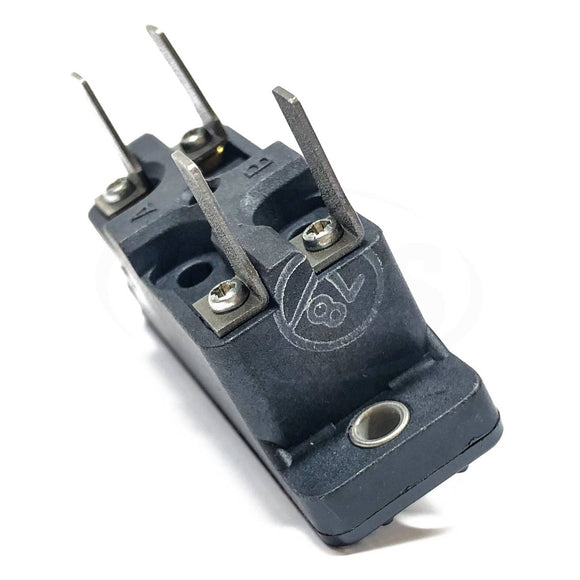

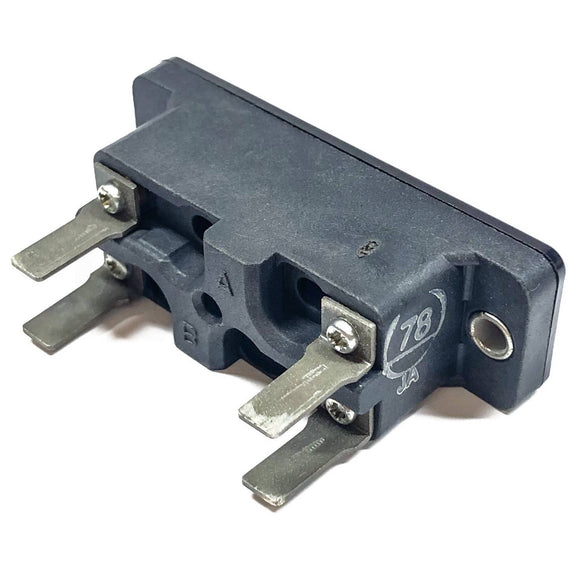

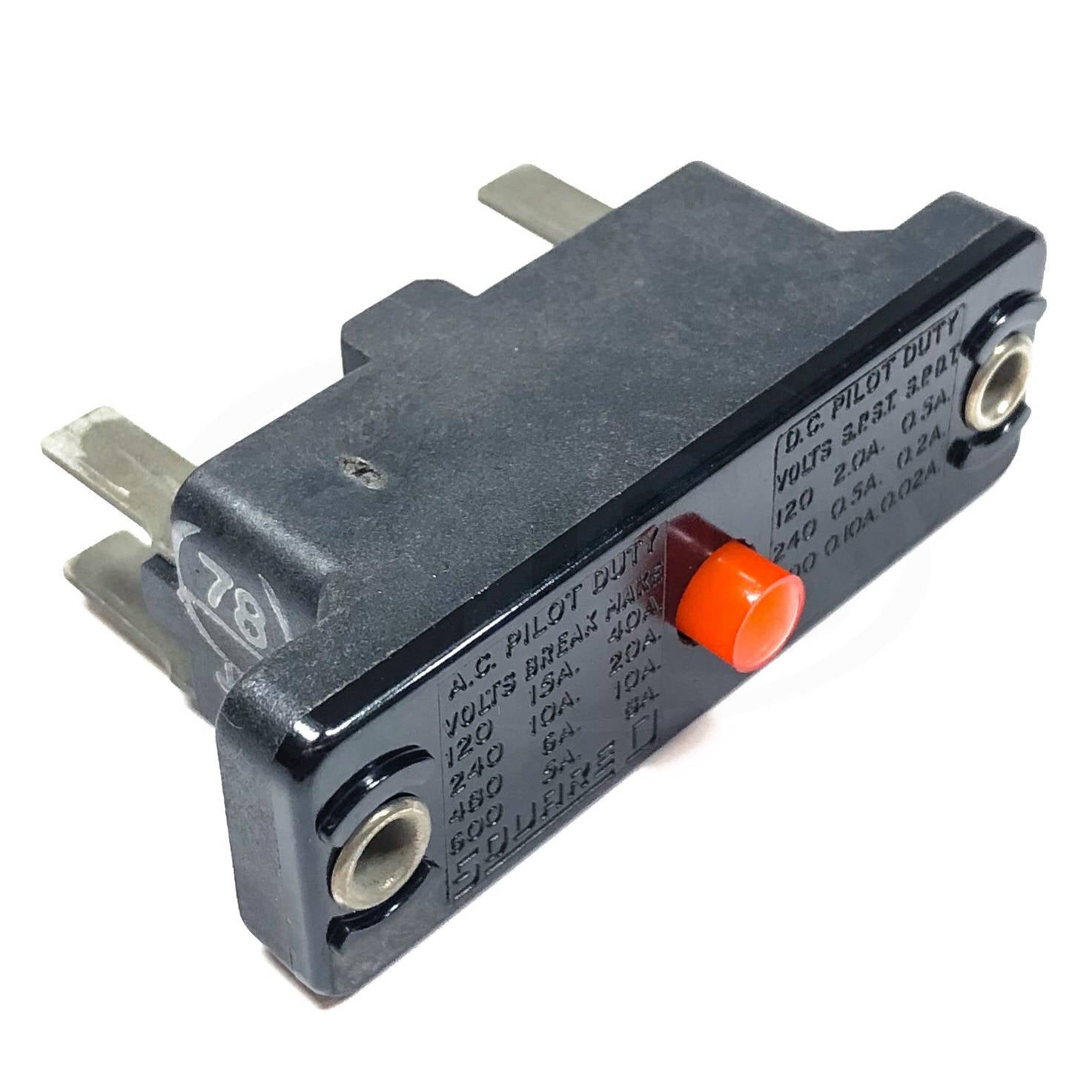

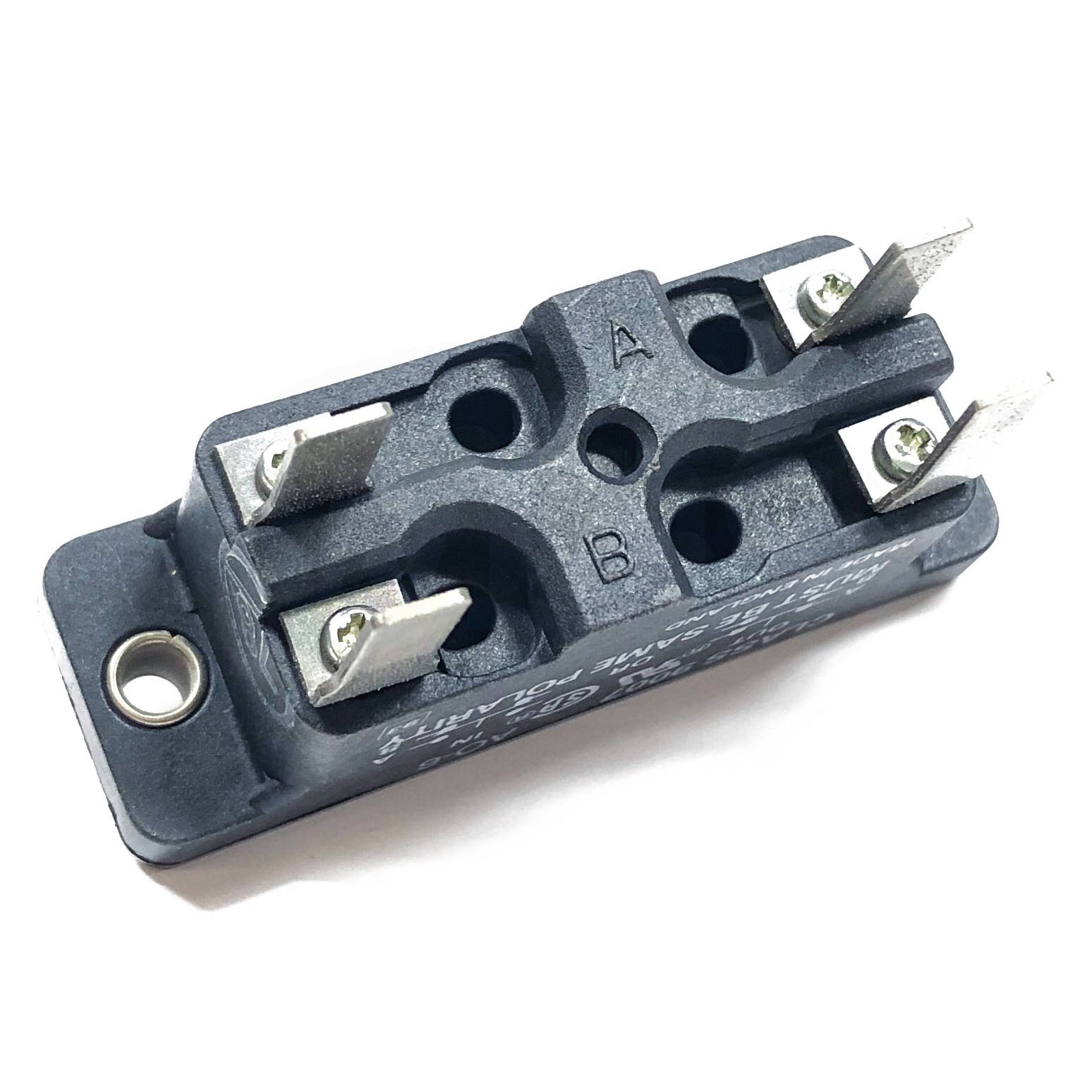

9007-AO6 Square D Limit Switch, Heavy Duty Snap Switch

$44.97

Shipping calculated at checkout

Witmer Motor Service SKU: 9007-AO6 Barcode: 785901803317

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!
Main
range of product
9007
series name
Heavy duty
product or component type
Snap basic limit switch
device short name
9007AO/CO
body type
Plug-in
Complementary
mounting mode
-
operator profile
Plunger head
material
Metal
body material
Cast zinc
operator material
Cast zinc
fixing mode
By the body
movement of operating head
Linear
type of operator
Plastic spring return plunger with thermoplastic end
switch actuation
On end
type of approach
1 direction vertical approach
electrical connection
1...2 cables 6 binder head screw terminals (AWG 22...AWG 14)
number of poles
1
contacts type and composition
NC-NO, switch function: SPDT-DB
contact form
Form Z
contact operation
Snap action
number of steps
1
contacts material
Silver contacts
positive opening
Without
terminals description ISO n°1
(1-2)NC
(3-4)NO
minimum force for tripping
0.63 lbf
maximum force for tripping
0.88 lbf
[Ie] rated operational current
6 A at 480 V AC, A600 conforming to NEMA rating designation
10 A at 240 V AC, A600 conforming to NEMA rating designation
15 A at 120 V AC, A600 conforming to NEMA rating designation
0.1 A at 250 V DC
0.25 A at 125 V DC
5 A at 600 V AC, A600 conforming to NEMA rating designation
[Ithe] conventional enclosed thermal current
15 A
[Ui] rated insulation voltage
600 V - for contact block (degree of pollution: 3) conforming to UL 508
600 V - for contact block conforming to CSA C22.2 No 14
width
0.83 in
height
2.5 in
depth
1.03 in
product weight
0.1 lb(US)
Environment
NEMA degree of protection
NEMA 1 conforming to Nema type 250
IP degree of protection
IP20 conforming to IEC 60529
ambient air temperature for operation
-20...185 °F
ambient air temperature for storage
-20...185 °F
Ordering and shipping details
Category
21491 - 9007 A SNAP SWITCHES
Discount Schedule
DS1
GTIN
00785901803317
Nbr. of units in pkg.
1
Package weight(Lbs)
0.10000000000000001
Returnability
Y
Country of origin
MX
