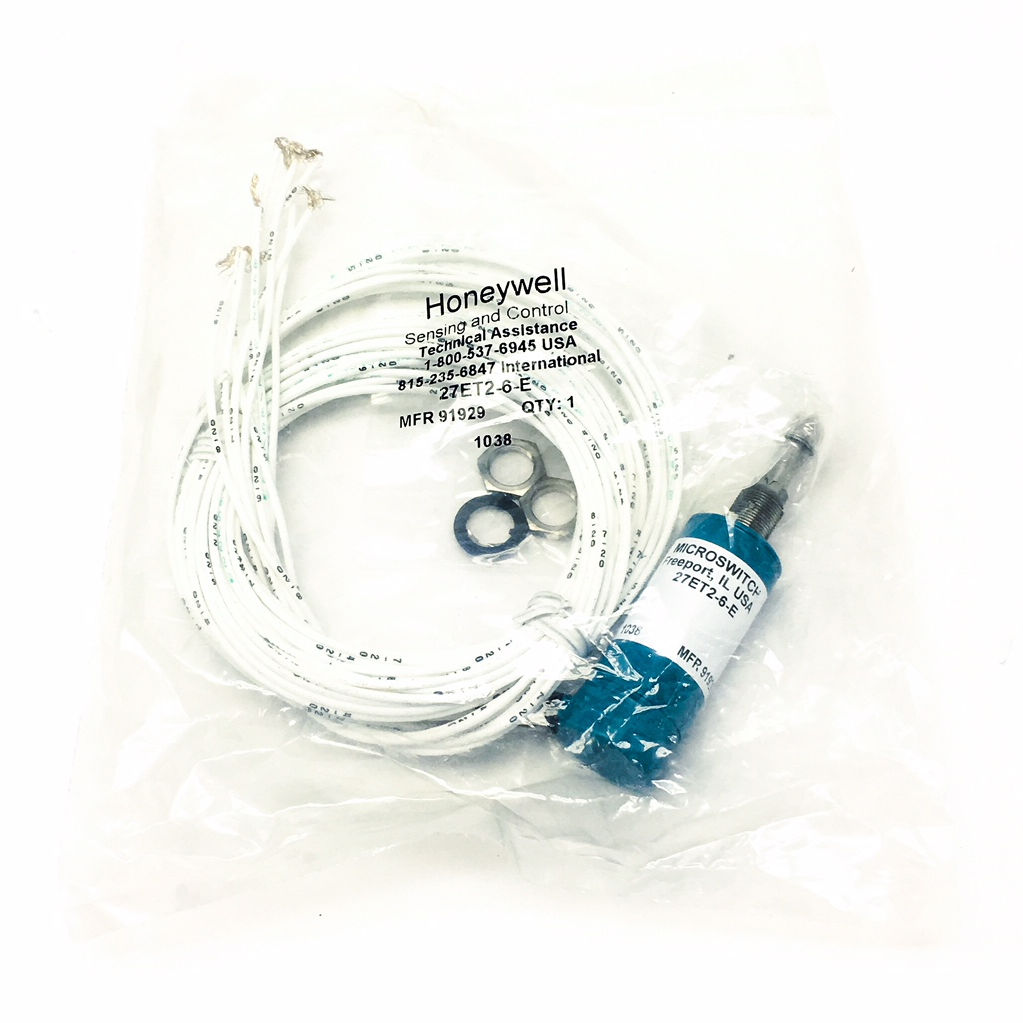

27ET2-6-E Honeywell Electrical Held Toggle Switch-1

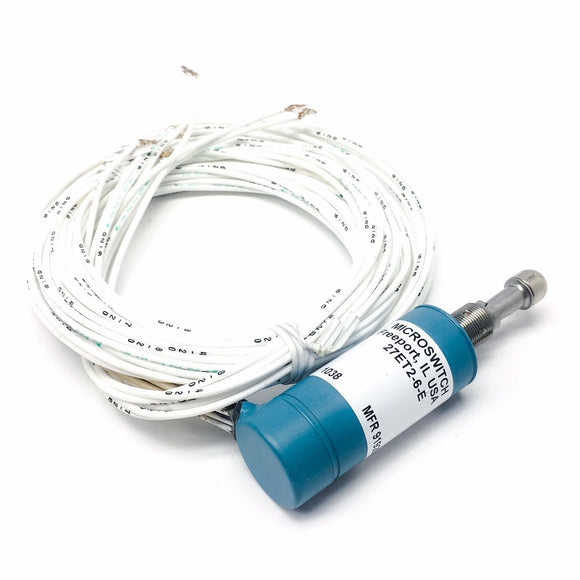

27ET2-6-E Honeywell Electrical Held Toggle Switch-2
27ET2-6-E Honeywell Electrical Held Toggle Switch-3
27ET2-6-E Honeywell Electrical Held Toggle Switch-4

27ET2-6-E Honeywell Electrical Held Toggle Switch

$1,449.97

Shipping calculated at checkout

Witmer Motor Service SKU: 27ET2-6-E

30 Day
Return Policy

Ships Fast
in 24 hours

8

In stock!
ET Series Toggle Switch, 2 pole, Electrically held- 3 position, Leadwire terminal, Locking Lever.
MICRO SWITCH ET toggle switches' holding coils maintain the toggle in operate position(s). The toggle is released by interrupting the coil circuit. With an open circuit, the ET functions as a momentary contact switch. ETs possess two and three position SPDT or DPDT circuits. ET Series switches are available in various lever versions. Turret, leadwire and screw terminations are available for easy installation.

Technical Specifications

Series Name ET
Product Type MICRO SWITCH Toggle Switch
Ampere/Voltage Range (Resistive Load) 0.1 A to 7.0 A at 0.5 Vdc to 28 Vdc
Circuitry DPDT
Action Electrically held, 3 position
Circuitry/Operating action
Mounting Bushing 15/32 in
Termination Leadwire
Lever Type
Lever Lock
UL/CSA Most catalog listings qualified to SAE AS55941
UNSPSC Code 39122211
Availability Global
Comment Stainless steel lever
UNSPSC Commodity 39122211 Toggle Switch

Product Features

  • Qualification to SAE AS55941 available
  • Environment-proof sealing
  • 2 and 3 position magnetically maintained toggle action
  • Various lever styles available
  • Turret, leadwire, and screw terminals
  • Temperature range -65 °C to 71 °C [-85 °F to 160 °F]

Applications

  • Industrial machinery and equipment
  • Military and commercial aviation
  • Construction equipment
  • Test instruments
  • Agricultural machinery
  • Process control
  • Medical instrumentation
