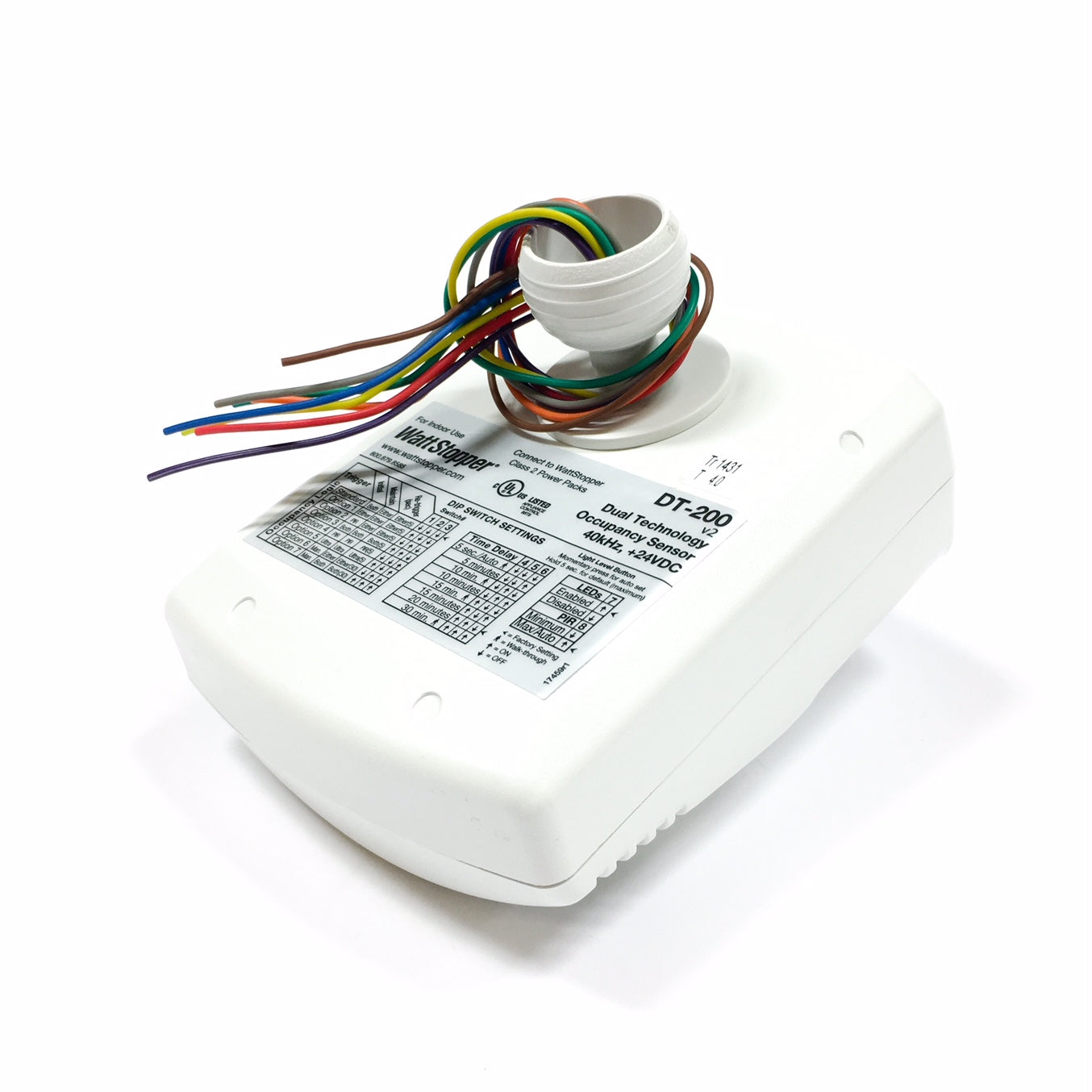

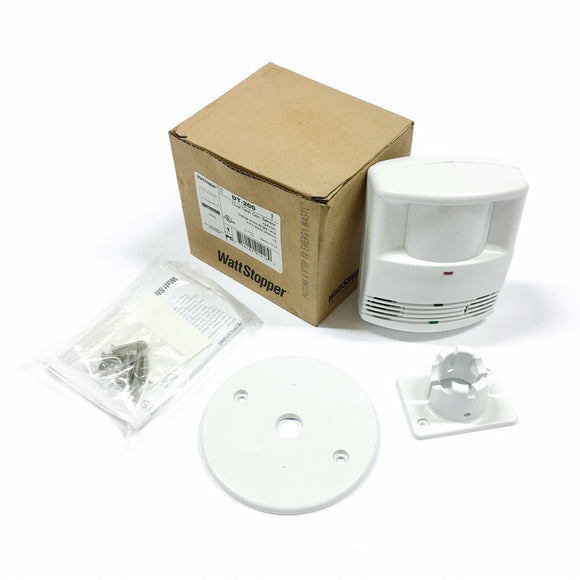

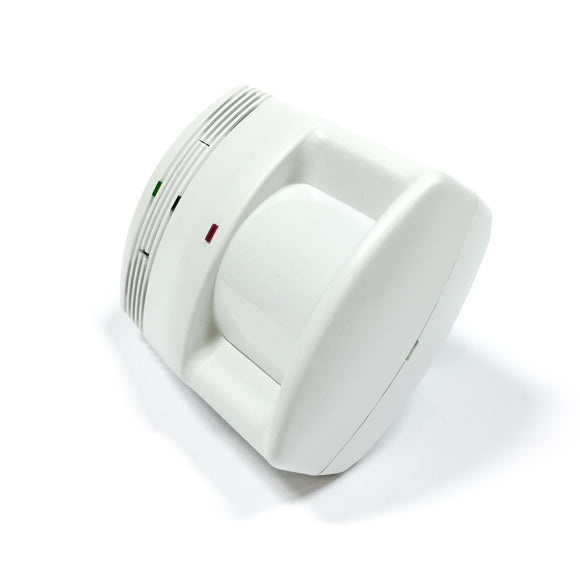

DT-200 WattStopper Ceiling/Wall Sensor White

$184.97

Shipping calculated at checkout

Witmer Motor Service SKU: DT-200 Barcode: 754182914180

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Wattstopper’s DT-200 Series Dual technology Ceiling Sensors combine PIR and ultrasonic technologies into one unit to achieve precise coverage in detecting occupancy.

Combines passive infrared (PIR) and ultrasonic technologies
Auto set automatically selects optimal settings for each space
Walk-through mode increases savings potential
Built-in light level sensor
Accepts low-voltage switch input for manual-on operation
Automatic or manual-on operation when used with a BZ-150 Power Pack

GENERAL INFO
Typical Applications: Open Office Spaces, Computer Rooms, Conference Rooms, Classrooms, Warehouses
Special Features: Dual Technology, Low voltage momentary switch input for manual operation, built-in light level sensor, optional isolated relay.
TECHNICAL INFORMATION
IR Range On Axis: 2000 SqFt
LightOutput 1FCD: Automatic On/Off
Load: 1 Amp @ 24 VDC/VAC
Response Time: 5 to 30 minutes
Volts: 24VDC/VAC
