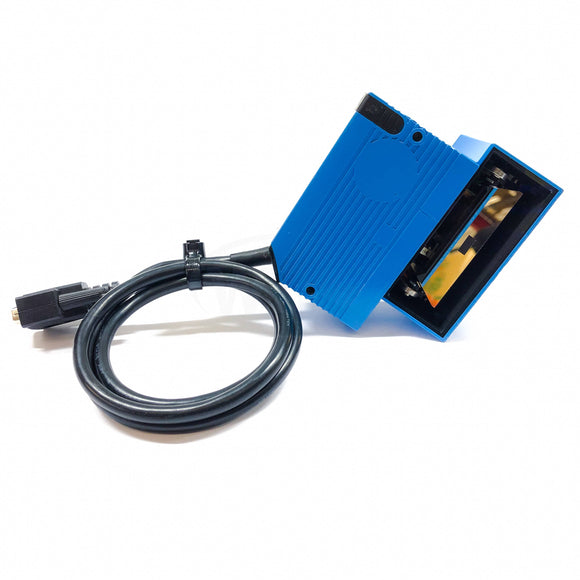

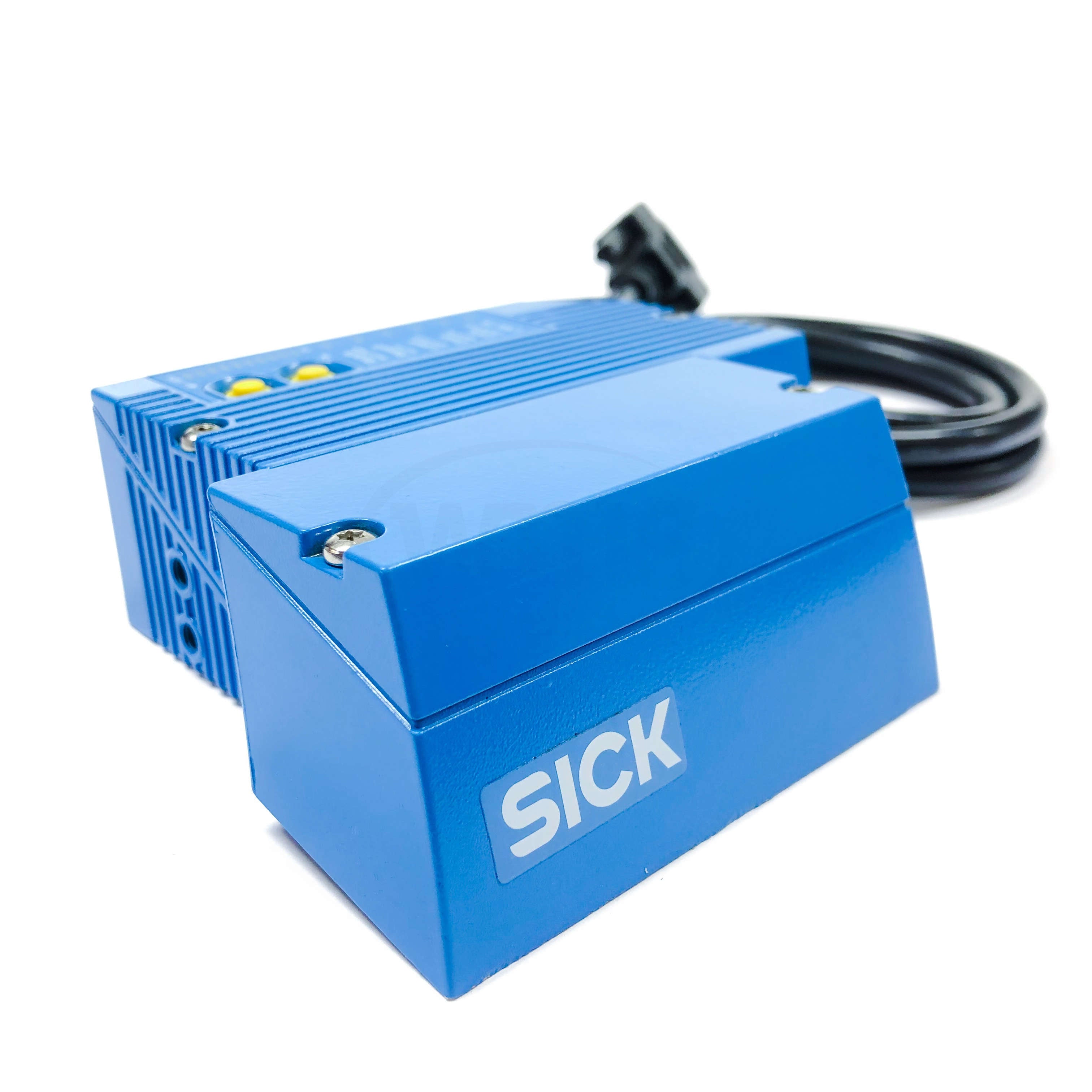

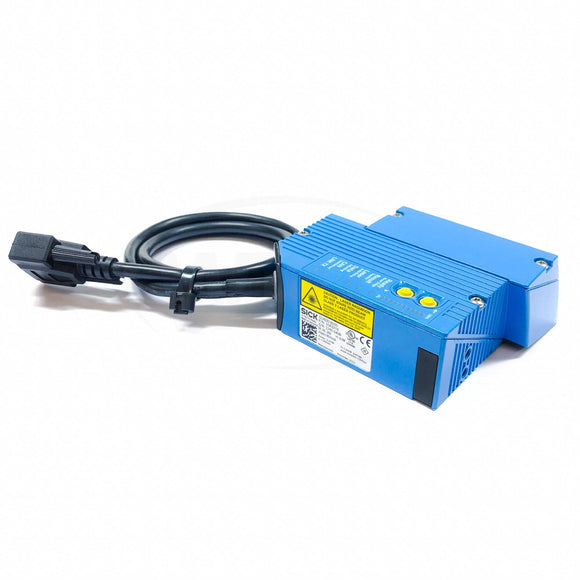

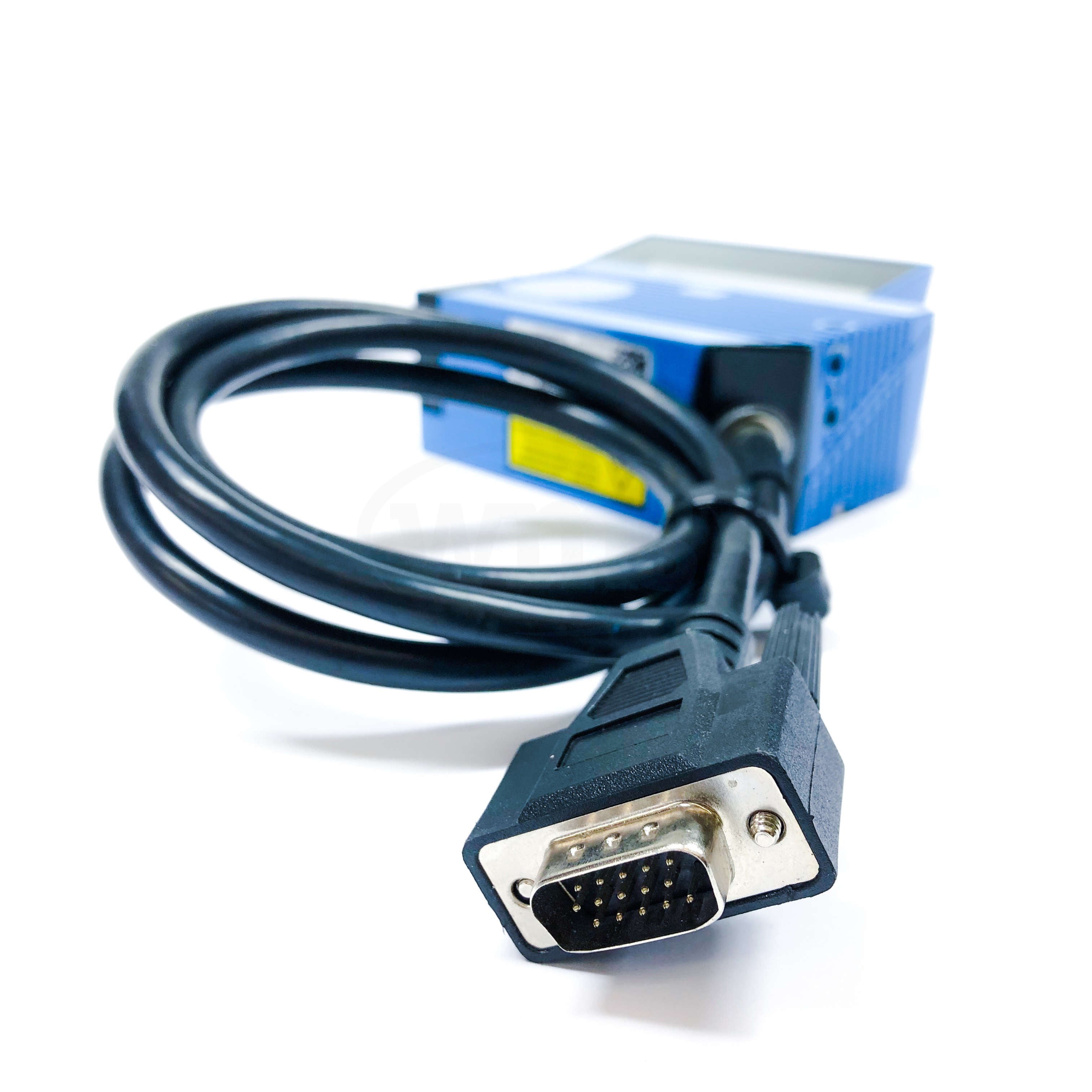

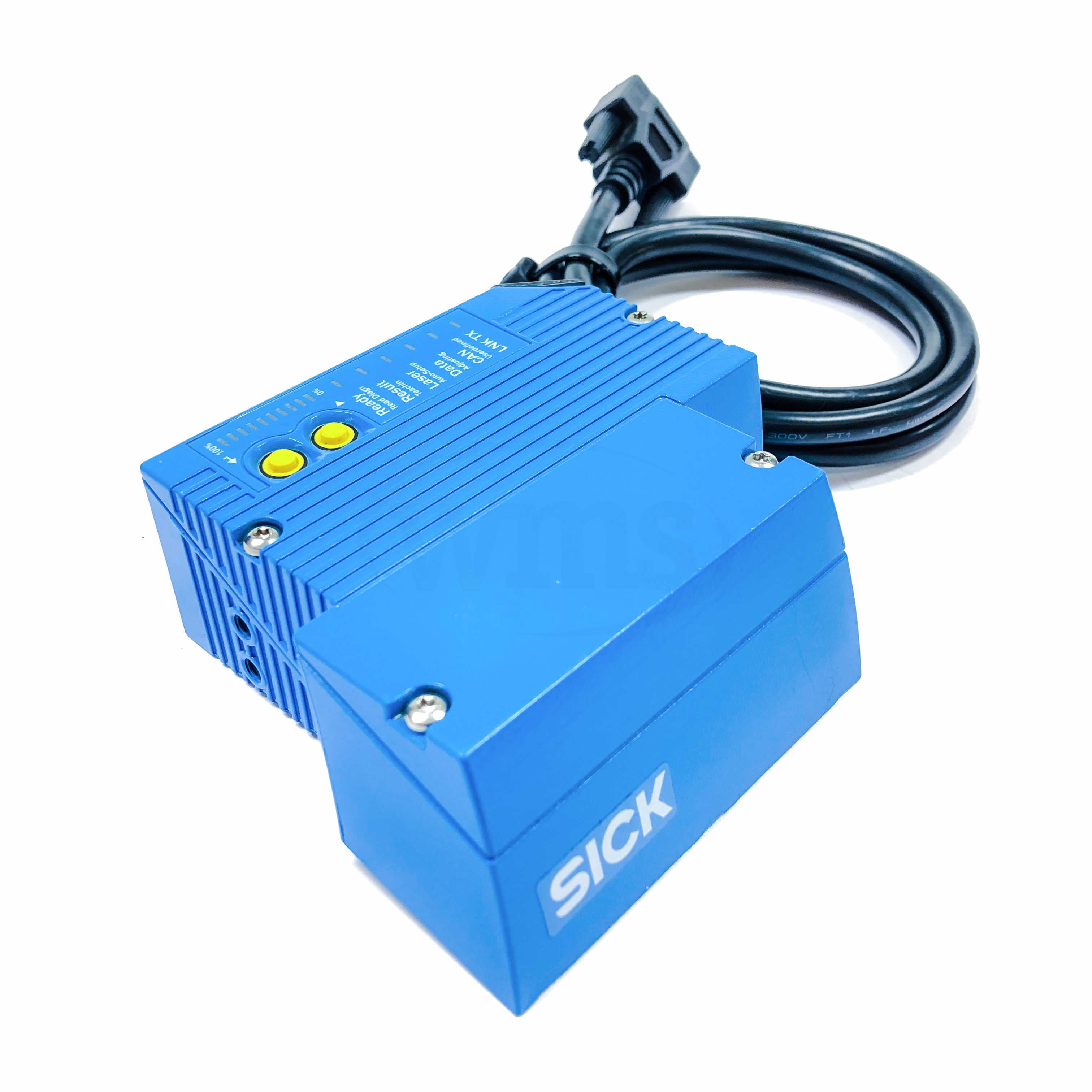

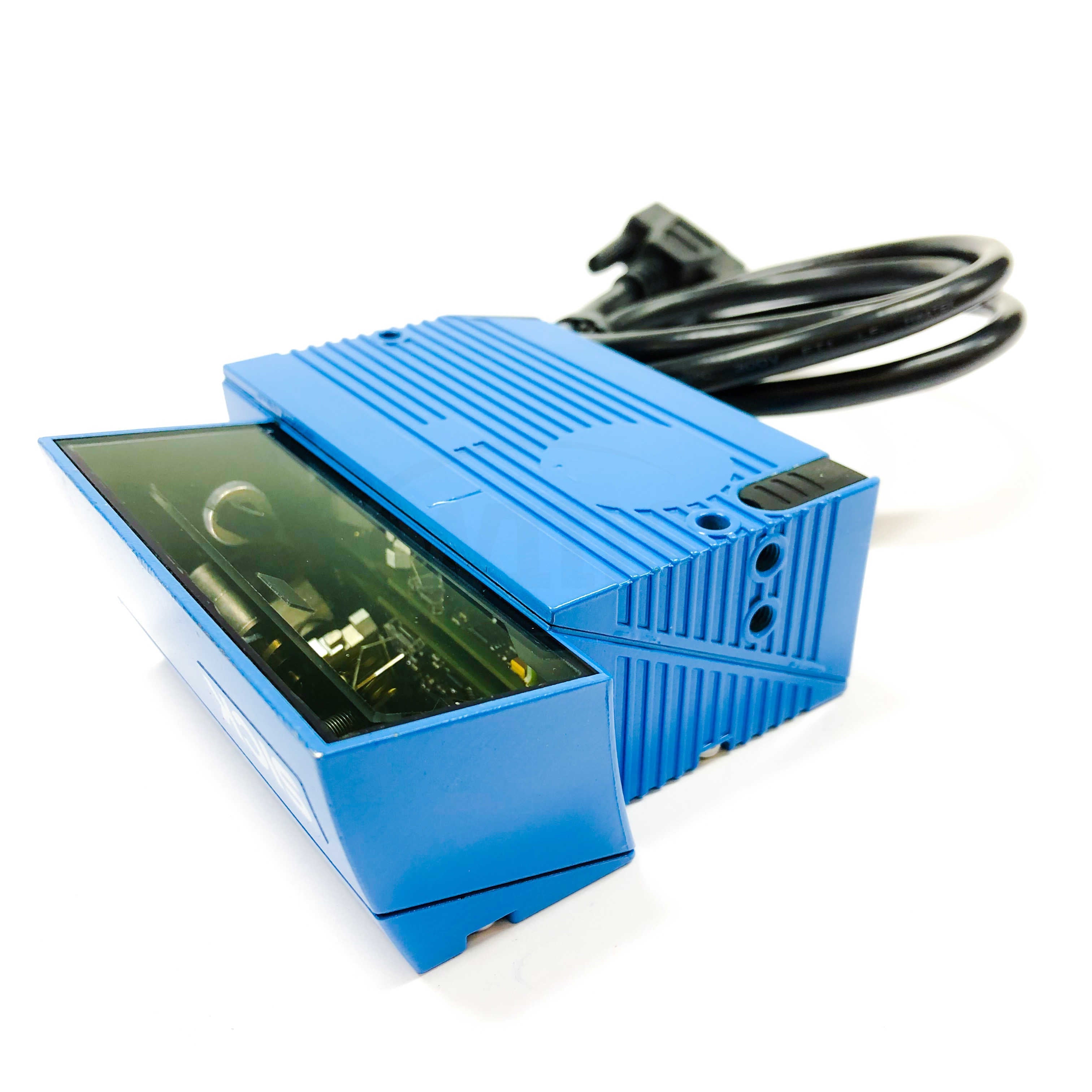

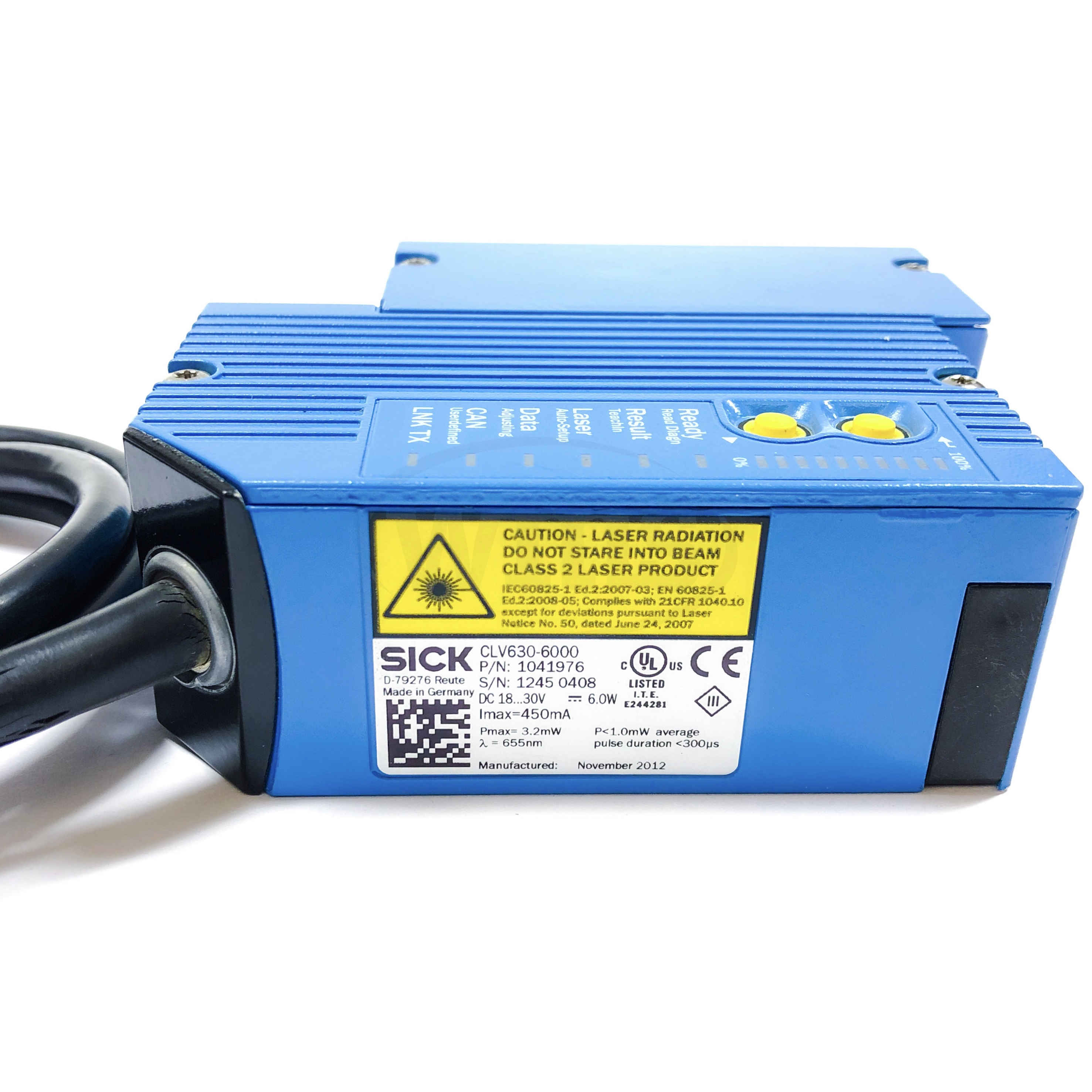

CLV630-6000 Sick Long Range Bar Code Scanner

$1,397.97

Shipping calculated at checkout

Witmer Motor Service SKU: CLV630-6000

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

CLV630-6000 Sick Long Range Bar Code Scanner, 18-30VDC, 1041976
Version Long Range
Connection type Cable
Reading field Oscillating mirror
Scanner design Line scanner
Focus Fixed focus
Light source Visible red light (655 nm)
Light spot Circular
MTBF 40,000 h
Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
Aperture angle = 50°
Scanning frequency 400 Hz ... 1,200 Hz
Code resolution 0.35 mm ... 1 mm
Reading distance 45 mm ... 659 mm 1)
Oscillating mirror functions Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
Oscillation frequency 0.5 Hz ... 6.25 Hz
Angle of deflection –20° ... 20°
Serials: 12450408/12450397
