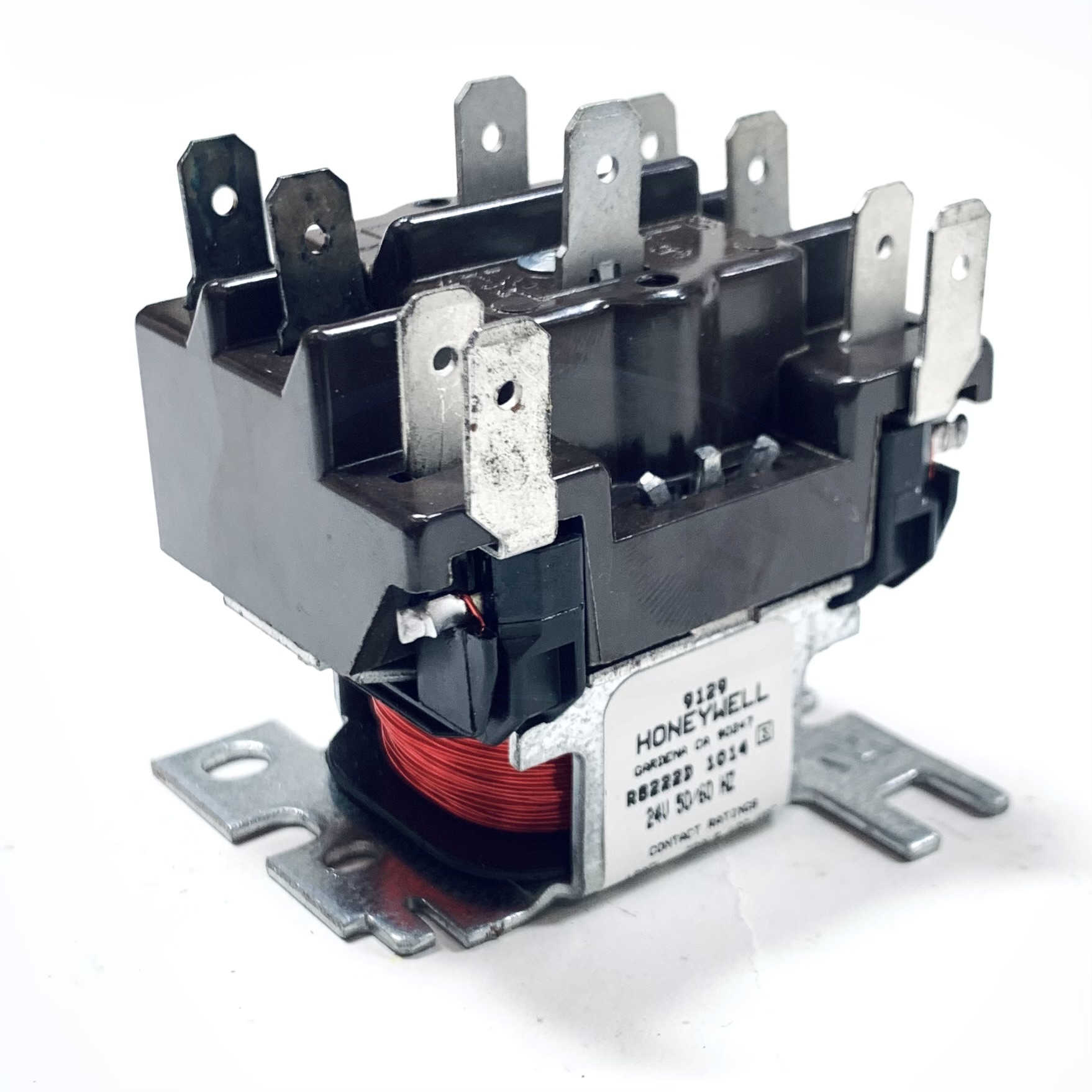

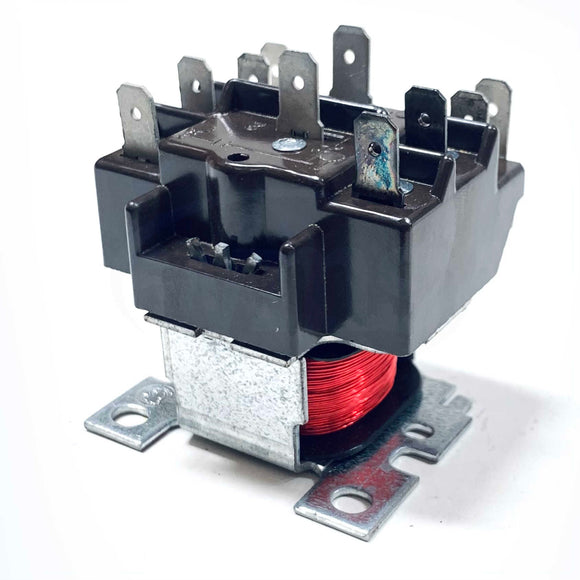

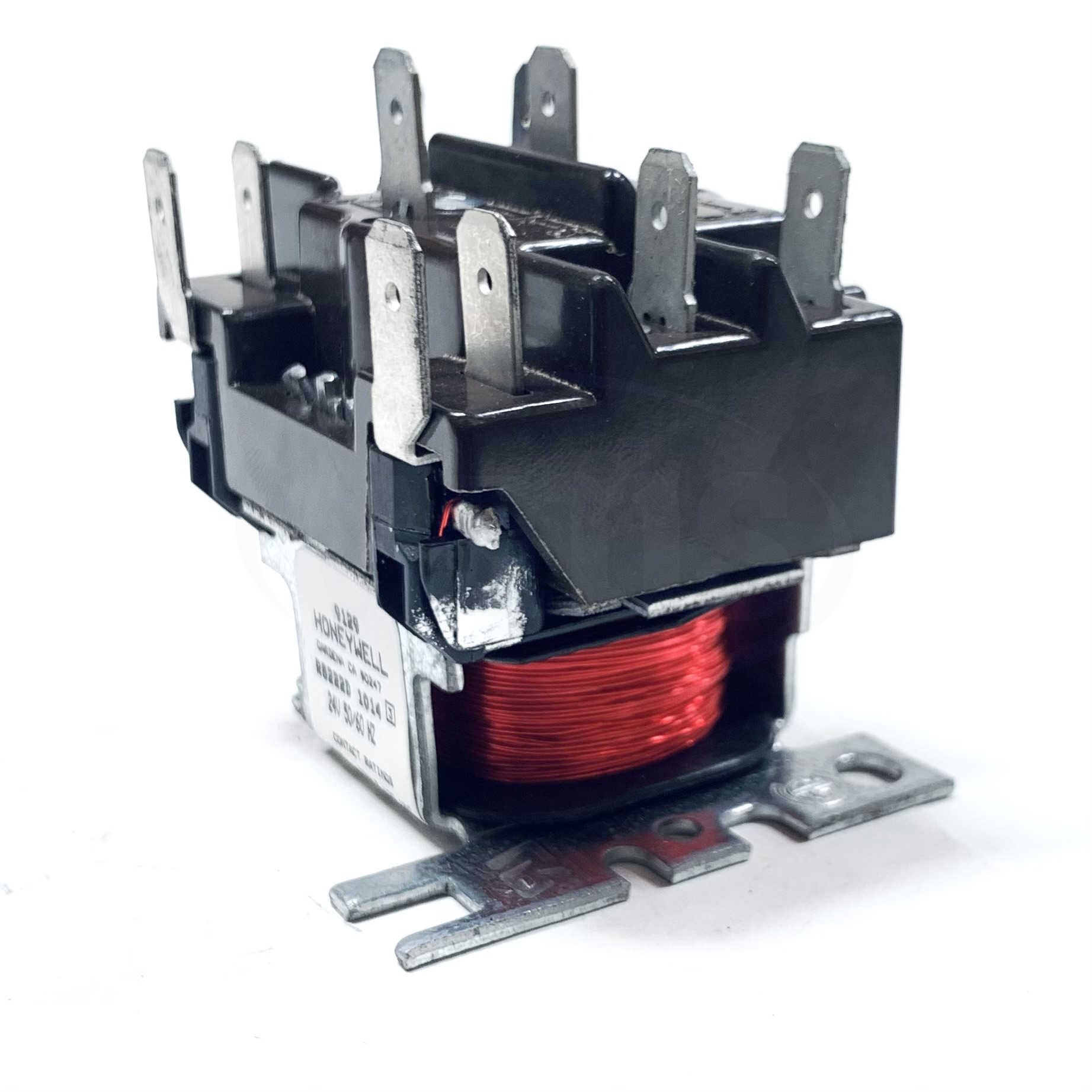

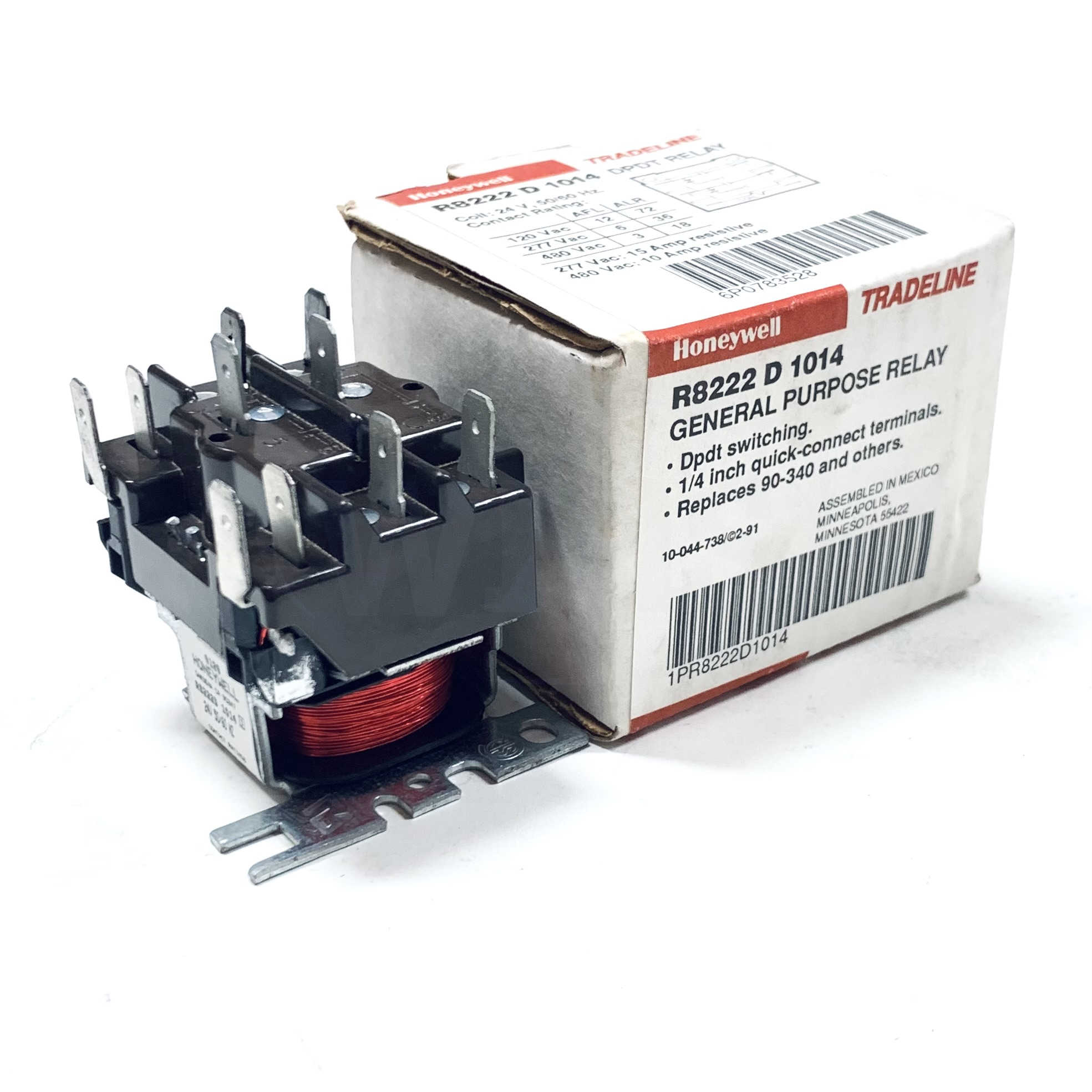

R8222D1014 Honeywell General Purpose DPDT Switching Relay

$19.97

Shipping calculated at checkout

Witmer Motor Service SKU: R8222D1014

30 Day
Return Policy

Ships Fast
in 24 hours

10

In stock!

Coil: 24V, 50/60Hz
Contact Ratings:
12A FL, 72 A LR at 120VAC
6A FL, 36A LR at 277VAC
3A FL, 18A LR at 480VAC
15A Resistive at 277VAC
10A Resistive at 480VAC
DPDT Switching
1/4" Quick Connect Terminals
Double Quick Connect Coil Terminals
Enclosed Contacts

Replaces many relays with the same switching and coil voltages:
Honeywell:
R8222A,B,C,D,E,F,G,H,J
Mars:
90290
90293
90340
Potter & Brumfield:
AB7AY24
AK7AY24
AK11AY24
AKC11AY24
AB8AY24
AK8AY24
General Controls (ITT General):
R4A121C
R4A021D
R4B121C
R4B021D
R4E121C
R4E021D
R4F121C
R4F021D
Guardian Electric:
Series 900, Series 1200, Series 1220
RBM:
84-20102-101, 84-20105-101, 84-20103-301, 84-20106-301
91-102006-11300, 91-102006-13300, 91-112006-11300, 91-132006-13300, 91-102006-12300, 91-122006-11300, 91-122006-12300, 91-112006-13300, 91-122006-13300
Type 184, Type 98000
General Electric:
CR120J10012, CR120J00112, CR120J20012, CR120J00212, CR120J01012, CR120J11012, CR120J02012
Stevco:
90-290, 90-293, 90-340, 90256
