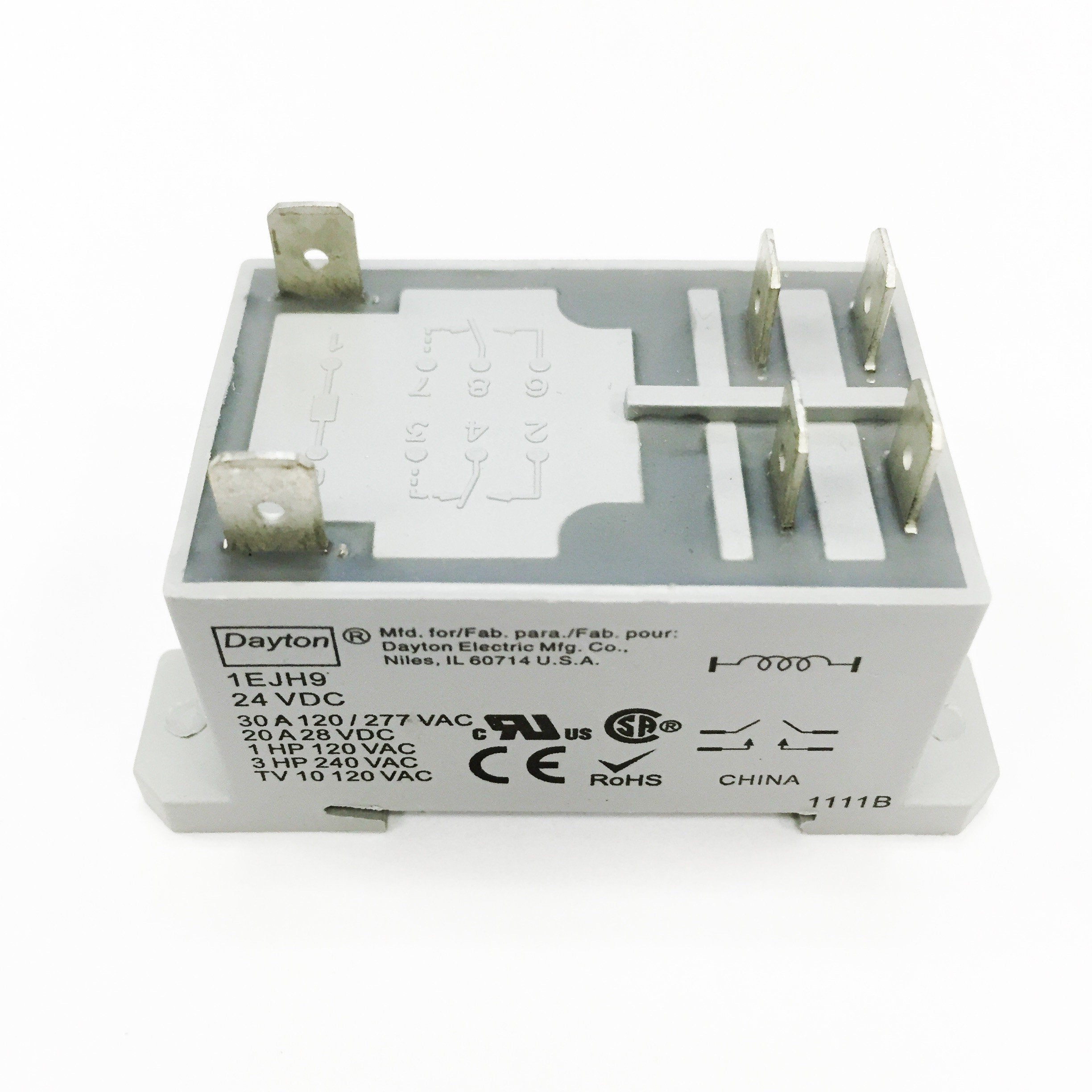

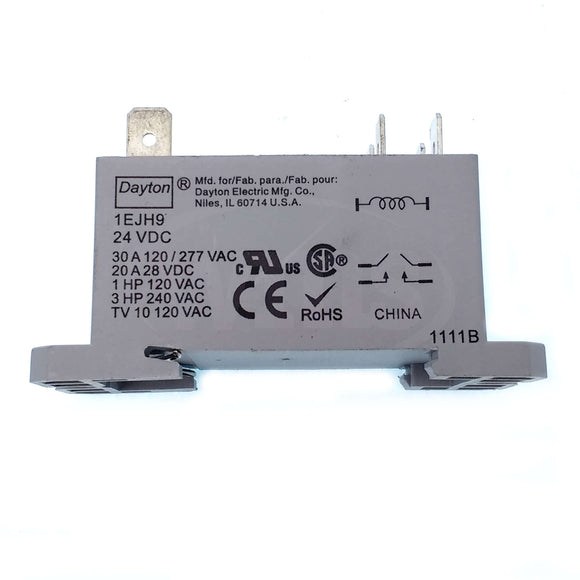

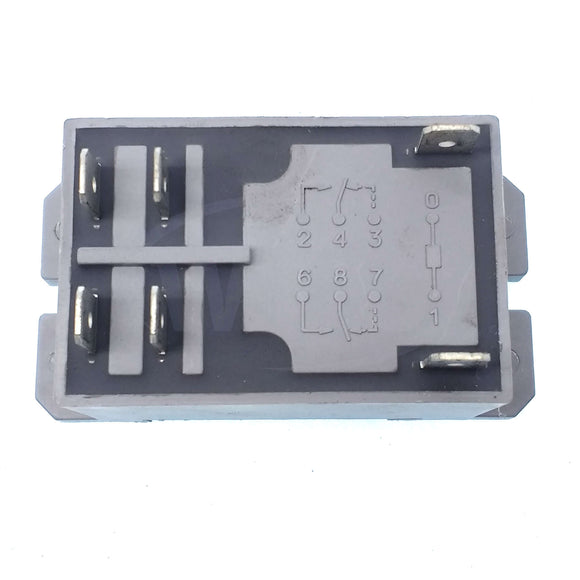

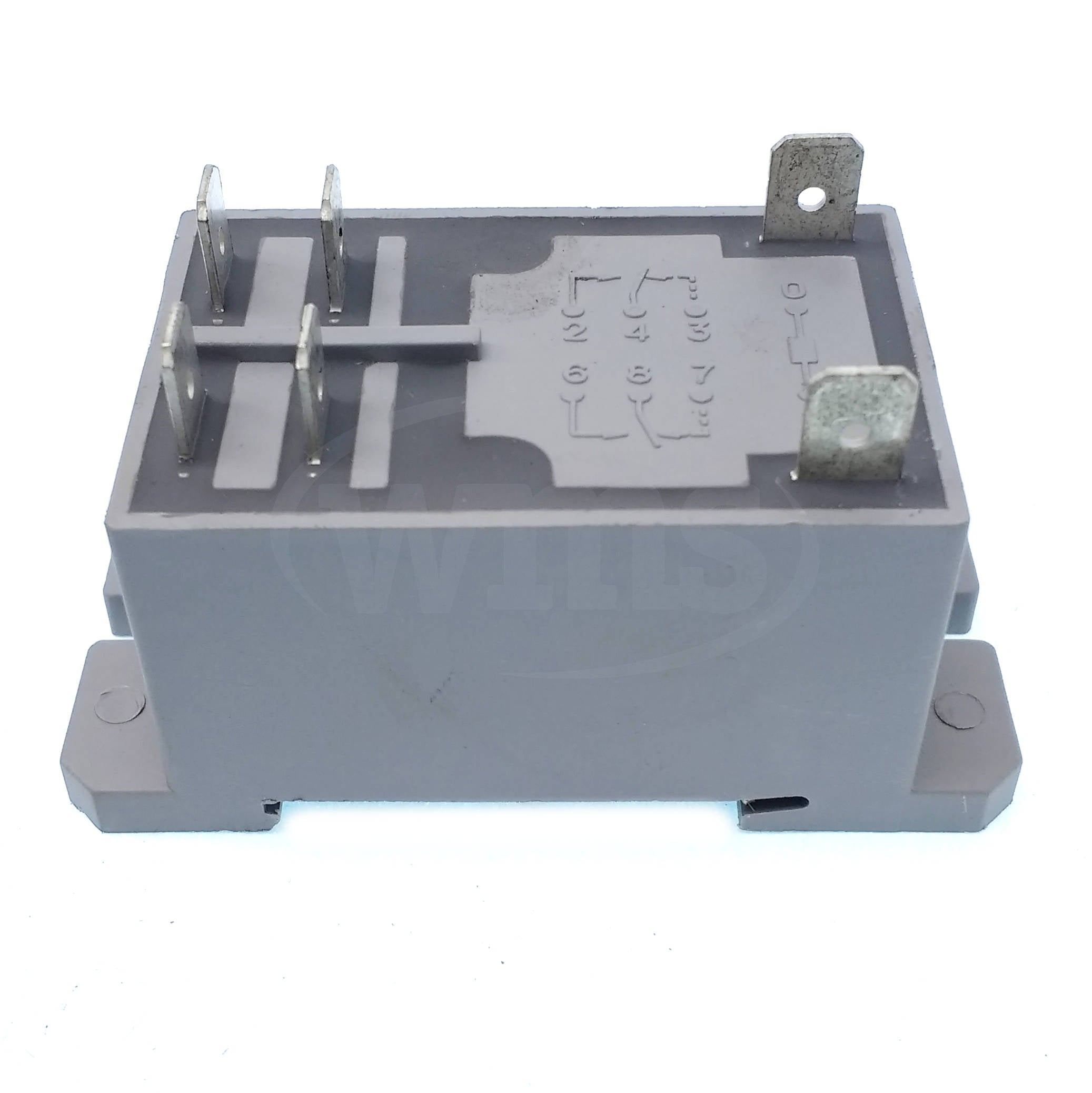

1EJH9 Dayton Relay, Power, DPST-NO, 24VDC, Coil Volts

$7.97

Shipping calculated at checkout

Witmer Motor Service SKU: 1EJH9

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

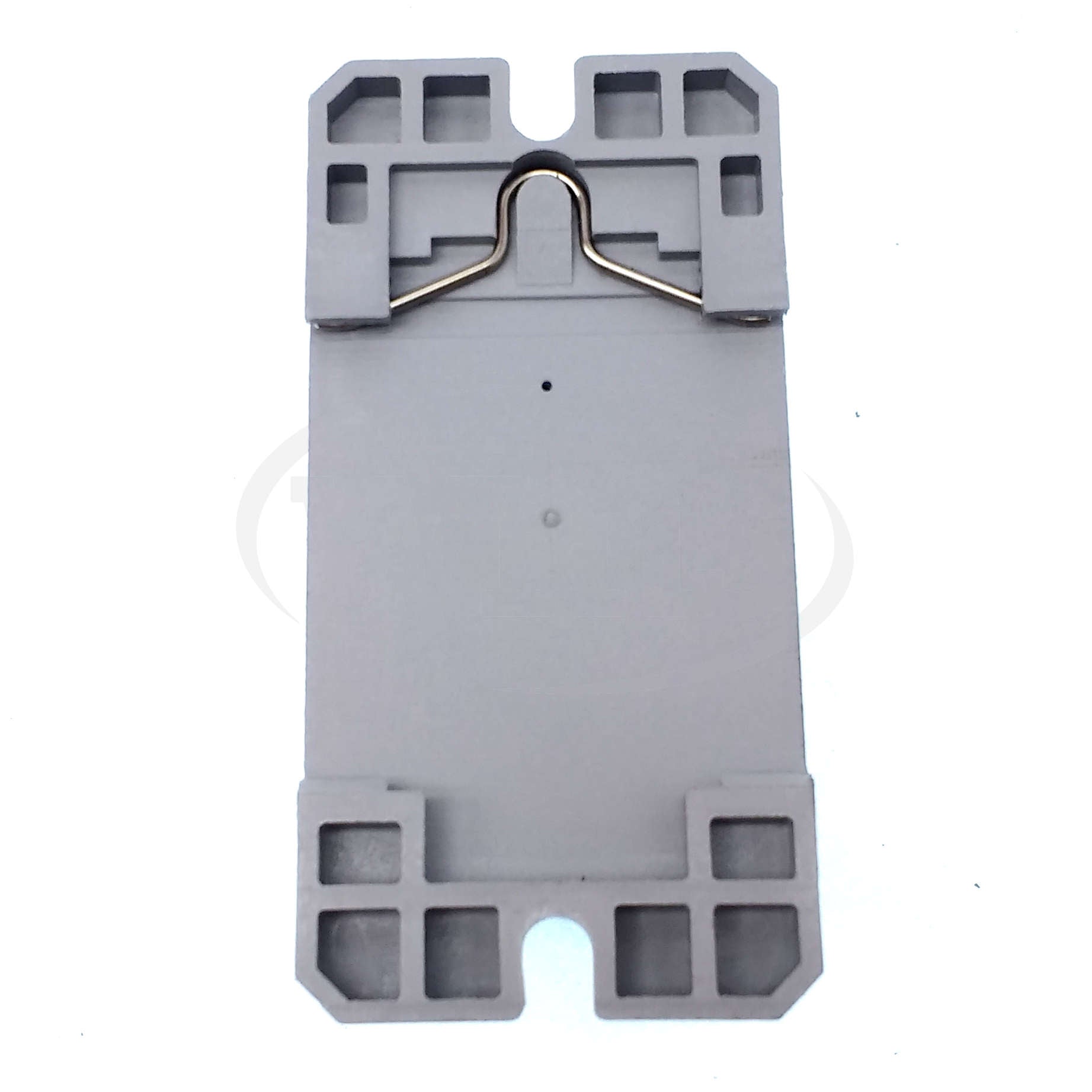

Specs: Item: Enclosed Power Relay Mounting: Din Rail or Bottom Flange Electrical Connection: 1/4" Tab Terminal Pins: 6 Contact Form: DPST-NO Contact Amp Rating (Resistive): 30A @ 277VAC, 20A @ 28VDC HP @ 120V1 HP @ 240V3 Coil Volts: 24VDC Contact Material: Silver Alloy Coil VA Rating: 4 Hz: 50/60 Standards: E40944 Details: Dayton® Bottom-mounted 1/4" quick-connect terminals. Silver cadmium oxide contacts. Operating temp. -30° to 50°C DC; -30° to 65°C AC. Pull-in at 85% of nominal voltage for AC coils or 80% for DC coils. Enclosed Power Relays Flange-type mounting bracket. CSA and CE Certified. Product content provided by supplier
