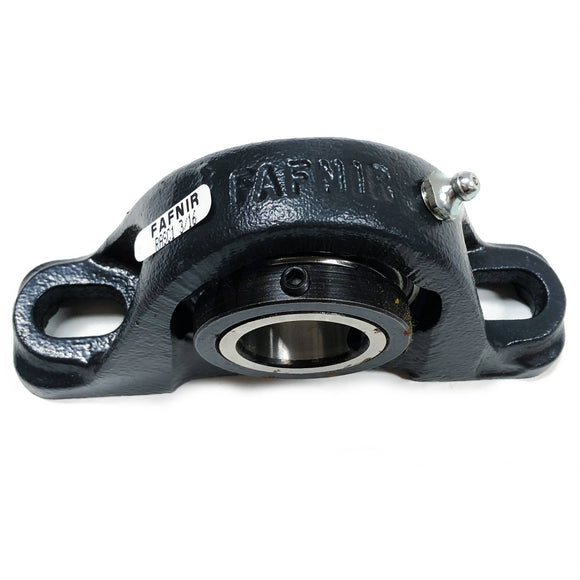

RASC1-3/16 Fafnir Pillow Block Ball Bearing, 1-3/16" Bore

$139.97

Shipping calculated at checkout

Witmer Motor Service SKU: RASC1-3/16 Barcode: 087796058026

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

Shaft Size d

 1 3/16 in30.2 mm

Bearing Type

 Ball Bearing

Bearing Number

 G1103KRRB

Dimension T

 0.846 in21.5 mm

Series

 Industrial

Weight

 3.131 lb1.42 Kg

Seal Type

 Shroud Seal

Housing Construction

 Two-Bolt Pillow Block

Alternate Part Name

 RAS1 3/16

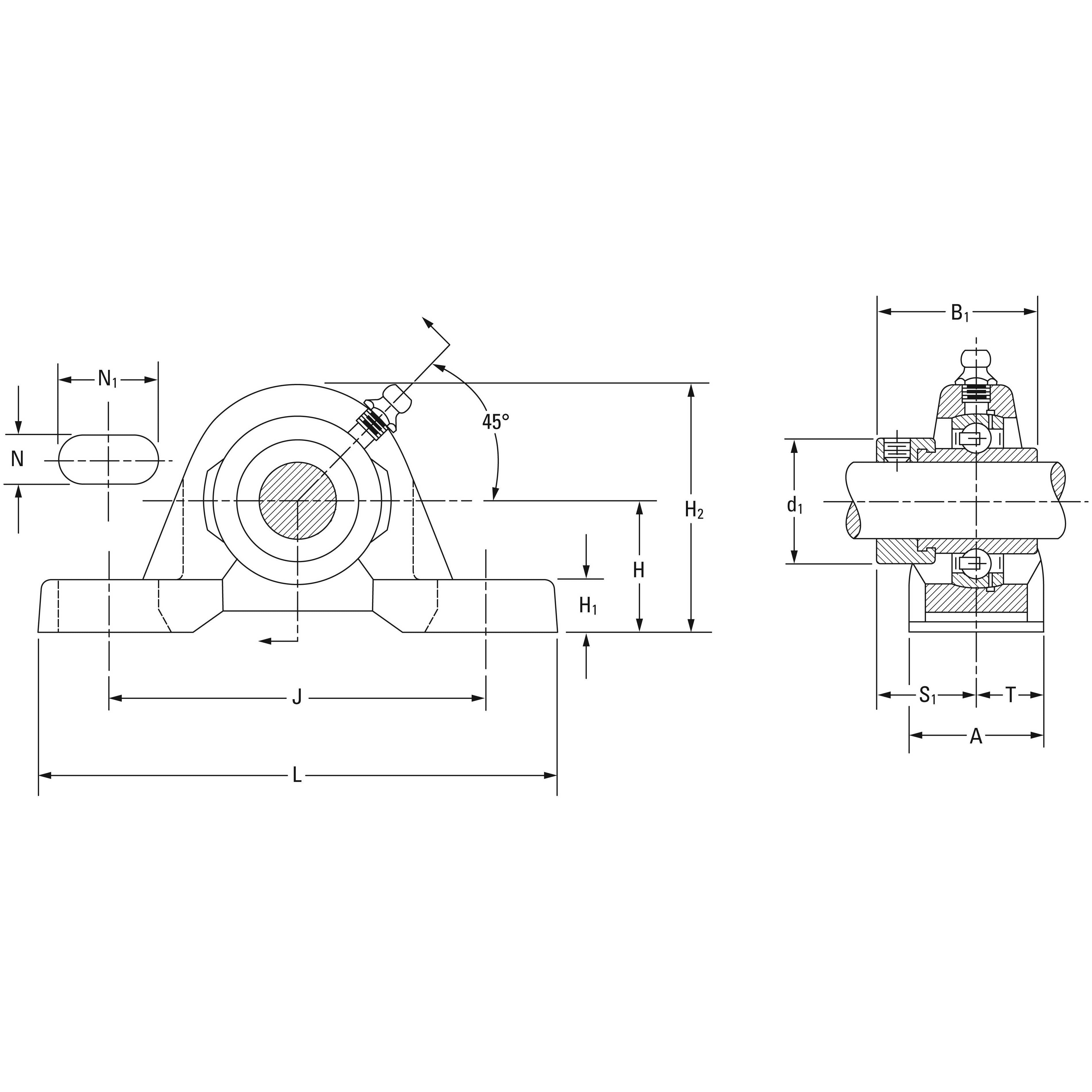

Dimensions

Base to Center Height H

 42.86 mm1.687 in

Total Length L

 157.2 mm6.189 in

Total Width A

 1.689 in42.90 mm

Bolt Hole Spacing J

 117.5 mm4.626 in

Bolt Hole Width N

 14.3 mm0.563 in

Bolt Hole Length N1

 23.8 mm0.937 in

Foot Height H1

 16.7 mm

Total Height H2

 84.9 mm3.343 in

Dimension L1

 52.4 mm2.063 in

Inside Ring Width B

 N/A

Center of Bearing from End S

 18.3 mm0.720 in

Dimension B1

 1.906 in48.4 mm

Basic Load Ratings

Static Load Rating

 2530 lbf11300 N

Dynamic Load Rating

 4850 lbf21600 N
