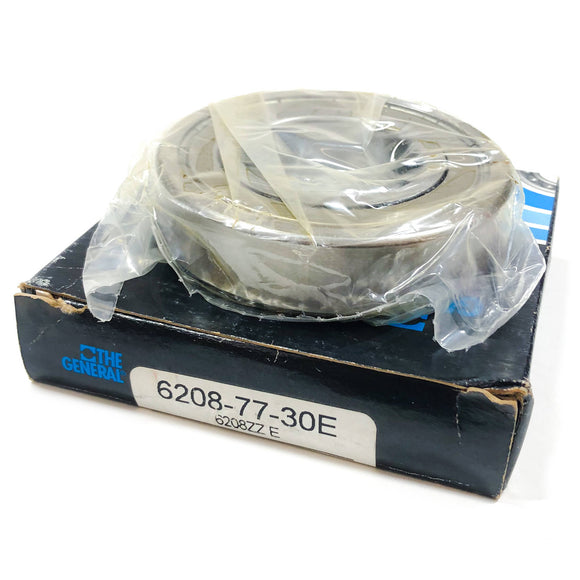

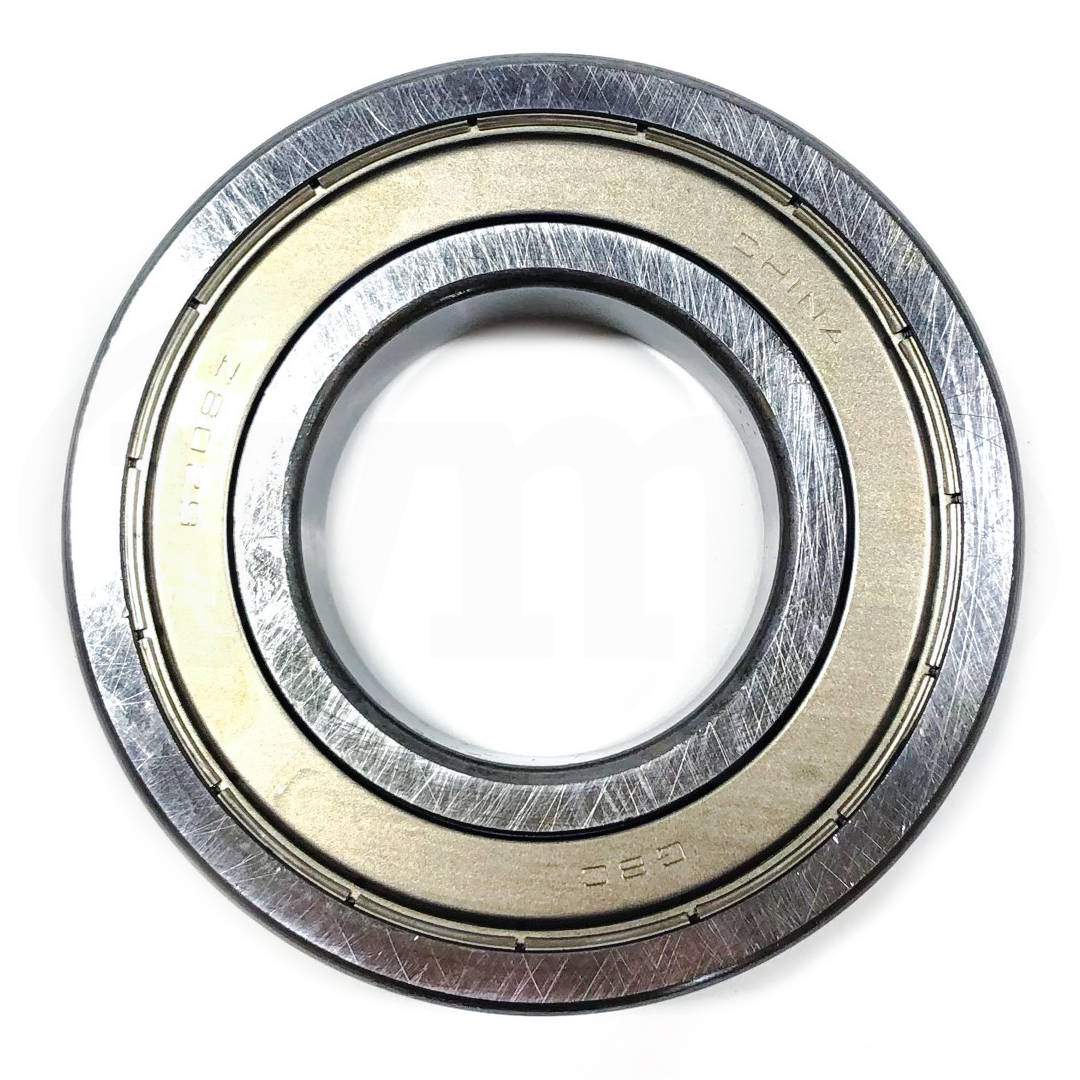

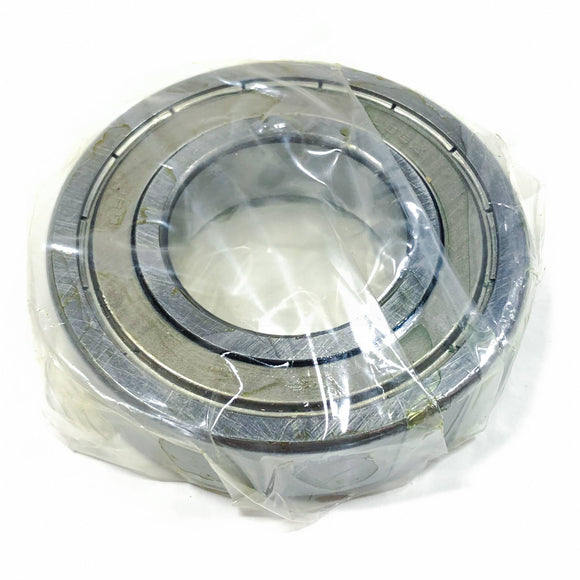

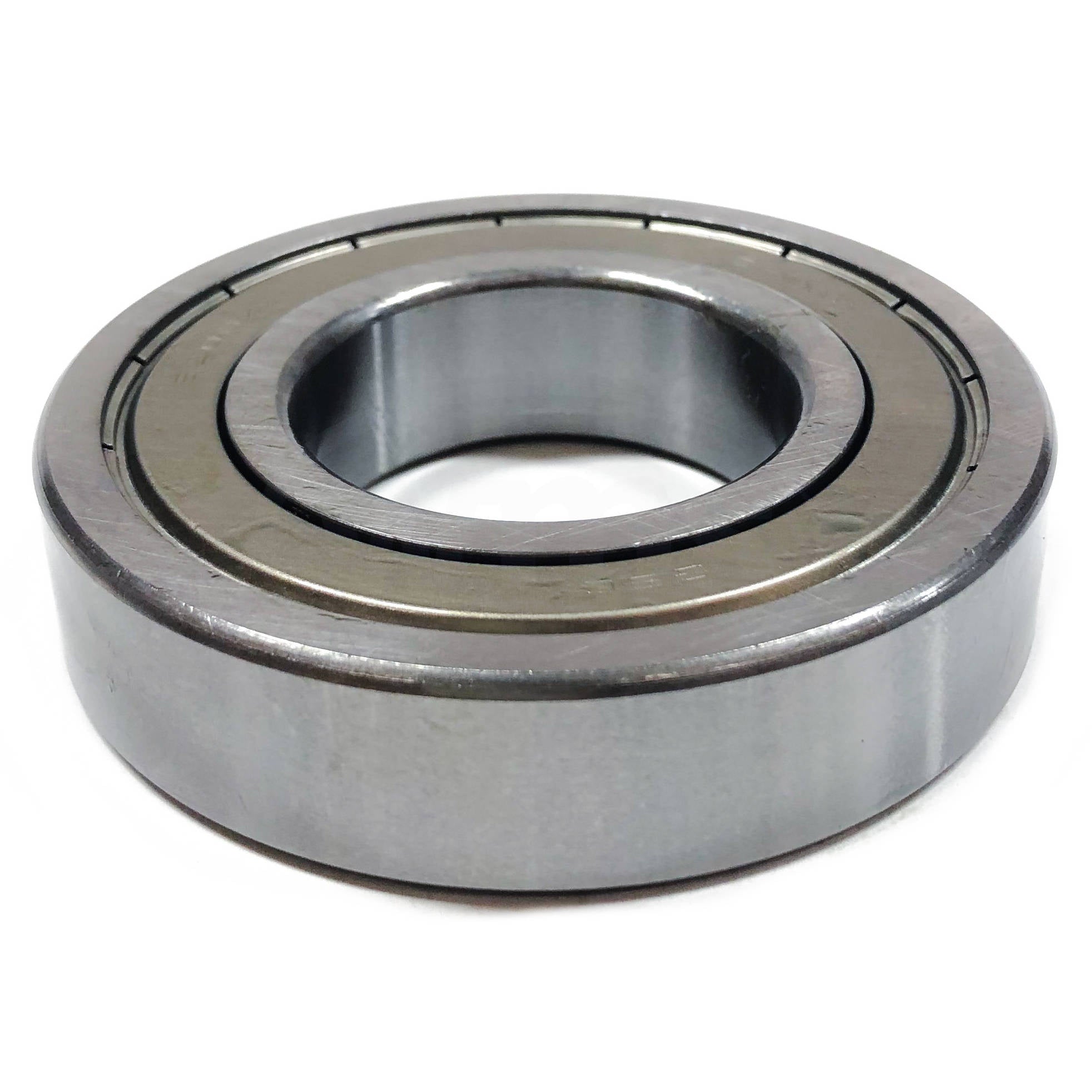

6208-77-30E General Bearing Ball Bearing, 80mm x 40mm x 18mm-1
6208-77-30E General Bearing Ball Bearing, 80mm x 40mm x 18mm-2
6208-77-30E General Bearing Ball Bearing, 80mm x 40mm x 18mm-3
6208-77-30E General Bearing Ball Bearing, 80mm x 40mm x 18mm-4

6208-77-30E General Bearing Ball Bearing, 80mm x 40mm x 18mm

$12.97

Shipping calculated at checkout

Witmer Motor Service SKU: 6208-77-30E Barcode: 662300101551

30 Day
Return Policy

Ships Fast
in 24 hours

5

In stock!
Attributes Values
Bore Diameter (A) (in) 1.5748
Bore Tol -.0005
Outer Diameter (B) (in) 3.1496
Outer Diameter Tol -.0005
Basic Static Load (lbs) 4071
Basic Dynamic Load (lbs) 6629
Weight (lbs) 0.8300
Limiting Speed (rpm) 9000
Bore Diameter (A) (mm) 40.000
Bore Tol (mm) -.013
Outer Diameter (mm) 80.000
Outer Diameter Tol (mm) -0.013
Width (C) (in) .7087
Width (C) (mm) 18.000
Max Fillet Radius (in) 0.040
Max Fillet Radius (mm) 1.0
