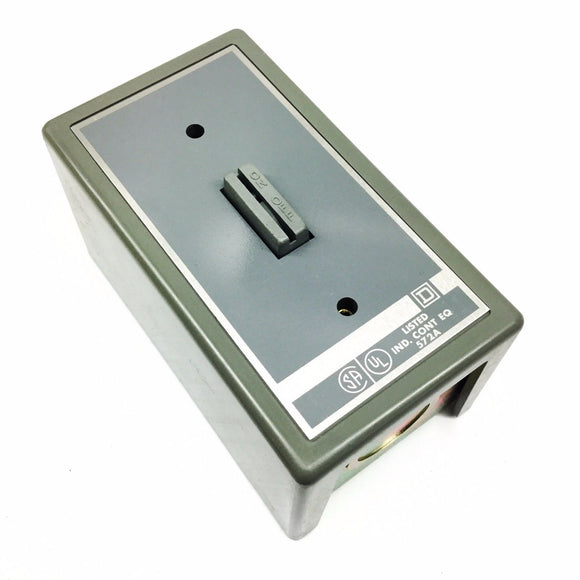

2510KG4 Square D Motor Starter Switch, 30A, 3-Pole

$89.97 USD

Shipping calculated at checkout

Schneider Electric (Square D) SKU: 2510KG4 Barcode: 10785901554544

30 Day
Return Policy

Ships Fast
in 24 hours

New, In Original Mfg Box, 600VAC

Sold Out

  • Characteristics

    Main
    product or component type
    Single Unit Manual Switch
    range of product
    K
    Complementary
    Line Rated Current
    30 A
    cable entry
    0.5" and 0.75" knock-outs (top and bottom)
    motor power hp
    2 hp at 115 V AC
    1 hp at 90 V DC
    2 hp at 115 V DC
    1.5 hp at 230 V DC
    7.5 hp at 230 V AC
    10 hp at 460 V AC
    10 hp at 575 V AC
    System Voltage
    600 V AC
    230 V DC
    poles description
    3P
    control type
    Key
    Phase
    3 phases
    local signalling
    No indicator
    motor starter type
    Non reversing
    electrical connection
    Screw clamp terminals
    AWG gauge
    AWG 14...AWG 10 (copper)
    height
    4.25 in
    width
    2.44 in
    depth
    2.75 in
    Environment
    product certifications
    CSA LR25490 class 3211 05
    UL listed file E42243 CCN NLRV
    CE
    NEMA degree of protection
    NEMA 1 plastic standard size
    Ordering and shipping details
    Category
    21102 - 2510,2511,2512 K
    Discount Schedule
    CP1
    GTIN
    00785901554547
    Nbr. of units in pkg.
    3
    Package weight(Lbs)
    0.87
    Returnability
    N
    Country of origin
    MX
    Offer Sustainability
    Sustainable offer status
    Not Green Premium product
    RoHS (date code: YYWW)
    Will not be compliant
