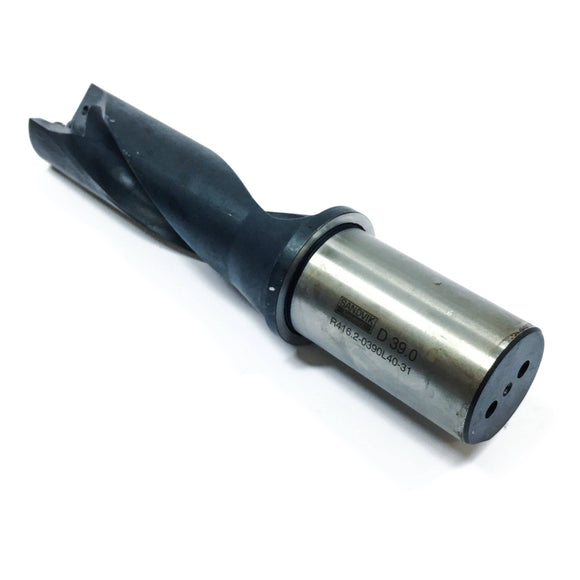

Sandvik R416.2-0390L40-31 Indexable Insert Drill-1

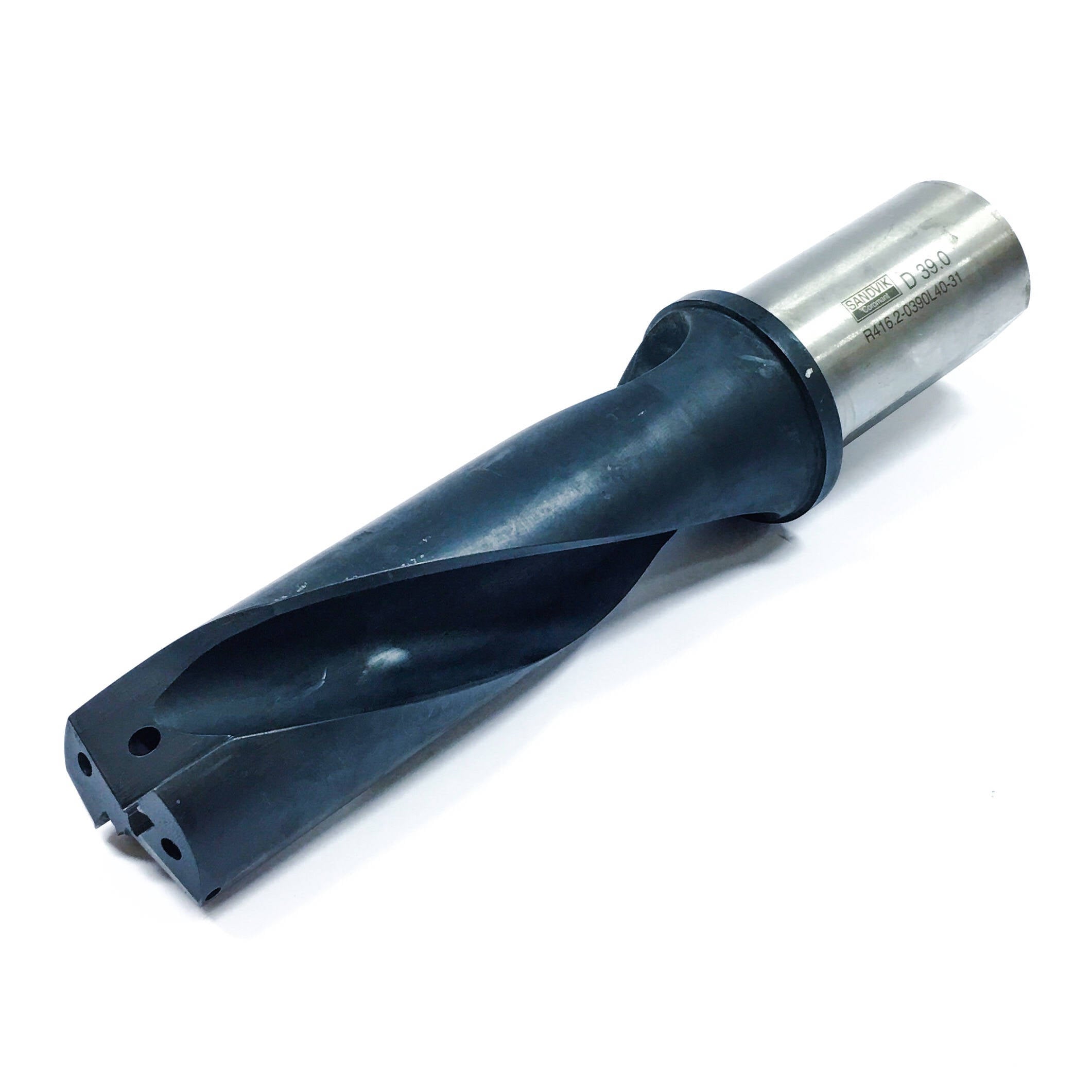

Sandvik R416.2-0390L40-31 Indexable Insert Drill-2

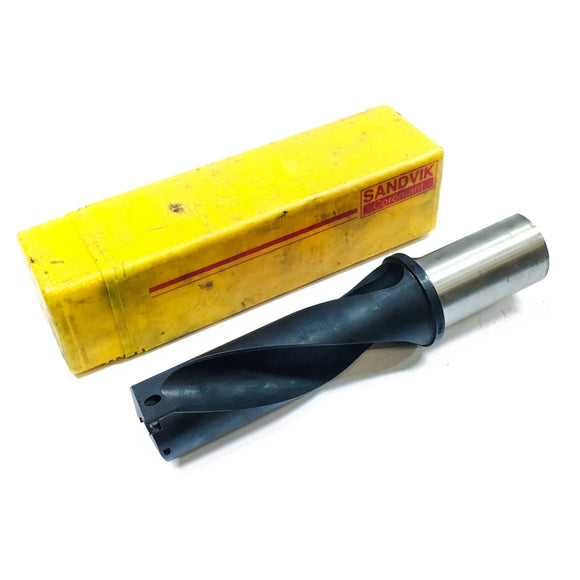

Sandvik R416.2-0390L40-31 Indexable Insert Drill-3

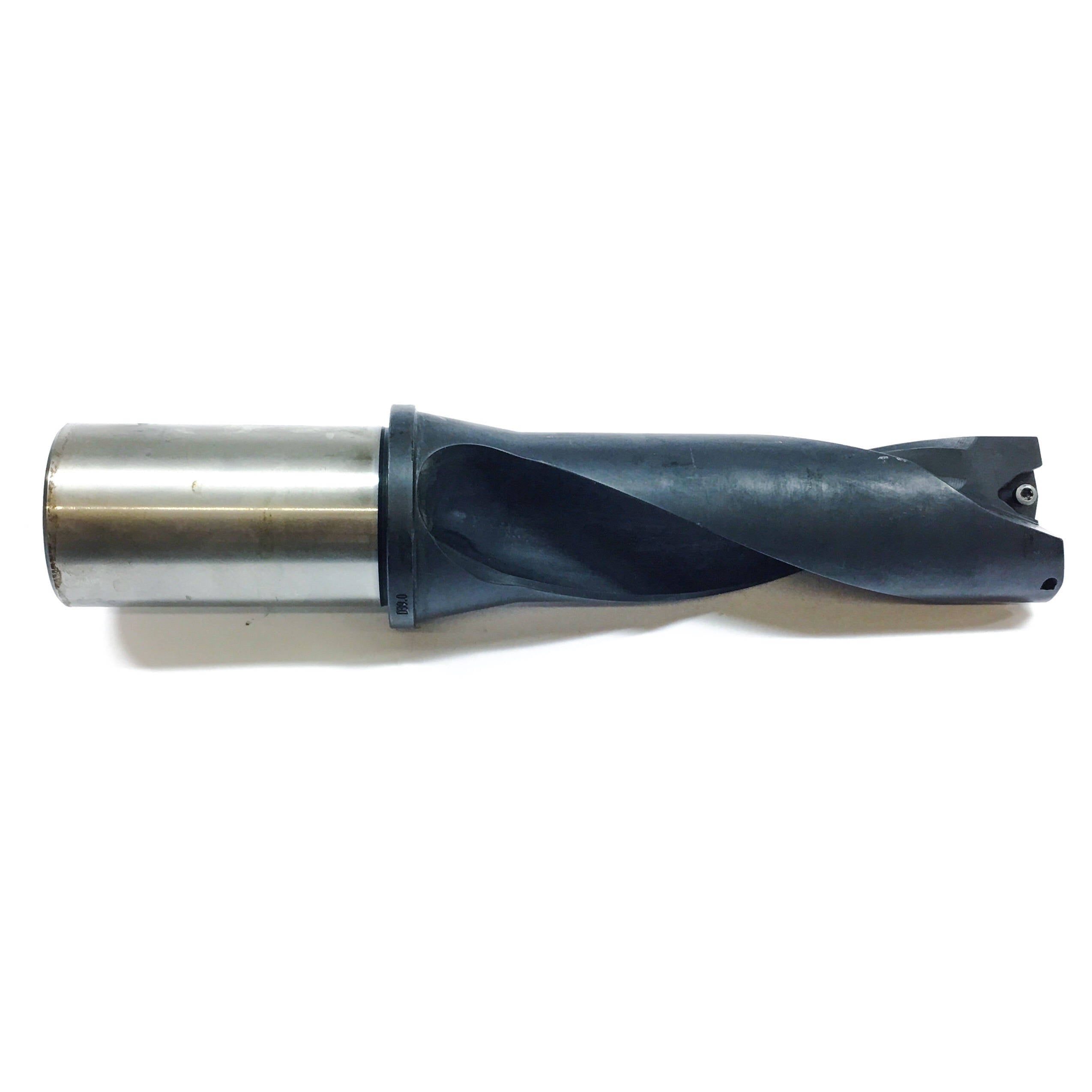

Sandvik R416.2-0390L40-31 Indexable Insert Drill-4

Sandvik R416.2-0390L40-31 Indexable Insert Drill

$249.97

Shipping calculated at checkout

Witmer Motor Service SKU: R416.2-0390L40-31

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Ordering code

ISO
R416.2-0390L40-31
 ANSI
R416.2-0390L40-31

Material Id
5746536
 EAN
10887553

Product data

Cutting diameter (DC) 39 mm

Achievable hole tolerance lower (TCHAL) -0.1 mm

Achievable hole tolerance upper (TCHAU) 0.3 mm

Usable length (LU) 120.9 mm

Usable length diameter ratio (ULDR) 3.1

Maximum adjustment limit (ADJLX) 1.5 mm

Part 2 of cutting item interface identifiers (CUTINTMASTERC1) CoroDrill U -C (WCMX06)

Part 2 of cutting item interface identifiers (CUTINTMASTERP1) CoroDrill U -P (WCMX06)

Adaptive interface machine direction (ADINTMS) Cylindrical shank (ISO9766 drill shank) -metric: 40

Coolant entry style code (CNSC) 1: axial concentric entry

Coolant pressure (CP) 10 bar

Connection diameter (DCON) 40 mm

Tool cutting edge angle (KAPR) 85 deg

Point length (PL) 3.9 mm

Overall length (OAL) 219 mm

Functional length (LF) 145.1 mm

Body length (LB1) 121 mm

Rotational speed maximum (RPMX) 16000 r/min

Weight of item (WT) 1.47 kg

Life cycle state (LCS) Obsolete

Release pack id (RELEASEPACK) 95.3
