Sandvik 570-32L151.3-10-50 T-Max Q-Cut Grooving Head-1
Sandvik 570-32L151.3-10-50 T-Max Q-Cut Grooving Head-2
Sandvik 570-32L151.3-10-50 T-Max Q-Cut Grooving Head-3
Sandvik 570-32L151.3-10-50 T-Max Q-Cut Grooving Head-4

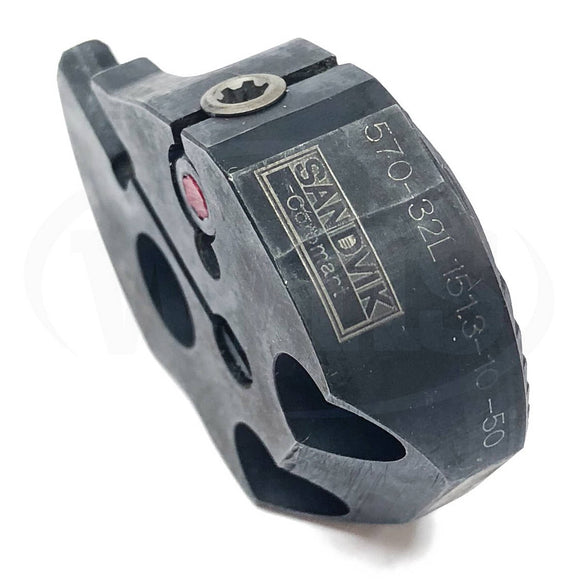

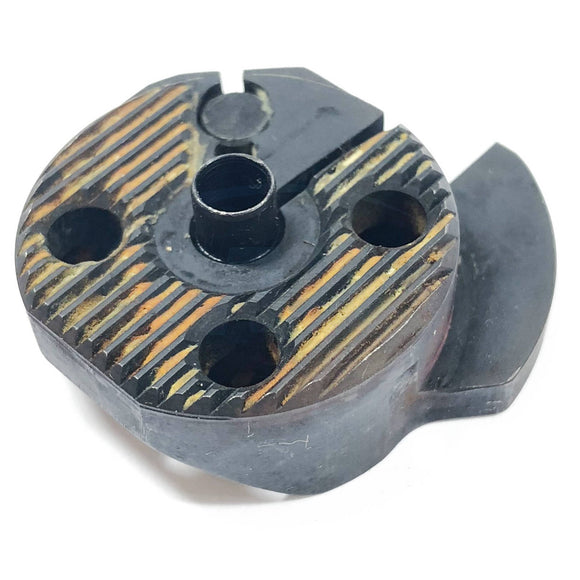

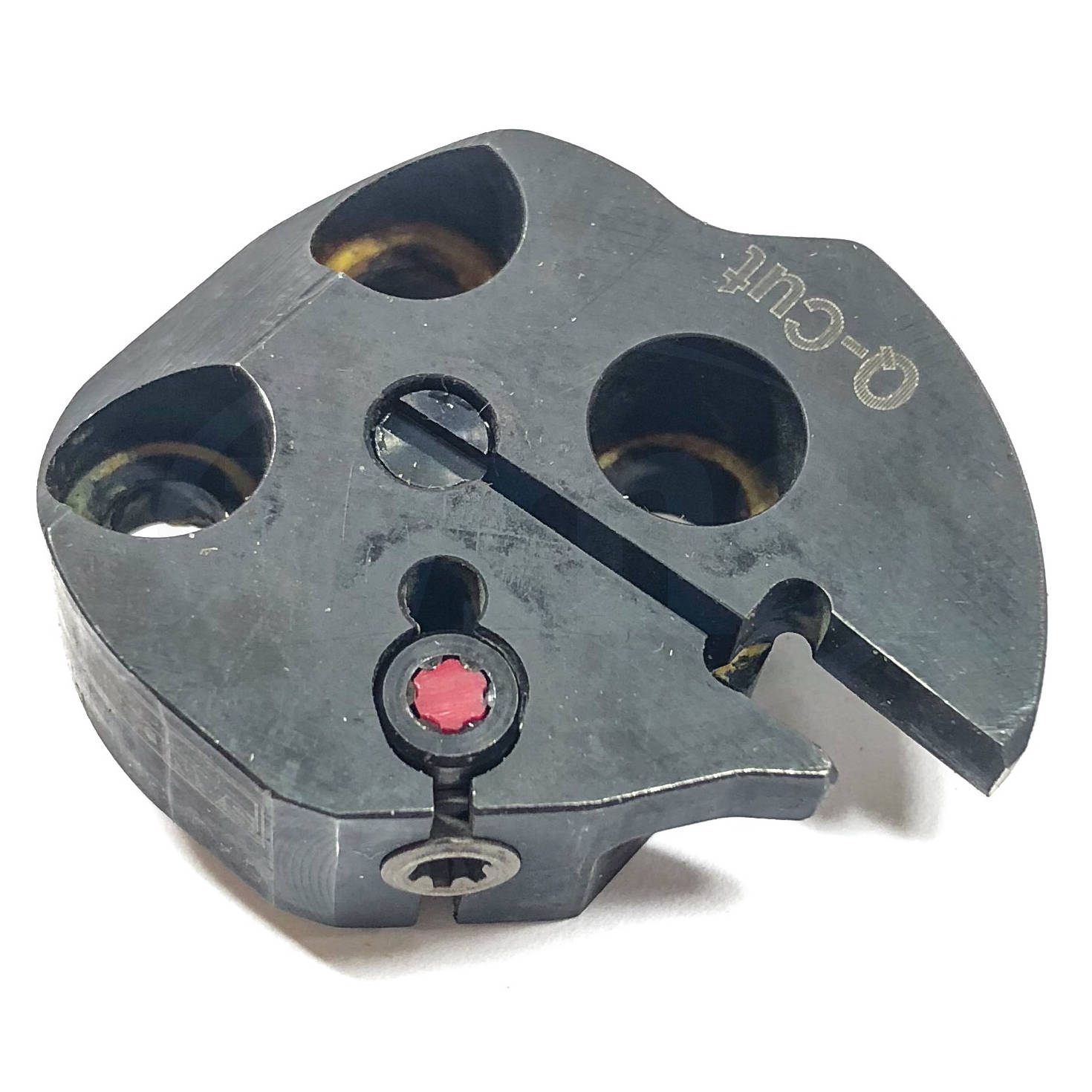

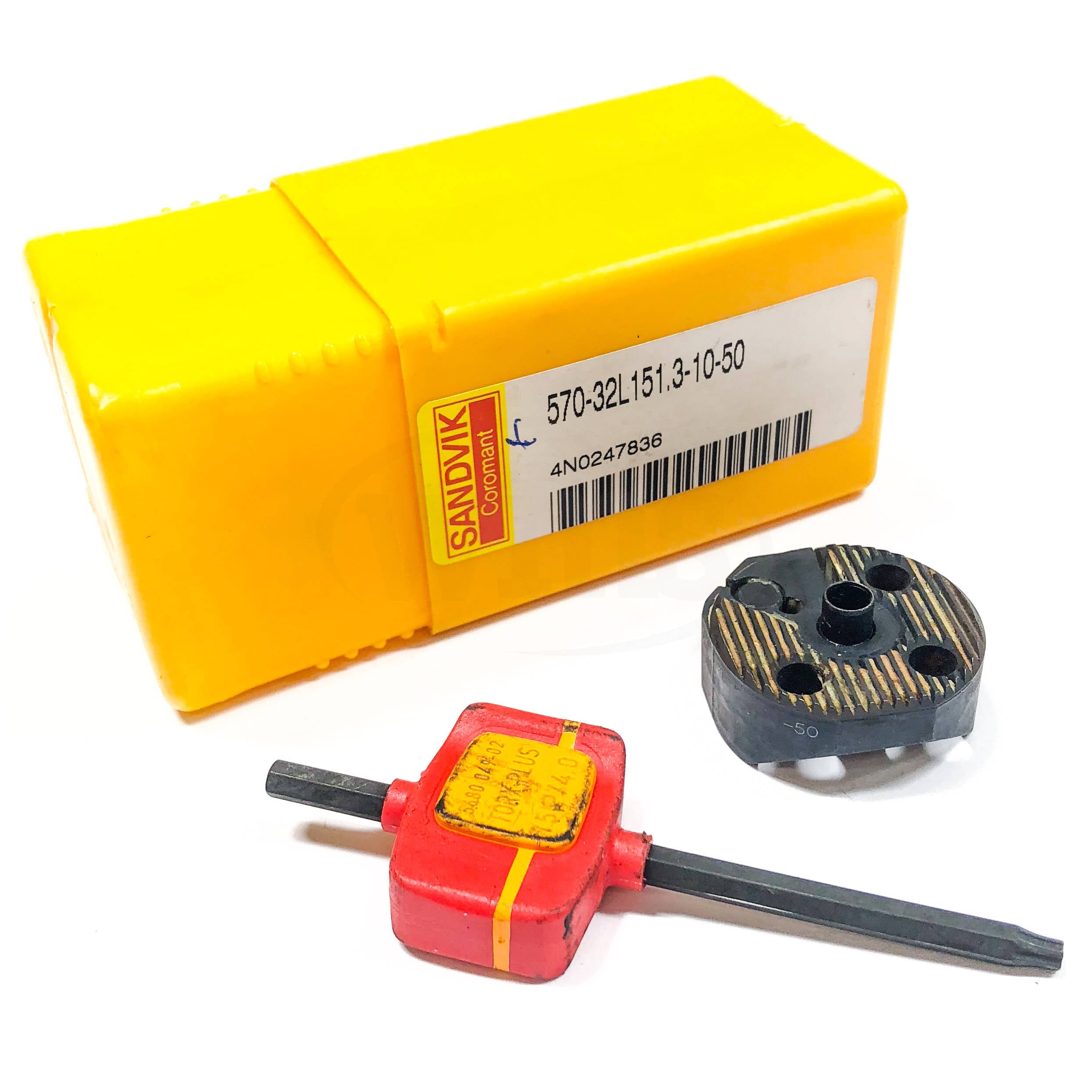

Sandvik 570-32L151.3-10-50 T-Max Q-Cut Grooving Head

$199.97

Shipping calculated at checkout

Witmer Motor Service SKU: 570-32L151.3-10-50

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Product data

Connection size code (CZC) 32

Cutting depth maximum (CDX) 10 mm

Part 2 of cutting item interface identifiers (CUTINTMASTER) Q-Cut -size 50 (N151.3-600-50-7G)

Adaptive interface machine direction (ADINTMS) SL head (screw mounted) -size 32

Minimum bore diameter (DMIN1) 48.8 mm

Workpiece side body angle (BAWS) 90 deg

Coolant entry style code (CNSC) 1: axial concentric entry

Connection diameter (DCON) 32 mm

Maximum overhang (OHX) 11 mm

Hand (HAND) L

Coolant exit style code (CXSC) 5: axial inclined exit with nozzle, adjustable

Coolant pressure (CP) 10 bar

Functional length (LF) 14 mm

Functional width (WF) 27.6 mm

Functional height (HF) 0 mm

Master insert identification (MIIDM) N151.3-600-50- 7G

Torque (TQ) 3 Nm

Weight of item (WT) 0.11 kg

Sensor embedded property (SEP) 0

Life cycle state (LCS) Released

Release pack id (RELEASEPACK) 04.2
