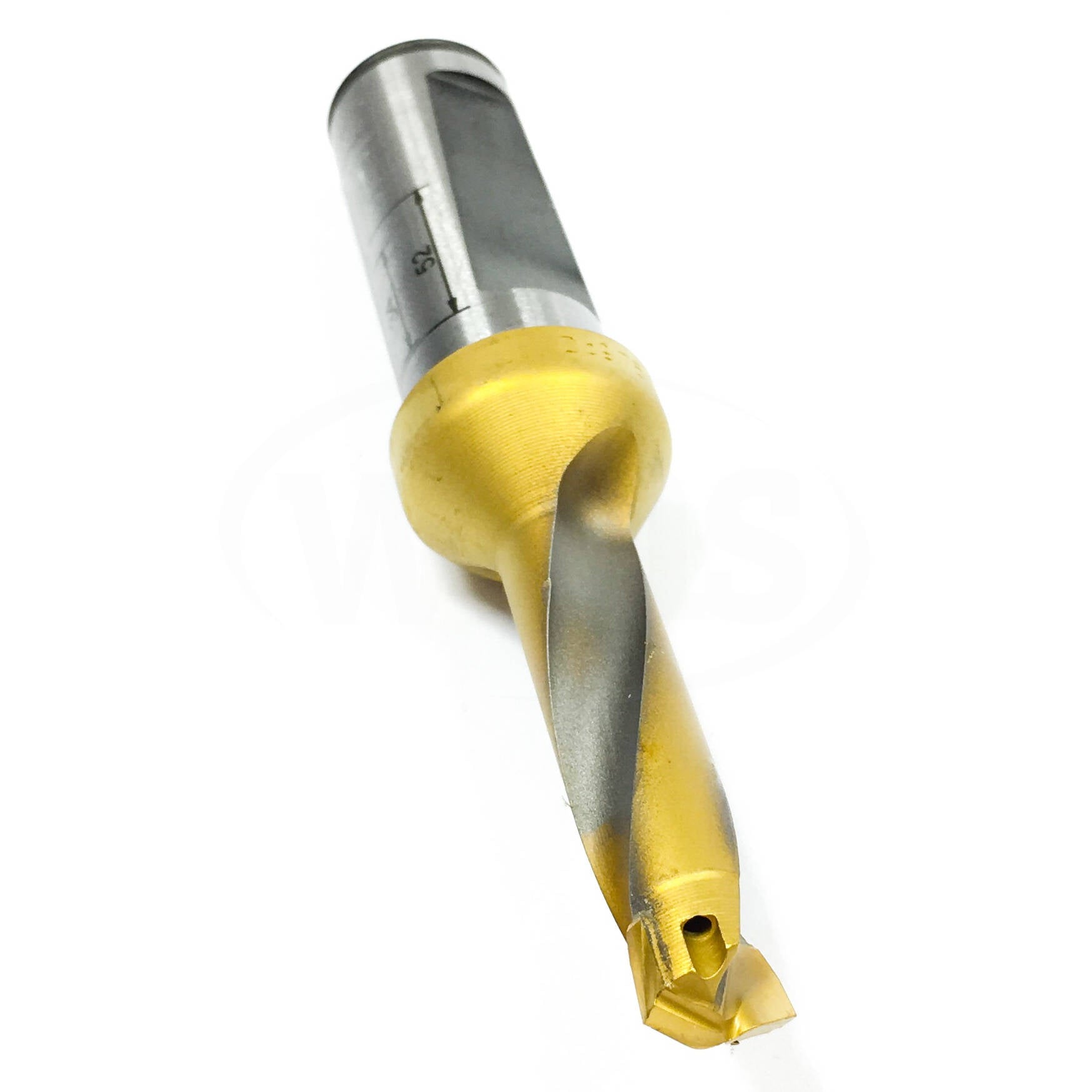

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-1

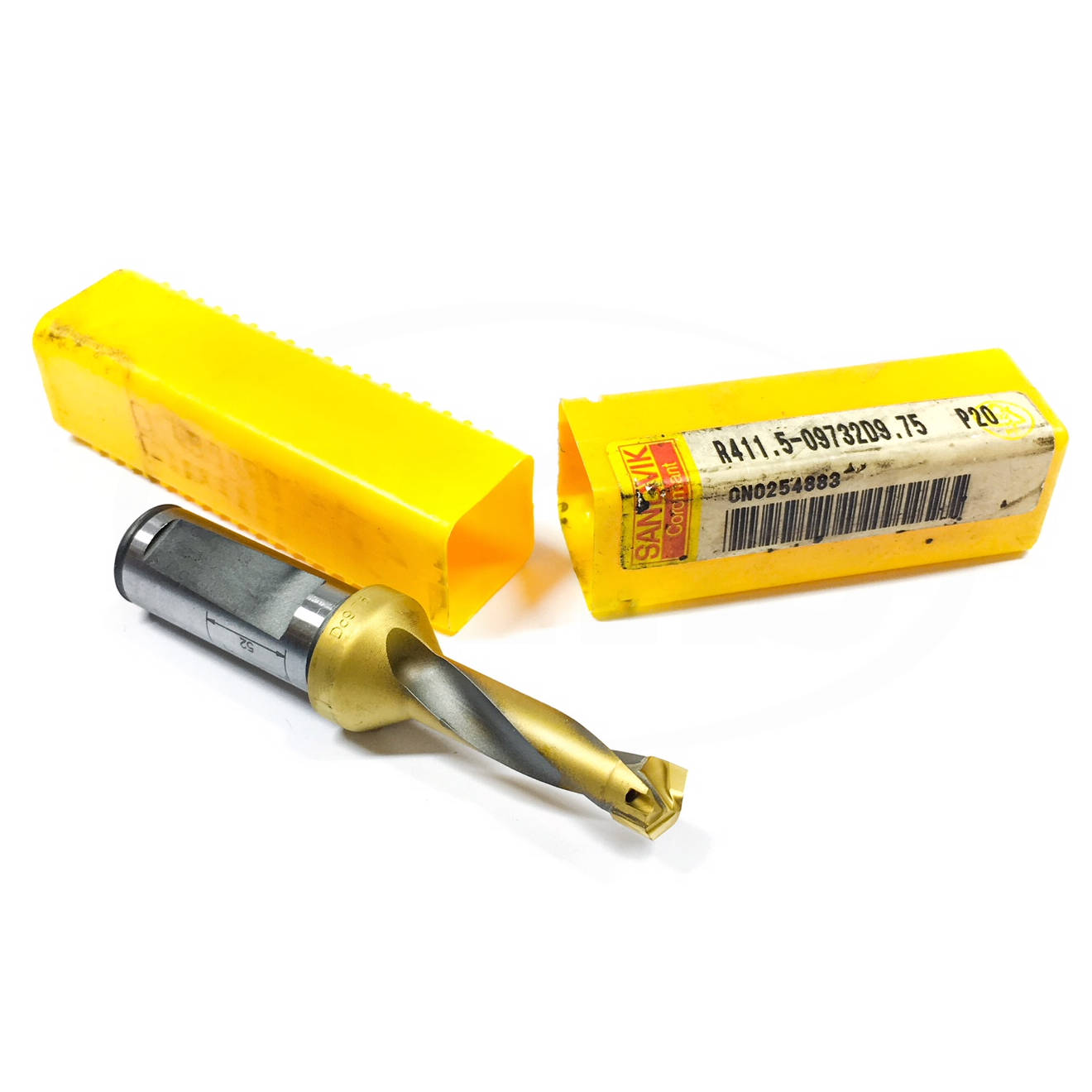

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-2

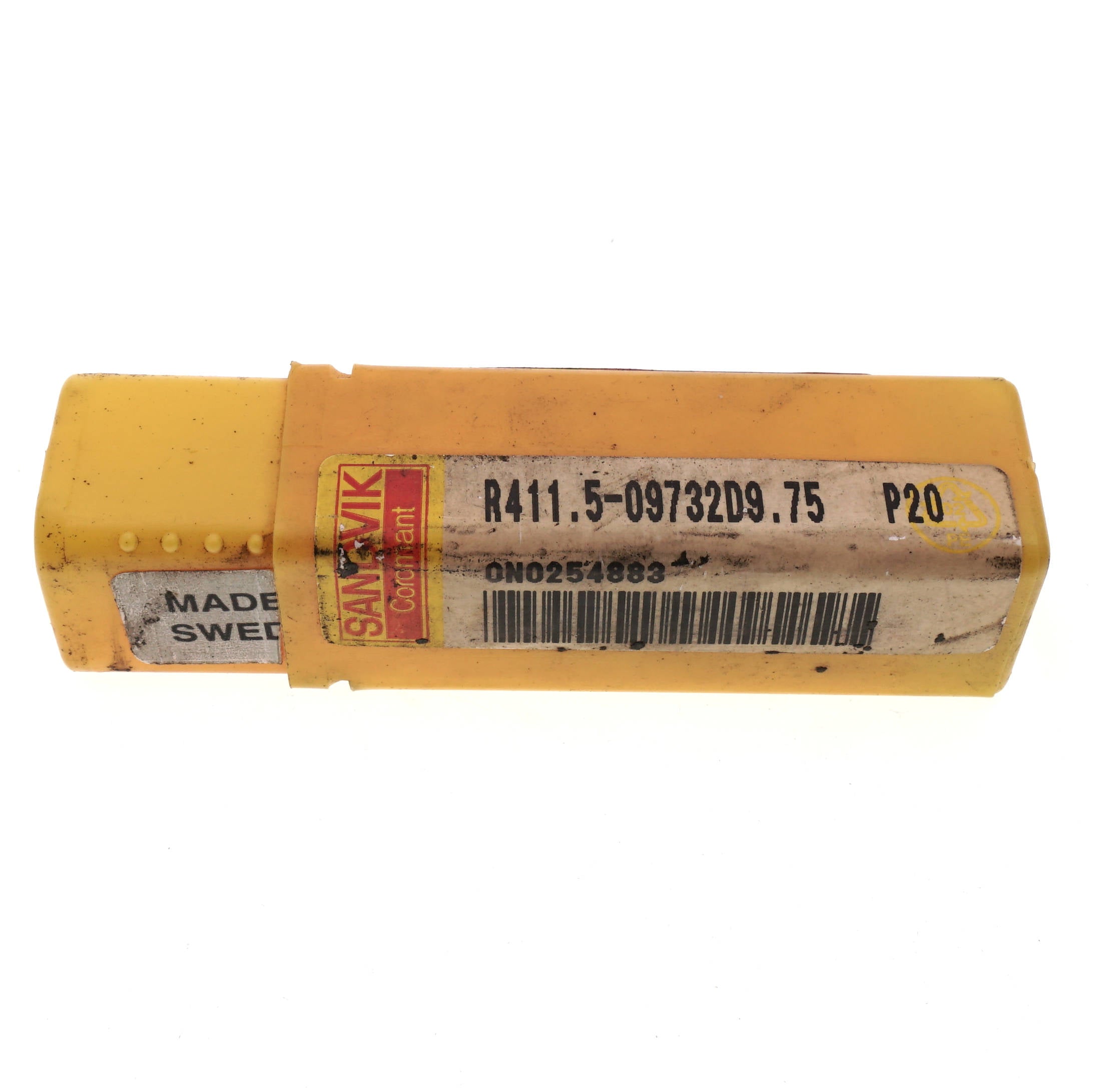

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-3

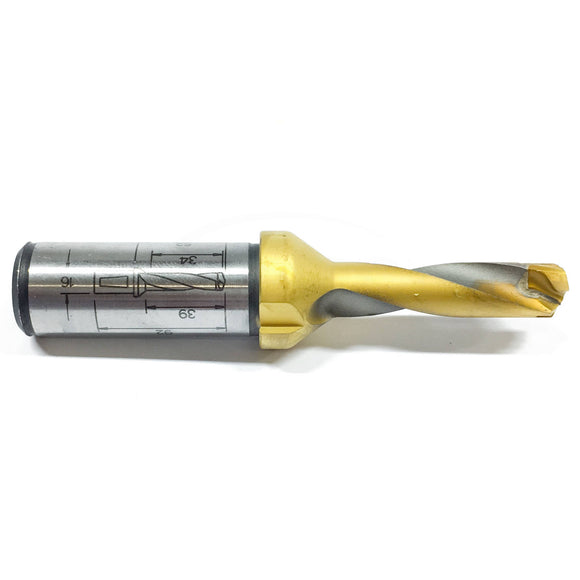

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-4

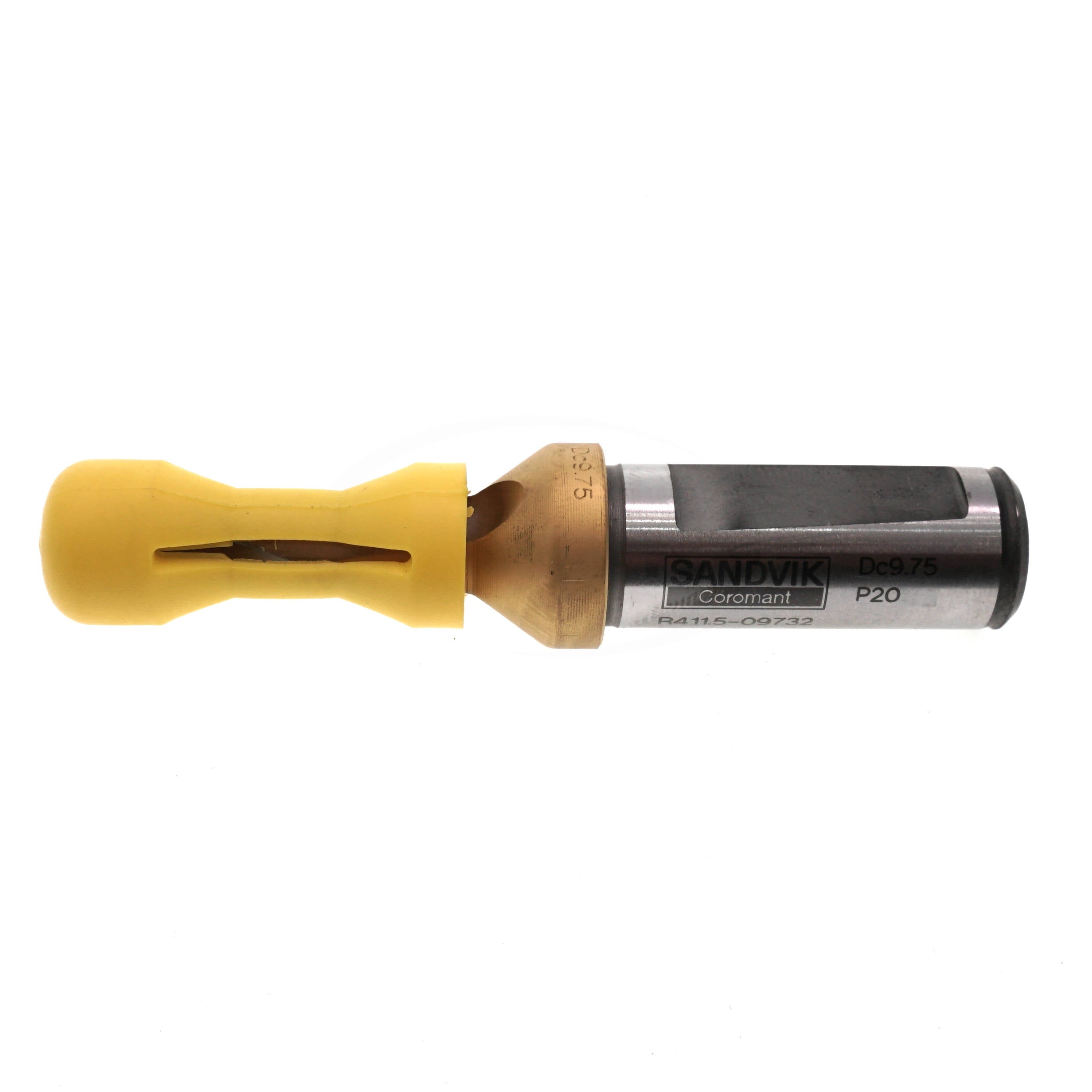

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-5

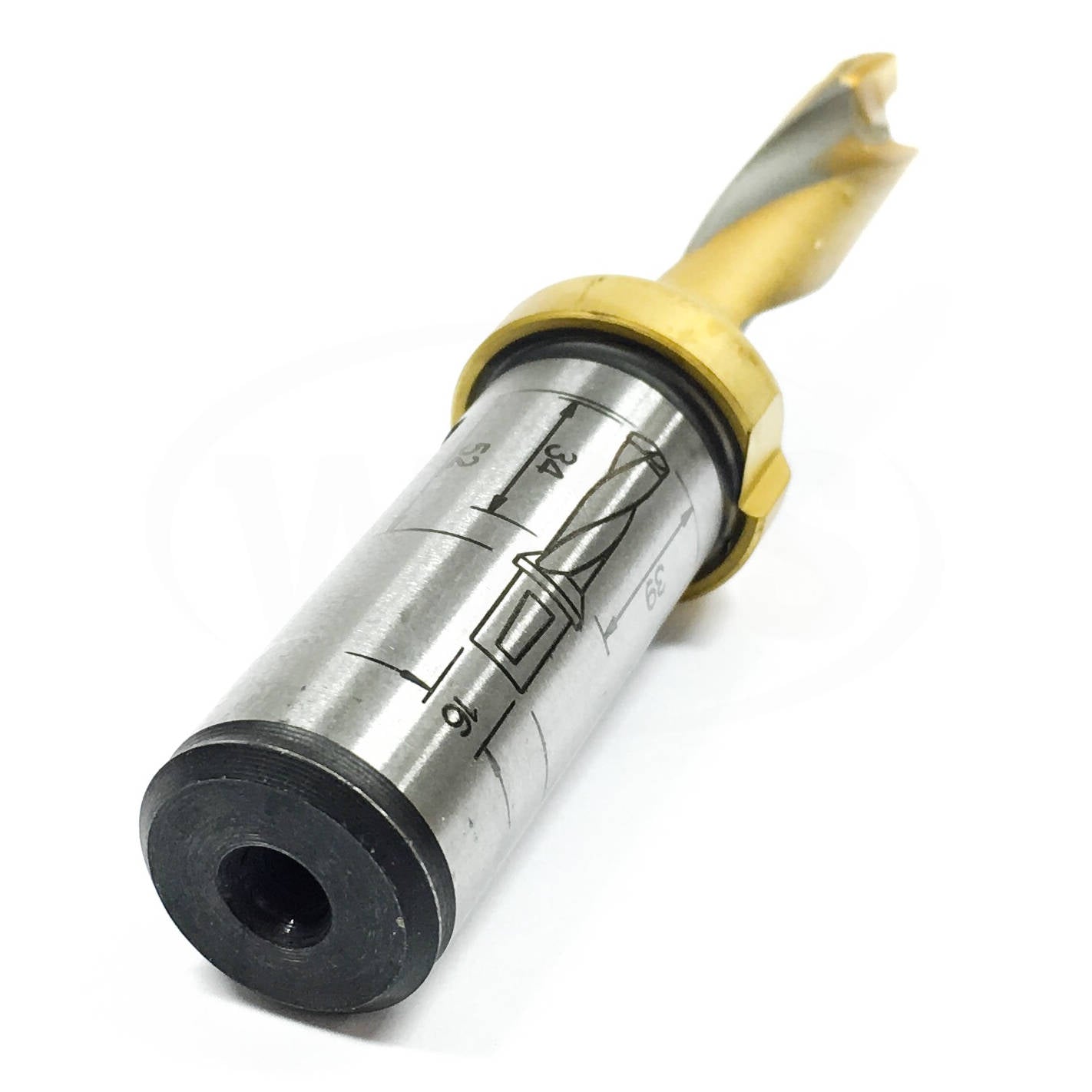

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-6

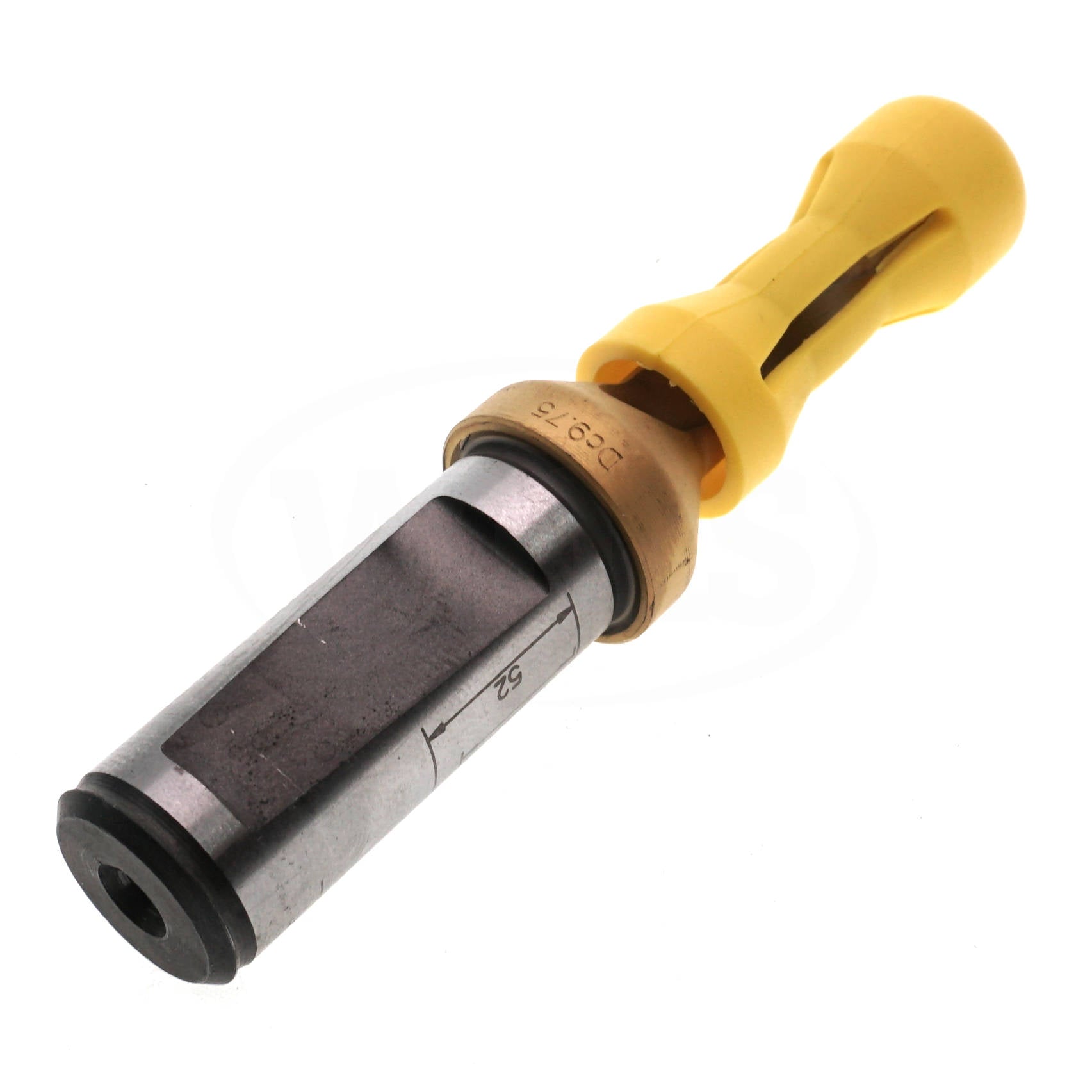

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-7

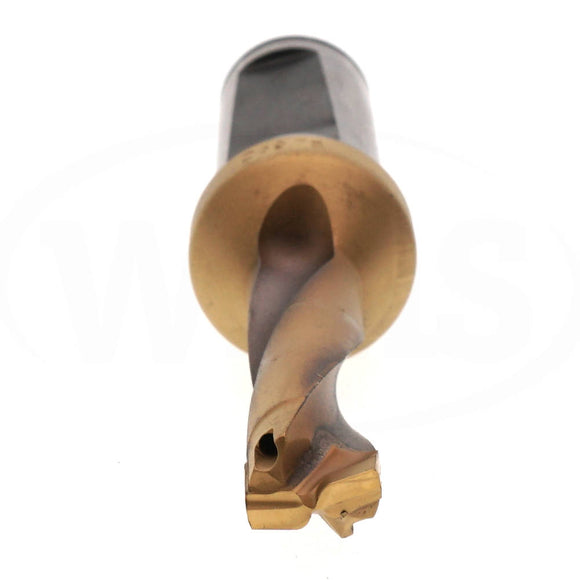

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill-8

R411.5-09732D9.75 P20 Sandvik Carbide Tipped Drill

$109.97

Shipping calculated at checkout

Witmer Motor Service SKU: R411.5-09732D9.75 P20

30 Day
Return Policy

Ships Fast
in 24 hours

Sold Out

Ordering code

ISO
R411.5-09732D9.75 P20
 ANSI
R411.5-09732D9.75 P20

Material Id
5746148
 EAN
10411940

Product data

Suboperation (SUBOP) Drilling with Symetrical Point

Cutting diameter (DC) 9.75 mm

Achievable hole tolerance (TCHA) H9

Usable length (LU) 35.7 mm

Usable length diameter ratio (ULDR) 3.662

Adaptive interface machine direction (ADINTMS) Whistle Notch (DIN6535-HE) -metric: 16

Connection diameter tolerance (TCDCON) h6

Grade (GRADE) P20

Substrate (SUBSTRATE) HC

Coating (COATING) PVD TiN

Basic standard group (BSG) ISO9766

Coolant entry style code (CNSC) 1: axial concentric entry

Coolant pressure (CP) 15 bar

Connection diameter (DCON) 16 mm

Point angle (SIG) 140 deg

Point length (PL) 1.774 mm

Overall length (OAL) 92 mm

Functional length (LF) 90.226 mm

Maximum regrinds (NORGMX) 3

Rotational speed maximum (RPMX) 33000 r/min

Weight of item (WT) 0.35 kg

Life cycle state (LCS) Obsolete

Release pack id (RELEASEPACK) 86.1
