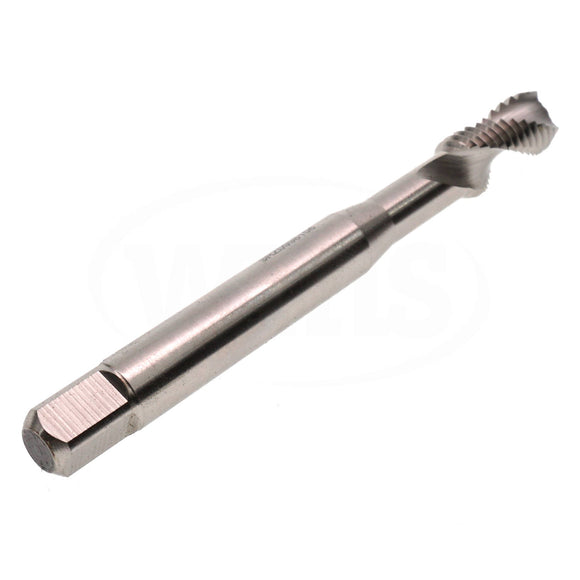

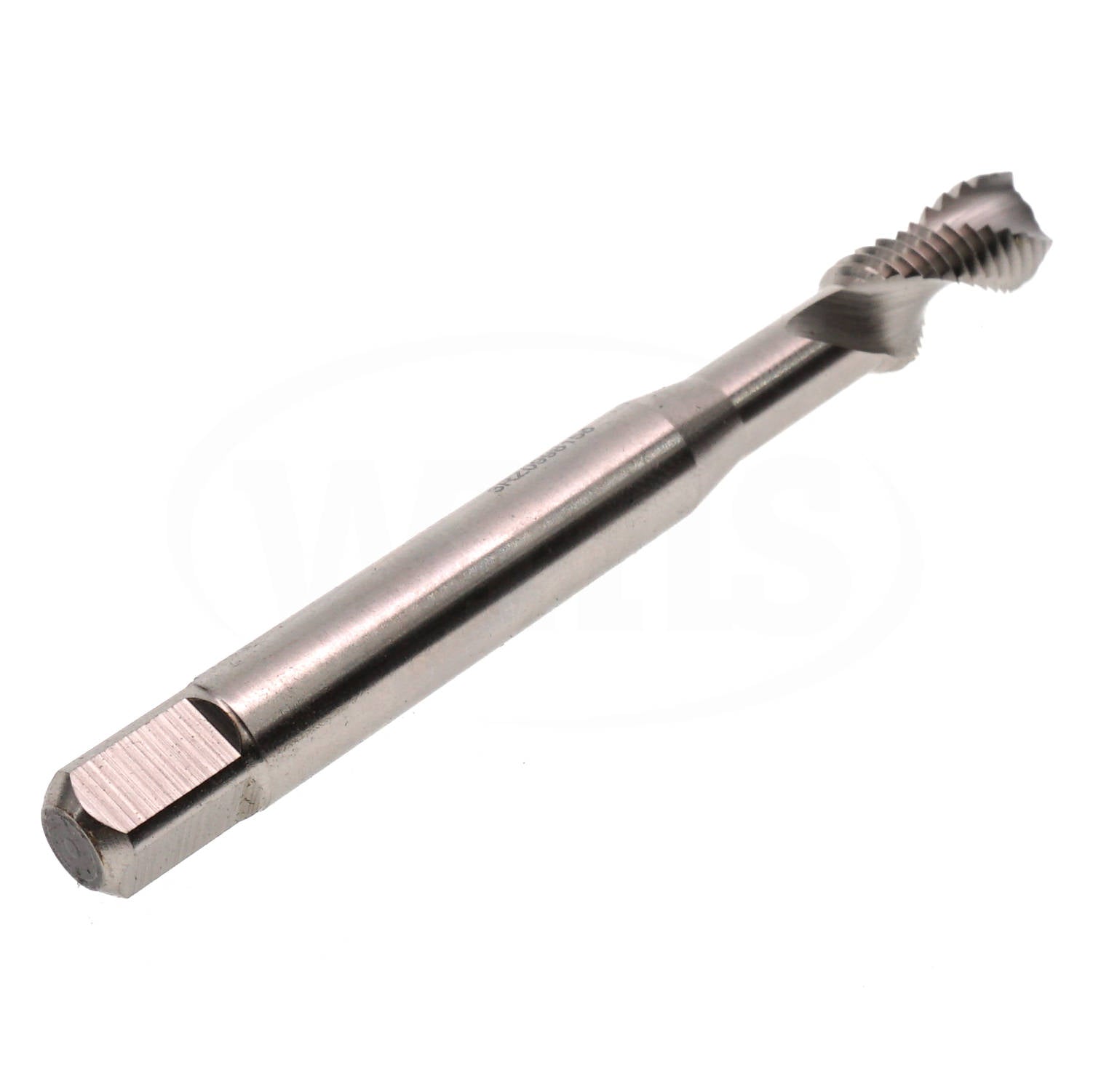

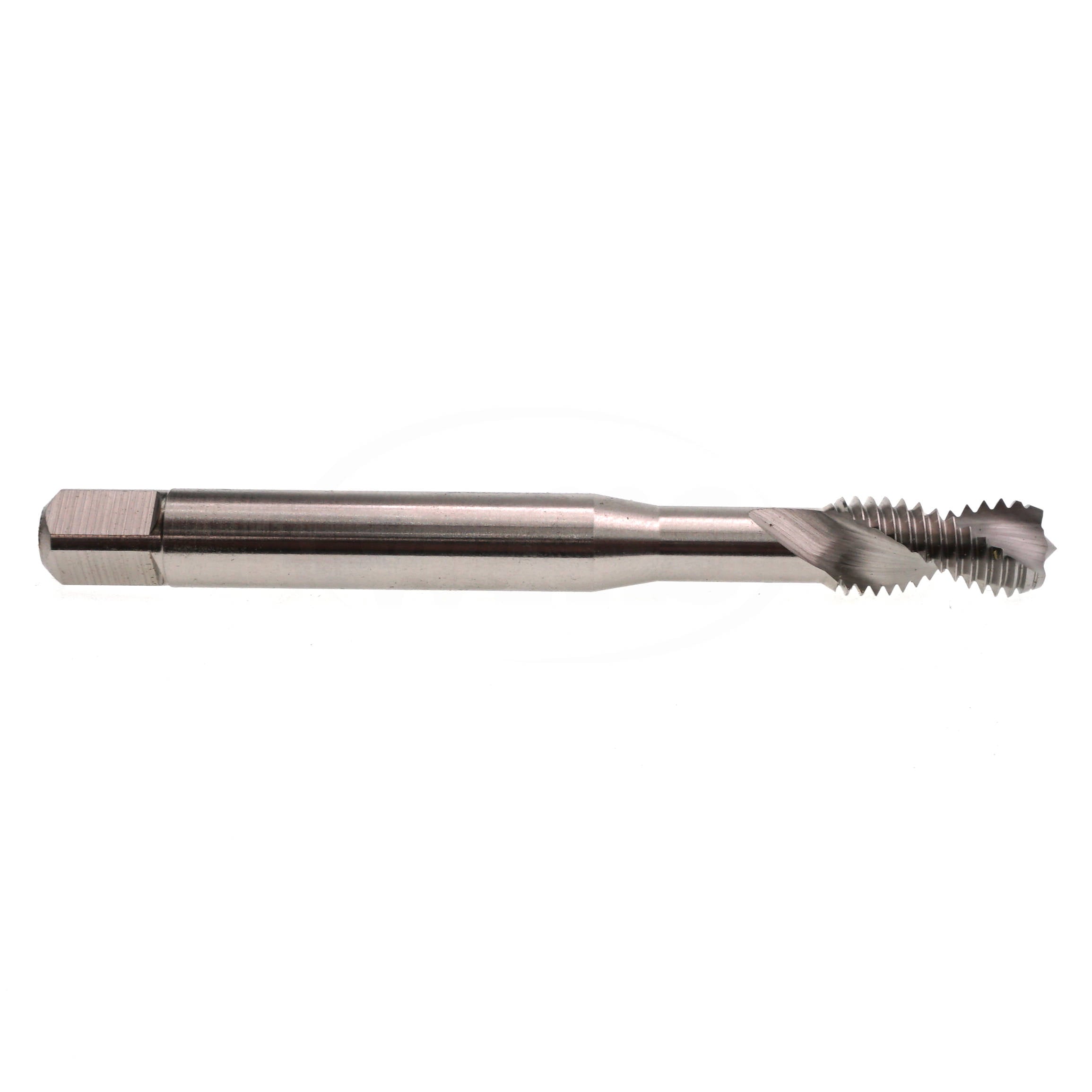

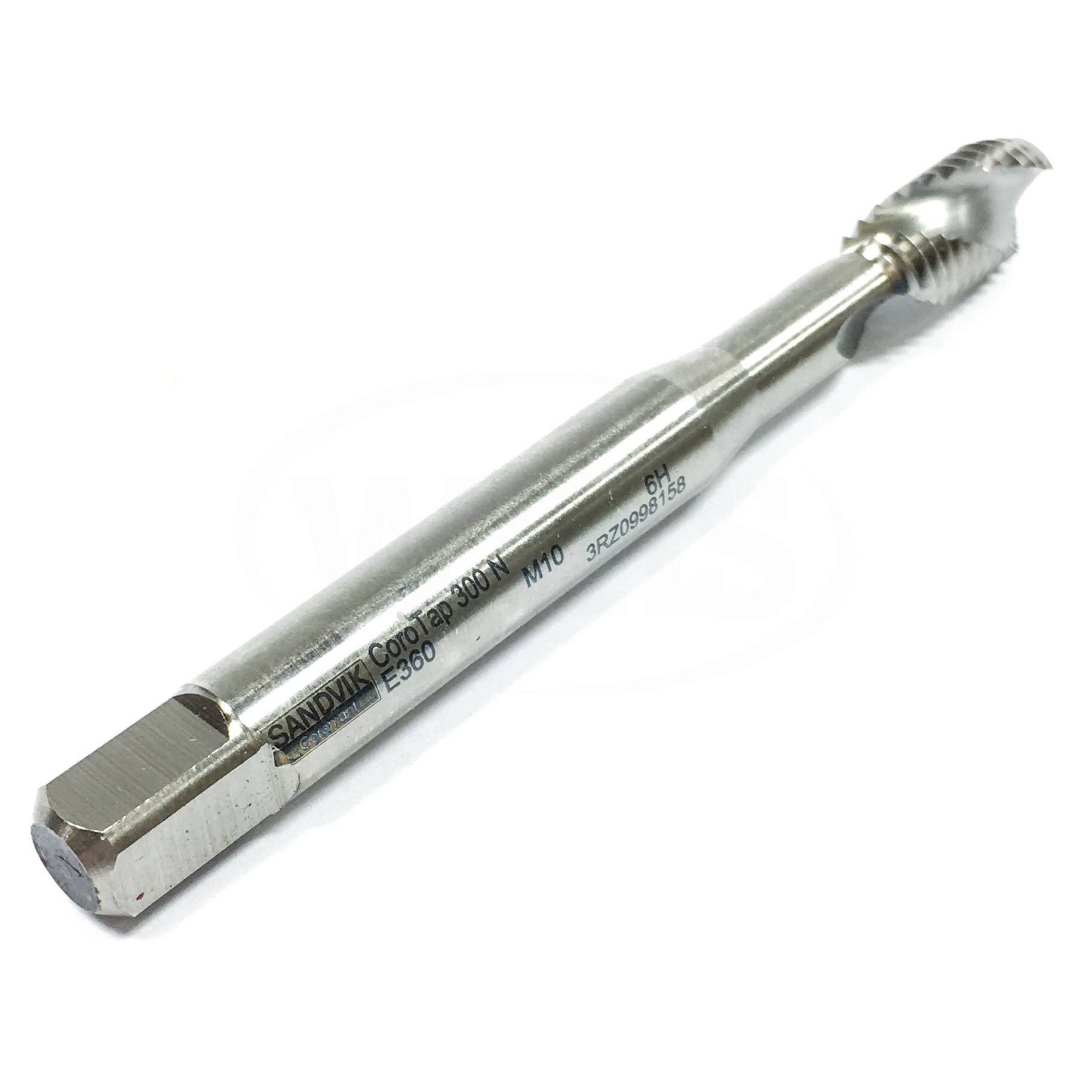

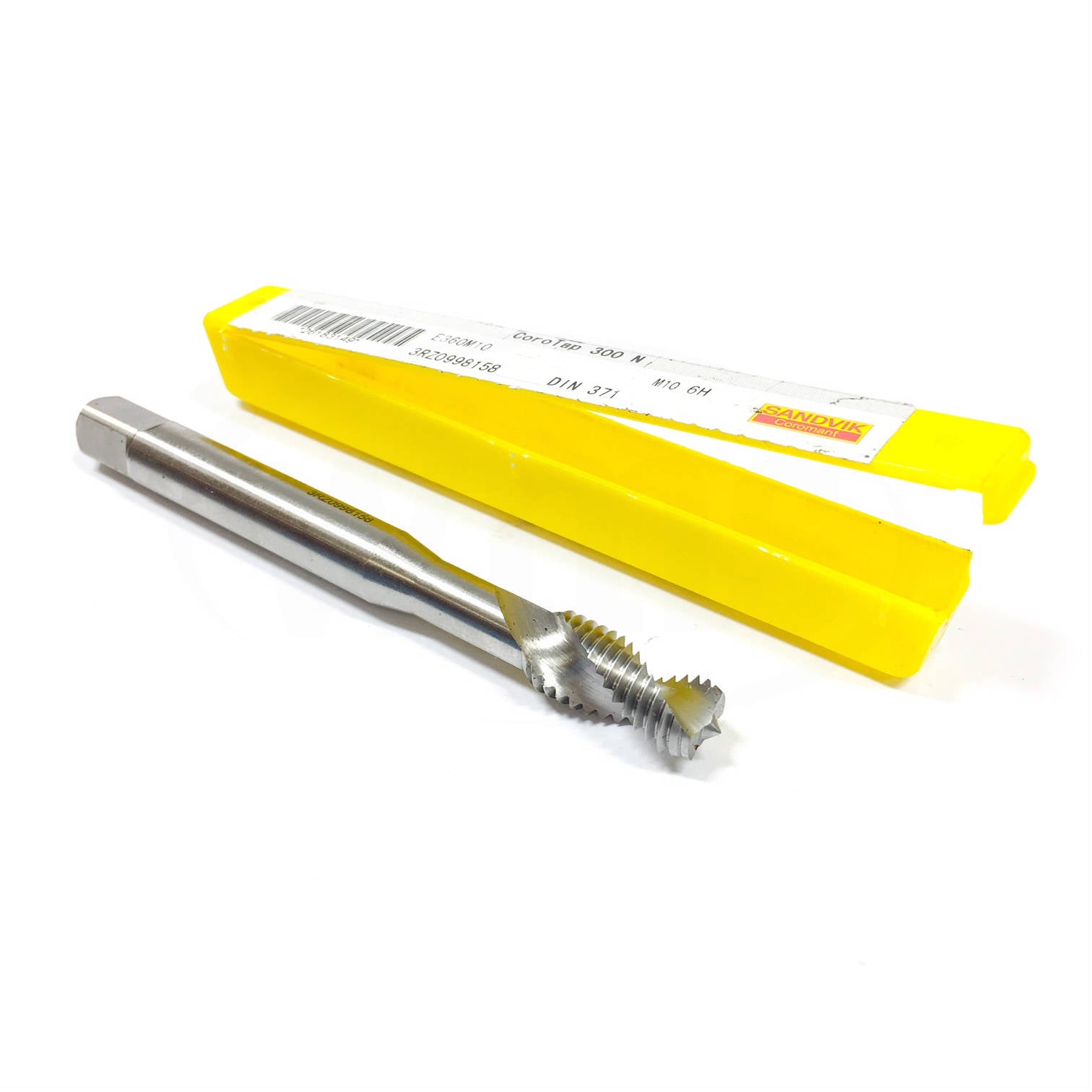

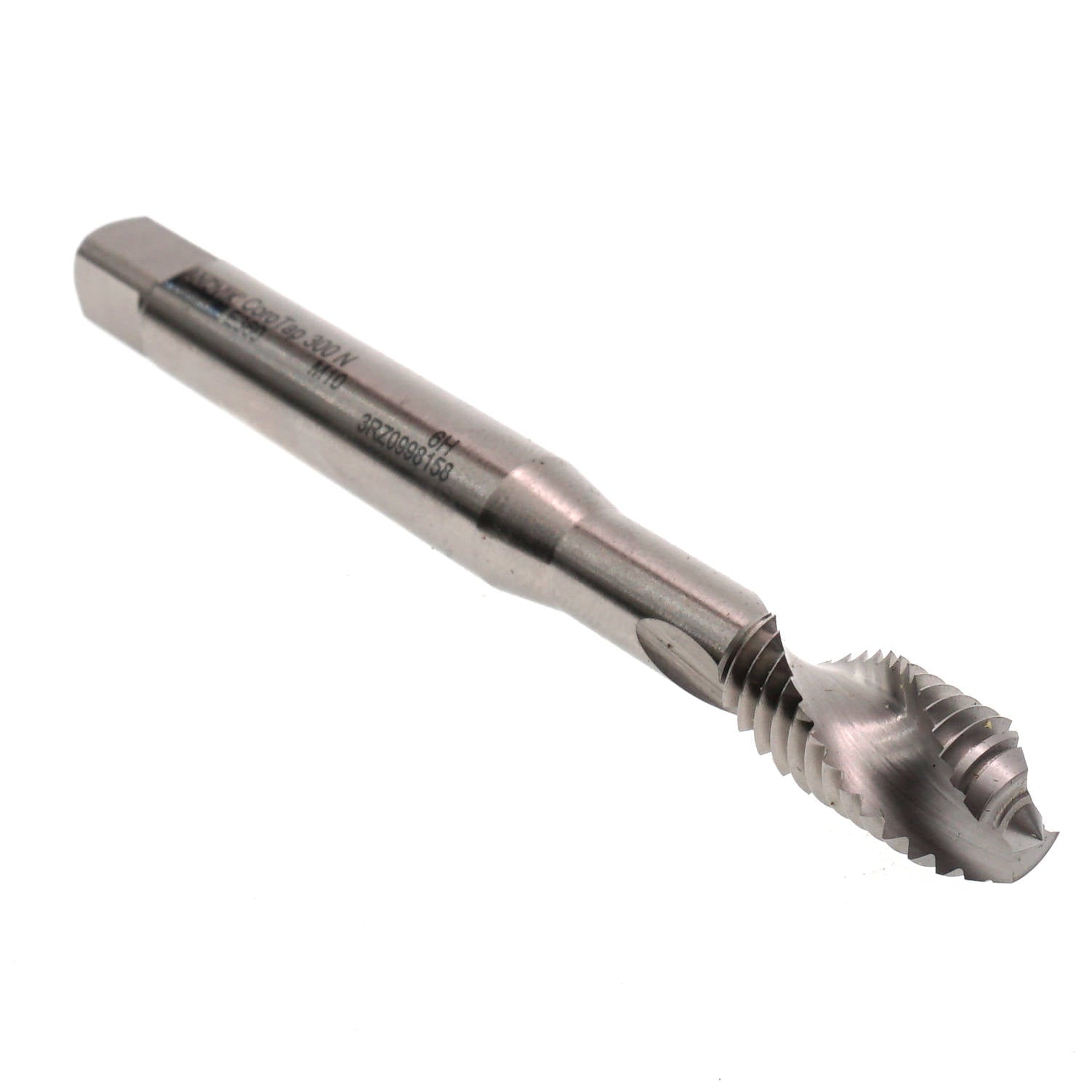

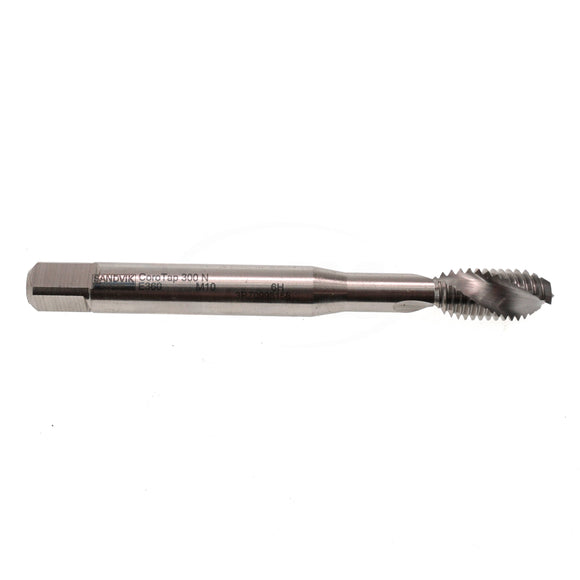

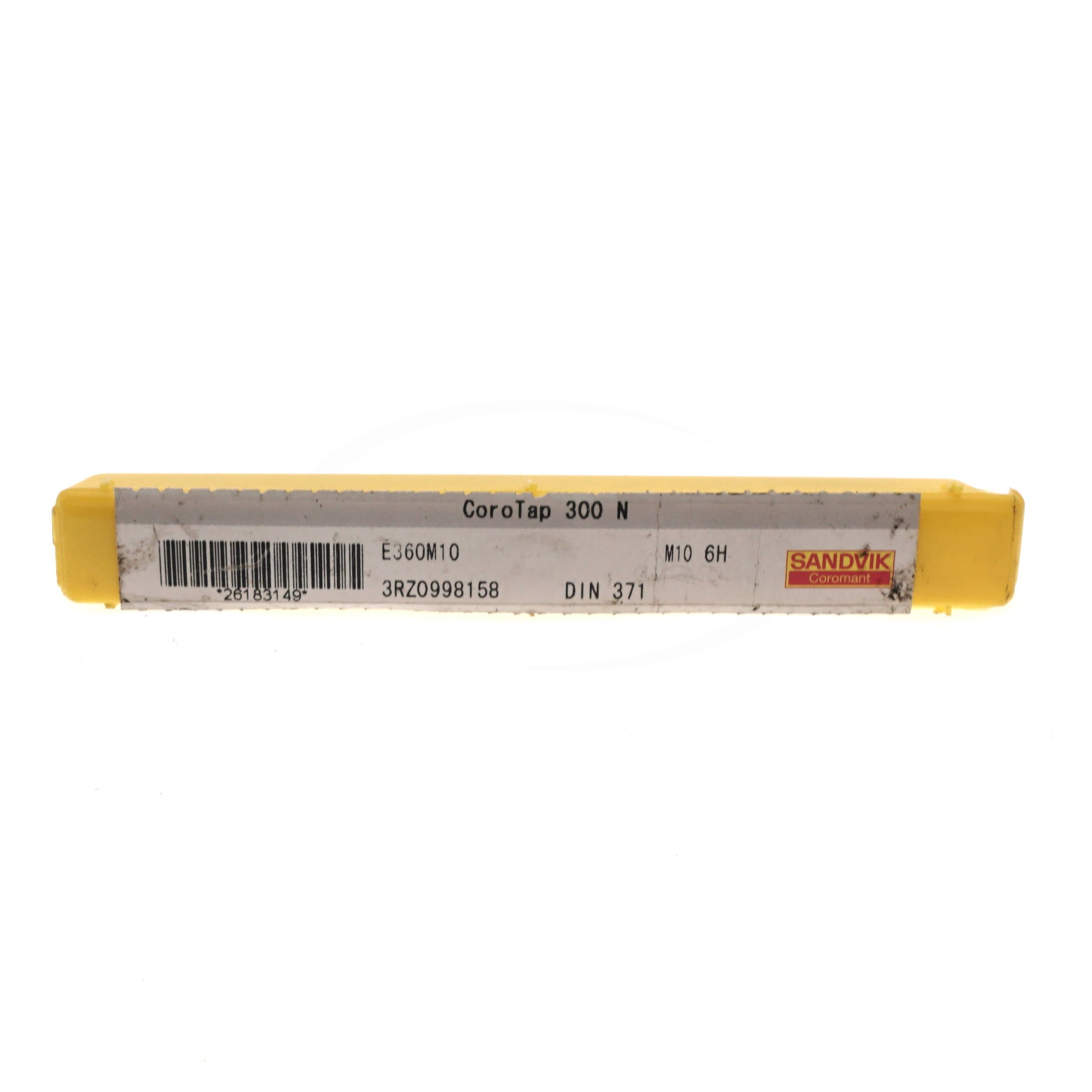

Ordering code
ISO
E360M10
ANSI
E360M10
Material Id
6183149
EAN
26183149
Product data
Suboperation (SUBOP) Thread Cutting with Tap
Thread diameter size (TDZ) M 10
Thread pitch (TP) 1.5 mm
Thread diameter (TD) 10 mm
Premachined hole diameter (PHD) 8.5 mm
Blind hole function property (BHFP) true
Thread tolerance class (TCTR) 6H
Basic standard group (BSG) DIN 371
Usable length (LU) 39 mm
Adaptive interface machine direction (ADINTMS) Tap shank DIN -metric: 10.00 x 8.00
Substrate (SUBSTRATE) HSS-E
Coating (COATING) UNCOAT
Coolant entry style code (CNSC) 0: without coolant
Connection diameter (DCON) 10 mm
Maximum regrinds (NORGMX) 0
Functional length (LF) 100 mm
Neck diameter (DN) 7.75 mm
Flute count (NOF) 2
Flute helix angle (FHA) 35 deg
Threading length (THL) 20 mm
Thread back taper property (THBTP) false
Threading chamfer type (THCHT) C
Weight of item (WT) 0.054 kg
Life cycle state (LCS) Phasing out
Release pack id (RELEASEPACK) 11.2
