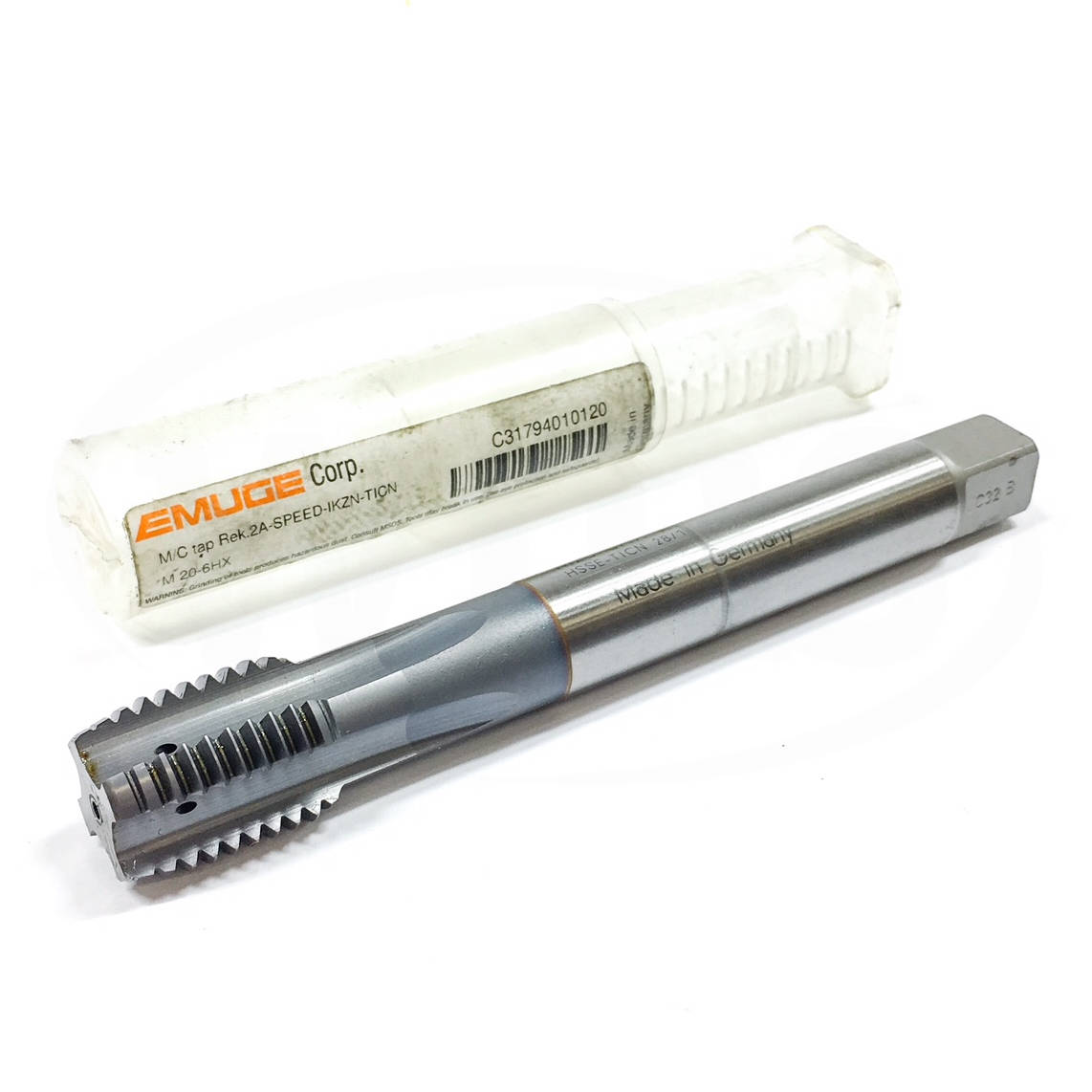

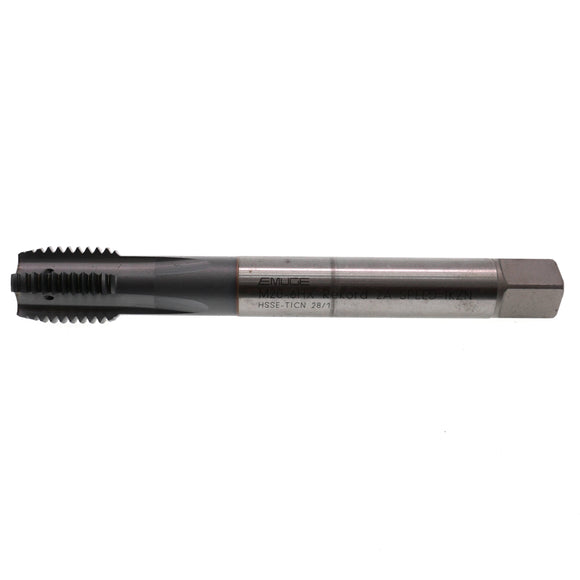

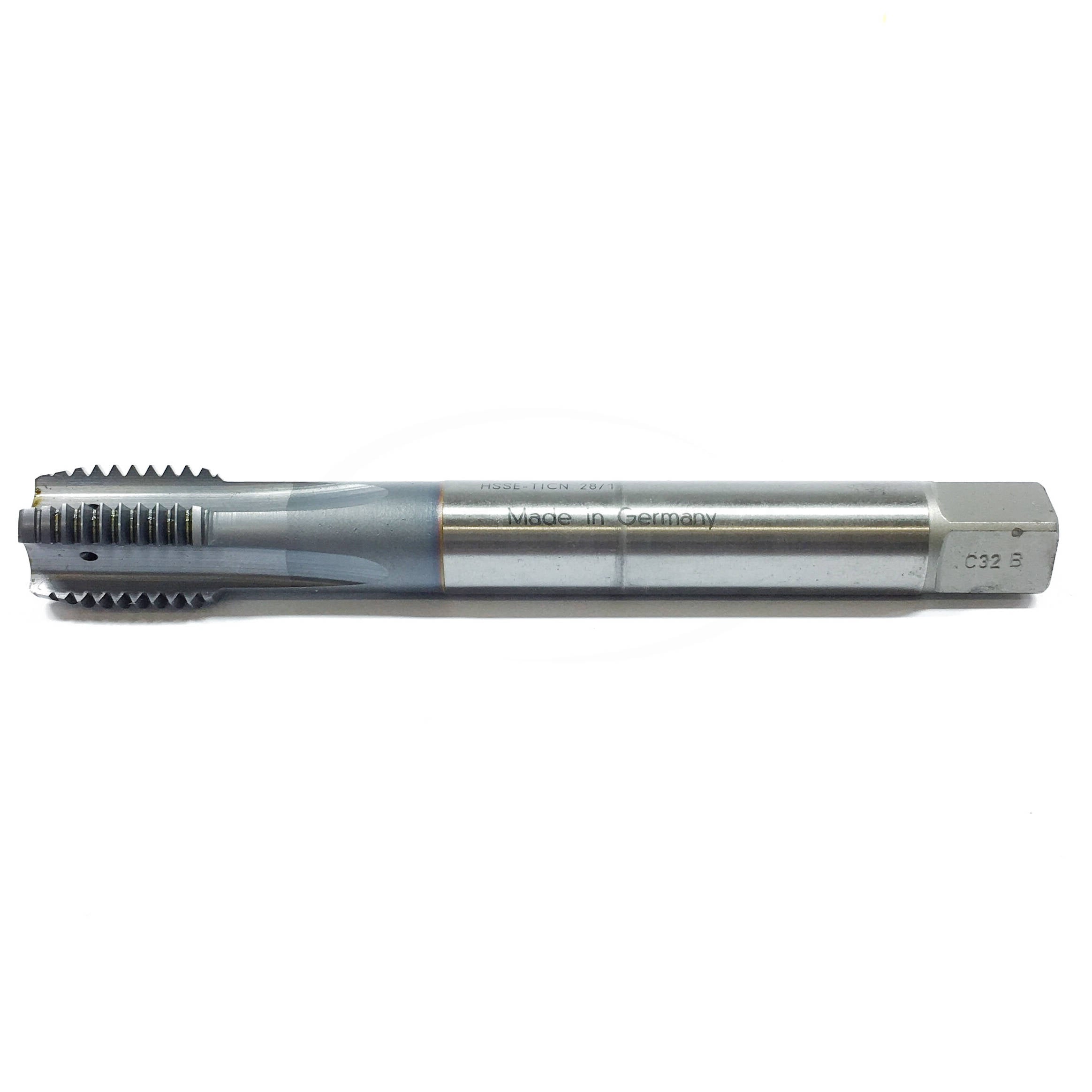

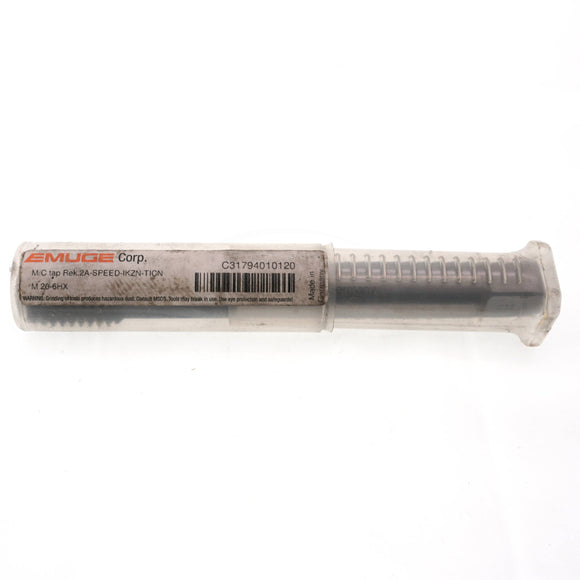

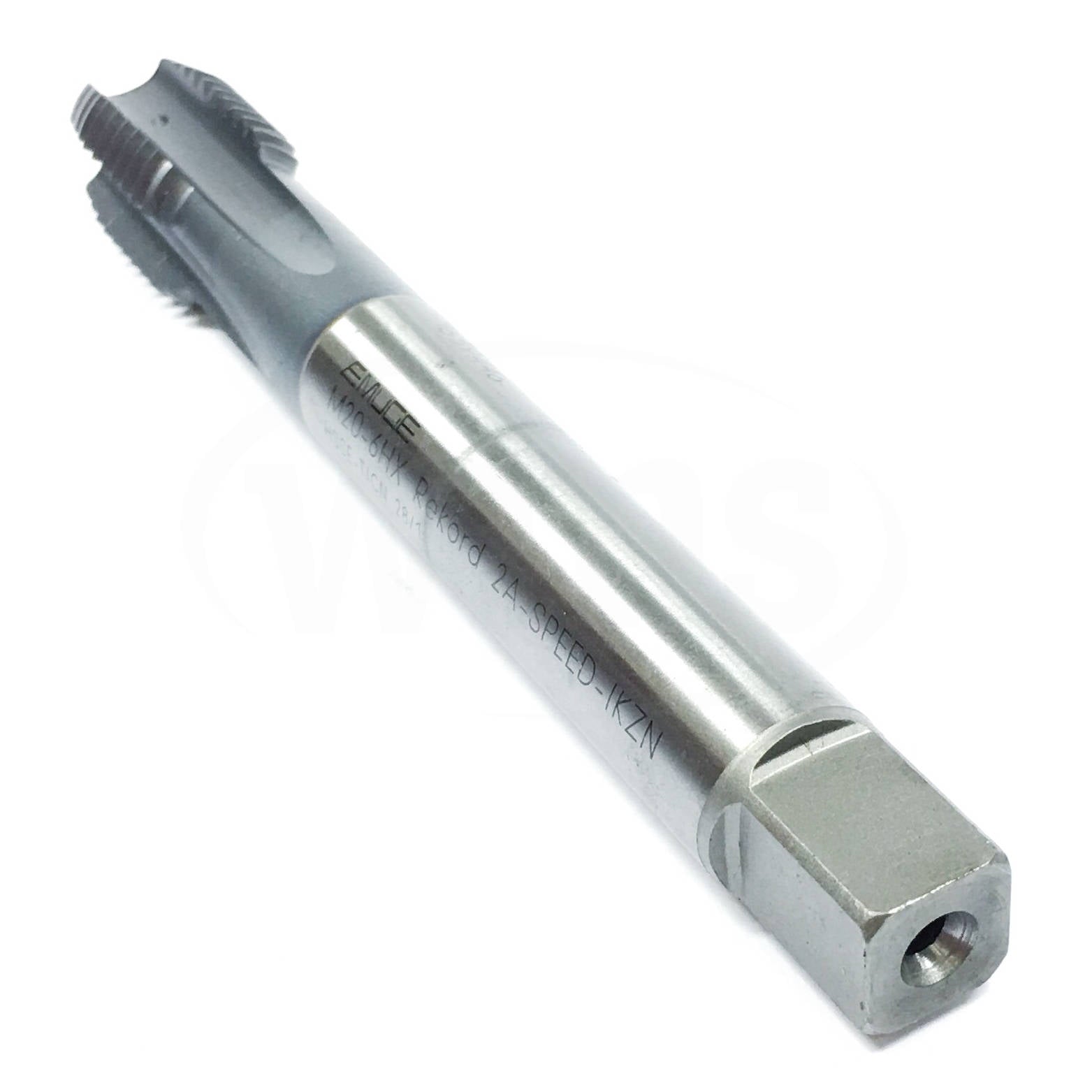

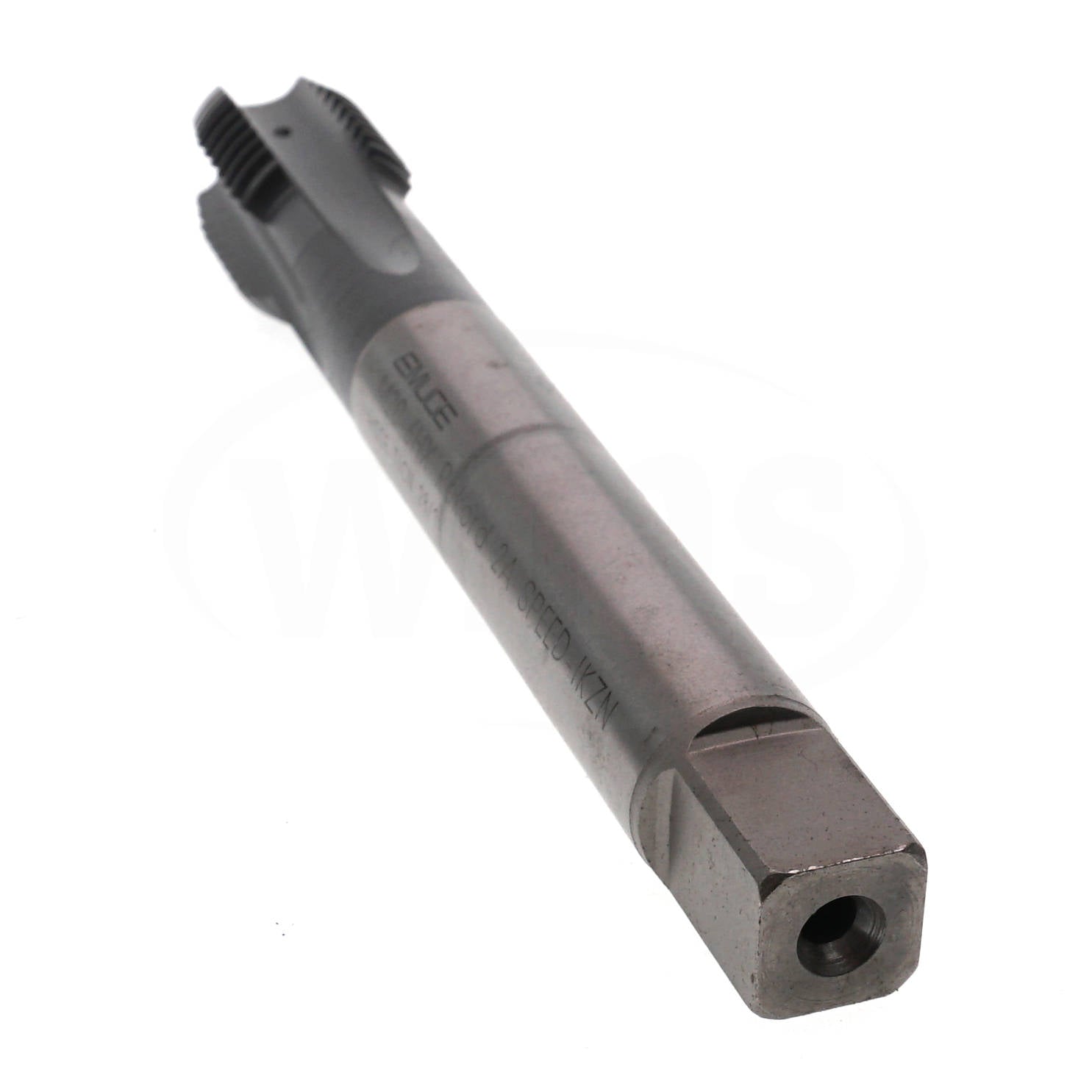

Speed taps are able to operate at higher cutting speeds than conventional designs. Rekord A-Speed is a straight flute design for high speed tapping in short chipping materials in through hole applications.

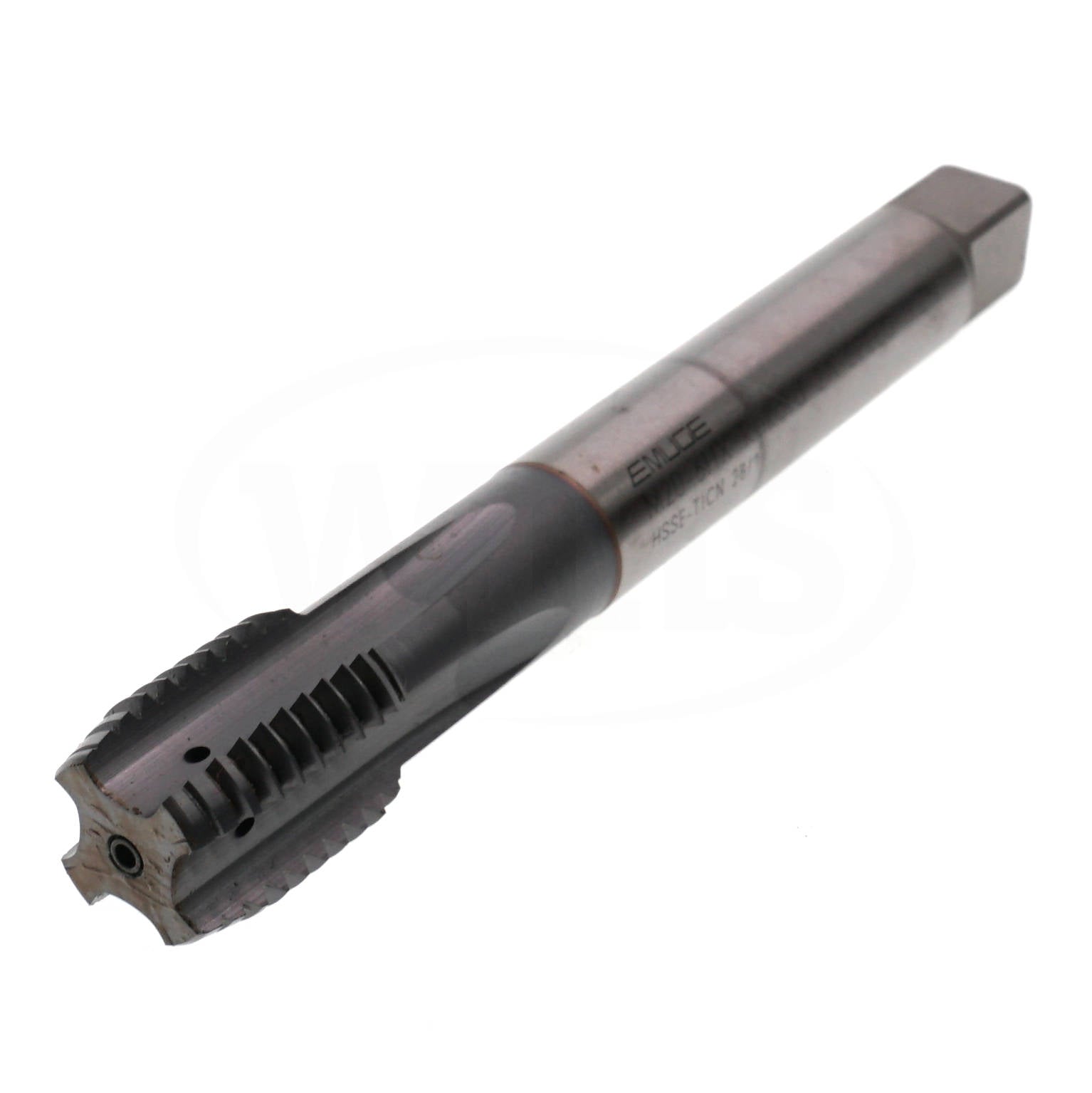

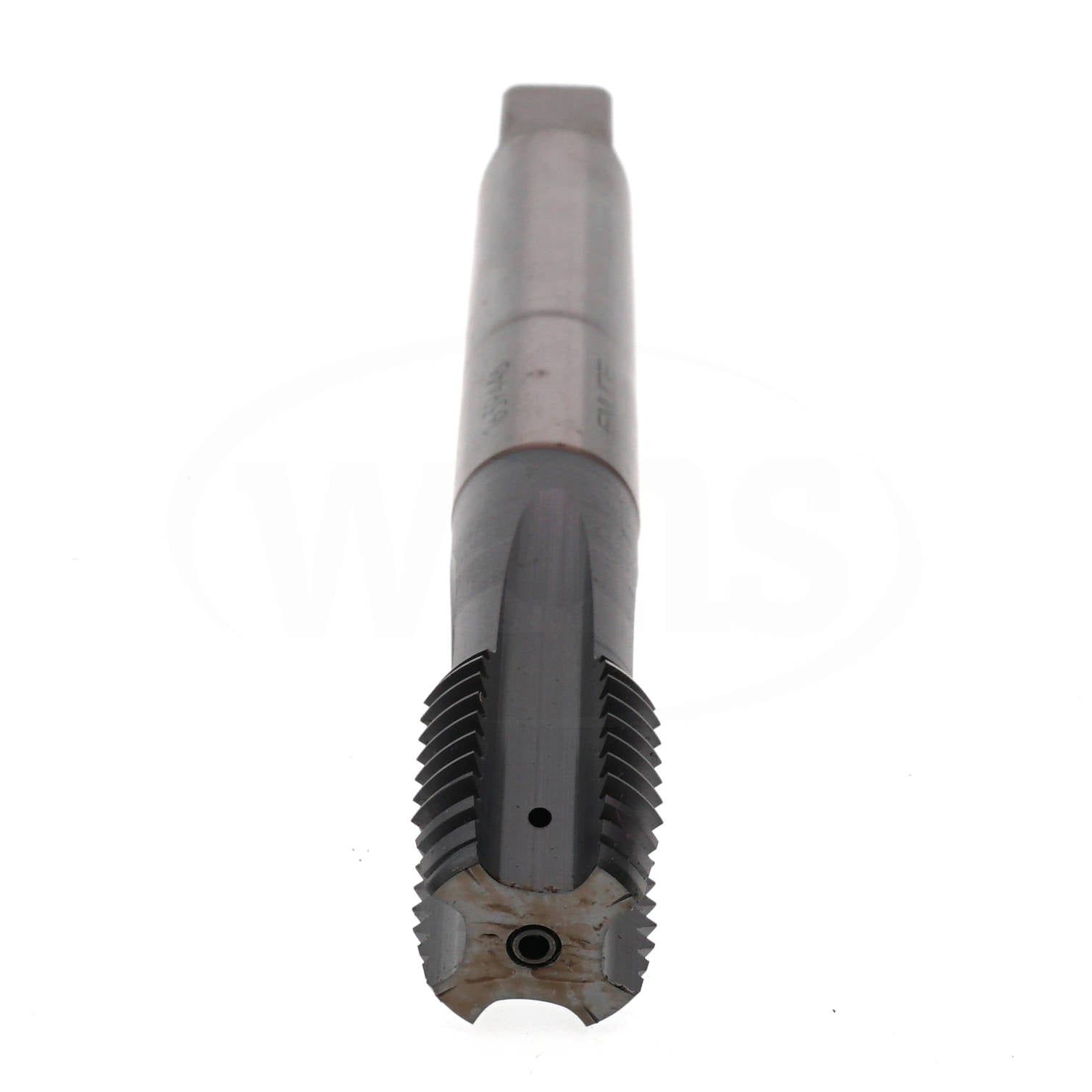

• IKZN - radial coolant hole design
• Straight flute design
• Form C (2-3 P) chamfer length
• TICN coated for additional wear resistance and tool life
• DIN / DIN standard dimensions on overall length and shank size
Specifications
| Part Number |
C3179401.0120 Alternative Part Numbers:
C1069401.0120
C3109401.0120
|
|---|---|
| Name | Speed Taps |
| Inventory |
USA - Yes
Germany - No |

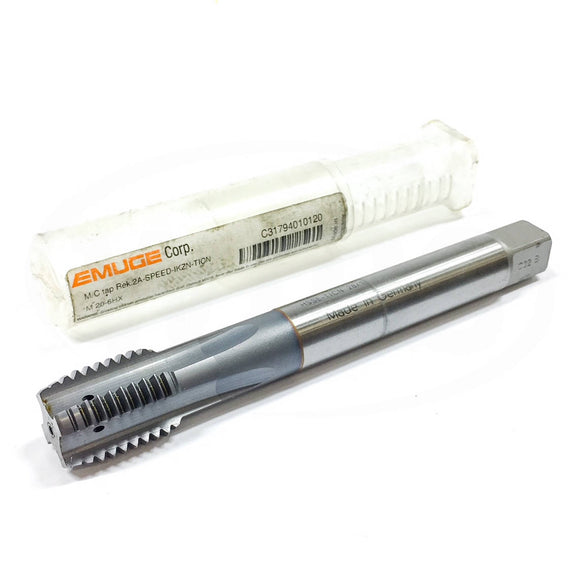

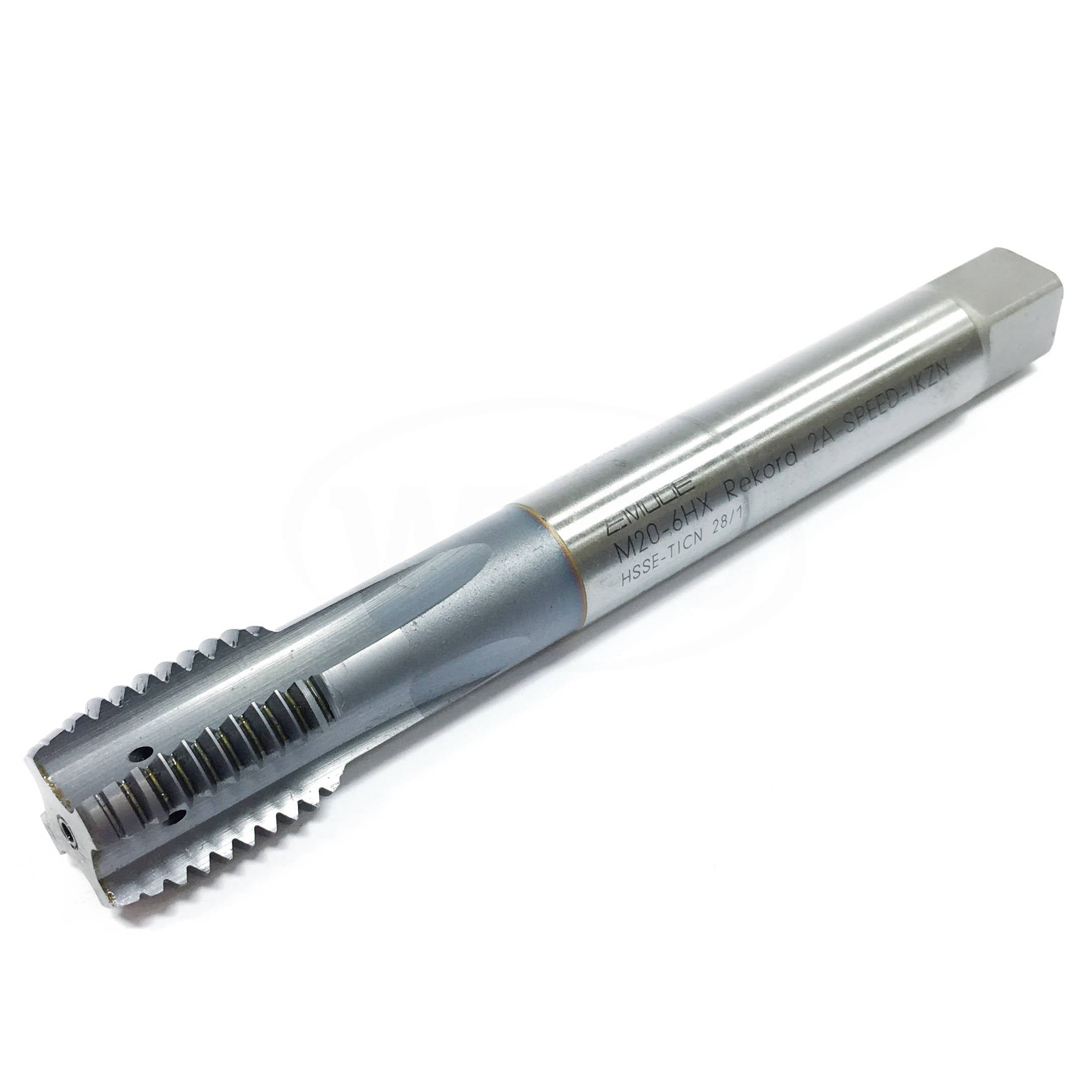

| Description | M 20 - Rekord - Speed Tap - Coolant |
| Size | M 20 |
| Pitch | 2.5 |
| Chamfer Form | C |
| Chamfer | 2-3 P |
| Thread Standard | M |
| Class | 6HX |
| Coolant Fed | Radial |
| Coating | TICN |
| Material | HSSE |
| Flute / Helix Angle | 0° |
| SHANK | 16 mm |
| Dimension Standards | DIN/DIN |
| Overall Length | 125 mm |
| Thread Length | 25 mm |
| Flute Direction | RH |
