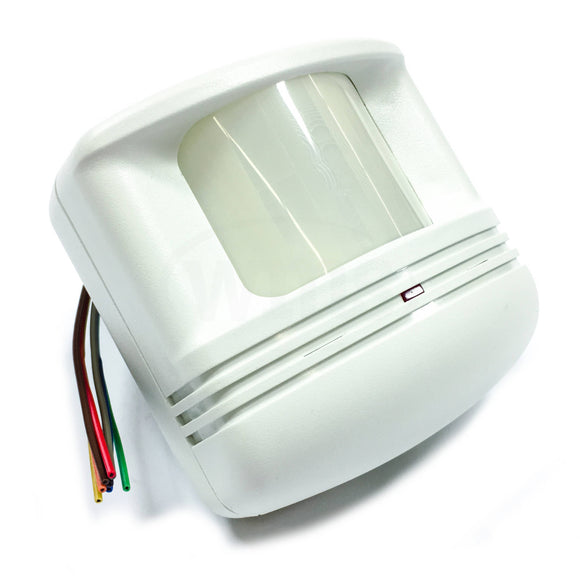

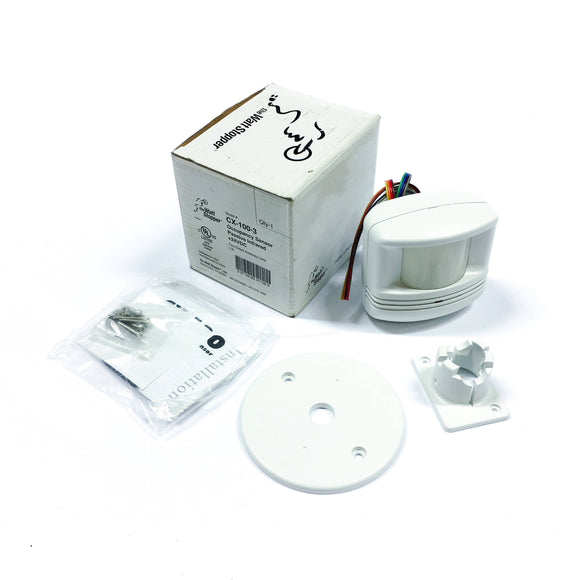

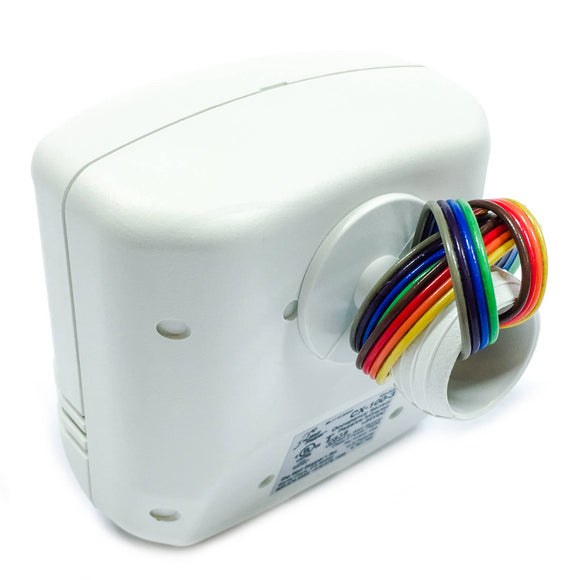

Wattstopper’s CX-100 Series Passive infrared (PIR) Ceiling/Wall Sensors detect occupancy to control lighting in a wide variety of applications. These sensors provide superior coverage and performance with great energy savings.
• Turns lights on and off based on occupancy
• User-adjustable time delay and sensitivity
• ASIC technology reduces components and provides greater reliability
• Choice of four coverages patterns
• Built-in light level sensor
• Isolated relay for use with HVAC or other control systems
• Automatic or manual-on operation when used with a BZ-150 Power Pack
GENERAL INFO
Typical Applications: Large Offices, Computer Rooms, Classrooms, Aisleways, Warehouses, Open Offices
Special Features: Dual element, temperature compensated pyroelectric sensor, 360 degree coverage, built-in light level sensor, optional isolated relay.
TECHNICAL INFORMATION
IR Range On Axis: 2000 SqFt
LightOutput 1FCD: Automatic On/Off
Load: 1 Amp @ 24 VDC/VAC
Response Time: 15 seconds to 30 minutes
Volts: 24VDC
