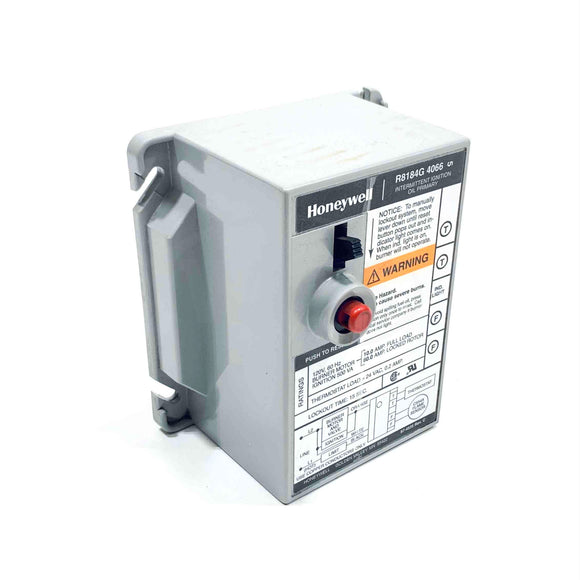

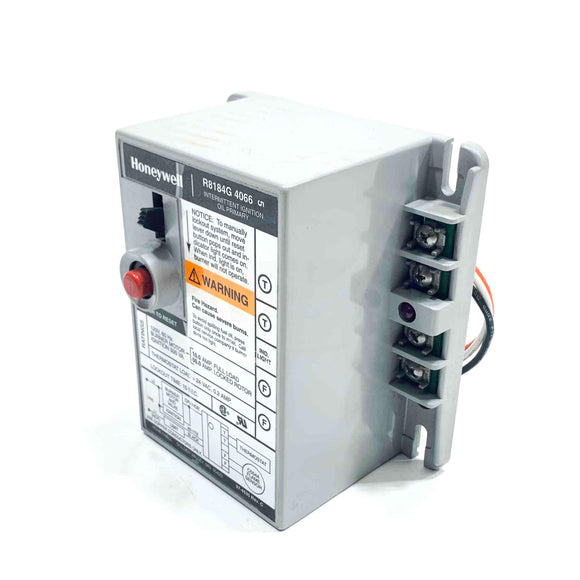

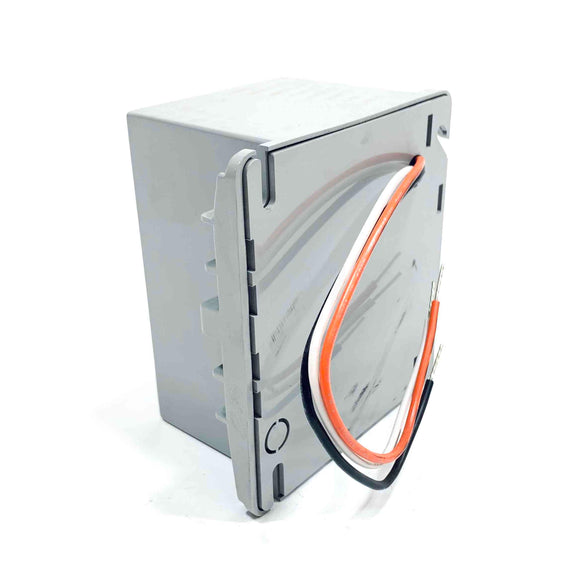

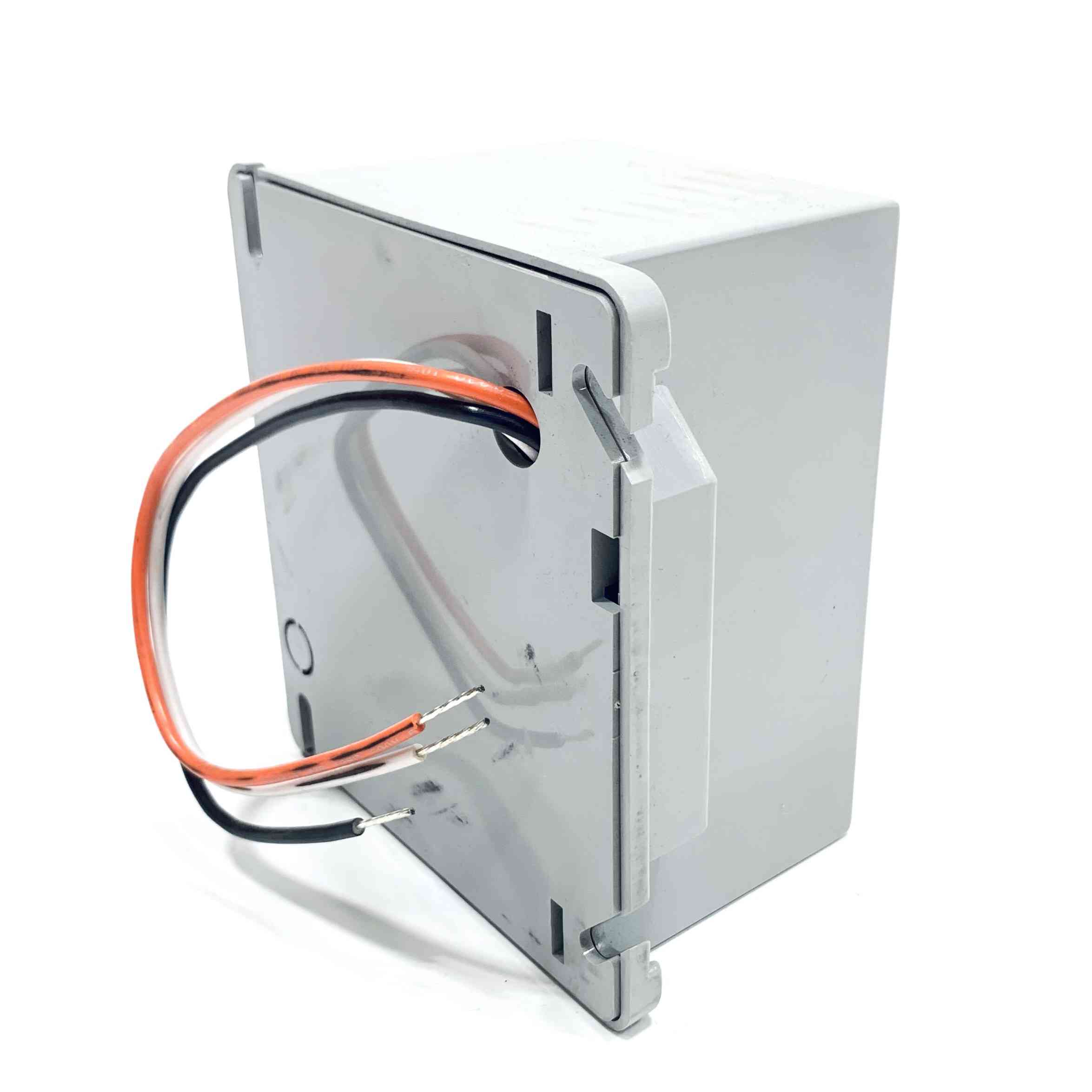

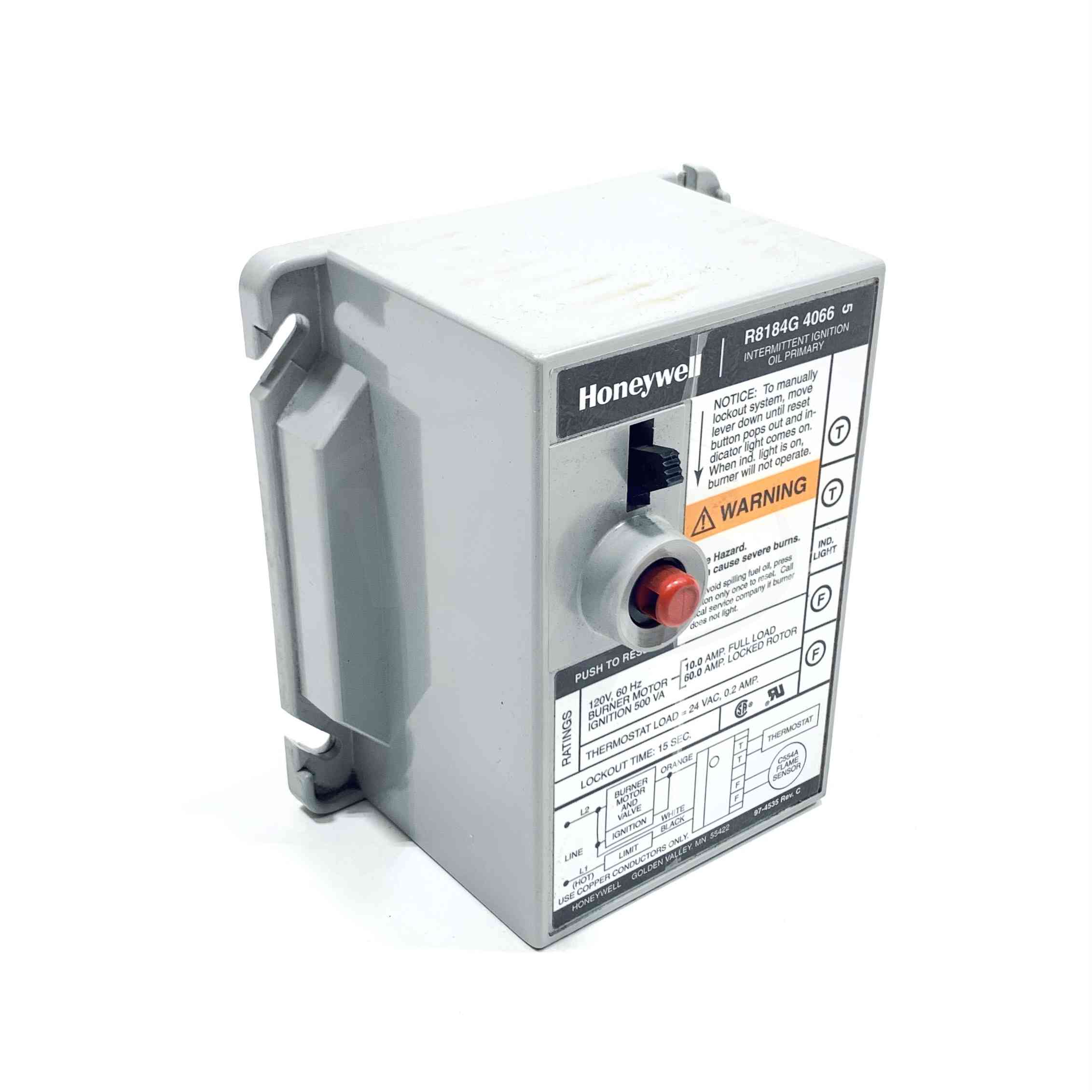

R8184G4066 Honeywell Protectorelay Oil Burner Control

R8184G4066 Honeywell Protectorelay Oil Burner Control
Intermittent Ignition Oil Primary

Overview:
Provides automatic, nonrecycling control of an intermittent ignition oil burner system.

Features:
• Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
• Solid state flame sensing circuit.
• LED on terminal strip indicates system lockout (available on some models).
• Remote lockout indication (available on some models).
• Enclosed safety switch with external reset button.
• Manual trip lever opens safety switch for system maintenance.
• Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
• C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required.

Integral transformer powers control circuit
Requires enclosure for line voltage wiring
Burner motor load ratings at 120VAC: 10.0 Amps Full Load, 60.0 Amp Locked Rotor
Iginition Rating: 500 VA in addition to above burner motor load
Thermostat Load: 24VAC 0.2 Amps
Lockout Time 15 Seconds
