Description

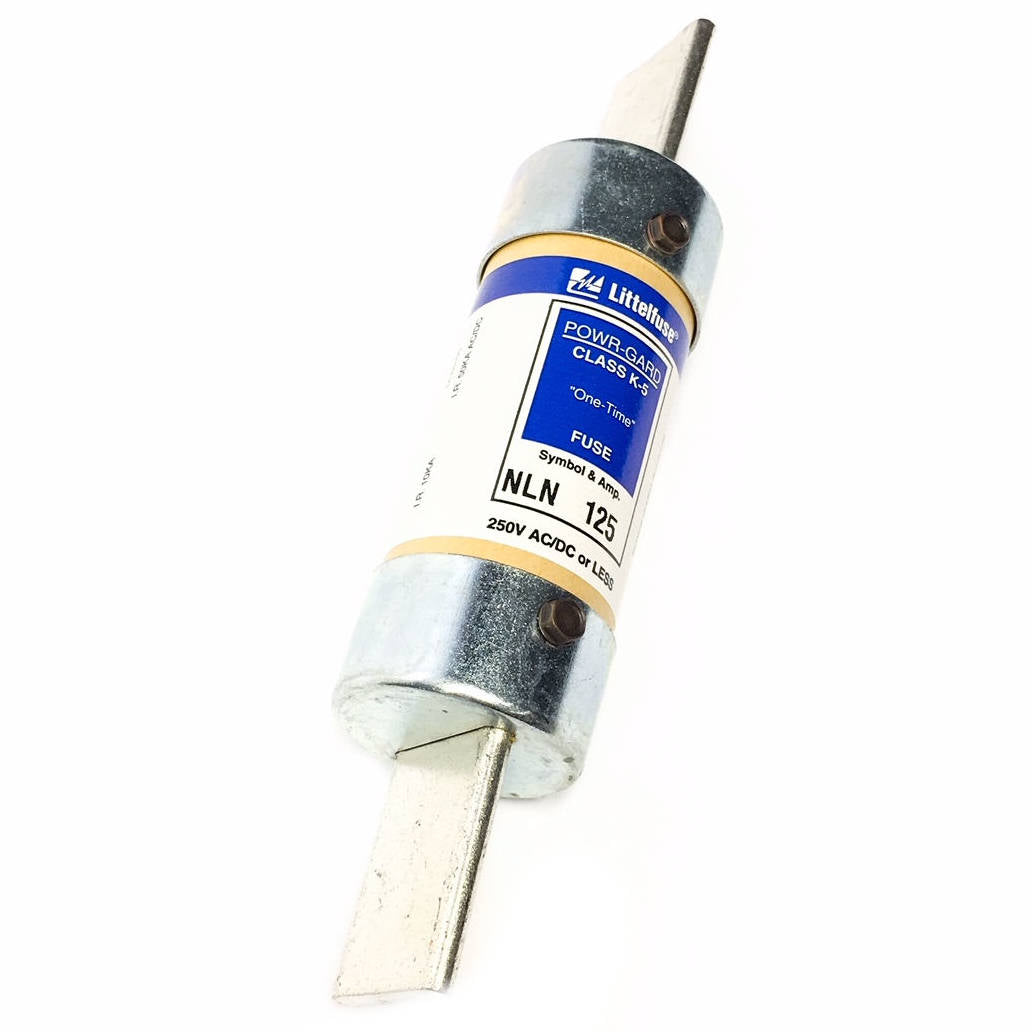

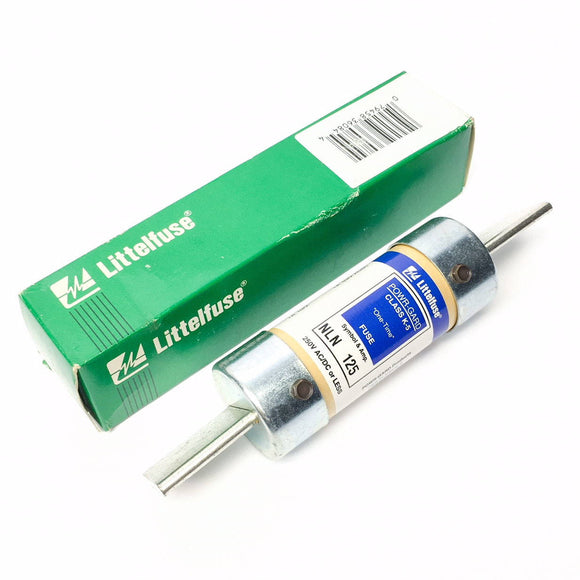

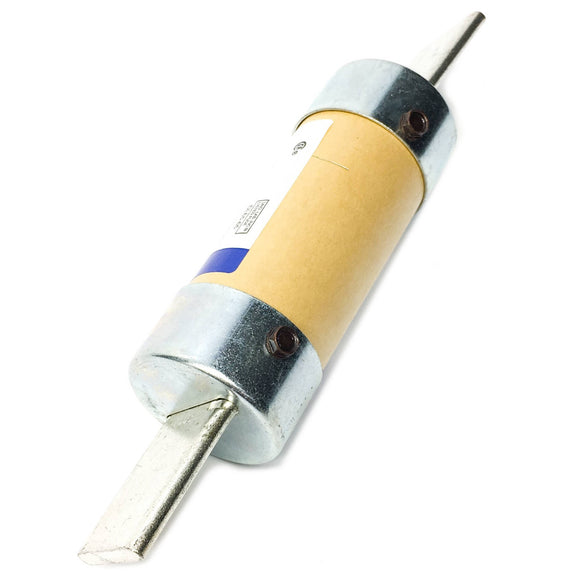

NLN/NLS fuses provide low cost protection for general purpose feeder and branch circuits when available short circuit currents are less than 50 kA.
Canadian Electrical Code NLKP Type P fuse available. See Web Resources links for more information.
Applications
• General purpose residential and commercial circuits with little or no motor load.
Features/Benefits
• Economical
• 50 kA interrupting rating
• Indicating and din mount holders available
Specifications
Voltage Ratings AC: 250 V (NLN)
600 V (NLS)
DC: 250 V (NLN)
400 V (NLS 35 – 60 A)
500 V (NLS 8 – 30 A) (NLS 225 – 600 A)
600 V (NLS 1 – 7 A) (NLS 70 – 200 A)
Interrupting Ratings AC: 50 kA rms symmetrical (NLN/NLS)
DC: 20 kA (NLN/NLS 1 – 60 A)
50 kA (NLN/NLS 70 – 600 A)
Ampere Range 1 – 600 A (NLN/NLS)
Approvals NLN/NLS: Standard 248-9, Class K5
UL Listed (File: E81895)
CSA Certified (File: LR29862)
