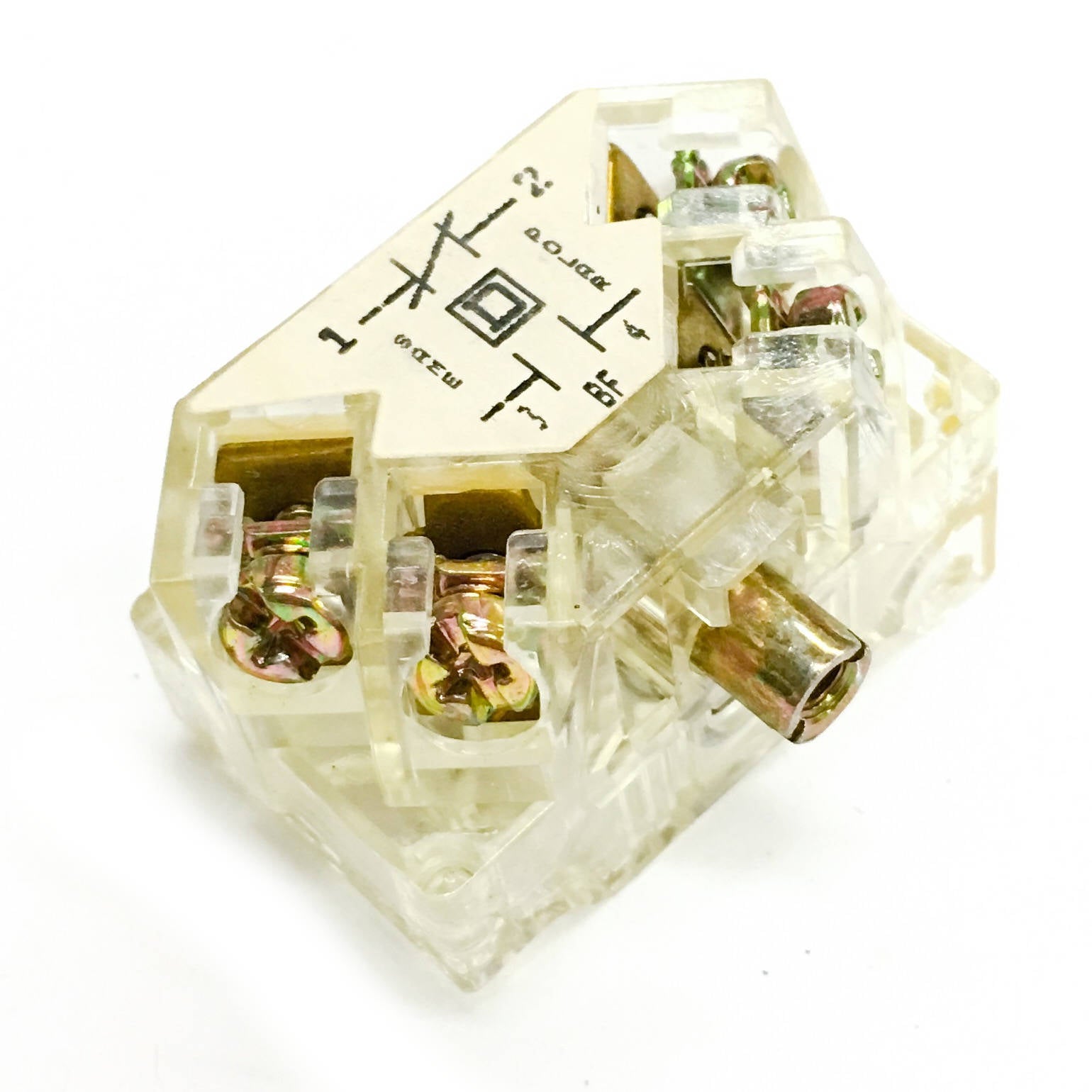

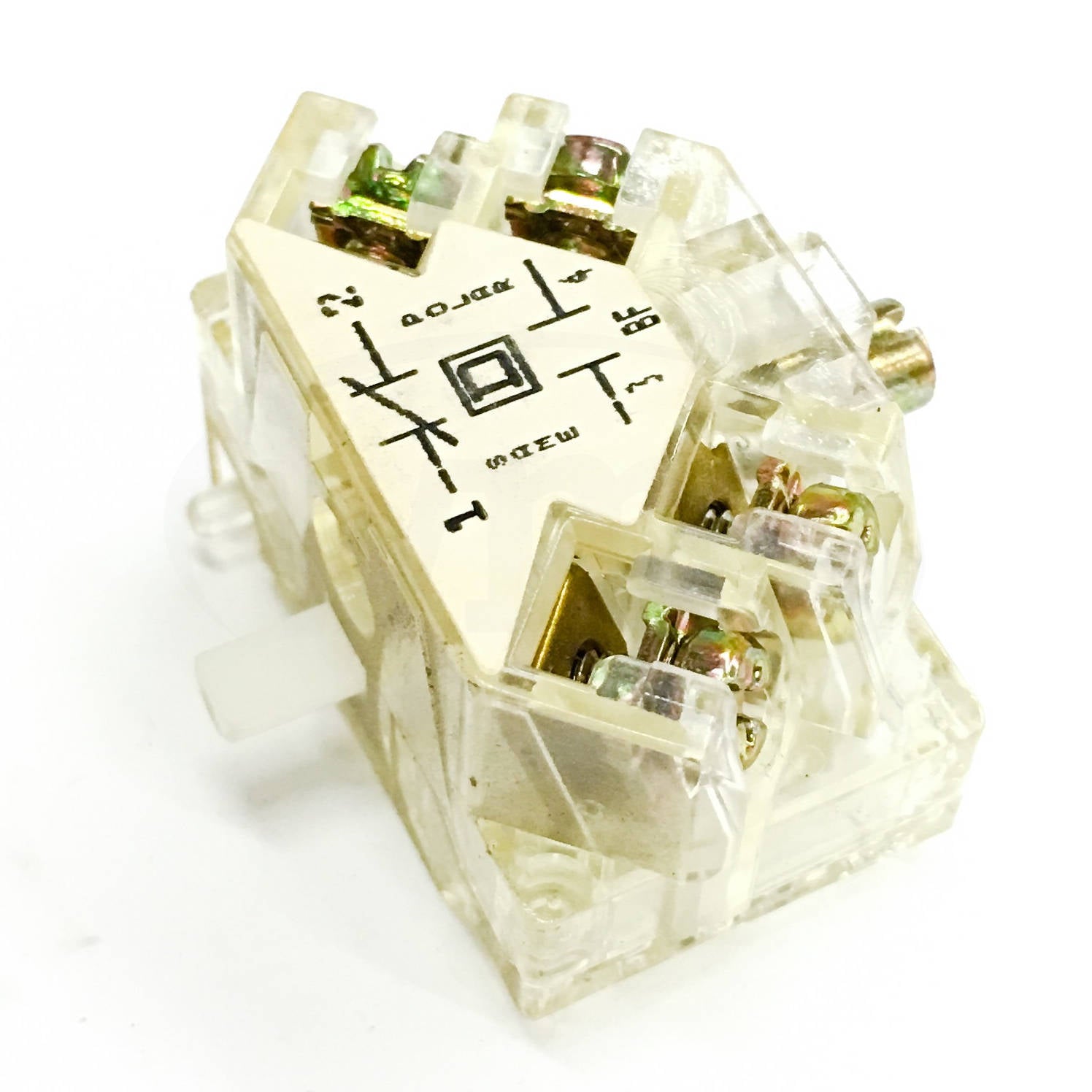

9001KA1 Square D 30MM Contact Block 1NO/1NC

Harmony 9001K

Contact block with protected terminals

9001K

0.06 lb(US) (0.027 kg)

1 C/O

Standard

Without

Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1

7.08 lbf.in (0.8 N.m) conforming to IEC 60947-1

Cross slotted head

Silver alloy contacts

10 A cartridge fuse conforming to IEC 60947-5-1

10 A

250 V (degree of pollution: 3) conforming to IEC 60947-1

2.5 kV conforming to IEC 60947-1

3 A at 240 V AC-15, A600-Q600 conforming to NEMA
0.55 A at 125 V DC-13, A600-Q600 conforming to NEMA

<= 12 kA at 600 V AC-15, 7200 VA
<= 15 kA at 480 V AC-15, 7200 VA
<= 30 kA at 240 V AC-15, 7200 VA
<= 60 kA at 120 V AC-15, 7200 VA
<= 0.1 kA at 600 V DC-13, 7200 VA
<= 0.27 kA at 250 V DC-13, 7200 VA
<= 0.55 kA at 125 V DC-13

<= 3 kA at 240 V AC-15, 720 VA
<= 6 kA at 120 V AC-15, 720 VA
<= 0.1 kA at 600 V DC-13
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
<= 1.2 kA at 600 V AC-15, 720 VA
<= 1.5 kA at 480 V AC-15, 720 VA

TC

-40...158 °F (-40...70 °C)

-13...158 °F (-25...70 °C)

Class II conforming to IEC 61140

IP20 conforming to IEC 60529

JIS C 4520
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-1
JIS C 852
EN/IEC 60947-5-4
UL 508

NEMA
UL 508

7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6

50 gn conforming to IEC 60068-2-27

21434 - 9001 KA CONTACT BLOCKS

CS1

00785901880004

1

6.00

Y

MX

Compliant  - since  0921

Reference not containing SVHC above the threshold

18 months
