| range |

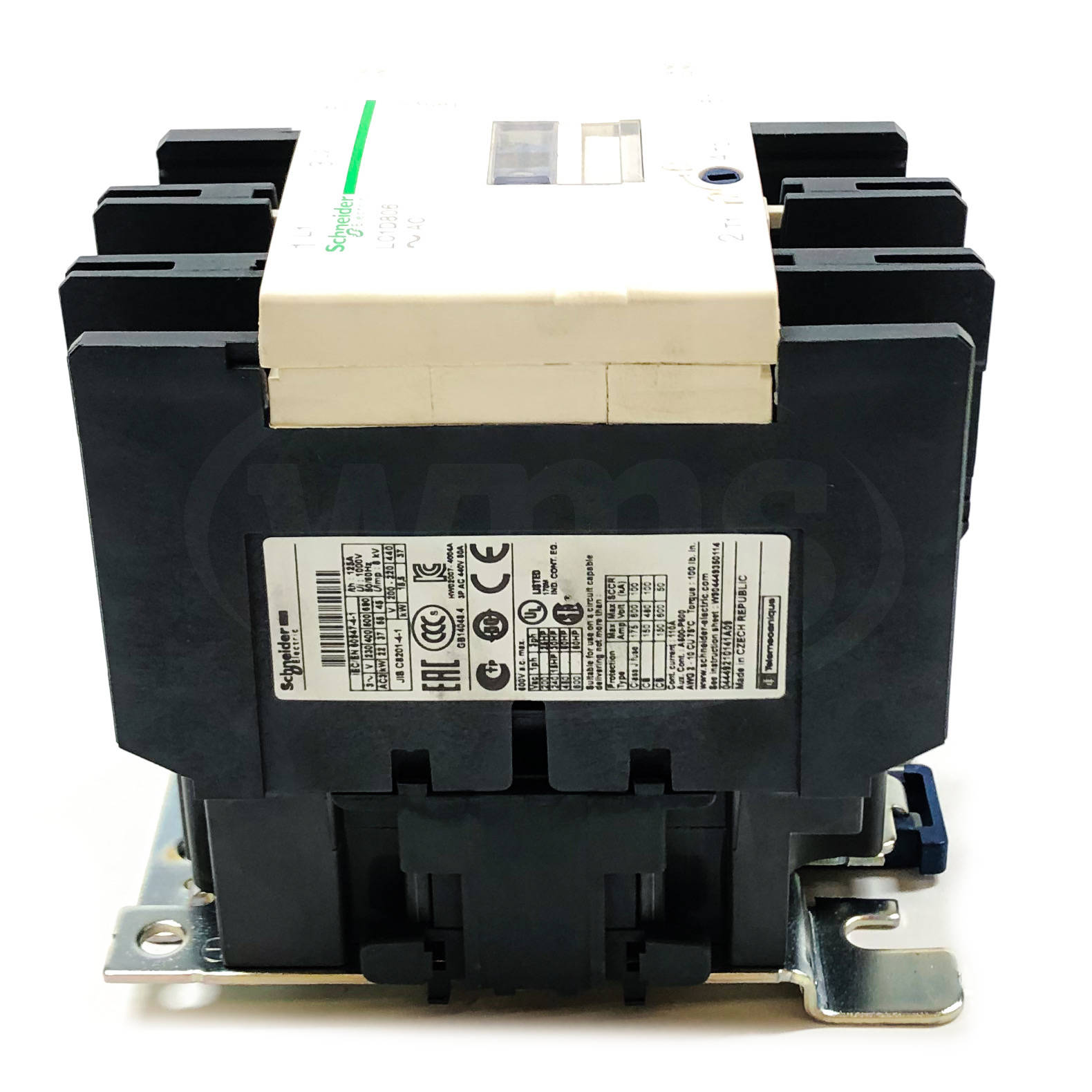

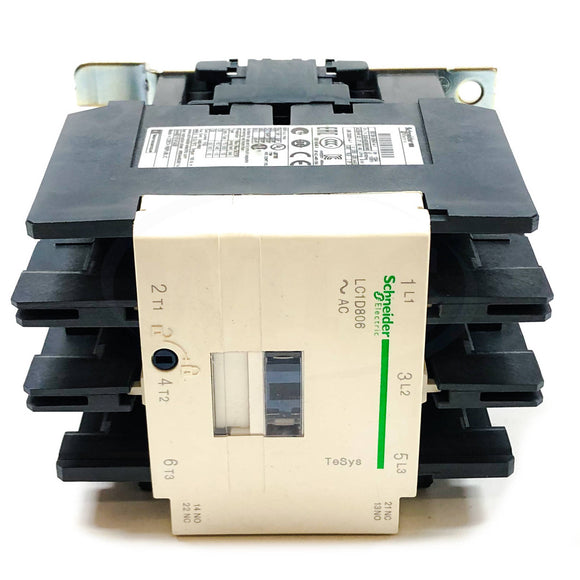

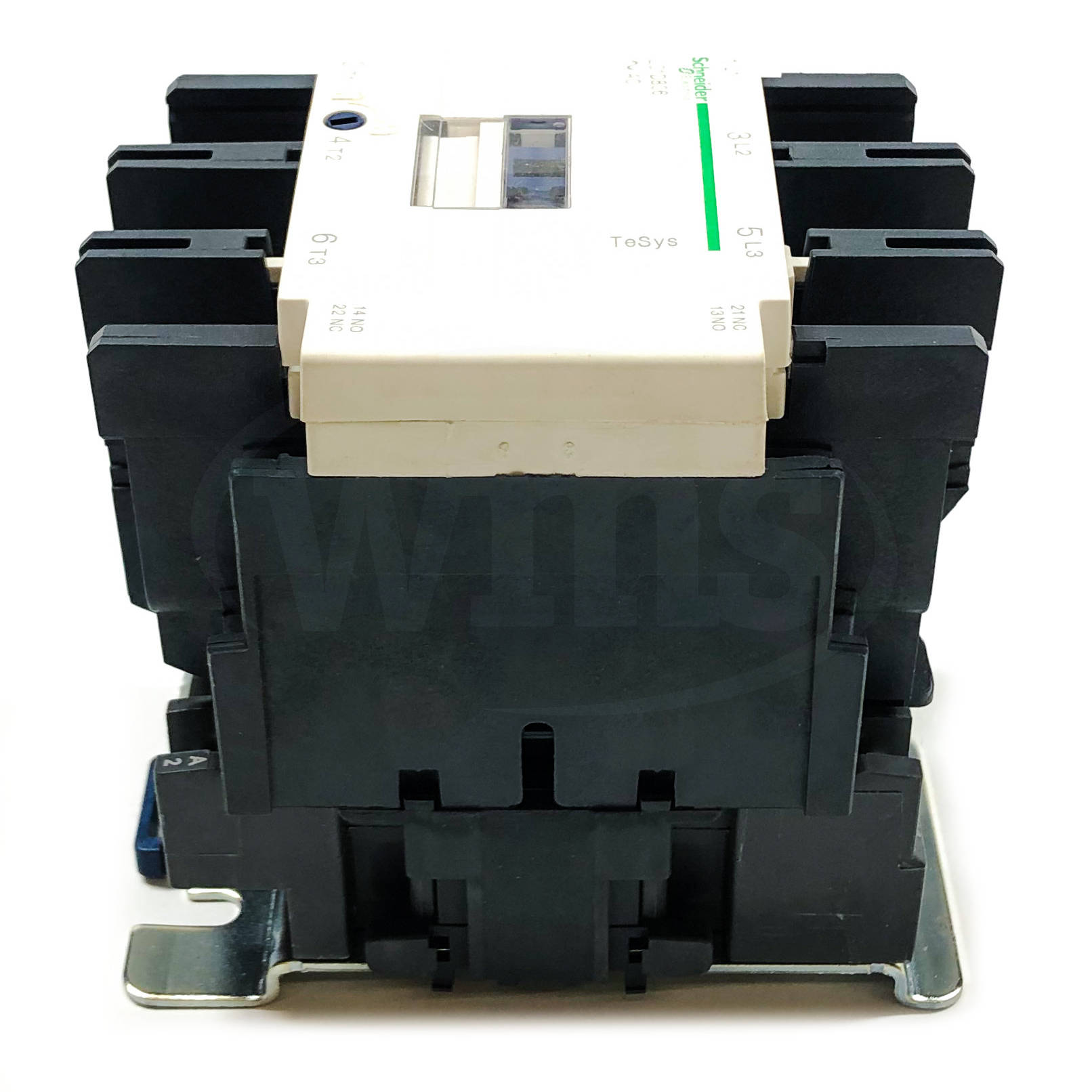

TeSys
|
|
|---|---|---|
| product name |
TeSys D
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1D
|
|
| contactor application |
Motor control
Resistive load |
|
| utilisation category |
AC-3
AC-1 |
|
| poles description |
3P
|
|
| power pole contact composition |
3 NO
|
|
| [Ue] rated operational voltage |
Power circuit <= 300 V DC 25...400 Hz
Power circuit <= 690 V AC |
|
| [Ie] rated operational current |
125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
|
| motor power kW |
22 kW 220...230 V AC 50/60 Hz
37 kW 380...400 V AC 50/60 Hz 45 kW 415...440 V AC 50/60 Hz 55 kW 500 V AC 50/60 Hz 45 kW 660...690 V AC 50/60 Hz 45 kW 1000 V AC 50/60 Hz |
|
| motor power HP (UL / CSA) |
20 hp 200/208 V AC 50/60 Hz 3 phase
7.5 hp at 115 V AC 50/60 Hz for 1 phase motors 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors 25 hp at 230/240 V AC 50/60 Hz for 3 phases motors 60 hp at 460/480 V AC 50/60 Hz for 3 phases motors 60 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
|
| control circuit type |
AC at 50/60 Hz
|
|
| [Uc] control circuit voltage |
208 V AC 50/60 Hz
|
|
| auxiliary contact composition |
1 NO + 1 NC
|
|
| [Uimp] rated impulse withstand voltage |
8 kV conforming to IEC 60947
|
|
| overvoltage category |
III
|
|
| [Ith] conventional free air thermal current |
10 A 140 °F (60 °C) signalling circuit
125 A (at 60 °C) for power circuit |
|
| Irms rated making capacity |
140 A AC signalling circuit IEC 60947-5-1
250 A DC signalling circuit IEC 60947-5-1 1100 A at 440 V for power circuit conforming to IEC 60947 |
|
| rated breaking capacity |
1100 A at 440 V for power circuit conforming to IEC 60947
|
|
| [Icw] rated short-time withstand current |
640 A 40 °C - 10 s for power circuit
990 A 40 °C - 1 s for power circuit 135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
|
| associated fuse rating |
10 A gG signalling circuit IEC 60947-5-1
200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit |
|
| average impedance |
0.8 mOhm - Ith 125 A 50 Hz for power circuit
|
|
| [Ui] rated insulation voltage |
Power circuit 600 V CSA
Power circuit 600 V UL Power circuit: 1000 V conforming to IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL |
|
| electrical durability |
0.8 Mcycles 125 A AC-1 at Ue <= 440 V
1.5 Mcycles 80 A AC-3 at Ue <= 440 V |
|
| power dissipation per pole |
5.1 W AC-3
12.5 W AC-1 |
|
| Front cover |
With
|
|
| mounting support |
Rail
Plate |
|
| standards |
CSA C22.2 No 14
EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
|
| product certifications |
GOST
DNV UL CCC LROS (Lloyds register of shipping) BV CSA GL RINA |
|

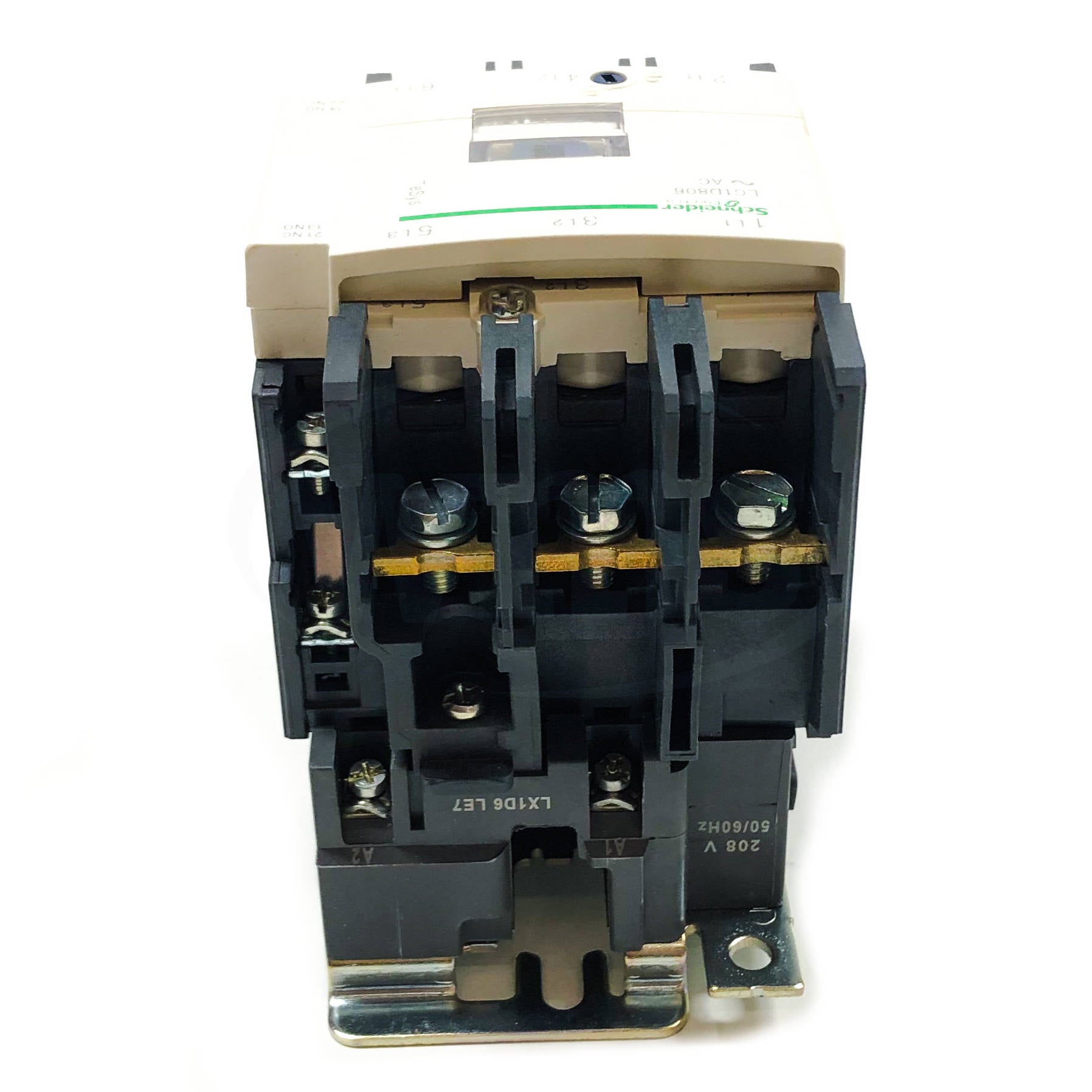

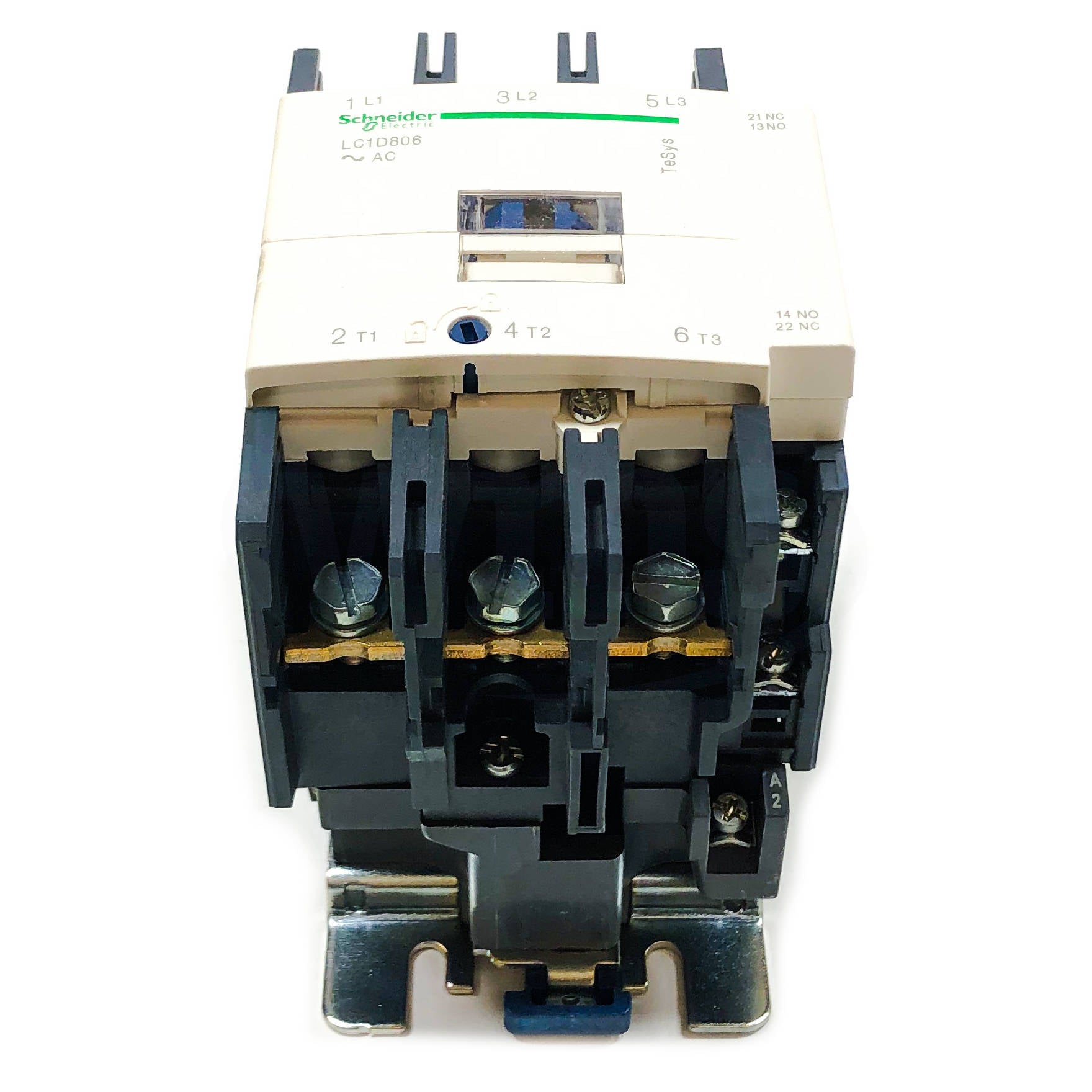

| connections - terminals |
Control circuit: lugs-ring terminals (external diameter: 8 mm)
Power circuit bars 1 3 x 16 mm Power circuit lugs-ring terminals 0.67 in (17 mm)) |
|
| tightening torque |
Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 Power circuit 106.21 lbf.in (12 N.m) lugs-ring terminals flat Ø 8 mm M6 Power circuit 106.21 lbf.in (12 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6 Power circuit 106.21 lbf.in (12 N.m) bars flat Ø 8 mm M6 Power circuit 106.21 lbf.in (12 N.m) bars hexagonal 0.39 in (10 mm) M6 |
|
| operating time |
20...35 ms closing
6...20 ms opening |
|
| safety reliability level |
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
|
| mechanical durability |
4 Mcycles
|
|
| maximum operating rate |
3600 cyc/h 140 °F (60 °C)
|
| coil technology |
Without built-in suppressor module
|
|
|---|---|---|
| control circuit voltage limits |
0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz 1...1.1 Uc (55…70 °C):operational AC 50/60 Hz |
|
| inrush power in VA |
245 VA 60 Hz cos phi 0.75 (at 20 °C)
245 VA 50 Hz cos phi 0.75 (at 20 °C) |
|
| hold-in power consumption in VA |
26 VA 60 Hz cos phi 0.3 (at 20 °C)
26 VA 50 Hz cos phi 0.3 (at 20 °C) |
|
| heat dissipation |
6…10 W at 50/60 Hz
|
|
| auxiliary contacts type |
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1 |
|
| signalling circuit frequency |
25...400 Hz
|
|
| minimum switching current |
5 mA signalling circuit
|
|
| minimum switching voltage |
17 V signalling circuit
|
|
| non-overlap time |
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact |
|
| insulation resistance |
> 10 MOhm signalling circuit
|
|
| contact compatibility |
M11
|
|
| compatibility code |
LC1D
|
| IP degree of protection |
IP20 front face IEC 60529
|
|
|---|---|---|
| protective treatment |
TH IEC 60068-2-30
|
|
| pollution degree |
3
|
|
| ambient air temperature for operation |
-40…60 °C
60…70 °C with derating |
|
| ambient air temperature for storage |
-76…176 °F (-60…80 °C)
|
|
| operating altitude |
0...3000 m
|
|
| fire resistance |
1562 °F (850 °C) IEC 60695-2-1
|
|
| flame retardance |
V1 UL 94
|
|
| mechanical robustness |
Vibrations contactor open: 2 Gn, 5...300 Hz
Shocks contactor open: 8 Gn for 11 ms Vibrations contactor closed: 3 Gn, 5...300 Hz Shocks contactor closed: 10 Gn for 11 ms |
|
| height |
5.00 in (127 mm)
|
|
| Maximum Width |
3.35 in (85 mm)
|
|
| Maximum Depth |
5.12 in (130 mm)
|
|
| Net Weight |
3.51 lb(US) (1.59 kg)
|
