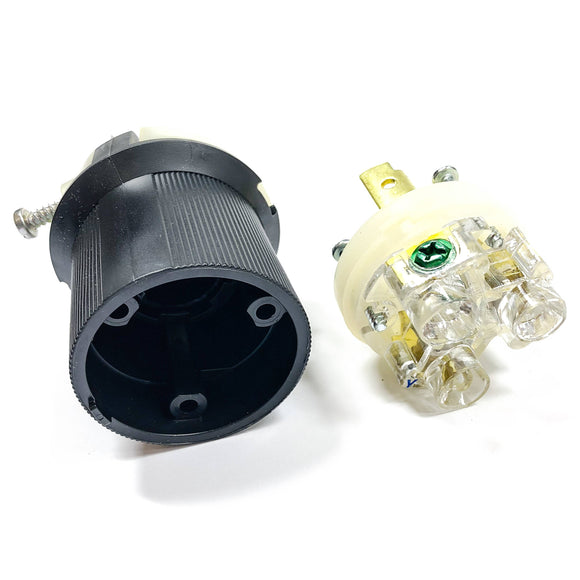

HBL2621 Hubbell InsulGrip Twist-Lock Plug-1

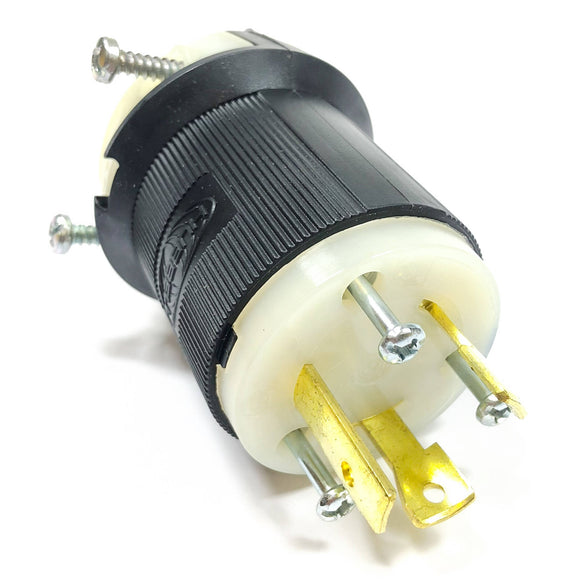

HBL2621 Hubbell InsulGrip Twist-Lock Plug-2

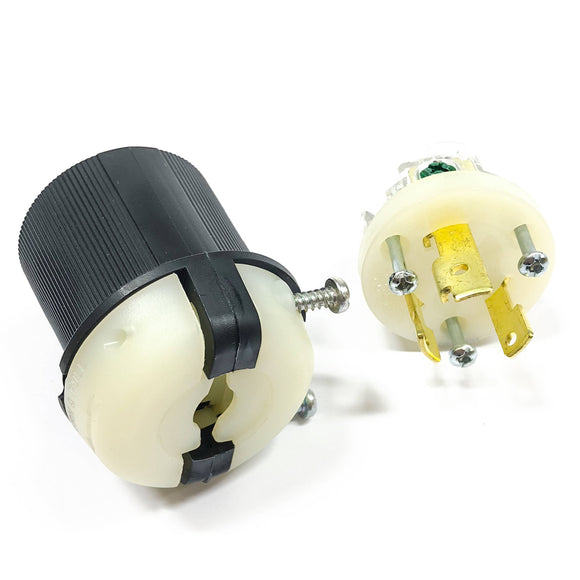

HBL2621 Hubbell InsulGrip Twist-Lock Plug-3

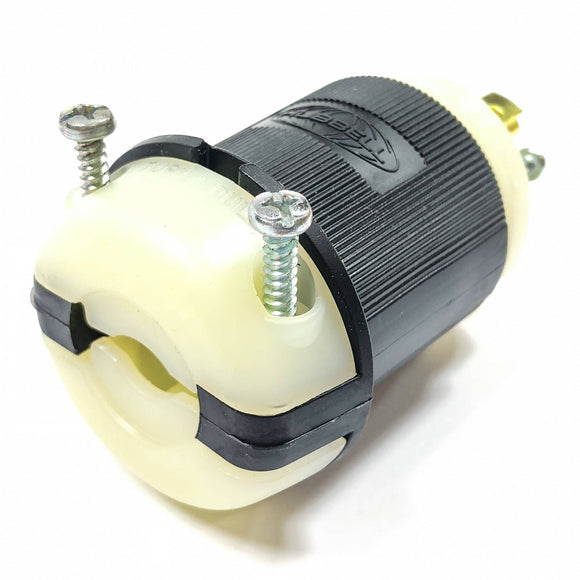

HBL2621 Hubbell InsulGrip Twist-Lock Plug-4
HBL2621 Hubbell InsulGrip Twist-Lock Plug-5

HBL2621 Hubbell InsulGrip Twist-Lock Plug

$24.97

Shipping calculated at checkout

Witmer Motor Service SKU: HBL2621 Barcode: 783585038834

30 Day
Return Policy

Ships Fast
in 24 hours

11

In stock!

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 30A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-30P, Screw Terminal, Black and White Nylon.

  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
Standard Product

Product Details

General

Application Extra Heavy Duty Industrial
Color Black, White
Cord Range 0.360"-0.930" (9-24)
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum 2
Item Type 30A Grounding Insulgrip® Plug
Material Nylon
Material - Mounting Hardware Cord Mounted
Number Of Poles 2-Pole
OEM Brand Name Hubbell Wiring Device-Kellems
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Type
  • Plugs
UPC 783585038834

Dimensions

Display Size Standard Sized
Height 2.75 in
Length 2.26 in
Weight 0.25 lb
Width 2.26 in

Electrical Ratings

Amperage Rating 30 A
Connectivity Pressure Terminal Screws
Current / Amperage Rating 30 A
Current Rating 30 A
Dielectric Strength Withstands 2,000V minimum
Phase Single Phase
Voltage Rating 250 VAC
Voltage Rating Description 250 VAC
Wattage 7500 W

Conductor Related

Cable Range 0.360 - 0.930 in
Cord Type All Listed Portables
Number Of Wires 3-Wire
Wire Size #16 AWG to #8 AWG

Certifications and Compliance

Industry Standard(s)
  • Certified to CSA C22.2 No.42
  • Fed.Spec. W-C-596
  • Listed to UL 498
Nema Rating L6-30P
