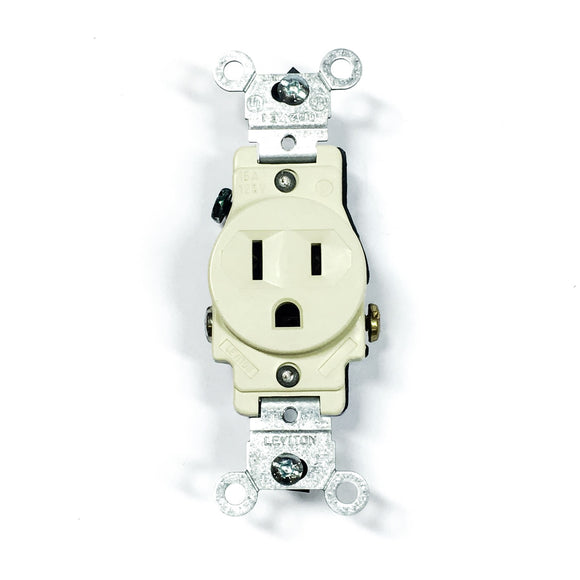

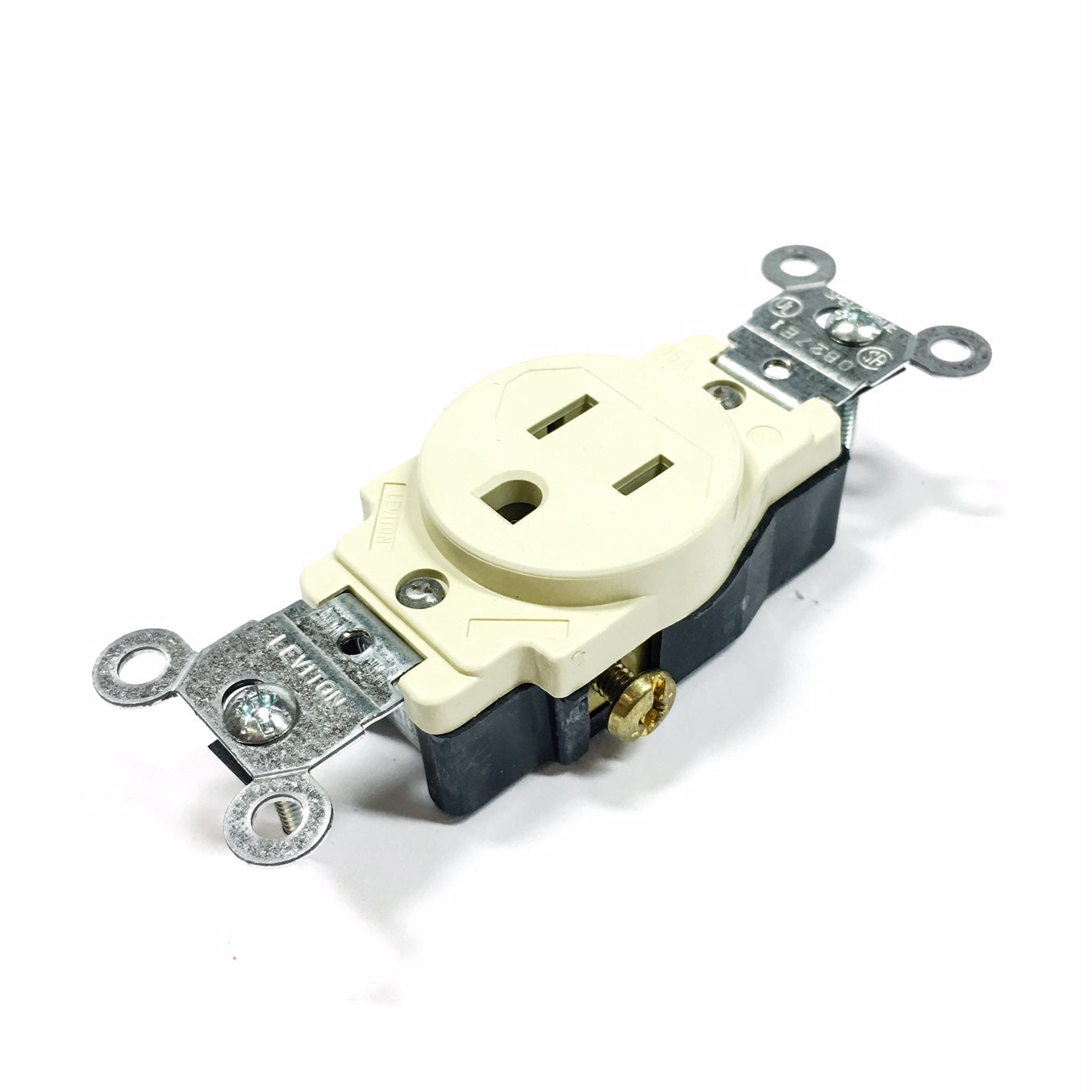

Leviton Straight blade single receptacle in ivory color features thermoplastic nylon body and face. Commercial grade receptacle has a steel strap and works at full rated current. It has a current rating of 15 Amps, voltage rating of 125 Volts and power rating of 1/2 hp. The 2-Pole grounding receptacle has three-wire circuitry and comes with 0.031-Inch thick brass double wipe line contacts. It can withstand up to 2000 Volts and measures 1.380 Inch x 4.060 Inch.
Receptacle has side wired connection for convenience and can accommodate a wire of size 14 - 10 AWG and has brass-hot, green-ground and white/silver neutral terminal for easy identification. It has brass 8-32 terminal screws and brass 8-32 grounding screw for easy installation. It has 5-15R NEMA configuration. At 150% rated current, receptacle has a maximum temperature rise of 30 deg C after 100 cycles overload. It has a rated V-2 flammability and operates at -40 to 60 deg C temperature. It finds application in hotels, schools, hospitals and commercial office buildings. Receptacle is UL 498 listed/CSA certified and meets NEMA/NOM/ANSI standards.
Product Details
Dimension: 1.380 Inch Width x 4.060 Inch Height
Ratings are permanently marked on device
Large-head terminal screw, backed out and staked, accept No. 10 copper or copper-clad wire
Heavy-gauge, rust-resistant steel mounting strap
Shallow design for maximum wiring room in box
Convenient washer-type break-off plaster ears for best flush alignment
Captive mounting screws for fast installation
Impact and rust-resistant
Other Information
Mounting Wall Box
Item Single Receptacle
Material Nylon
Dielectric Strength 2000 Volt
Environmental Conditions Flammability Rated V-2 Per UL 94
Connection Side Wired
Color Ivory
Phase 1
Number Of Wires 3
NEMA Configuration NEMA 5-15R
Number Of Poles 2
Application For Commercial Applications
Amperage Rating 15 Amp
Grounding Self Grounding
Wire Size 14-10 AWG
Voltage Rating 125 Volt
Strap Material Steel
Standards NEMA WD-2 And WD-6, ANSI C-73, NOM 057, CSA C22.2 No.42: File #152105, UL498: File #E13399
Temperature Rating -40 to +60
Type Narrow, Straight Blade
Alternate Part Number 5015I
Amperage 15 A
Catalog Description 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Narrow Body Single Receptacle, Straight Blade, Commercial Grade, Grounding, , , Side Wired, Steel Strap, - Ivory
Country of Origin US
