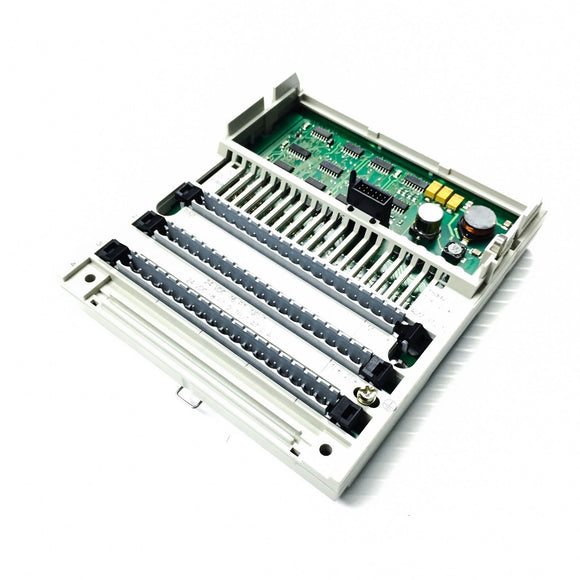

170ADM37010 Schneider TSX Momentum I/O Base, 24VDC

General Specifications Module type: 16 discrete inputs in 1 group, 8 discrete outputs in 2 groups (4 pts/group) Supply voltage: 24 VDC Supply voltage range: 20...30 VDC Supply current consumption: max. 250 mA at 24 VDC Power dissipation: 6 W + ( # of input points on x .144 W) + (# of output points on x 1 W) ) I/O map: 1 input word, 1 output word Isolation Input to input: none Output group to output group: 500 VAC Input to output group: 500 VAC Field to communication adapter: Defined by Communication Adapter type Fuses Internal: none External: operating and input voltage: According to the supply of the connected sensors–not to exceed 4A fast-blow External: output voltage: According to the supply of the connected actuators–not to exceed 8 A slow-blow EMC for industrial environment Immunity: IEC 1131-2, Surge on auxiliary power supply 500V Emissions: EN 50081-2 Agency approvals: UL, CSA, CE, FM Class 1 Div. 2 pending Physical dimensions Discrete Inputs Specifications for discrete inputs Width: 125 mm (4.9 in) Depth: (with no adapter) 40 mm (1.54 in) Length: 141.5 mm (5.5 in) no or one busbar, 159.5mm (6.3in) two busbars, 171.5 mm (6.75in) three busbars Weight: 220 g (0.49 lb) Specifications for discrete inputs Number of points: 16 Number of groups: 4 Points per group: 4 Signal type: True High IEC 1131 type: 1+ (See Appendix IEC 1131 Input Types, p. 581 for definitions of IEC input types.) ON voltage: +11 ... +30 VDC OFF voltage: -3 ... +5 VDC Input current: 2.5 mA minimum ON (6 mA at 24 VDC), 1.2 mA maximum OFF Input voltage range: -3 ... +30 VDC Input resistance: 4 kOhm Response time: 2.2 ms OFF to ON, 3.3 ms ON to OFF Specifications for discrete outputs Output type: Solid state switch Output supply voltage: 24 VDC Output supply voltage range: 20 ... 30 VDC Output voltage: External supply - .5 VDC Number of points: 8 Number of groups: 2 Points per group: 4 Current capacity: 2 A/point maximum, 8 A/group, 16 A/module Signal type: True High Leakage current (output out): < 1 mA @ 24 VDC Surge (inrush) current: 2.8 A for 10 s max. On state voltage drop: < 0.5 VDC @ 2 A Fault sensing: Outputs are electronically safeguarded to assist in short circuit and overload protection Fault reporting outputs: 1 red LED/point (row 3) ON when overload occurs Fault reporting input voltage: 1 red LED (row 3) signals the state of 4 inputs belonging to the input power supply group Error indication :In the event of an overload for on least 1 output, for a short-circuit or overload in one of the 4 encoder supply groups, (I/O-Error) to communication adapter Response time (resistive load / 2 A): < 0.1 ms OFF to ON, < 0.1 ms ON to OFF Maximum switching cycles: 1000/h for 2 A inductive load (for inductances > 100 mH and switching currents > 1A, a clamping diode must be installed, 100/s for 2 A resistive load, 10/s for 1.2 W Tungsten load (when the startup current factor <= 10 the nominal current)
