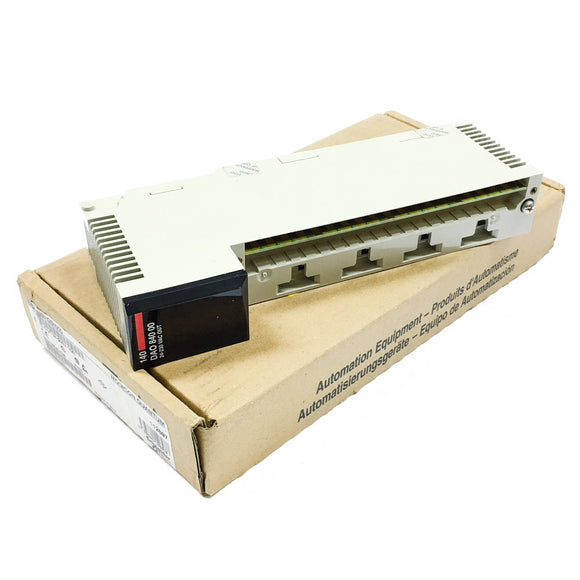

140-DAO-840-00 Schneider AC Output Module, 16x1-1

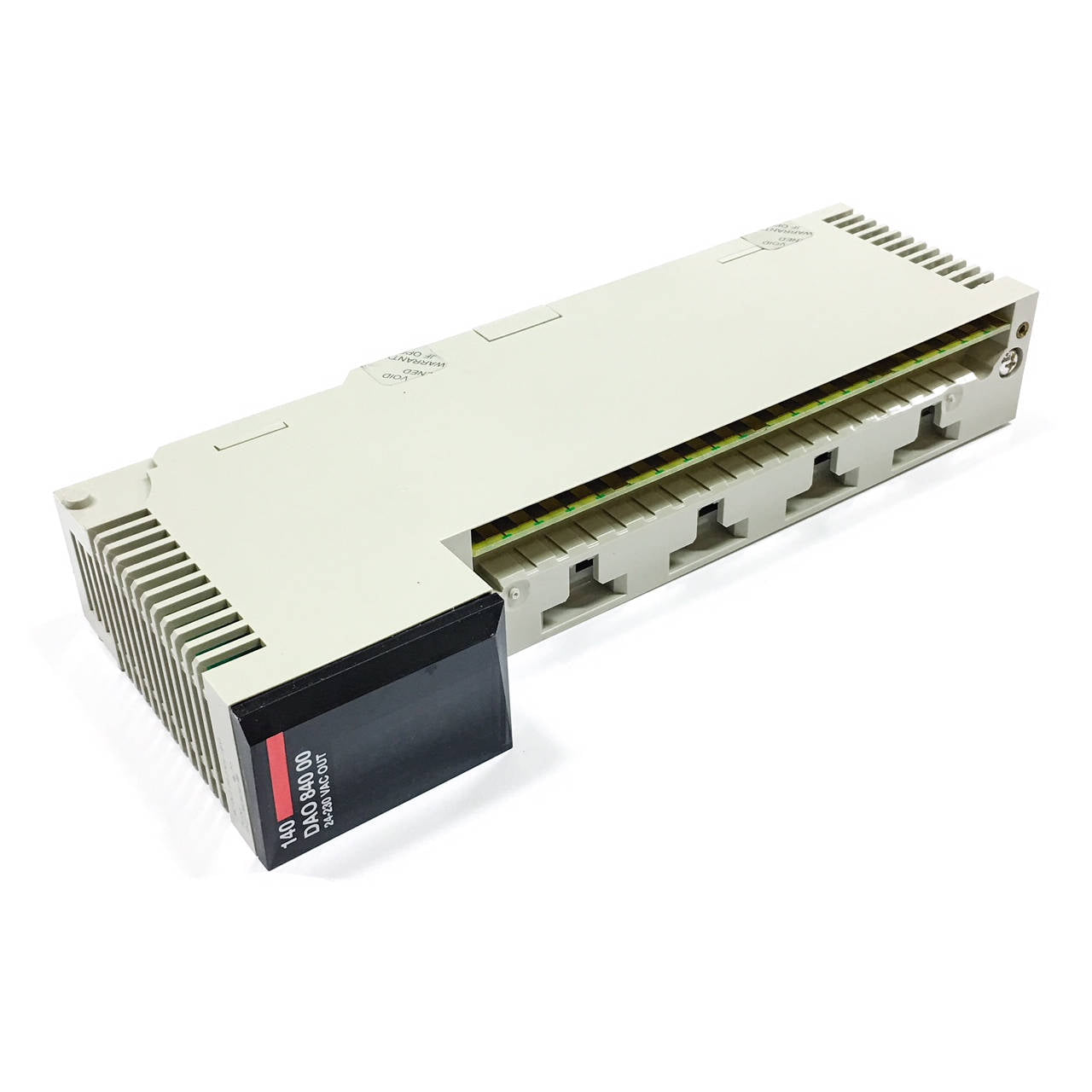

140-DAO-840-00 Schneider AC Output Module, 16x1-2

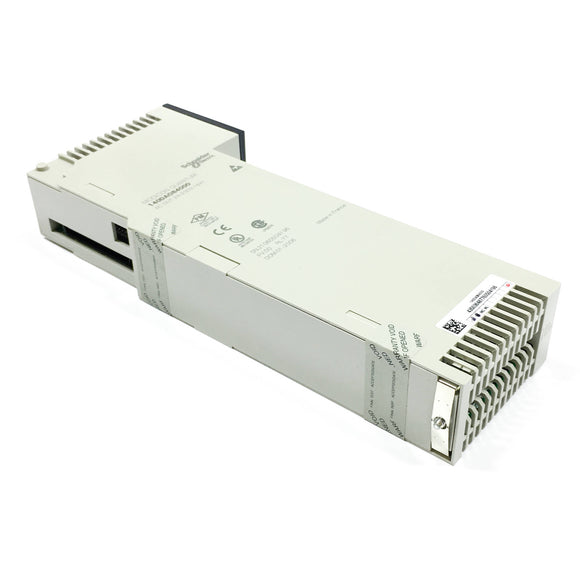

140-DAO-840-00 Schneider AC Output Module, 16x1-3

140-DAO-840-00 Schneider AC Output Module, 16x1

$449.97

Shipping calculated at checkout

Witmer Motor Service SKU: 140-DAO-840-00 Barcode: 3595861126978

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!
Schneider Electric 140-DAO-840-00 Modicon Quantum Discrete AC Output Module, 16x1, 24-230V SN: 21060504196 PV: 00 RL: 77 DOM: 01-2006 Made in France
Main
range of product
Modicon Quantum automation platform
product or component type
AC discrete output modules
discrete output number
16
Complementary
discrete output type
Isolated
group of channels
16 groups of 1 channel
supply frequency
47...63 Hz
voltage drop
1.5 V
discrete output voltage
20...253 V AC
addressing requirement
1 output word
absolute maximum output
300 Vrms for 10 s AC
400 Vrms 1 cycle AC
maximum load current
4 A rms sum of four points, continuous
1 mA rms 24 Vrms off state leakage per output
1 mA rms 48 Vrms off state leakage per output
16 A rms per module
2 mA rms 115 Vrms off state leakage per output
2.5 mA rms 230 Vrms off state leakage per output
3 A rms 200...230 V per output
4 A rms 24...115 V per output
surge current
<= 10 A during 3 cycles per point
<= 20 A during 2 cycles per point
<= 30 A during 1 cycle per point
dV/dt
400 V/ms
response time
<= 0.5 ms at state 0 to state 1
<= 0.5 ms at state 1 to state 0
protection type
Internal by RC filter
power dissipation
1.85 + (1.1 V x total module load current)
associated fuse rating
5 A
marking
CE
local signalling
1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
16 LEDs green input status
bus current requirement
350 mA
module format
Standard
product weight
0.485 kg
Environment
product certifications
CUL
FM Class 1 Division 2
standards
CSA C22.2 No 142
UL 508
electromagnetic compatibility
Electrostatic discharge immunity test (test level:4 kV, contact discharge) conforming to IEC 801-2
Electrostatic discharge immunity test (test level:8 kV, air discharge) conforming to IEC 801-2
Susceptibility to electromagnetic fields (test level:10 V/m, 80...1000 MHz) conforming to IEC 801-3
ambient air temperature for operation
0...60 °C
ambient air temperature for storage
-40...85 °C
relative humidity
95 % without condensation
operating altitude
<= 5000 m
