product or component type |

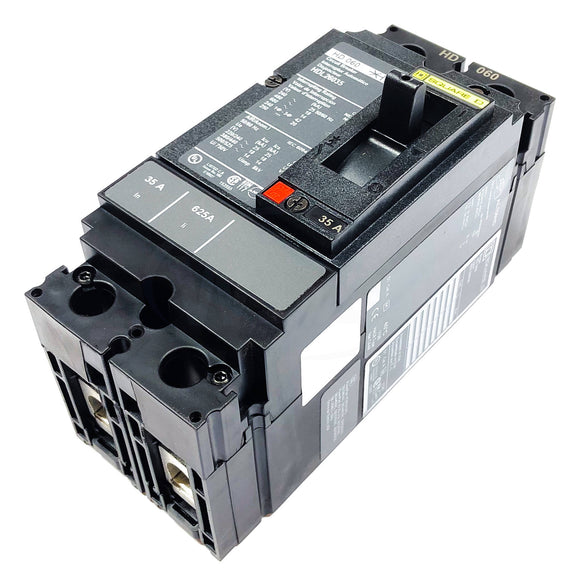

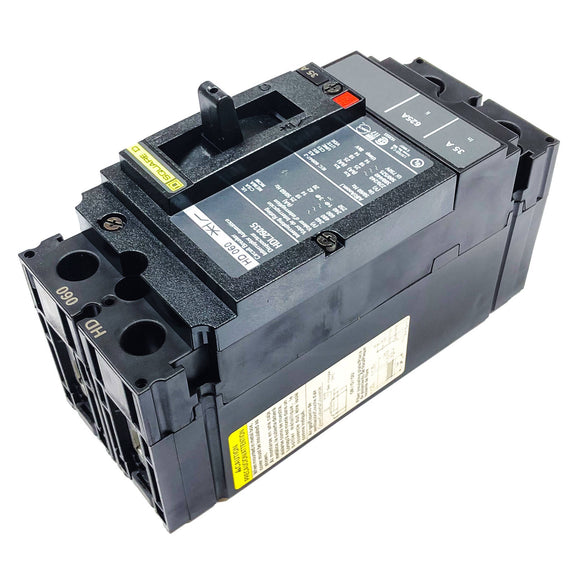

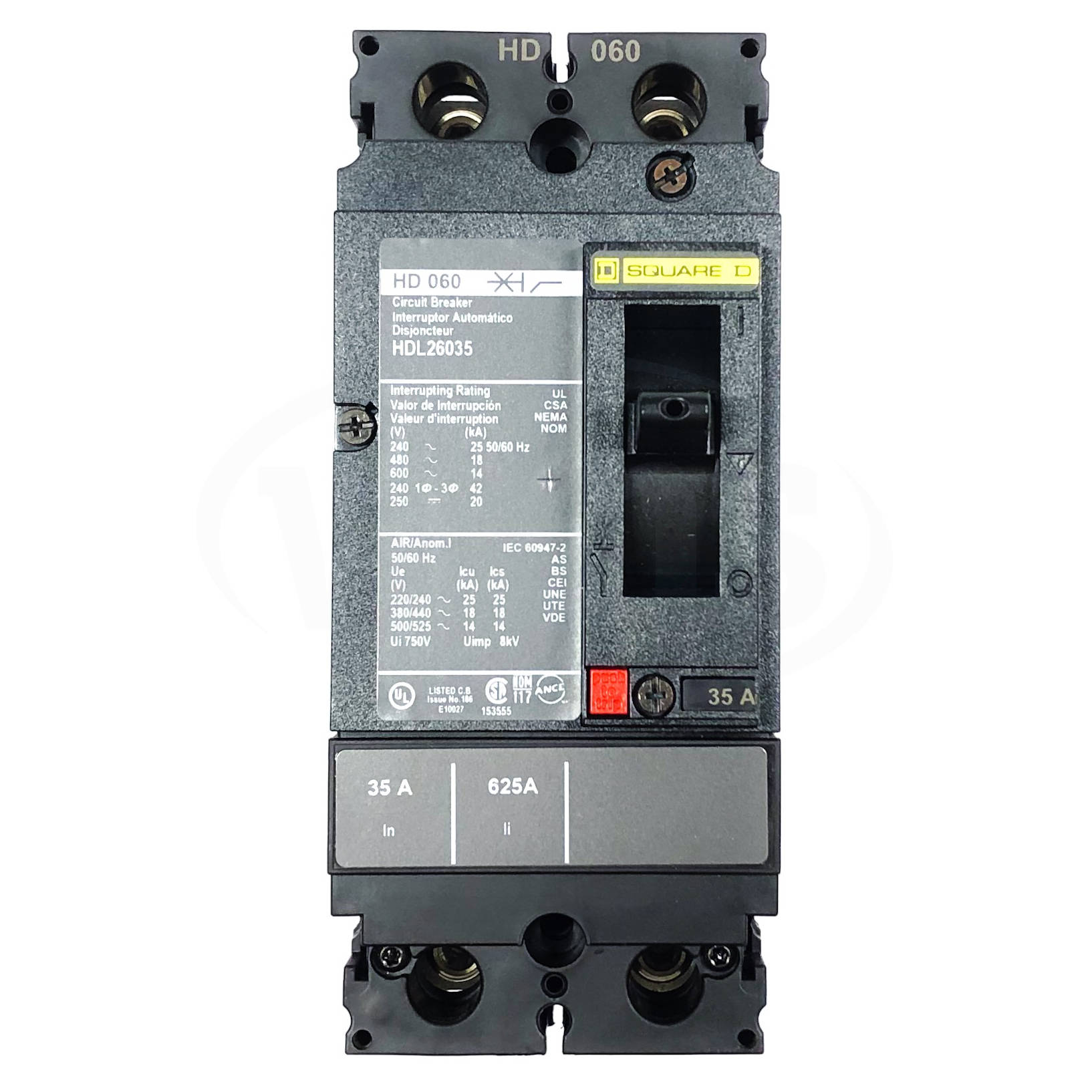

Circuit breaker
|
|
---|---|---|
range of product |
PowerPact H
|
|
Trip Unit Type |
Thermal-magnetic
|
|
breaking capacity code |
D
|
Line Rated Current |
35 A
|
|
---|---|---|
Number of Poles |
2P
|
|
Interrupt Rating |
18 kA at 480 V AC
25 kA at 240 V AC 14 kA at 600 V AC 20 kA at 250 V DC |
|
System Voltage |
250 V DC
600 V AC |
|
continuous current rating |
80 %
|
|
mounting mode |
Unit mount
|
|
electrical connection |
Lugs load
Lugs line |
|
Wire Gauge |
AWG 14...AWG 3/0 (aluminium/copper)
|
|
magnetic hold current |
400 A
|
|
magnetic tripping current |
850 A
|
|
height |
6.4 in
|
|
width |
2.74 in
|
|
depth |
4.36 in
|
product certifications |
CE
CSA IEC UL listed |
|
---|---|---|
ambient air temperature for operation |
104 °F (40 °C)
|
Category |
01110 - HD,JD UNIT MT BREAKER/SWITCH
|
|
---|---|---|
Discount Schedule |
DE2
|
|
GTIN |
00785901458937
|
|
Nbr. of units in pkg. |
1
|
|
Package weight(Lbs) |
3.04
|
|
Returnability |
Y
|
|
Country of origin |
US
|
