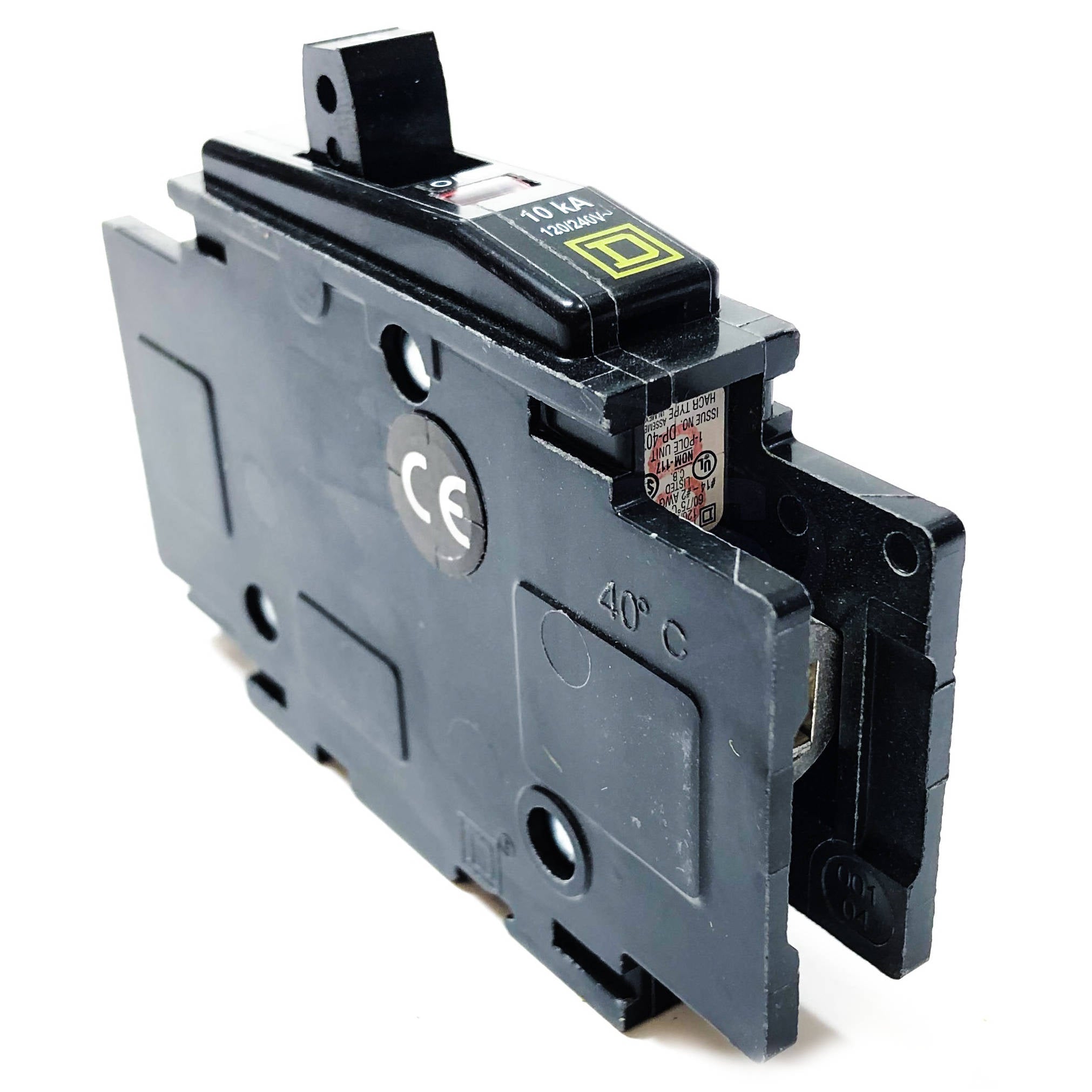

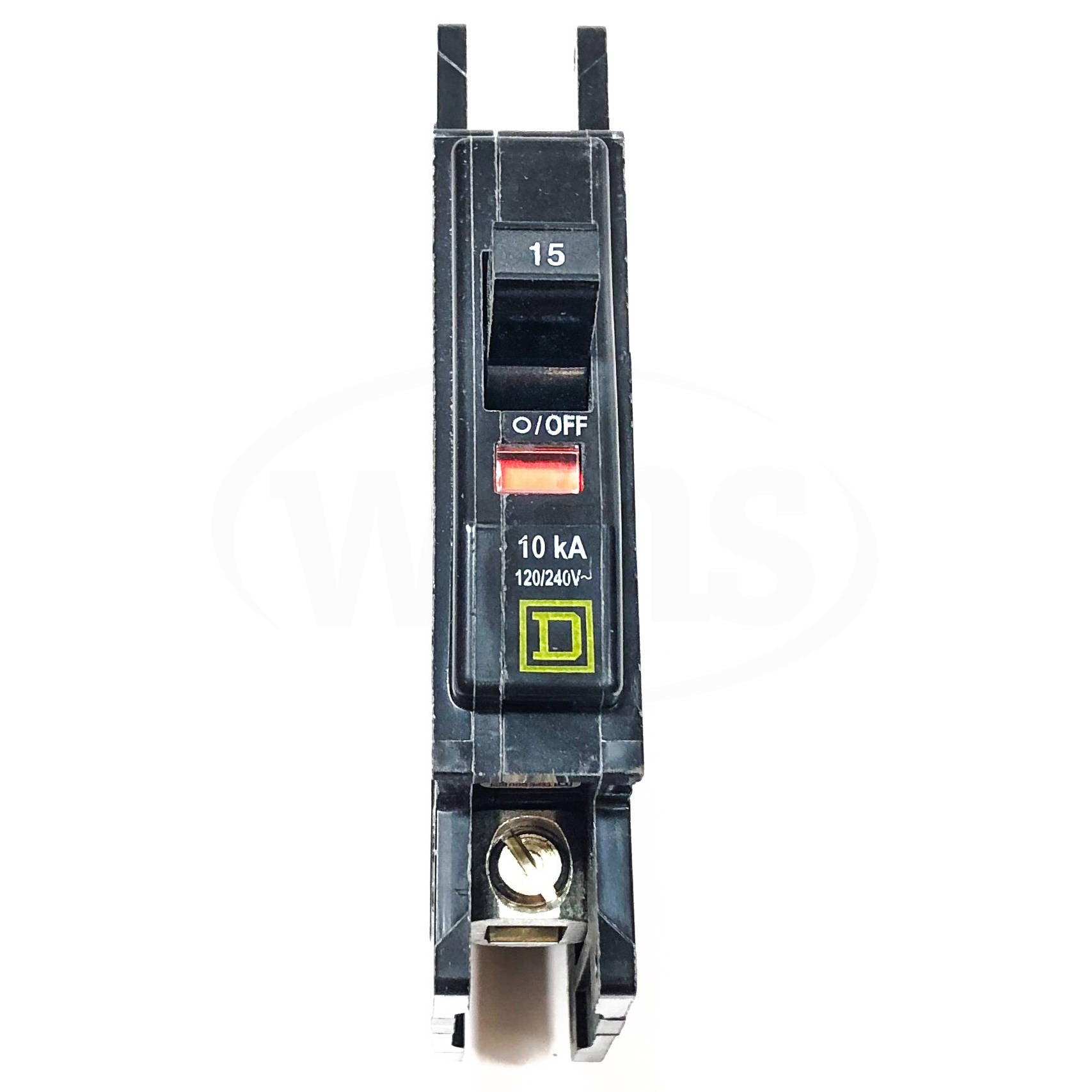

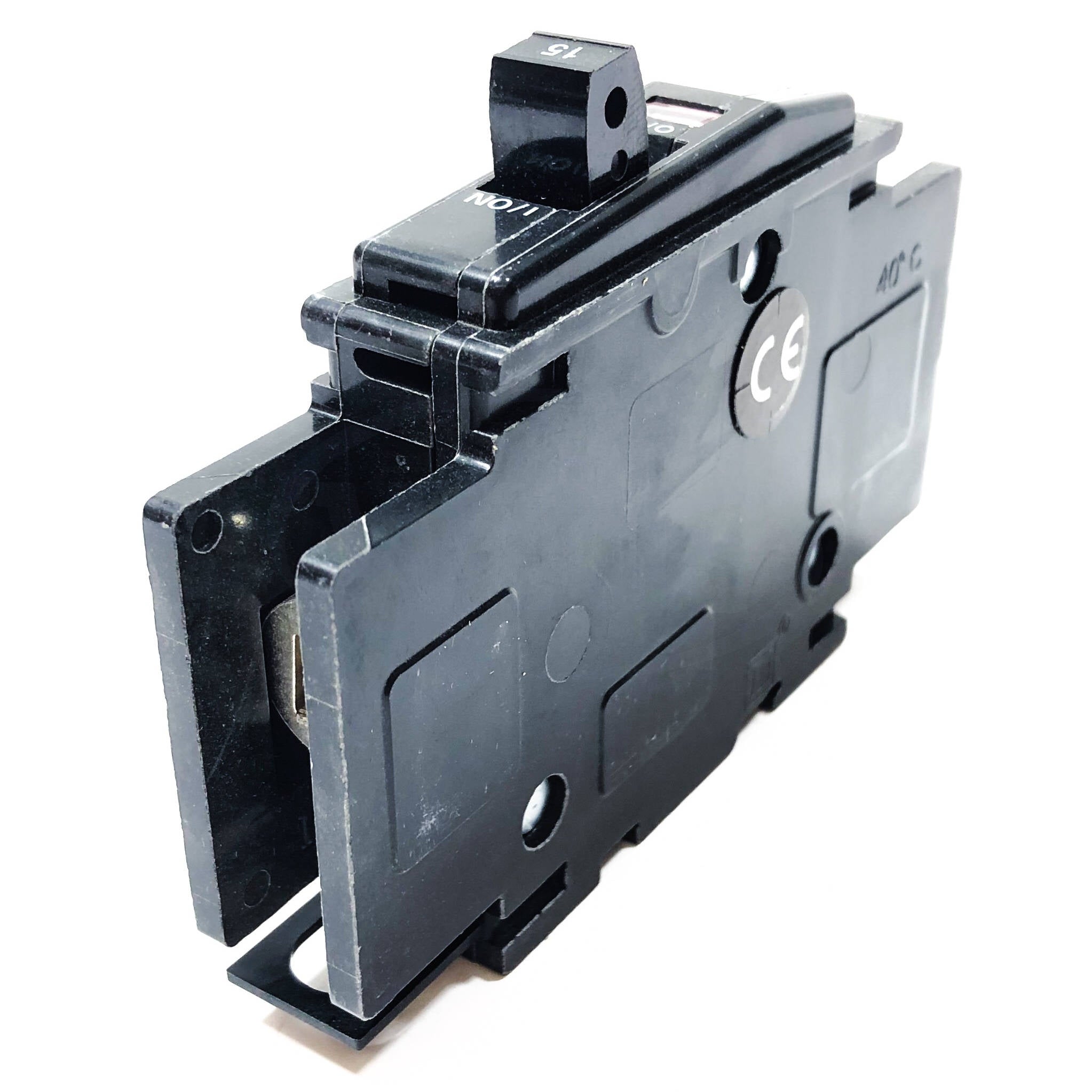

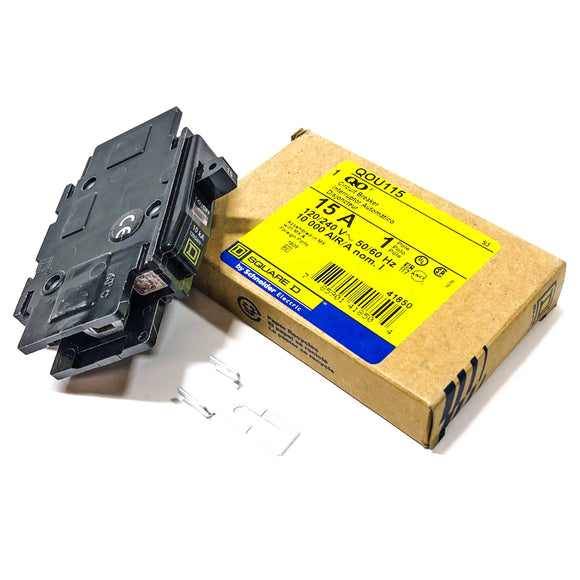

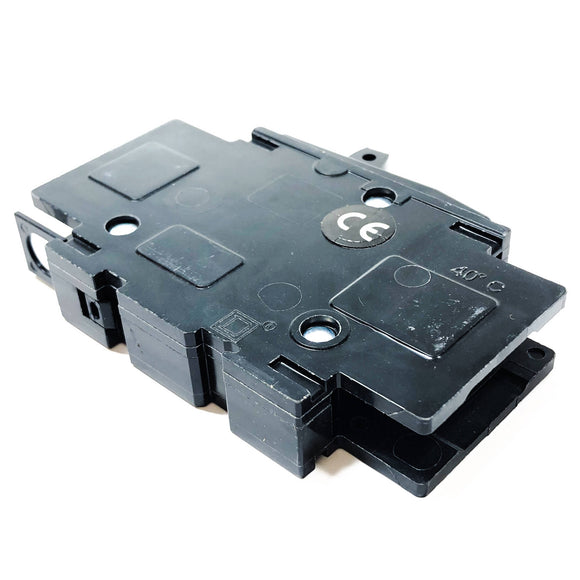

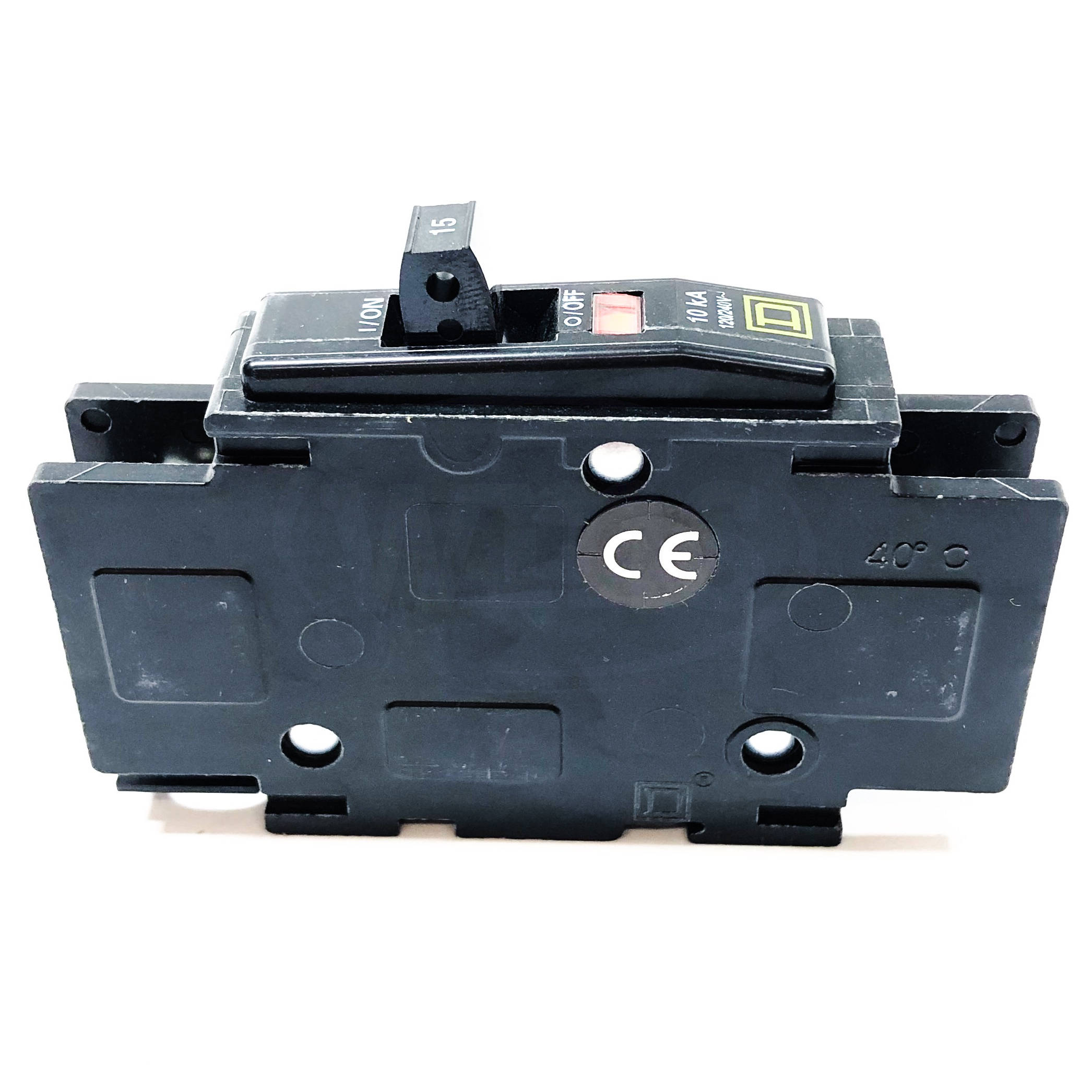

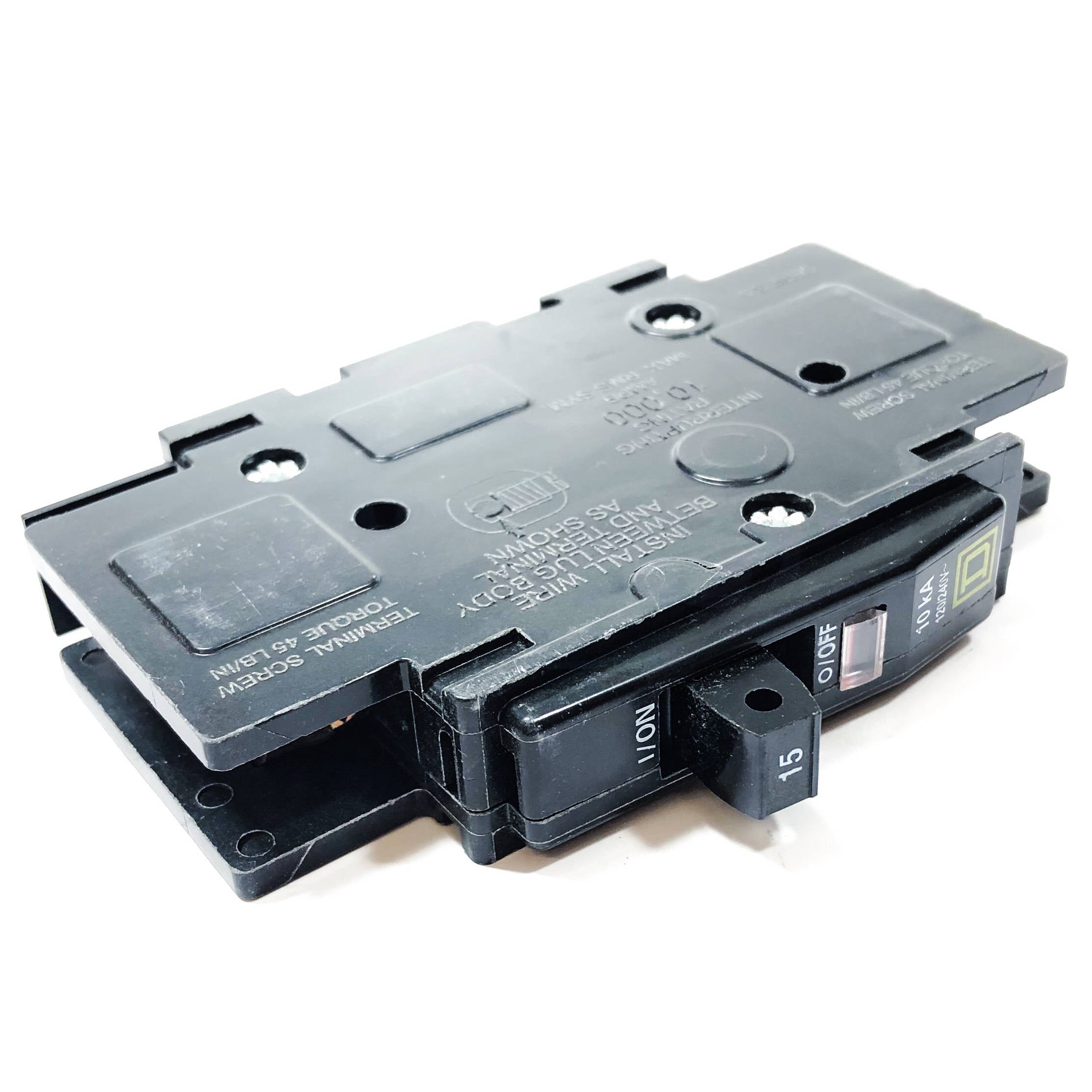

QOU115 Square D Miniature Circuit Breaker, 15 Amp, 1-Pole, 120/240VAC

$29.97

Shipping calculated at checkout

Witmer Motor Service SKU: QOU115 Barcode: 00785901418504

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!
Main
product or component type
Miniature circuit-breaker
range of product
QOU
circuit breaker type
Standard
circuit breaker application
HACR and Switching Duty rated
Complementary
Line Rated Current
15 A
Number of Poles
1P
Interrupt Rating
10 kA at: 120/240 V AC
5 kA at: 48 V DC
10 kA at: 120 V AC
electrical connection
Slotted box lugs, line side
Slotted box lugs, load side
System Voltage
120 V AC
120/240 V AC
48 V DC
mounting mode
Unit mount
AWG gauge
AWG 14...AWG 2 (aluminium/copper)
height
4.05 in
depth
2.95 in
width
0.75 in
tightening torque
45 lbf.in AWG 14...AWG 2
Environment
product certifications
CSA
IEC
UL listed
