| product or component type |

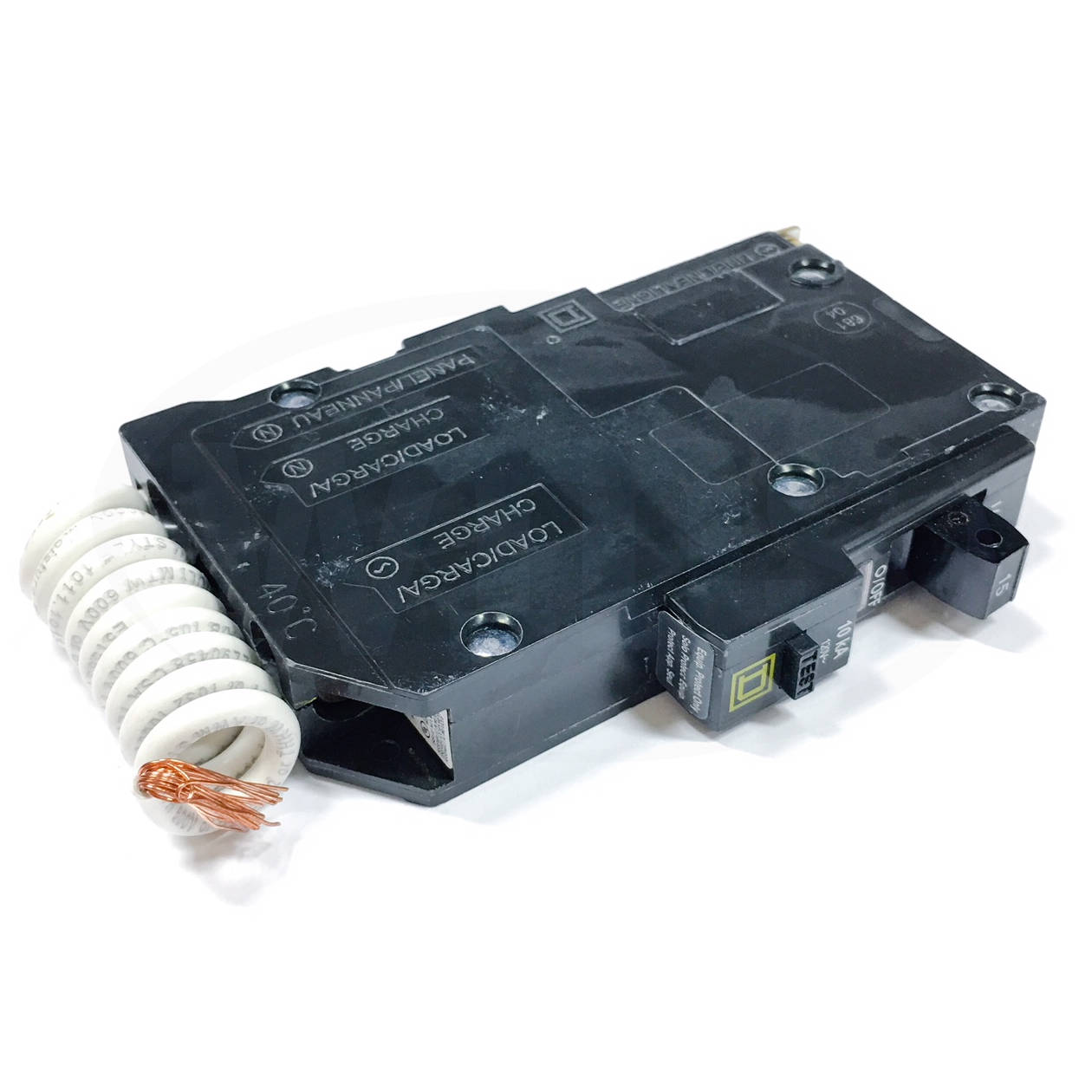

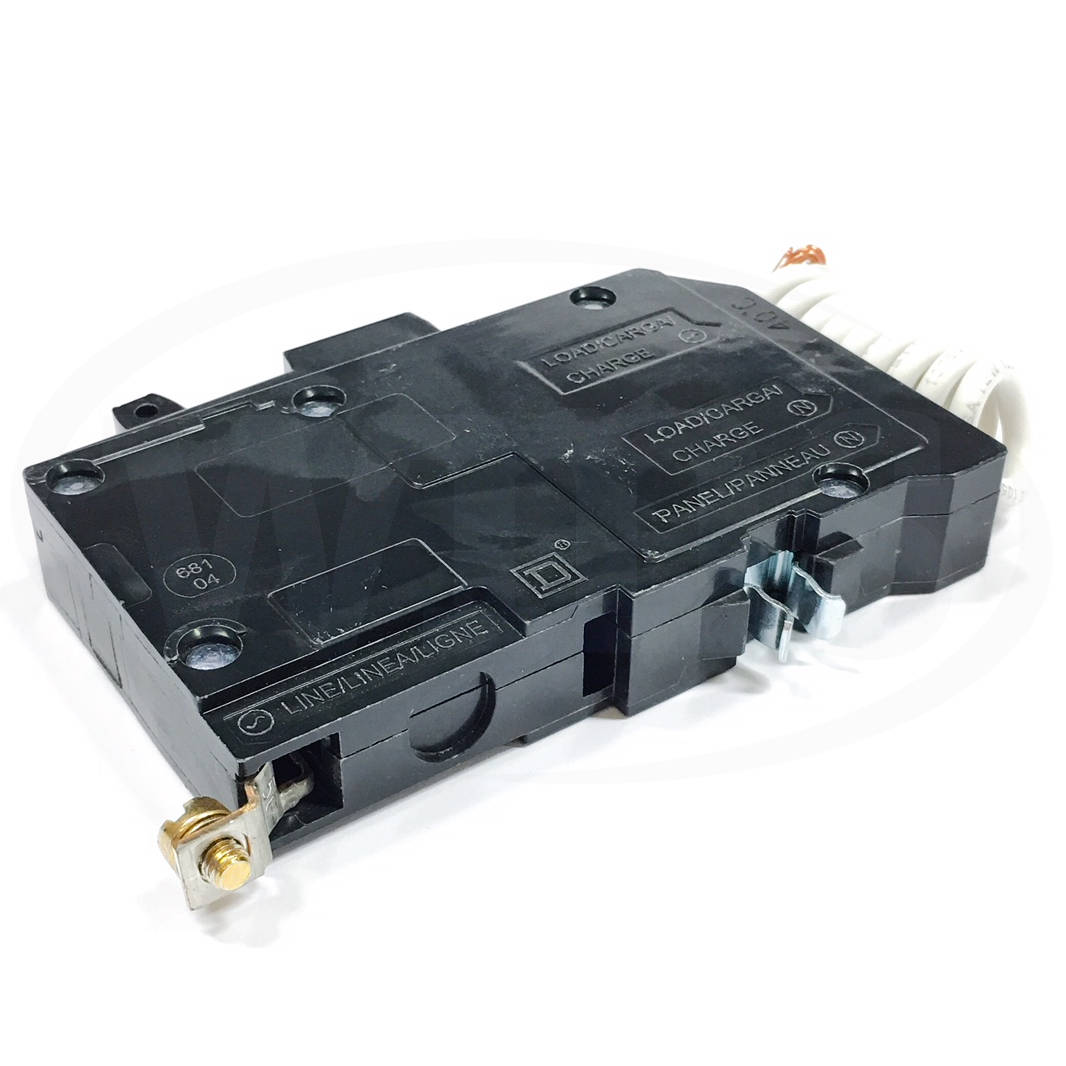

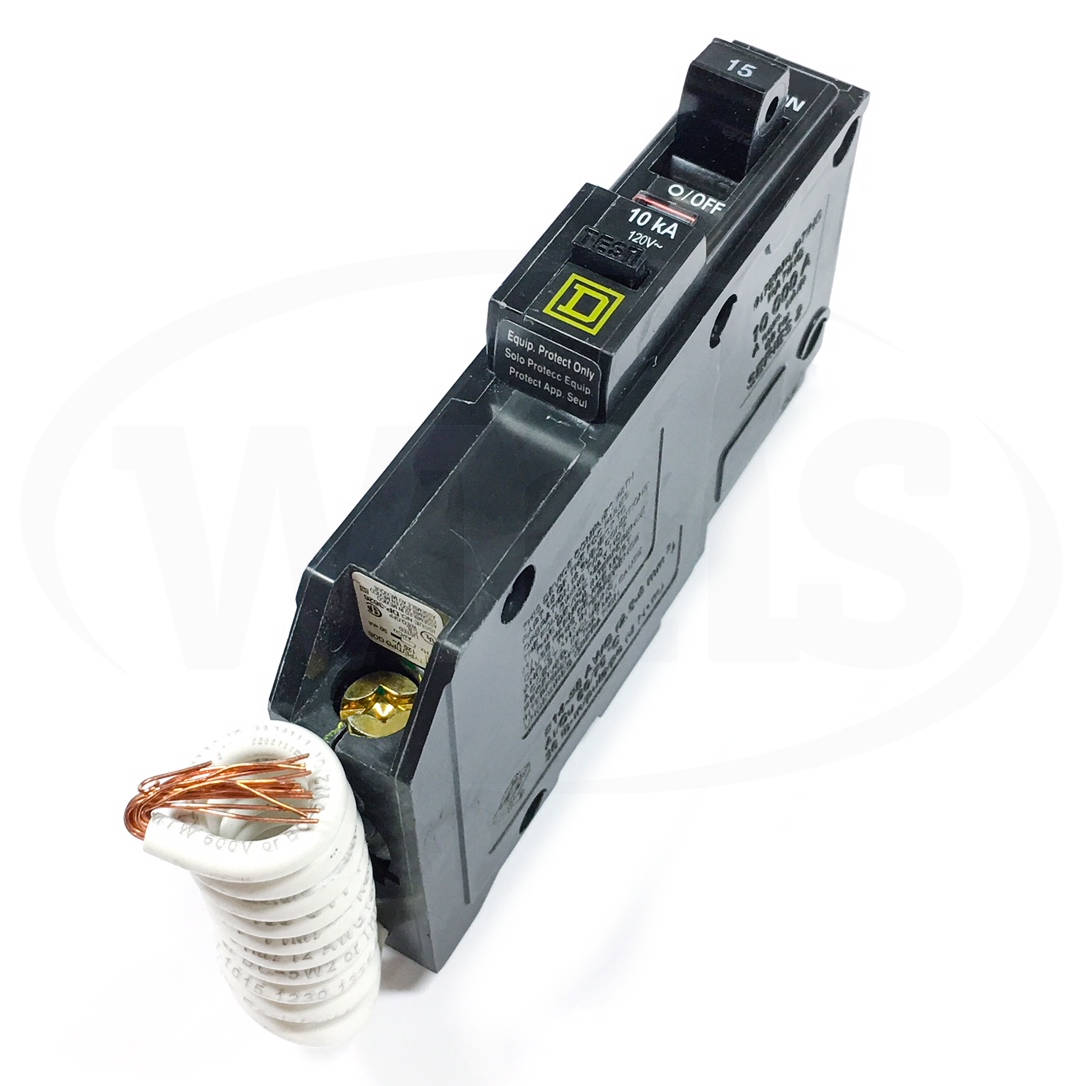

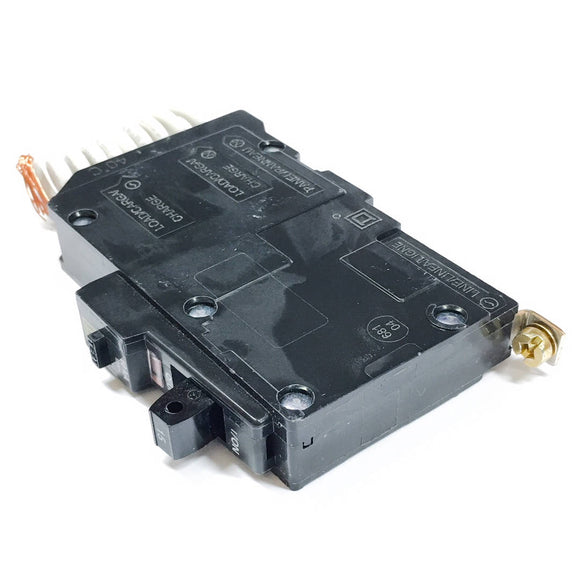

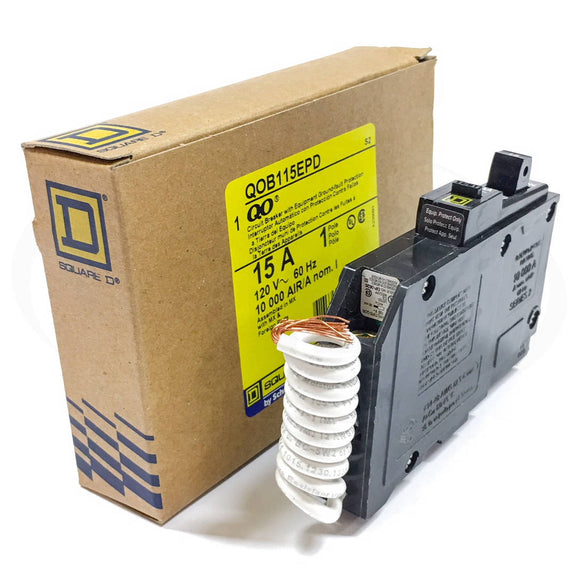

Miniature circuit-breaker
|
|
|---|---|---|
| range of product |
QO
|
|
| Line Rated Current |
15 A
|
|
| System Voltage |
120 V AC
|
|
| mounting mode |
Bolt-on
|
|
| poles description |
1P
|
|
| circuit breaker type |
Ground fault protecting class B 30 mA
|
|
| circuit breaker application |
Not rated
|
|
| electrical connection |
Pressure plate
|
| breaking capacity |
10 kA at: 120 V AC
|
|
|---|---|---|
| number of spaces required |
1
|
|
| AWG gauge |
AWG 14...AWG 8 (copper)
AWG 12...AWG 8 (aluminium) |
|
| height |
4.12 in
|
|
| depth |
2.91 in
|
|
| width |
0.75 in
|
| product certifications |
CSA
UL listed |
|
|---|---|---|
| ambient air temperature for operation |
104 °F (40 °C)
|
| Category |
00910 - QO-EPD,QOB-EPD BREAKERS
|
|
|---|---|---|
| Discount Schedule |
DE2A
|
|
| GTIN |
00785901763673
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
0.52000000000000002
|
|
| Returnability |
|
|
| Country of origin |
MX
|
