product or component type |

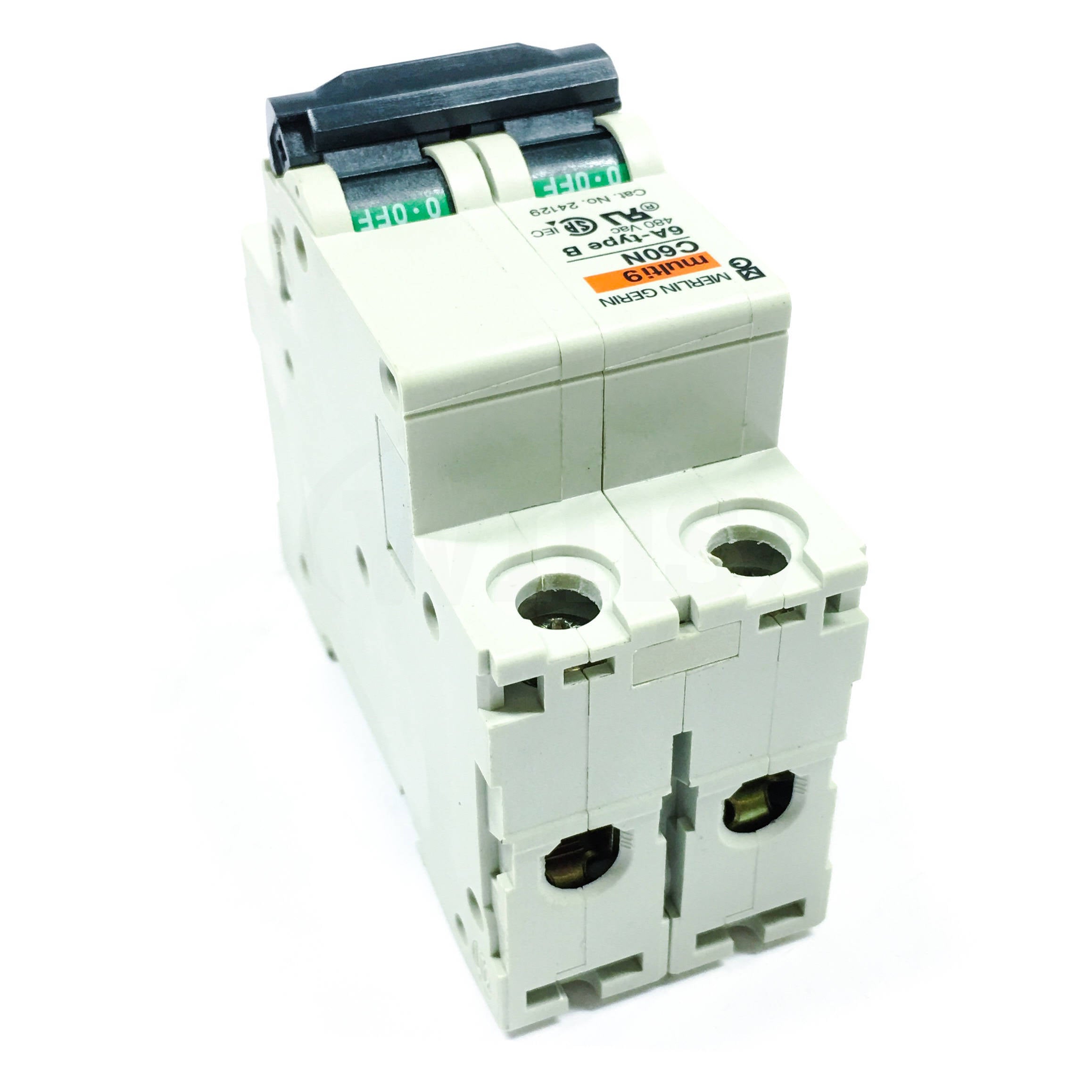

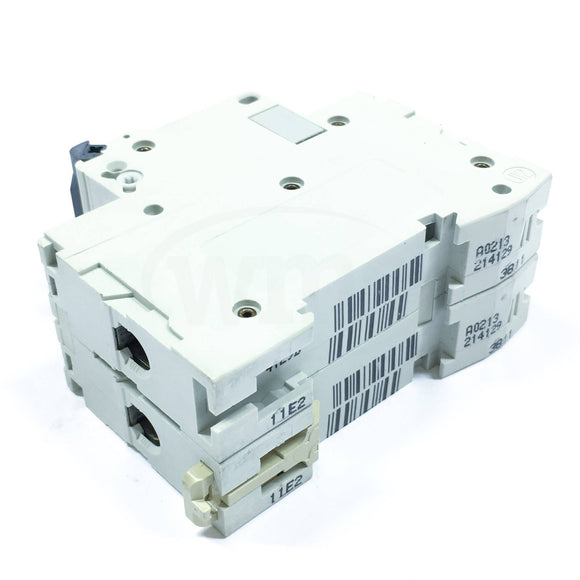

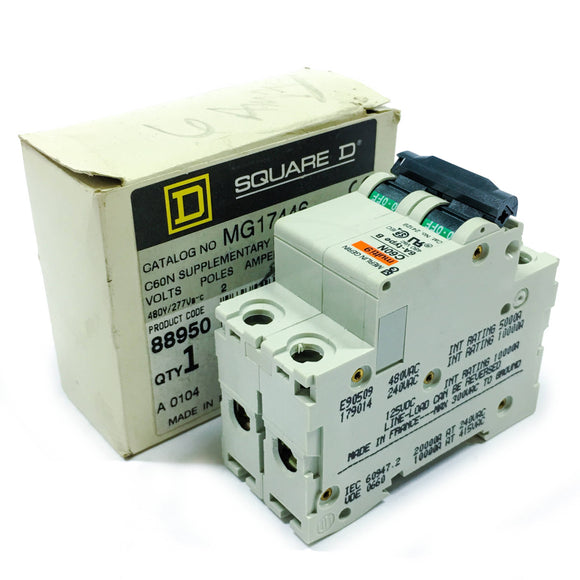

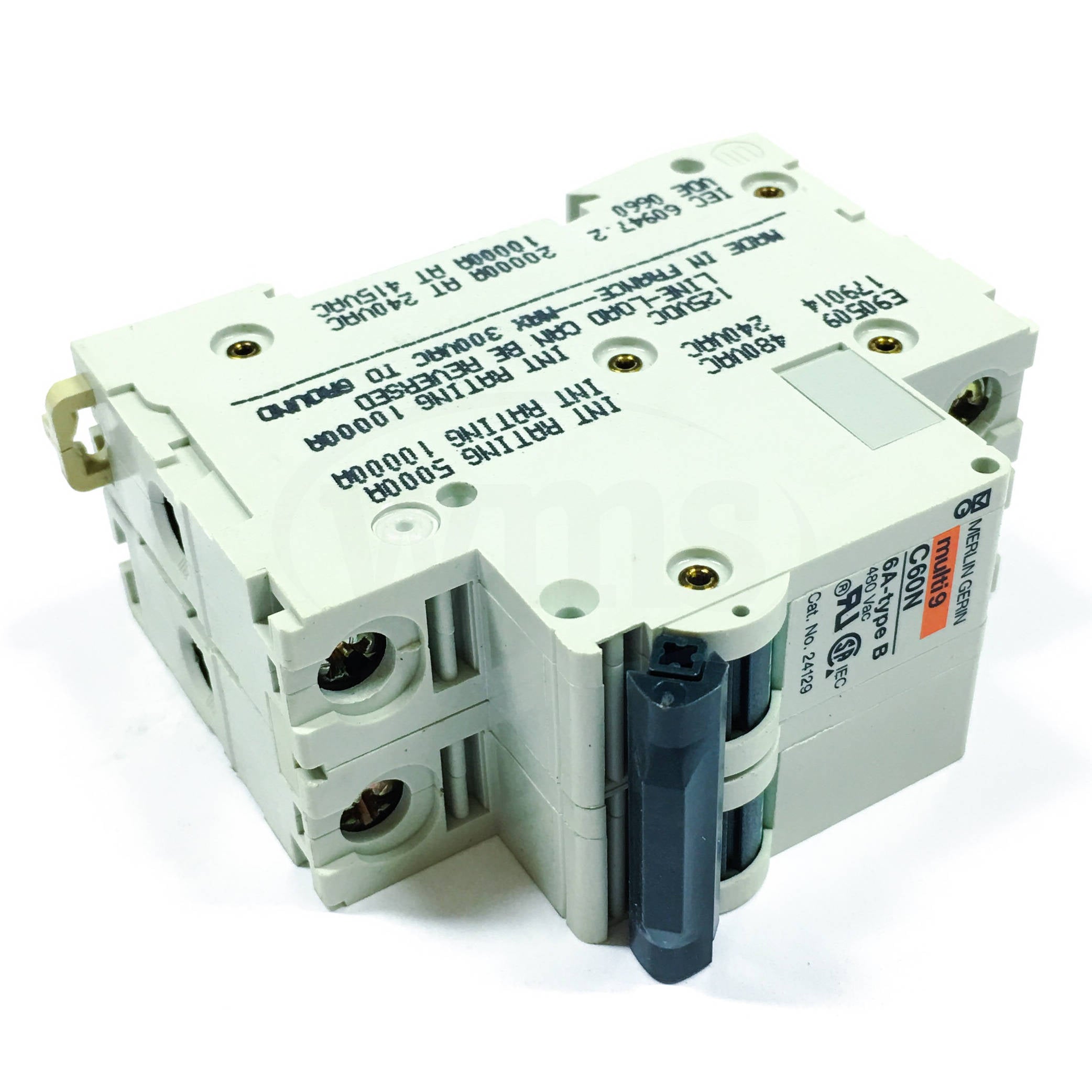

Miniature circuit-breaker
|
|
---|---|---|
range |
Multi 9
|
|
product name |
Multi 9 C60
|
|
device short name |
C60 UL1077
|
|
device application |
Distribution
|
|
number of protected poles |
2
|
|
[In] rated current |
15 Aat 77 °F (25 °C)
|
|
network type |
DC
AC |
|
trip unit technology |
Thermal-magnetic
|
|
suitability for isolation |
Yes conforming to EN/IEC 60947-2
|
System Voltage |
125 V DC
240 V AC 440 V AC 415 V AC |
|
---|---|---|
mounting mode |
Clip-on
|
|
poles description |
2P
|
|
breaking capacity |
AIR 10 kA at 240 V AC conforming to UL 1077
AIR 10 kA at 125 V DC conforming to UL 1077 Icu 6 kA at 440 V AC conforming to EN/IEC 60947-2 Icu 10 kA at 415 V AC conforming to EN/IEC 60947-2 Icu 20 kA at 240 V AC conforming to EN/IEC 60947-2 Icu 6 kA at 440 V AC conforming to GB 14048.2 Icu 10 kA at 415 V AC conforming to GB 14048.2 Icu 20 kA at 240 V AC conforming to GB 14048.2 AIR 5 kA at 480Y/277 V AC conforming to UL 1077 AIR 10 kA at 240 V AC conforming to CSA C22.2 AIR 5 kA at 480Y/277 V AC conforming to CSA C22.2 AIR 10 kA at 125 V DC conforming to CSA C22.2 Icu 10 kA at 125 V DC conforming to EN/IEC 60947-2 Icu 10 kA at 125 V DC conforming to GB 14048.2 |
|
network frequency |
50/60 Hz
|
|
curve code |
C
|
|
magnetic tripping limit |
8.5 x In +/- 20% AC
12 x In +/- 20% DC |
|
limitation class |
3 conforming to EN/IEC 60947-2
|
|
[Ui] rated insulation voltage |
500 V AC conforming to EN/IEC 60947-2
|
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-2
|
|
contact position indicator |
Yes
|
|
control type |
Toggle
|
|
local signalling |
ON/OFF indication
|
|
mounting support |
DIN rail
|
|
9 mm pitches |
4
|
|
height |
3.19 in (81 mm)
|
|
width |
1.42 in (36 mm)
|
|
depth |
2.87 in (73 mm)
|
|
product weight |
0.49 lb(US) (0.22 kg)
|
|
colour |
Grey
|
|
mechanical durability |
20000 cycles
|
|
electrical durability |
10000 cycles
|
|
provision for padlocking |
Padlockable
|
|
connections - terminals |
Tunnel type terminal, top or bottom rigid wire(s) 0...0.04 in² (2.5...25 mm²) max (AWG 14...AWG 4)
|
|
wire stripping length |
0.55 in (14 mm) top or bottom
|
|
tightening torque |
22.12 lbf.in (2.5 N.m) top or bottom
|
standards |
UL 1077
GB 14048.2 EN/IEC 60947-2 CSA C22.2 No 235 |
|
---|---|---|
product certifications |
CSA
CCC IEC UR |
|
IP degree of protection |
IP40 modular enclosure conforming to IEC 60529
IP20 conforming to IEC 60529 |
|
pollution degree |
3 conforming to EN/IEC 60947-2
|
|
overvoltage category |
IV
|
|
tropicalisation |
2 conforming to IEC 60068-1
|
|
relative humidity |
95 % 131 °F (55 °C)
|
|
operating altitude |
6561.68 ft (2000 m)
|
|
ambient air temperature for operation |
-22...158 °F (-30...70 °C)
|
|
ambient air temperature for storage |
-40...176 °F (-40...80 °C)
|
Category |
00908 - C60N SUPPLEMENTARY PROTECTORS
|
|
---|---|---|
Discount Schedule |
DE2
|
|
GTIN |
00785901889502
|
|
Nbr. of units in pkg. |
1
|
|
Package weight(Lbs) |
0.52000000000000002
|
|
Returnability |
|
|
Country of origin |
FR
|
