FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC-1
FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC-2
FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC-3
FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC-4
FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC-5
FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC-6

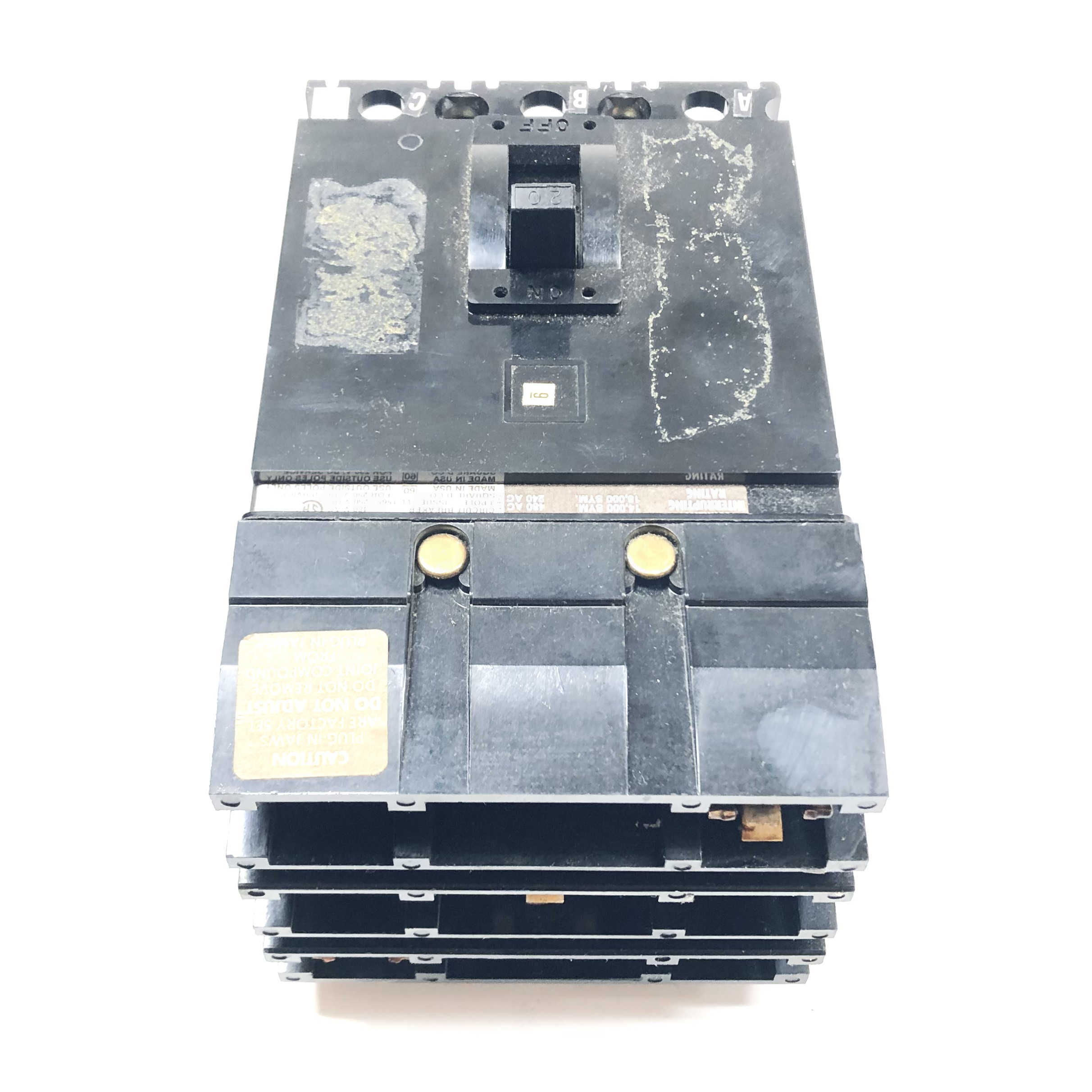

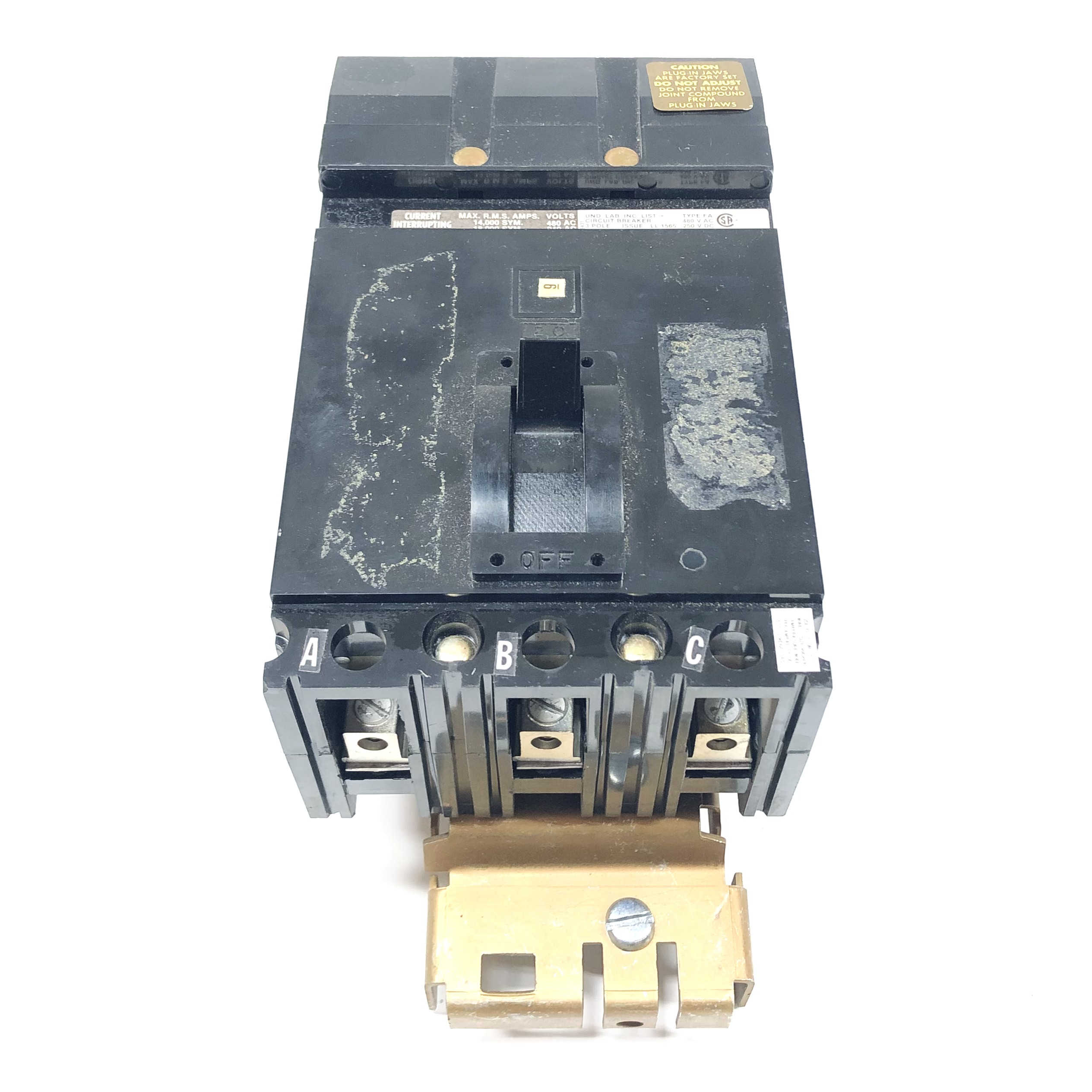

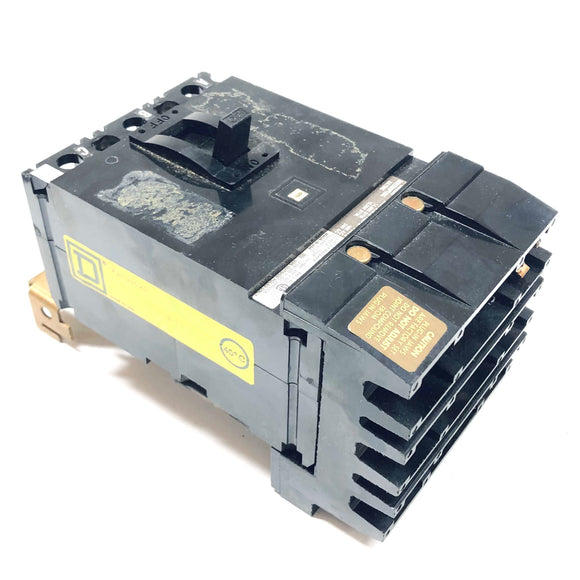

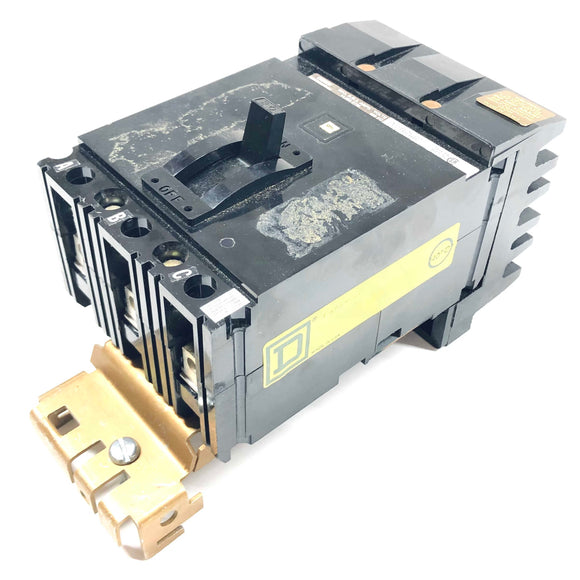

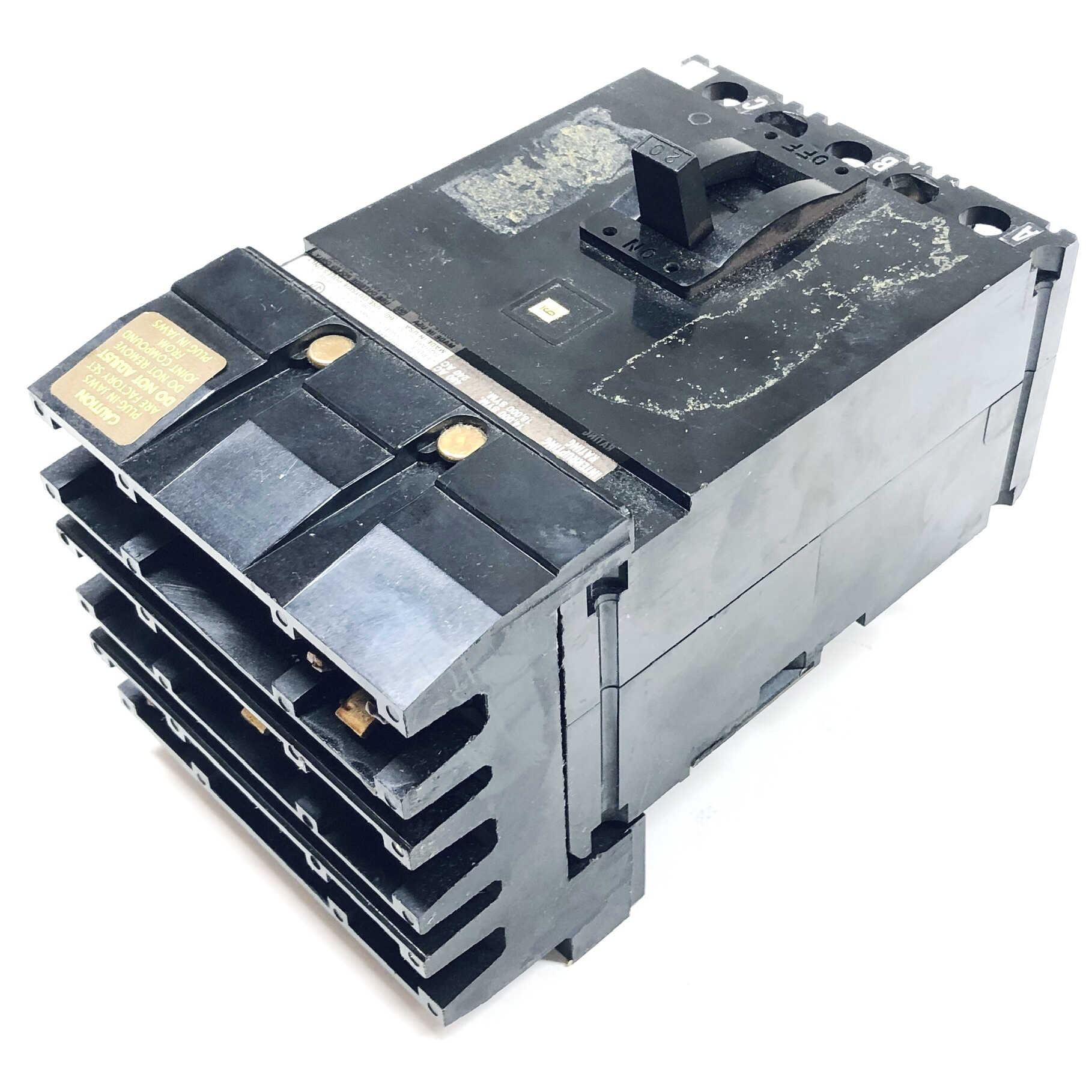

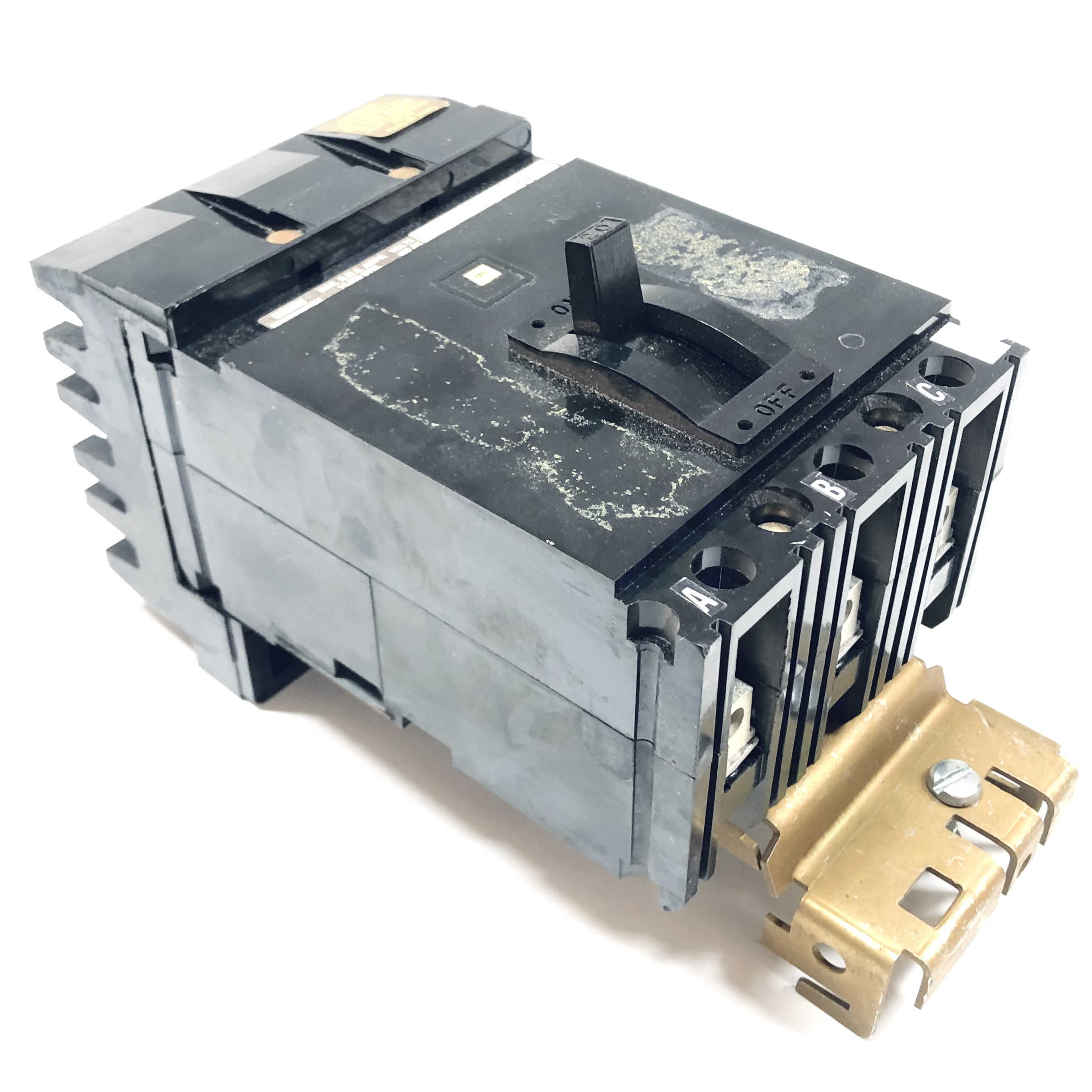

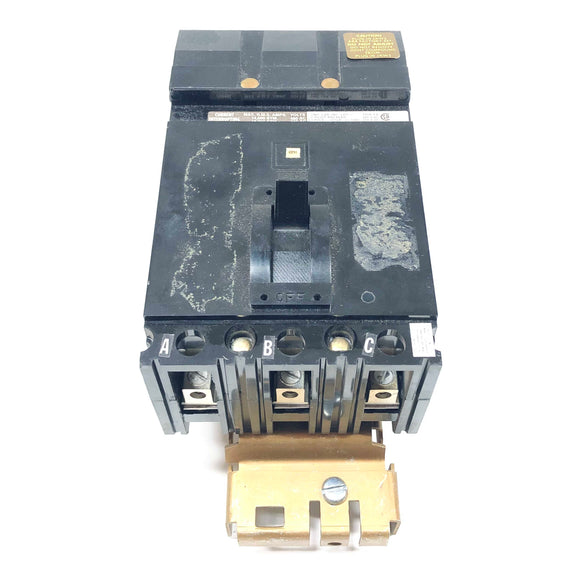

FA34020 Square D Thermal-Magnetic Circuit Breaker 3-Poles, 20A, 480VAC

$99.97

Shipping calculated at checkout

Witmer Motor Service SKU: FA34020 USED

30 Day
Return Policy

Ships Fast
in 24 hours

Sold Out

  • Characteristics

    Main
    product or component type
    Circuit breaker
    range of product
    I-Line
    trip unit technology
    Thermal-magnetic
    breaking capacity code
    A
    Complementary
    Line Rated Current
    20 A
    poles description
    3P
    breaking capacity
    18 kA at 480 V AC
    25 kA at 240 V AC
    10 kA at 250 V DC
    System Voltage
    250 V DC
    480 V AC
    mounting mode
    I-Line
    electrical connection
    I-Line connection line
    Lugs load
    AWG gauge
    AWG 14...AWG 4 (copper) 1 cable(s)
    AWG 12...AWG 4 (aluminium) 1 cable(s)
    terminal identifier
    AL50FA
    magnetic hold current
    275 A
    magnetic tripping current
    600 A
    phase connection
    ABC
    Environment
    product certifications
    UL listed
    CSA
    Ordering and shipping details
    Category
    01005 - FA 480V BREAKER & SWITCH
    Discount Schedule
    DE2
    GTIN
    00785901422563
    Nbr. of units in pkg.
    1
    Package weight(Lbs)
    6.1699999999999999
    Returnability
    Y
    Country of origin
    MX
    Offer Sustainability
    Sustainable offer status
    Green Premium product
    RoHS (date code: YYWW)
    Compliant  - since  1304  -  Schneider Electric declaration of conformity
    REACh
    Reference not containing SVHC above the threshold
    Product environmental profile
    Available
    Product end of life instructions
    Need no specific recycling operations
    Contractual warranty
