range of product |

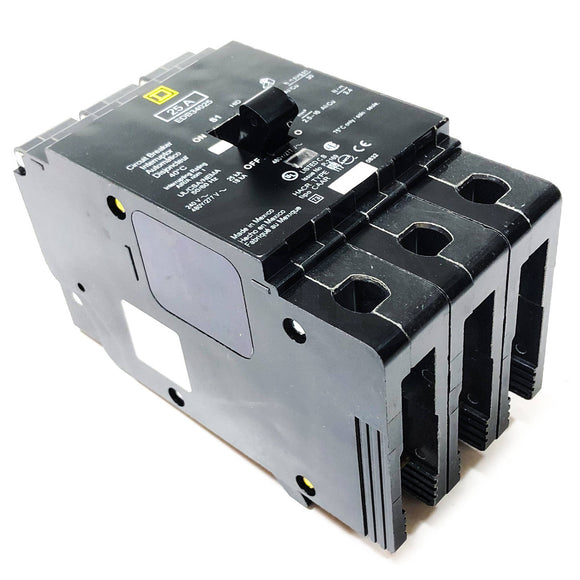

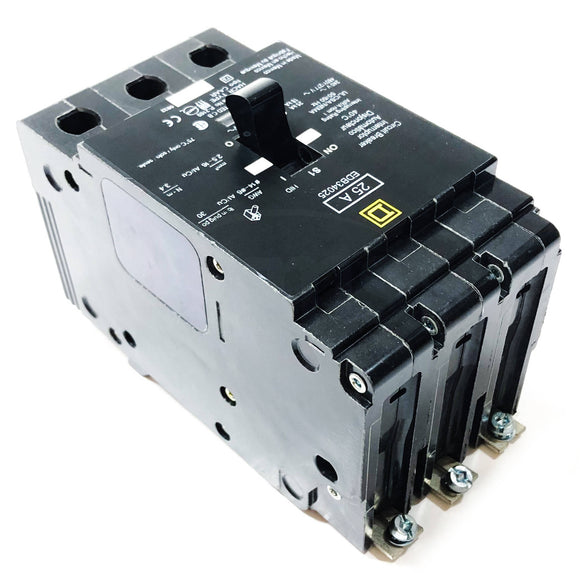

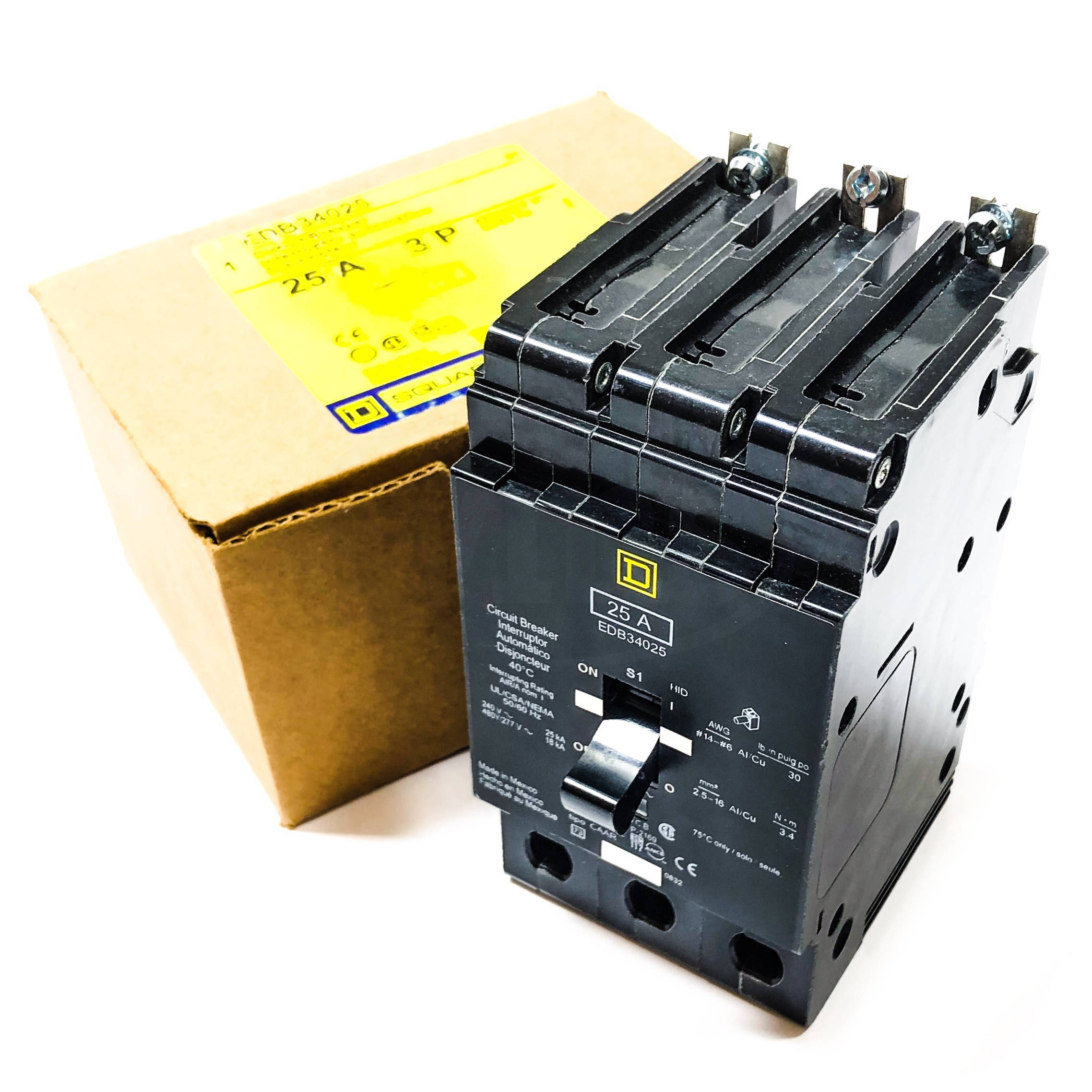

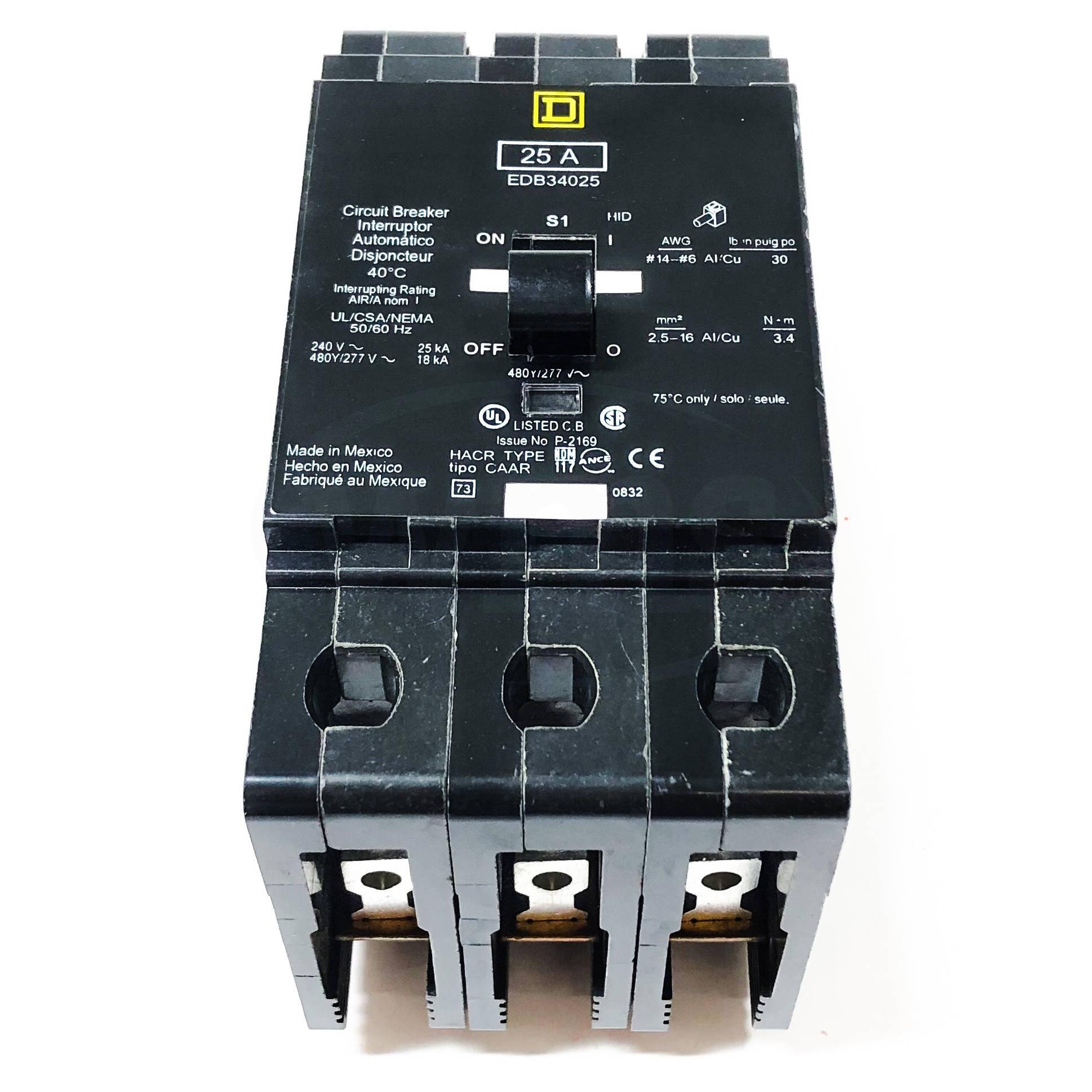

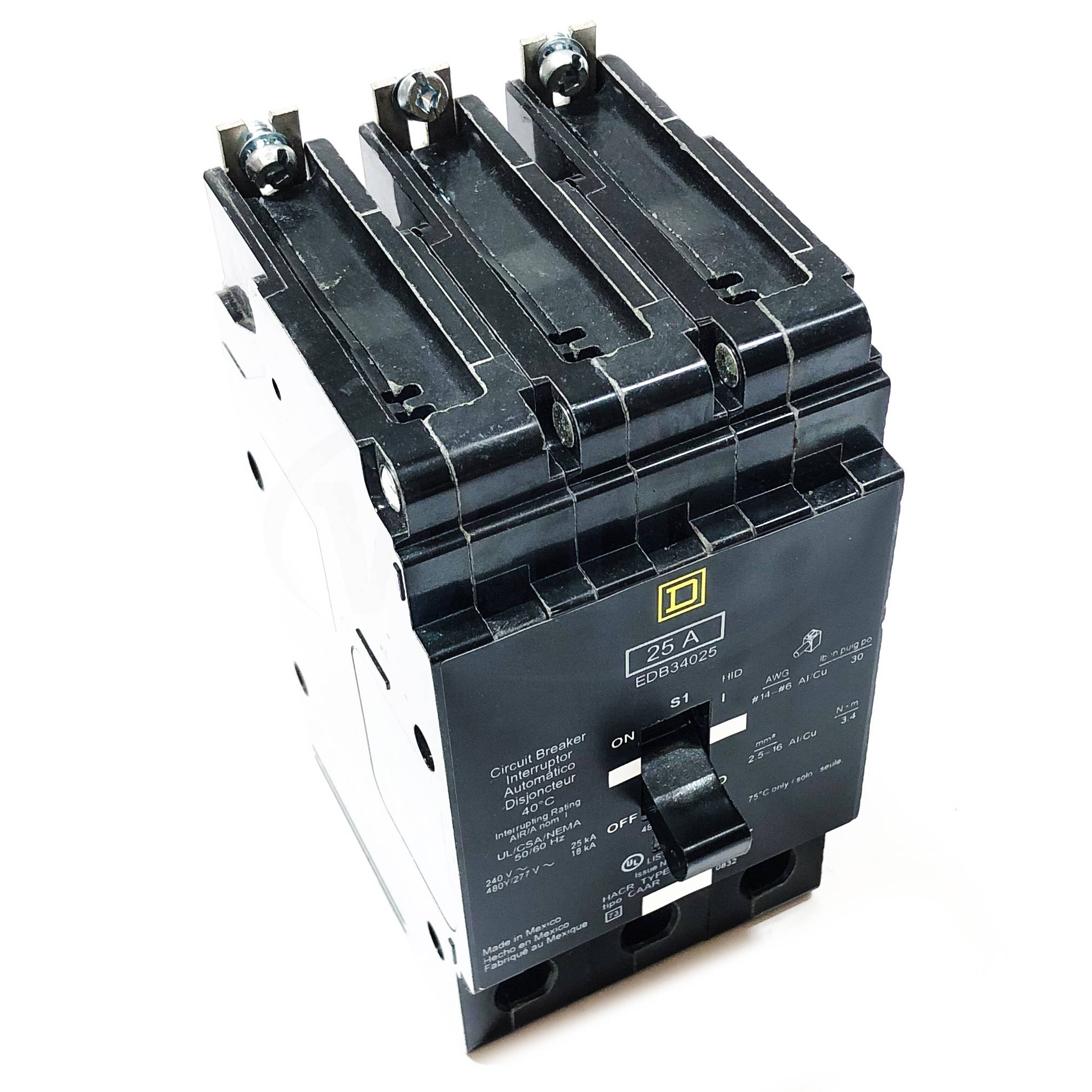

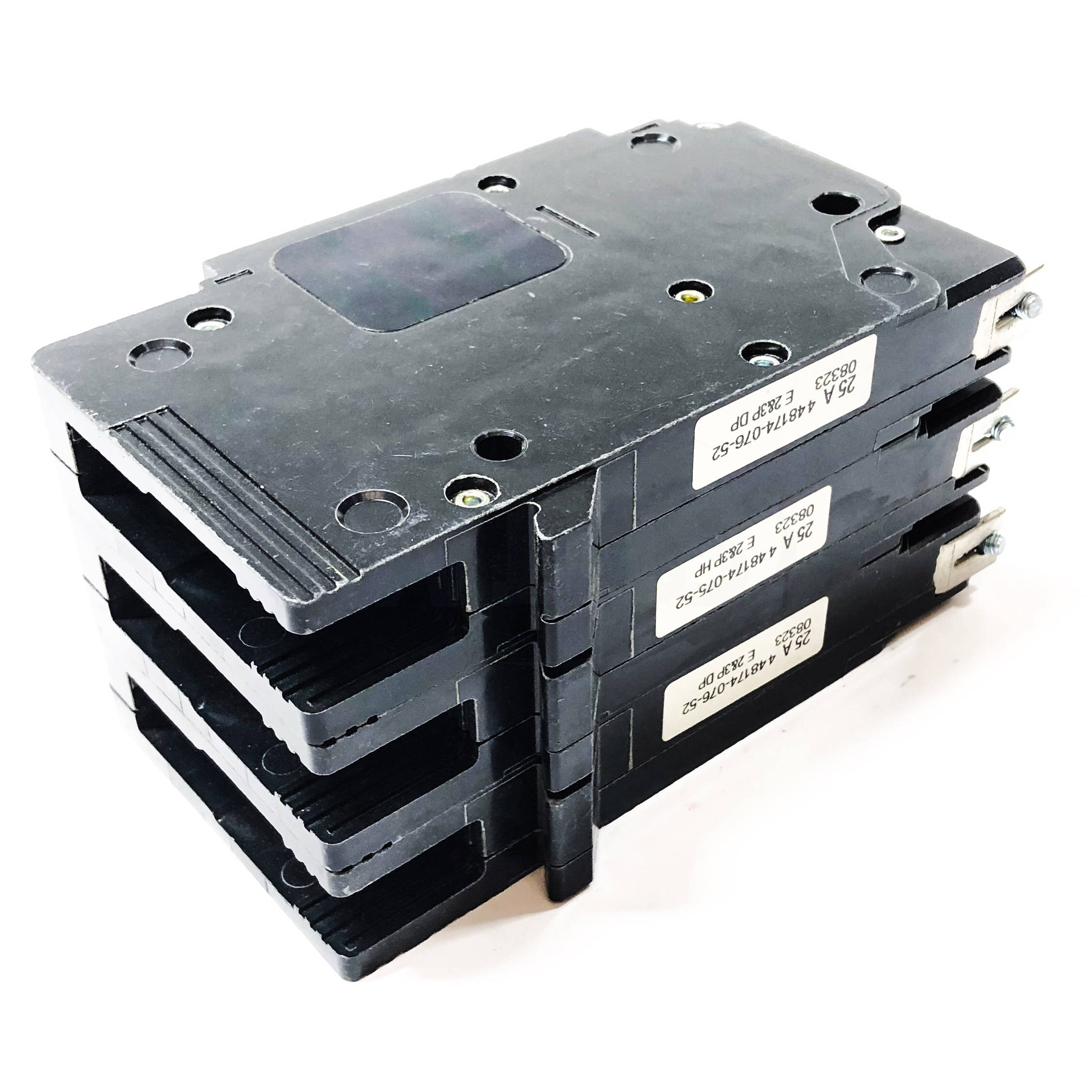

125 A Frame EDB-EGB-EJB
|
|
---|---|---|
product or component type |
Miniature circuit-breaker
|
|
device short name |
EDB
|
|
module type |
E-Frame
|
|
trip unit rating |
875 A
|
Line Rated Current |
25 A
|
|
---|---|---|
System Voltage |
480Y/277 V AC
|
|
AWG gauge |
AWG 14...AWG 6 copper
AWG 12...AWG 6 aluminium |
|
breaking capacity |
18 kA 277 V AC
18 kA 480Y/277 V AC 25 kA 120 V AC 25 kA 120/240 V AC 25 kA 240 V AC |
|
circuit breaker application |
HACR rated
HID rated |
|
depth |
4.05 in
|
|
electrical connection |
Lugs aluminium
|
|
height |
5.66 in
|
|
holding current |
270 A
|
|
local signalling |
Trip indicator
|
|
mounting mode |
Bolt-on
|
|
number of poles |
3
|
|
number of spaces |
3
|
|
number of spaces required |
3
|
|
product destination |
Panelboard NF
|
|
product weight |
4 lb(US)
|
|
protection type |
Overload
Short-circuit |
|
width |
2.94 in
|
|
trip unit technology |
Thermal-magnetic
|
|
breaking capacity code |
D
|
|
tightening torque |
3.4 N.m for 2.5...16 mm² (AWG 14...AWG 6)
|
product certifications |
cULus
|
|
---|---|---|
ambient air temperature for operation |
104 °F (40 °C)
|
