| range |

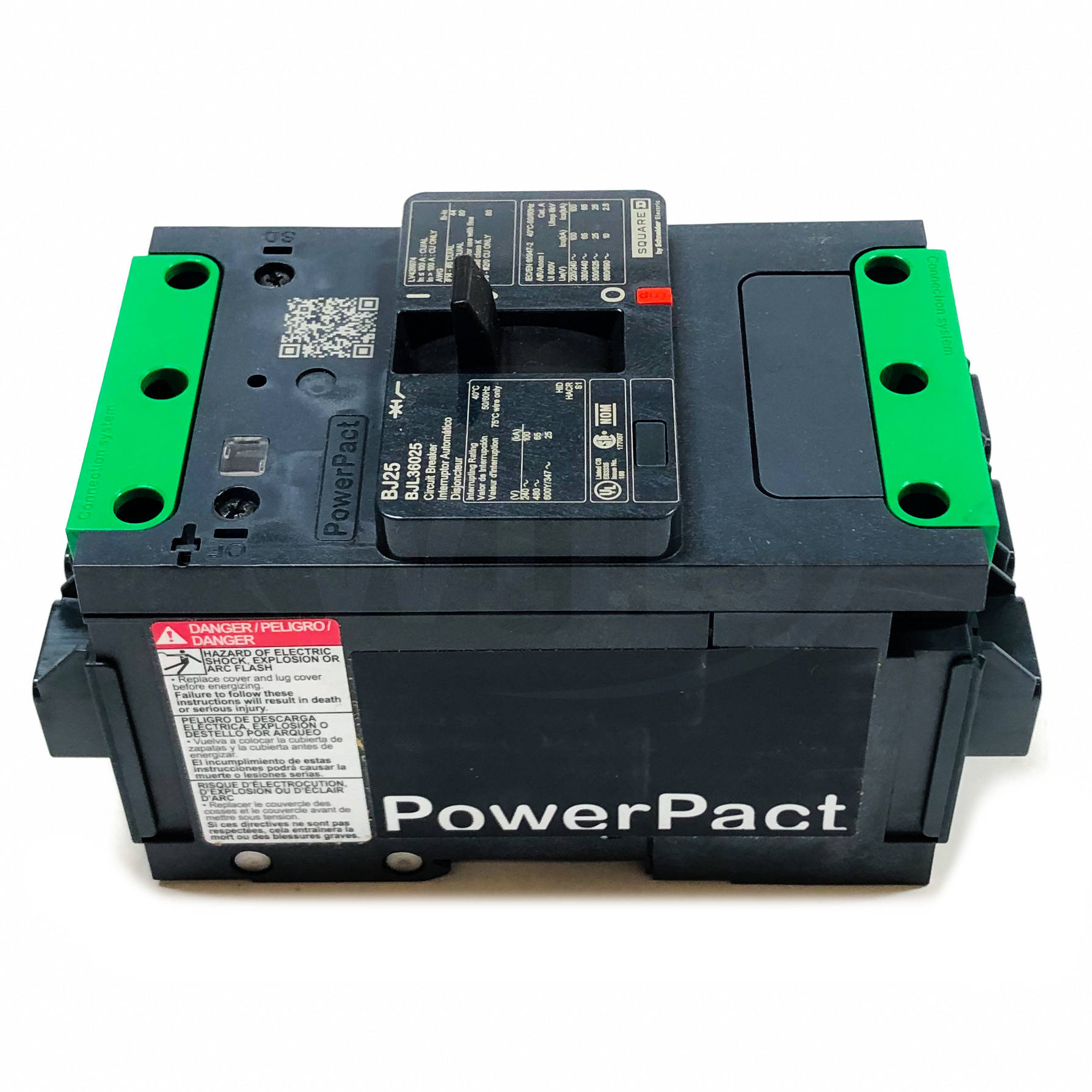

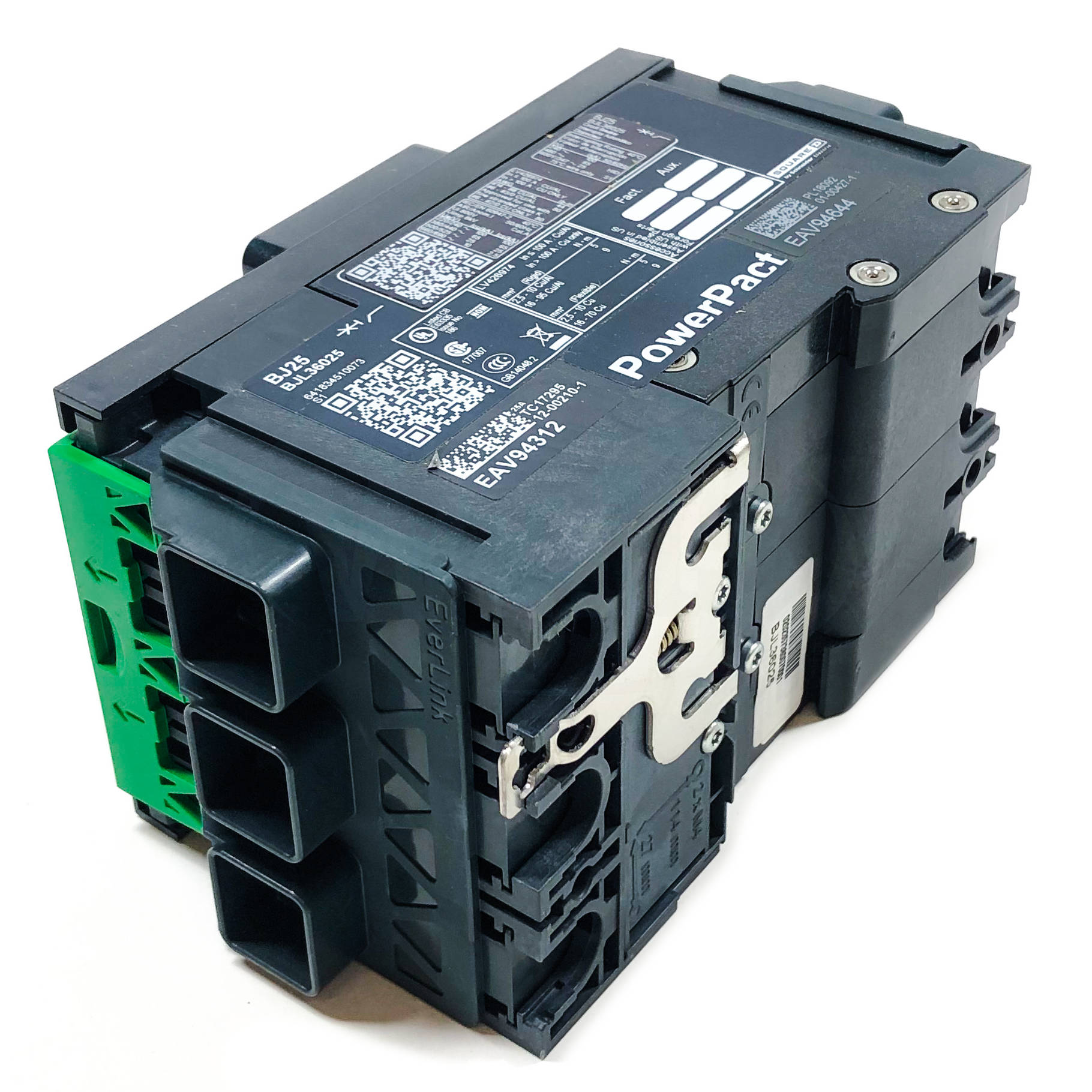

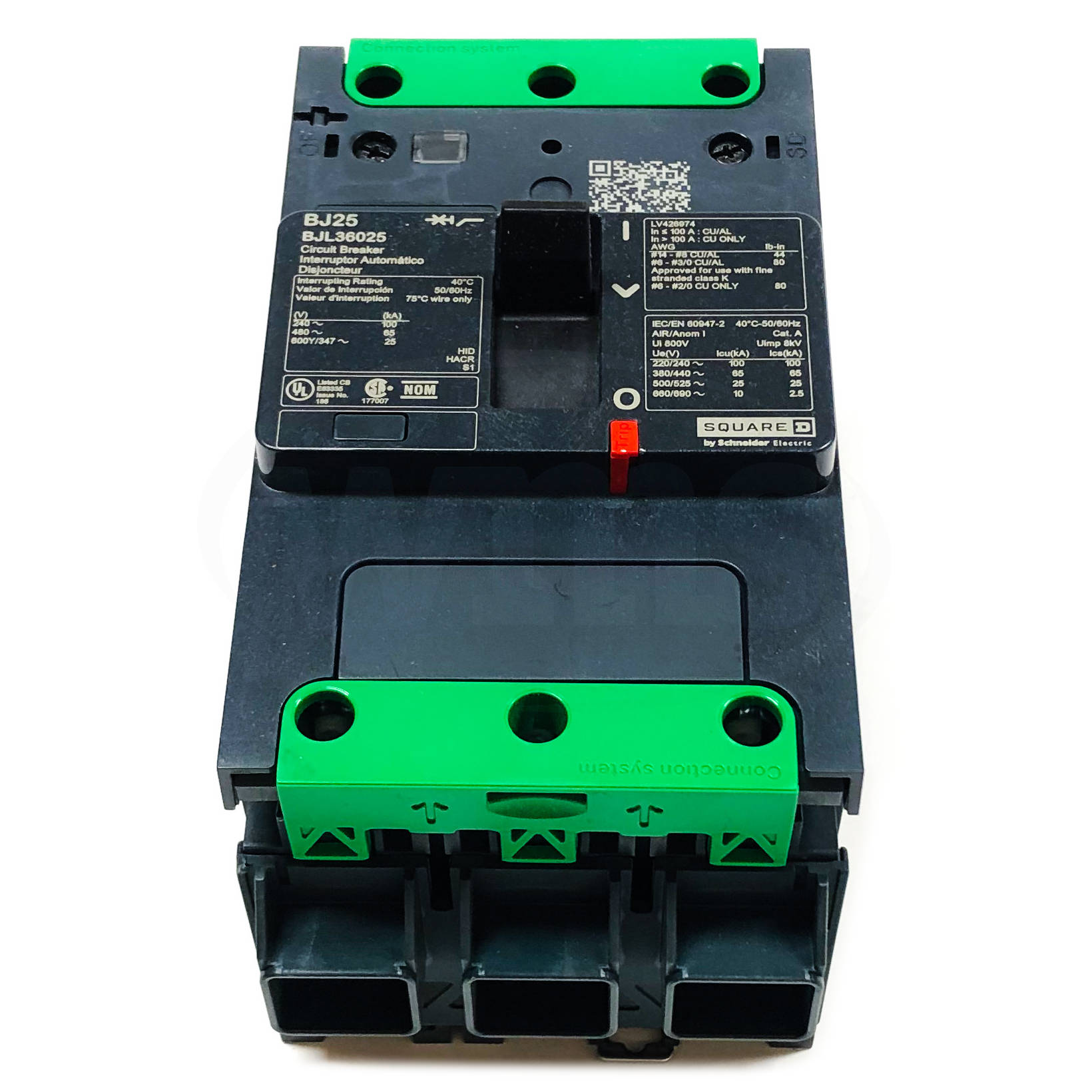

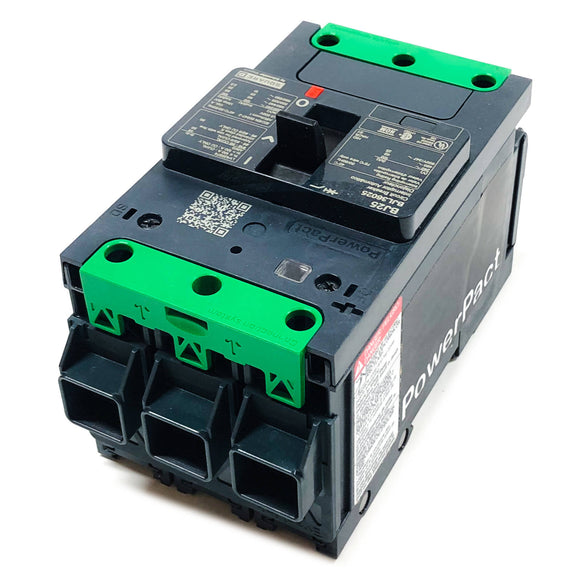

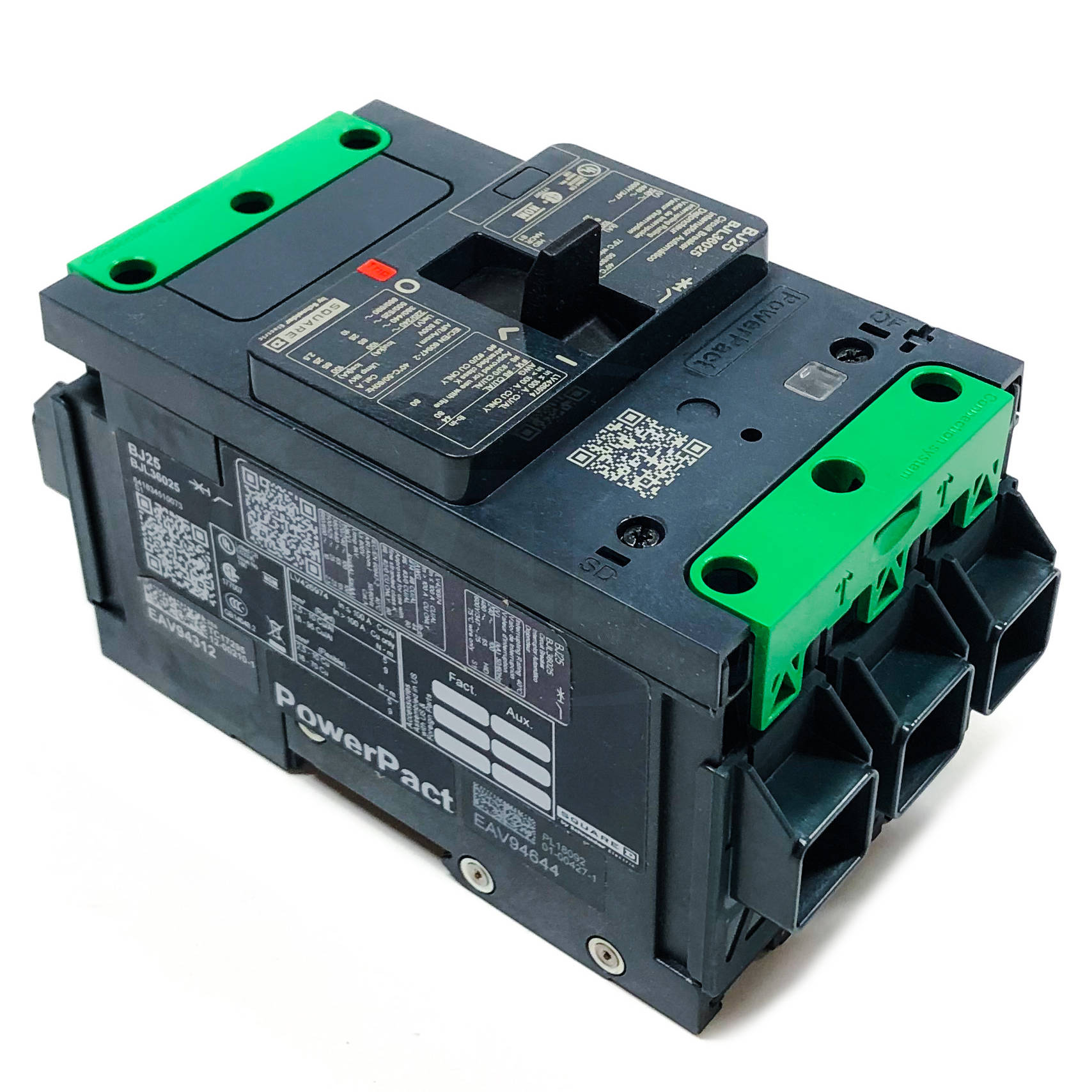

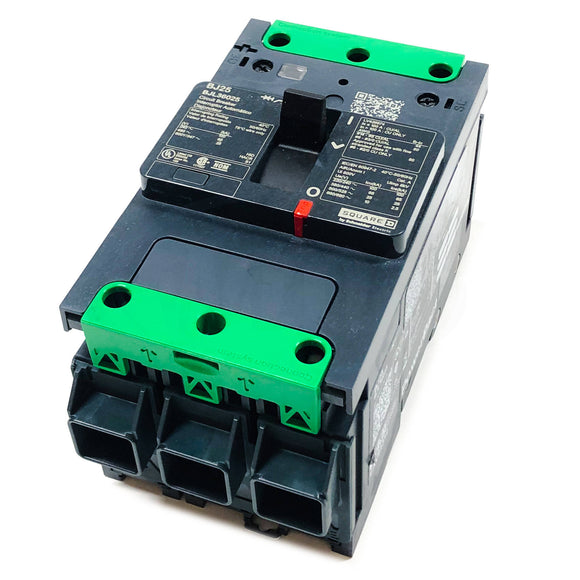

PowerPact
|
|
|---|---|---|
| product name |
PowerPact B
|
|
| device short name |
BJ 025
|
|
| product or component type |
Circuit breaker
|
|
| device application |
Distribution
|
| Line Rated Current |
25 A
|
|
|---|---|---|
| Number of Poles |
3P
|
|
| control type |
Toggle
|
|
| breaking capacity code |
J
|
|
| breaking capacity |
100 kA 208Y/120 V AC 50/60 Hz UL 489
100 kA 240 V AC 50/60 Hz UL 489 65 kA 480/277 V AC 50/60 Hz UL 489 65 kA 480 V AC 50/60 Hz UL 489 25 kA 600Y/347 V AC 50/60 Hz UL 489 50 kA 250 V DC UL 489 |
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz UL 489
|
|
| [Ics] rated service breaking capacity |
100 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
25 kA 500...525 V AC 50/60 Hz IEC 60947-2 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2
|
|
| [Ui] rated insulation voltage |
800 V conforming to IEC 60947-2
|
|
| trip unit technology |
Thermal-magnetic
|
|
| suitability for isolation |
Yes conforming to IEC 60947-2
|
|
| utilisation category |
Category A
|
|
| Mechanical durability |
20000 cycles IEC 947-1 Annex K ed 5.2
|
|
| Electrical durability |
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
|
|
| connection pitch |
1.06 in (27 mm)
|
|
| local signalling |
Flag (green) for presence of auxiliary contacts
|
|
| mounting mode |
Clip-on 35 x 15 mm symmetrical DIN rail)
By screws (plate) |
|
| electrical connection |
Everlink lug line
Everlink lug load |
|
| number of slots |
1 slot(s) for auxiliary switch OF (plug-in)
1 slot(s) for voltage release MN or MX (plug-in) 1 slot(s) for alarm switch SD (plug-in) |
|
| AWG gauge |
AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper |
|
| tightening torque |
44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) AWG 14...AWG 4)
79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) AWG 3...AWG 3/0) |
|
| Power wire stripping length |
0.79 in (20 mm)
|
|
| Color |
Grey (RAL 7016)
|
|
| 9 mm pitches |
9
|
|
| height |
5.39 in (137 mm)
|
|
| Maximum Width |
3.19 in (81 mm)
|
|
| Maximum Depth |
3.15 in (80 mm)
|
|
| Net Weight |
2.37 lb(US) (1.074 kg)
|
|
| Quantity per set |
Set of 1
|
|
| continuous current rating |
80 %
|
| quality labels |
CE
|
|
|---|---|---|
| standards |
EN/IEC 60947-2
EN/IEC 60947-5-1 CSA C22.2 No 5 GB 14048.2 UL 489 NMX J-266 NEMA AB1 |
|
| product certifications |
UL
IEC CCC EAC CSA NOM |
|
| IP degree of protection |
Front cover IP40 IEC 60529
|
|
| IK degree of protection |
IK07 conforming to IEC 62262
|
|
| pollution degree |
3 conforming to IEC 60947-1
|
|
| ambient air temperature for operation |
-13…158 °F (-25…70 °C)
|
|
| ambient air temperature for storage |
-58…185 °F (-50…85 °C)
|
|
| operating altitude |
< 6561.68 ft (2000 m) without derating
5000 m with derating |
| Category |
01132 - BJ/BK UNIT MOUNT BREAKER/SWITCH
|
|
|---|---|---|
| Discount Schedule |
DE2
|
|
| GTIN |
00785901078517
|
|
| Nbr. of units in pkg. |
1
|
|
| Package weight(Lbs) |
2.6 lb(US) (1.18 kg)
|
|
| Returnability |
No
|
|
| Country of origin |
US
|
