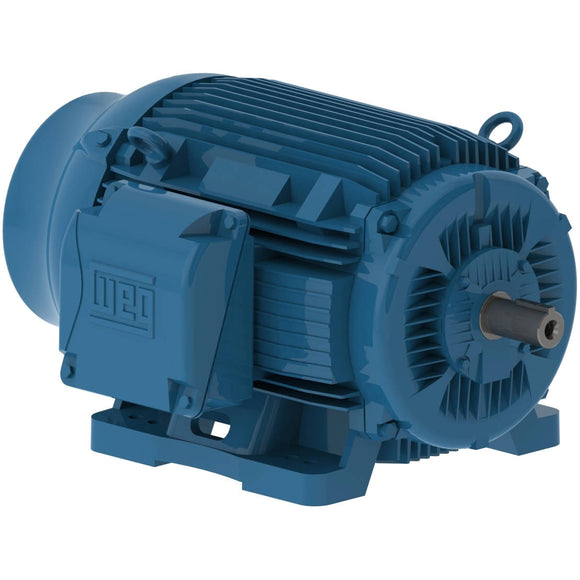

06012ET3E404T-W22G WEG 60HP Severe Duty Electric Motor, 1200RPM

$10,410.33 USD $11,697.00 USD Save $1,286.67 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 06012ET3E404T-W22G Barcode: 7909265779153

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 139/69.5 A
L. R. Amperes 987/493 A
LRC 7.1x(Code H)
No load current 50.0/25.0 A
Rated torque 266 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1036 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  94.5

Power factor

50% 75% 100%
0.74  0.82  0.86
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 69.3 A
L. R. Amperes 457 A
LRC 6.6x(Code G)
No load current 24.7 A
Rated torque 267 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1036 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.4  93.3

Power factor

50% 75% 100%
0.73  0.83  0.87
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 66.5 A
L. R. Amperes 485 A
LRC 7.3x(Code H)
No load current 26.4 A
Rated torque 267 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1036 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.7  93.4

Power factor

50% 75% 100%
0.70  0.82  0.86
Frame 404/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 64.8 A
L. R. Amperes 505 A
LRC 7.8x(Code J)
No load current 27.7 A
Rated torque 267 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1036 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.3  93.7  93.4

Power factor

50% 75% 100%
0.67  0.79  0.85
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 85.1 A
L. R. Amperes 477 A
LRC 5.6x(Code F)
No load current 24.7 A
Rated torque 322 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1036 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  93.0  92.4

Power factor

50% 75% 100%
0.79  0.85  0.87
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 80.3 A
L. R. Amperes 498 A
LRC 6.2x(Code G)
No load current 26.4 A
Rated torque 322 ft.lb
Locked rotor torque 180 %
Breakdown torque 200 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 1036 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  93.6  93.0

Power factor

50% 75% 100%
0.77  0.84  0.87
Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 78.3 A
L. R. Amperes 525 A
LRC 6.7x(Code G)
No load current 27.7 A
Rated torque 320 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
