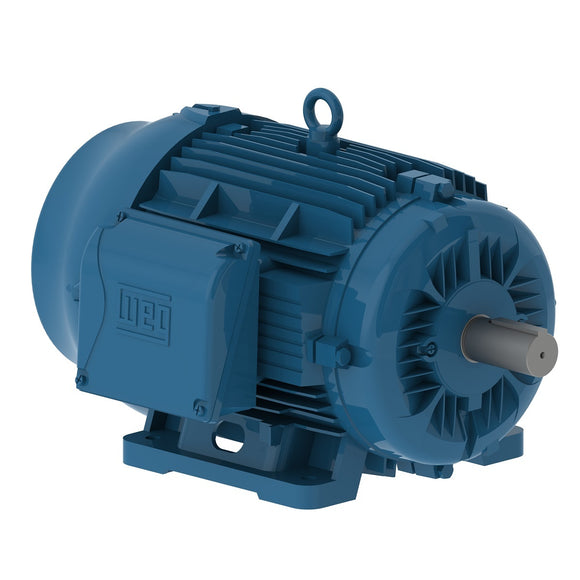

05036ET3E326TS-W22 WEG 50HP Severe Duty Electric Motor, 3600RPM

$4,731.24 USD $5,316.00 USD Save $584.76 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05036ET3E326TS-W22 Barcode: 7891327151918

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 324/6TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 124-112/56.1 A
L. R. Amperes 769-696/348 A
LRC 6.2x(Code F)
No load current 25.9-30.0/15.0 A
Rated torque 73.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 78.0 dB(A)
Approx. weight³ 573 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.83  0.87  0.89
Frame 324/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 380 V
Rated current 54.9 A
L. R. Amperes 335 A
LRC 6.1x(Code F)
No load current 14.8 A
Rated torque 70.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 573 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.8  92.9  93.3

Power factor

50% 75% 100%
0.80  0.88  0.89
Frame 324/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 52.1 A
L. R. Amperes 349 A
LRC 6.7x(Code G)
No load current 16.0 A
Rated torque 70.1 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 573 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.2  92.8  93.3

Power factor

50% 75% 100%
0.77  0.87  0.89
Frame 324/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 50.3 A
L. R. Amperes 362 A
LRC 7.2x(Code H)
No load current 16.8 A
Rated torque 70.1 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 573 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.2  93.1  93.3

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 324/6TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 380 V
Rated current 69.4 A
L. R. Amperes 333 A
LRC 4.8x(Code D)
No load current 14.8 A
Rated torque 88.3 ft.lb
Locked rotor torque 170 %
Breakdown torque 180 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 573 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.0

Power factor

50% 75% 100%
0.86  0.88  0.89
Frame 324/6TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 65.4 A
L. R. Amperes 347 A
LRC 5.3x(Code E)
No load current 16.0 A
Rated torque 88.1 ft.lb
Locked rotor torque 190 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
Approx. weight³ 573 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.7

Power factor

50% 75% 100%
0.84  0.88  0.89
Frame 324/6TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 415 V
Rated current 62.6 A
L. R. Amperes 357 A
LRC 5.7x(Code F)
No load current 16.8 A
Rated torque 88.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 5.75 sq.ft.lb
Design B
Insulation Class
