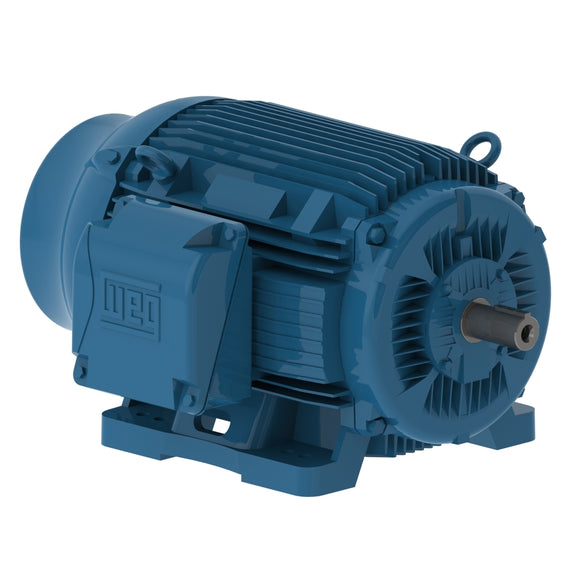

05012ET3E365T-W22 WEG 50HP Severe Duty Electric Motor, 1200RPM

$7,581.02 USD $8,518.00 USD Save $936.98 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 05012ET3E365T-W22 Barcode: 7890355669136

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 127-115/57.4 A
L. R. Amperes 812-735/367 A
LRC 6.4x(Code G)
No load current 34.5-40.0/20.0 A
Rated torque 30.3 kgfm
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.74  0.83  0.86
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 57.7 A
L. R. Amperes 358 A
LRC 6.2x(Code G)
No load current 19.8 A
Rated torque 29.2 kgfm
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.7  92.8  92.9

Power factor

50% 75% 100%
0.72  0.82  0.85
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 55.5 A
L. R. Amperes 377 A
LRC 6.4x(Code G)
No load current 21.1 A
Rated torque 29.2 kgfm
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.7  93.1  92.9

Power factor

50% 75% 100%
0.70  0.81  0.84
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 53.5 A
L. R. Amperes 396 A
LRC 6.4x(Code G)
No load current 22.1 A
Rated torque 29.1 kgfm
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.6  93.1  92.9

Power factor

50% 75% 100%
0.66  0.79  0.84
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 70.5 A
L. R. Amperes 345 A
LRC 6.4x(Code G)
No load current 19.8 A
Rated torque 36.9 kgfm
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.7

Power factor

50% 75% 100%
0.77  0.84  0.87
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400 V
Rated current 66.4 A
L. R. Amperes 365 A
LRC 6.4x(Code G)
No load current 21.1 A
Rated torque 36.7 kgfm
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  92.4

Power factor

50% 75% 100%
0.77  0.83  0.87
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 64.8 A
L. R. Amperes 389 A
LRC 6.4x(Code G)
No load current 22.1 A
Rated torque 36.5 kgfm
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
