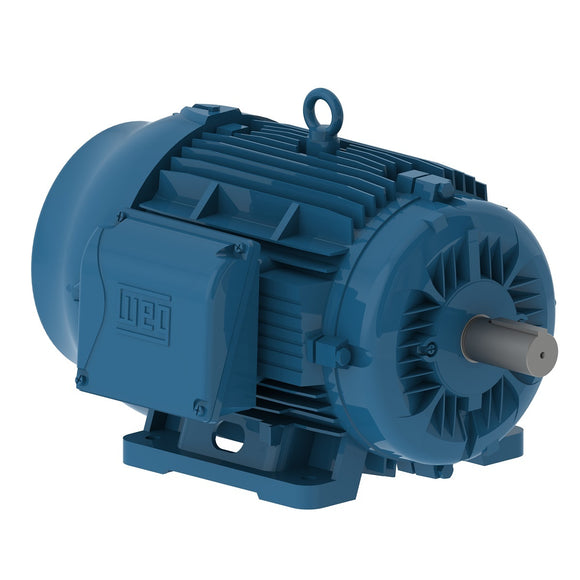

02512ET3E324T-W22 WEG 25HP Severe Duty Electric Motor, 1200RPM

$4,215.93 USD $4,737.00 USD Save $521.07 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 02512ET3E324T-W22 Barcode: 7909158053568

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 61.6/30.8 A
L. R. Amperes 382/191 A
LRC 6.2x(Code G)
No load current 28.0/14.0 A
Rated torque 111 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.65  0.77  0.81
Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 30.3 A
L. R. Amperes 182 A
LRC 6.0x(Code G)
No load current 13.2 A
Rated torque 107 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.1  91.8  91.6

Power factor

50% 75% 100%
0.63  0.76  0.82
Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 29.4 A
L. R. Amperes 191 A
LRC 6.5x(Code H)
No load current 14.2 A
Rated torque 107 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.1  92.2  92.2

Power factor

50% 75% 100%
0.60  0.74  0.80
Frame 324/6T
Output 20 HP (15 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 28.6 A
L. R. Amperes 200 A
LRC 7.0x(Code J)
No load current 14.9 A
Rated torque 107 ft.lb
Locked rotor torque 250 %
Breakdown torque 310 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.1  92.2  92.2

Power factor

50% 75% 100%
0.57  0.71  0.79
Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 380 V
Rated current 36.8 A
L. R. Amperes 180 A
LRC 4.9x(Code E)
No load current 13.2 A
Rated torque 135 ft.lb
Locked rotor torque 160 %
Breakdown torque 200 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  92.4  91.0

Power factor

50% 75% 100%
0.71  0.81  0.84
Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 35.1 A
L. R. Amperes 190 A
LRC 5.4x(Code F)
No load current 14.2 A
Rated torque 134 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
Approx. weight³ 547 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  92.4  91.7

Power factor

50% 75% 100%
0.68  0.79  0.83
Frame 324/6T
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 34.2 A
L. R. Amperes 198 A
LRC 5.8x(Code G)
No load current 14.9 A
Rated torque 134 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 11.5 sq.ft.lb
Design B
Insulation Class
