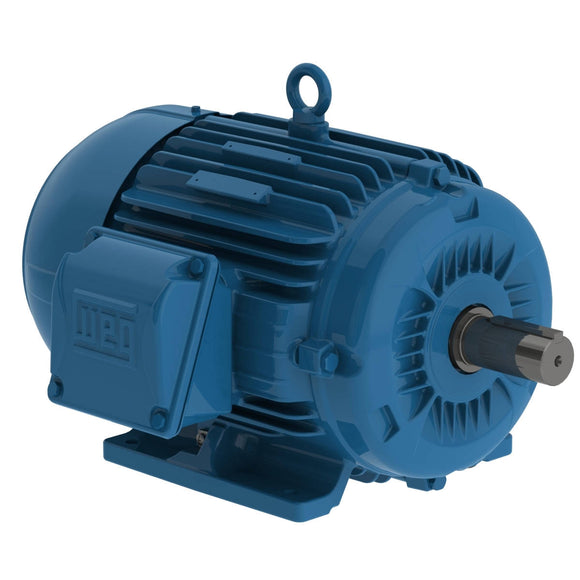

00518ET3E184T-W22G WEG 5HP Severe Duty Electric Motor, 1800RPM

$967.43 USD $1,087.00 USD Save $119.57 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00518ET3E184T-W22G Barcode: 7909265978631

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 12.9/6.45 A
L. R. Amperes 96.7/48.4 A
LRC 7.5x(Code J)
No load current 6.40/3.20 A
Rated torque 2.07 kgfm
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 45.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.62  0.74  0.80
Frame 182/4T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 6.42 A
L. R. Amperes 44.9 A
LRC 7.0x(Code J)
No load current 3.15 A
Rated torque 2.00 kgfm
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 45.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.2  87.7

Power factor

50% 75% 100%
0.61  0.75  0.81
Frame 182/4T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 6.13 A
L. R. Amperes 47.2 A
LRC 7.7x(Code K)
No load current 3.45 A
Rated torque 2.00 kgfm
Locked rotor torque 260 %
Breakdown torque 350 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 45.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.7  88.2  88.2

Power factor

50% 75% 100%
0.57  0.71  0.79
Frame 182/4T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 6.14 A
L. R. Amperes 50.4 A
LRC 8.2x(Code L)
No load current 3.70 A
Rated torque 1.99 kgfm
Locked rotor torque 290 %
Breakdown torque 380 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 45.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
86.5  88.2  88.2

Power factor

50% 75% 100%
0.53  0.67  0.76
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 7.74 A
L. R. Amperes 44.9 A
LRC 5.8x(Code G)
No load current 3.15 A
Rated torque 2.52 kgfm
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 45.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  87.5  86.5

Power factor

50% 75% 100%
0.69  0.80  0.84
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 400 V
Rated current 7.44 A
L. R. Amperes 47.6 A
LRC 6.4x(Code H)
No load current 3.45 A
Rated torque 2.51 kgfm
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 45.5 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  87.5

Power factor

50% 75% 100%
0.65  0.77  0.82
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 7.35 A
L. R. Amperes 50.7 A
LRC 6.9x(Code J)
No load current 3.70 A
Rated torque 2.50 kgfm
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.0169 kgm²
Design B
