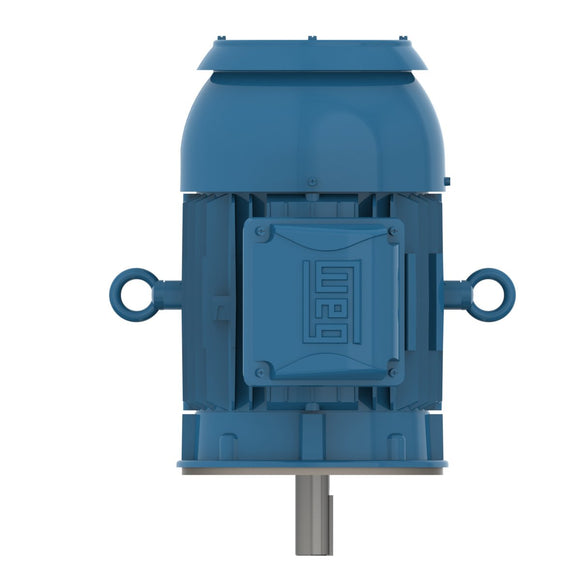

00512ET3ER215TC-W22 WEG 5HP Severe Duty Electric Motor, 1200RPM

$1,269.14 USD $1,426.00 USD Save $156.86 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00512ET3ER215TC-W22 Barcode: 7909158842438

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 215TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 15.1-13.7/6.83 A
L. R. Amperes 103-92.9/46.4 A
LRC 6.8x(Code J)
No load current 5.95-6.90/3.45 A
Rated torque 22.1 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 102s (cold) 57s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 170 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  89.5  89.5

Power factor

50% 75% 100%
0.58  0.70  0.76
Frame 215TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 8.10 A
L. R. Amperes 44.5 A
LRC 5.5x(Code G)
No load current 3.41 A
Rated torque 27.0 ft.lb
Locked rotor torque 140 %
Breakdown torque 200 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 170 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  86.8

Power factor

50% 75% 100%
0.65  0.76  0.80
Frame 215TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 400 V
Rated current 7.82 A
L. R. Amperes 47.7 A
LRC 6.1x(Code H)
No load current 3.68 A
Rated torque 26.8 ft.lb
Locked rotor torque 160 %
Breakdown torque 229 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 170 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.5  88.5  87.5

Power factor

50% 75% 100%
0.61  0.73  0.78
Frame 215TC
Output 5 HP (3.7 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 7.55 A
L. R. Amperes 49.1 A
LRC 6.5x(Code H)
No load current 3.90 A
Rated torque 26.7 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 1.47 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 170 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.5  88.5

Power factor

50% 75% 100%
0.58  0.71  0.77

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover With
