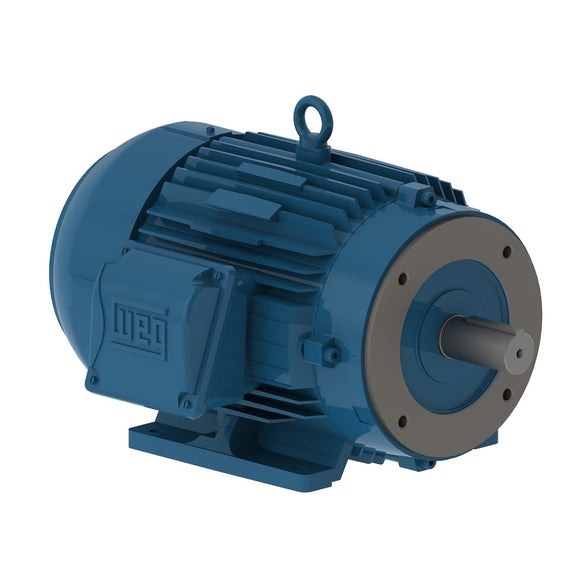

00236ET3E145TC-W22 WEG 2HP Severe Duty Electric Motor, 3600RPM

$550.91 USD $619.00 USD Save $68.09 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00236ET3E145TC-W22 Barcode: 7891327524330

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 230/460 V
Rated current 5.12/2.56 A
L. R. Amperes 45.6/22.8 A
LRC 8.9x(Code L)
No load current 1.80/0.900 A
Rated torque 3.02 ft.lb
Locked rotor torque 350 %
Breakdown torque 380 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  85.5  85.5

Power factor

50% 75% 100%
0.71  0.80  0.86
Frame 143/5TC
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 380 V
Rated current 2.30 A
L. R. Amperes 19.5 A
LRC 8.5x(Code K)
No load current 0.890 A
Rated torque 2.73 ft.lb
Locked rotor torque 370 %
Breakdown torque 370 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.4  83.3  83.5

Power factor

50% 75% 100%
0.69  0.81  0.87
Frame 143/5TC
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 400 V
Rated current 2.22 A
L. R. Amperes 20.4 A
LRC 9.2x(Code L)
No load current 0.960 A
Rated torque 2.72 ft.lb
Locked rotor torque 409 %
Breakdown torque 420 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.3  83.1  84.0

Power factor

50% 75% 100%
0.66  0.78  0.85
Frame 143/5TC
Output 1.5 HP (1.1 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 415 V
Rated current 2.19 A
L. R. Amperes 21.2 A
LRC 9.7x(Code M)
No load current 1.01 A
Rated torque 2.71 ft.lb
Locked rotor torque 450 %
Breakdown torque 459 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.1  83.1  84.0

Power factor

50% 75% 100%
0.64  0.76  0.83
Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2835 rpm
Slip 5.50 %
Rated voltage 380 V
Rated current 3.07 A
L. R. Amperes 20.0 A
LRC 6.5x(Code H)
No load current 0.890 A
Rated torque 3.70 ft.lb
Locked rotor torque 270 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  82.5

Power factor

50% 75% 100%
0.79  0.86  0.90
Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 400 V
Rated current 2.90 A
L. R. Amperes 20.9 A
LRC 7.2x(Code J)
No load current 0.960 A
Rated torque 3.69 ft.lb
Locked rotor torque 300 %
Breakdown torque 310 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  84.0

Power factor

50% 75% 100%
0.76  0.84  0.89
Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2865 rpm
Slip 4.50 %
Rated voltage 415 V
Rated current 2.82 A
L. R. Amperes 21.7 A
LRC 7.7x(Code J)
No load current 1.01 A
Rated torque 3.67 ft.lb
Locked rotor torque 330 %
Breakdown torque 340 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class
