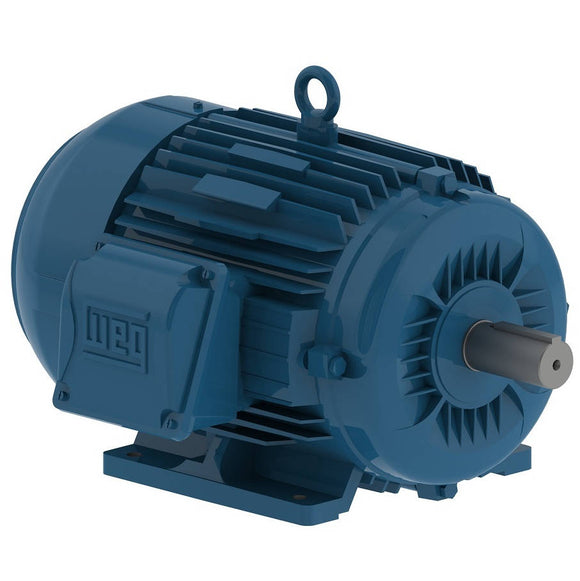

00218ET3E145T-W22 WEG 2HP Severe Duty Electric Motor, 1800RPM

$544.68 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00218ET3E145T-W22 Barcode: 7891327095328

IC411-TEFC, IP55, 143T/145T Frame, 208-230/460VAC 60Hz 3 Phase, 11416577, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft, NEMA Premium Efficiency

1 In Stock!

Description Product Specs Manufacturer

Electric Motors

Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 208-230/460 V
Rated current 5.85-5.52/2.76 A
L. R. Amperes 46.8-44.2/22.1 A
No load current 2.81-3.26/1.63 A
Rated torque 5.90 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  86.5  86.5

Power factor

50% 75% 100%
0.57  0.70  0.79
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 2.54 A
L. R. Amperes 19.3 A
No load current 1.48 A
Rated torque 5.32 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.2  84.5

Power factor

50% 75% 100%
0.55  0.69  0.78
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 2.51 A
L. R. Amperes 20.6 A
No load current 1.63 A
Rated torque 5.30 ft.lb
Locked rotor torque 300 %
Breakdown torque 360 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.0  83.5  84.5

Power factor

50% 75% 100%
0.50  0.65  0.75
Frame 143/5T
Output 1.5 HP (1.1 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 2.56 A
L. R. Amperes 21.5 A
No load current 1.75 A
Rated torque 5.30 ft.lb
Locked rotor torque 330 %
Breakdown torque 390 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.4  83.1  84.1

Power factor

50% 75% 100%
0.47  0.61  0.71
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1435 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 3.25 A
L. R. Amperes 19.5 A
No load current 1.48 A
Rated torque 7.22 ft.lb
Locked rotor torque 190 %
Breakdown torque 220 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  84.0  82.5

Power factor

50% 75% 100%
0.69  0.80  0.85
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 3.11 A
L. R. Amperes 20.5 A
No load current 1.63 A
Rated torque 7.20 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  84.0

Power factor

50% 75% 100%
0.65  0.77  0.83
Frame 143/5T
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 3.07 A
L. R. Amperes 21.5 A
No load current 1.75 A
Rated torque 7.15 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Moment of inertia (J) 0.1561 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 50.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  84.0  84.0

Power factor

50% 75% 100%
0.62  0.74  0.81

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)


Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without

Bearing details

  Drive End Non Drive End
Bearing type 6205 ZZ   6204 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
145 lb  195 lb
Application
  • Severe Duty
Enclosure
  • TEFC
Frame Size
  • 143T
  • 145T
Horsepower
  • 2HP
Input Phase
  • 3-Phase
Input Voltage
  • 208VAC
  • 230VAC
  • 460VAC
Series
  • W22
Speed
  • 1800RPM
Type
  • Electric Motor
UPC
  • 7891327095328
Weight
  • 52.6 lb
Mounting Type
  • Rigid Base
Frame Material
  • Cast Iron
Service Factor
  • 1.25
Full Load Efficiency
  • 86.5%
'C' Dimension
  • 13.358 Inches
