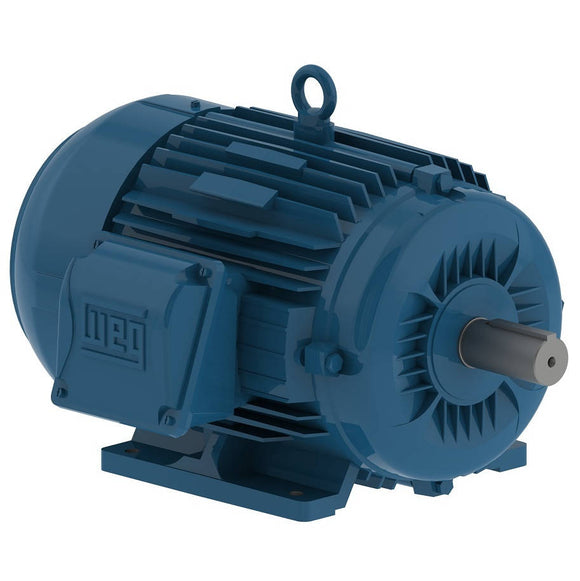

00209ET3E213T-W22 WEG 2HP Severe Duty Electric Motor, 900RPM

$1,644.72 USD $1,848.00 USD Save $203.28 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00209ET3E213T-W22 Barcode: 7909158051199

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 213/5T
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 875 rpm
Slip 2.78 %
Rated voltage 208-230/460 V
Rated current 7.49-6.78/3.39 A
L. R. Amperes 56.9-51.5/25.7 A
LRC 7.6x(Code M)
No load current 3.97-4.60/2.30 A
Rated torque 11.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 163 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  84.0  85.5

Power factor

50% 75% 100%
0.45  0.55  0.65
Frame 213/5T
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 715 rpm
Slip 4.67 %
Rated voltage 380 V
Rated current 3.91 A
L. R. Amperes 29.7 A
LRC 7.6x(Code L)
No load current 2.30 A
Rated torque 14.5 ft.lb
Locked rotor torque 190 %
Breakdown torque 210 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 163 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  82.0  82.0

Power factor

50% 75% 100%
0.52  0.62  0.71
Frame 213/5T
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 3.80 A
L. R. Amperes 28.9 A
LRC 7.6x(Code M)
No load current 2.42 A
Rated torque 14.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 250 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 163 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  82.5  82.5

Power factor

50% 75% 100%
0.49  0.59  0.69
Frame 213/5T
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 415 V
Rated current 3.78 A
L. R. Amperes 28.7 A
LRC 7.6x(Code M)
No load current 2.54 A
Rated torque 14.4 ft.lb
Locked rotor torque 270 %
Breakdown torque 280 %
Locked rotor time 70s (cold) 39s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 48.0 dB(A)
Approx. weight³ 163 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
81.5  82.5  82.5

Power factor

50% 75% 100%
0.46  0.56  0.67

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)


Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6308 ZZ   6207 ZZ
Sealing V'Ring  V'Ring
Lubrication interval -  -
Lubricant amount -  -
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
148 lb  312 lb
