Description
Industry Standard
- Used for years by pool pump manufacturers
- Materials of Construction: Buna Elastomers, Molded Plastic Primary Ring, Ceramic Seat, Stainless Steel Hardware
- Proven Reliability in residential chlorine pools
- Good For low temperatures
Specifications
| Seal Size | 1" |
|---|---|

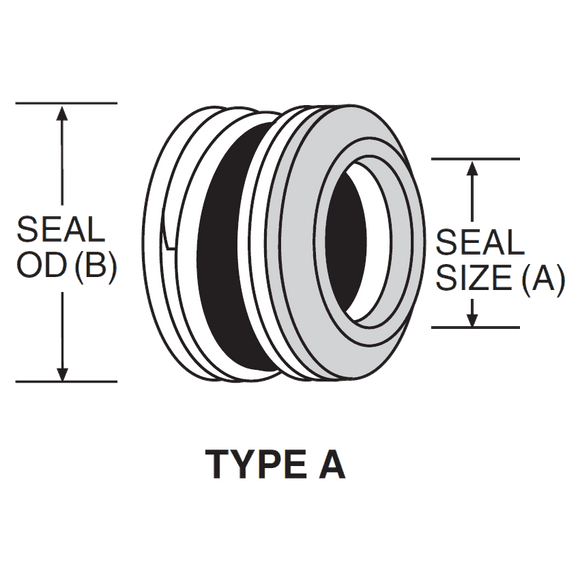

| Head Figure | A |
| Head Outside Diameter | 1.687" |
| Head Operating Height | 0.812" |
| Mating Ring Figure | 1 |
| Mating Ring Bore | 1.625" |
| Mating Ring Thickness | 0.437" |
| Material Code | BCFJF Buna Secondary Seals Carbon rimary Rings Stainless Steel Metal Parts Ceramic Mating Rings Stainless Steel Springs |
| Notes | |
| UPC | 852661157148 |
| Weight | lbs |
| Pressure Rating | PSI |
| Temperature | °F to °F |
| Country of Origin | Mexico |
| U.S. Seal Manufacturer Part Number(s) | PS-360 (General Service) PS-4266 (Carbon Upgrade) PS-3874 (Ozone / Salt Service) PS-1909 (SCS Series) VG-360 (Value Guard) |
| Pump Nameplate Data Cross Reference | ACE PUMP CORPORATION BCH-300, 500, 750, 1000, 100S, 133S, 150S, 175S CARVER PUMP CO. KN-3LC EAST SIDE MFG. Series C, CM and CH LANCASTER PUMP CO. Type M-907 and M-908 LOCKWOOD PUMP CM Pump MIDLAND PRODUCTS 5M, 7M and 18M MOYNO, INC. EC-67 PUREX / HYDROTECH C Series |
| Cross Reference | A-C PUMP 52-104-969-806, 52-104-969-816 BERKELEY S08742, S09583, S20795, S20796 CARTER PUMPS, INC. 2S-5050, 2S-5054, 2S-5089, 2S-5112 CENTREX 201-491, 201-493 EAST SIDE MFG. P-28175 FRANKLIN ELECTRIC CO., INC. 240180 GARDNER DENVER 60BT-11 GORMAN-RUPP CO. S2147 HALE PRODUCTS, INC. 296-5010-00, 296-5011-00-0 HOMELITE CORP. A-62403 HYPRO CORPORATION 2120-0054, 24607 LANCASTER PUMP CO. 7561 MANITOWOC CO., INC. 003705011 MIDLAND PRODUCTS 6007-0 PUREX / HYDROTECH 071725 SCOT PUMP 101.000.159 STONE CONST. 32224, 322241H SYNCROFLO 13-650-0610 TACO®, INC. 170-021, 170-095 TEEL PUMP 5NC01, 5P417 VULCAN HART 97505 |
