Description
Industry Standard
- Used for years by pool pump manufacturers
- Materials of Construction: Buna Elastomers, Molded Plastic Primary Ring, Ceramic Seat, Stainless Steel Hardware
- Proven Reliability in residential chlorine pools
- Good For low temperatures
Specifications
| Seal Size | 5/8" |
|---|---|

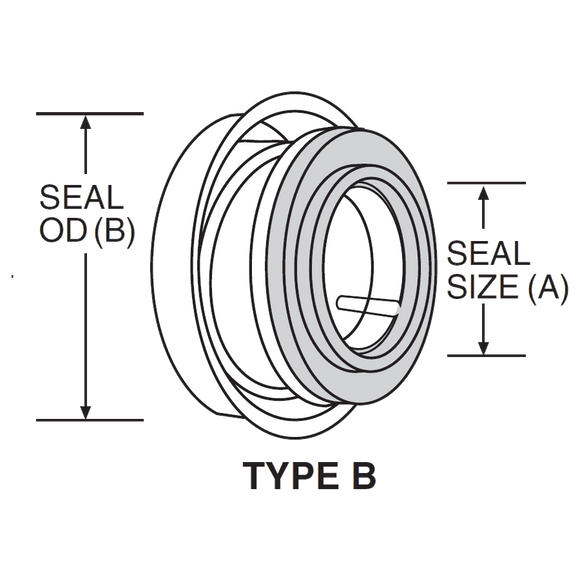

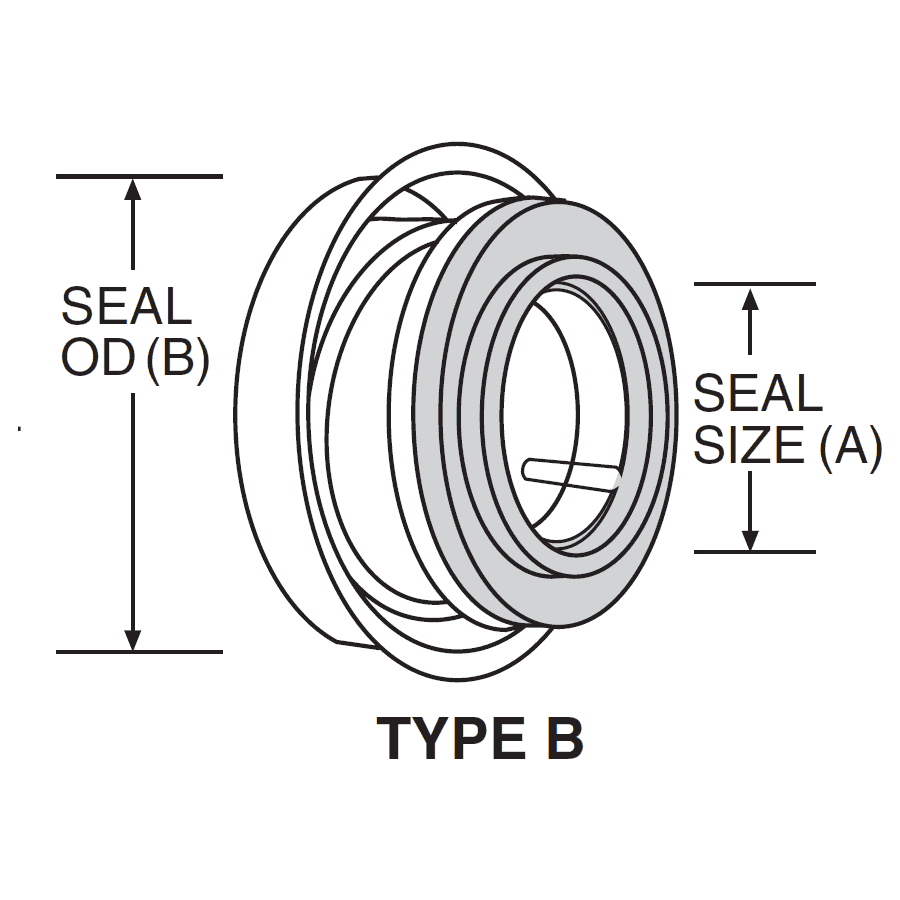

| Head Figure | B |
| Head Outside Diameter | 1.437" |
| Head Operating Height | 0.615" |
| Mating Ring Figure | 1 |
| Mating Ring Bore | 1.250" |
| Mating Ring Thickness | 0.406" |
| Material Code | BMFJF Buna Secondary Seals Molded Plastic Primary Rings Stainless Steel Metal Parts Ceramic Mating Rings Stainless Steel Springs |
| Notes | |
| UPC | 852661157032 |
| Weight | lbs |
| Pressure Rating | PSI |
| Temperature | °F to °F |
| Country of Origin | Mexico |
| U.S. Seal Manufacturer Part Number(s) | PS-1000 (General Service) PS-961 (Carbon Upgrade) PS-3865R (Ozone / Salt Service PS-1905 (SCS Series) VG-1000 (Value Guard) |
| Pump Nameplate Data Cross Reference | ACURA SPA SYSTEMS, INC. Aquaheat, Aquaheat Plus, Magnaflow, Magnaflow 56, Maverick, Supercharger, Supercharger II AMPRO-DIACLEAR Dura-Flo®, Noryl® Turbo, XL 600 AMERICAN PRODUCTS Americana II®, Bronze-Bronze®, Eagle® Maxim, Power-Glass®, Ultra-Flo® ASTRAL POOL Sena EAST SIDE MFG. BTH JANDY® P84-60 LELAND FARADAY LFP-2075, 2100, 2150, 2200 PREMIER Series 220/225 (Pre 1988), 455/456 500, 600 STA-RITE INDUSTRIES CF / CFA Series, HP Series TEEL PUMP 2P356, 2P360, 2P363, 2P366, 5P368, 5P369 |
| Cross Reference | ACURA SPA SYSTEMS, INC. 1090-A AMPRO-DIACLEAR AP-304D ANTHONY & SYLVAN 04380 AMERICAN PRODUCTS 397012, 397020 ASTRAL POOL Series 1600 DOUGHBOY INDUSTRIES 306-1002 GECKO ALLIANCE, INC. A, B and D Series 92509040 A, C and D Series, Dominator® High and Medium head – pre 1995 92500050 GG INDUSTRIES P-Seal 4 / P-Seal 5 Mark III GILBARCO VEEDER-ROOT K81159X JANDY® P55 LANCASTER PUMP CO. 5236 PREMIER 31-813 STA-RITE INDUSTRIES U109-136SS TEEL PUMP 1R317, 1R318 WAYNE COMBUSTION SYSTEMS 15996 / 56109 |
