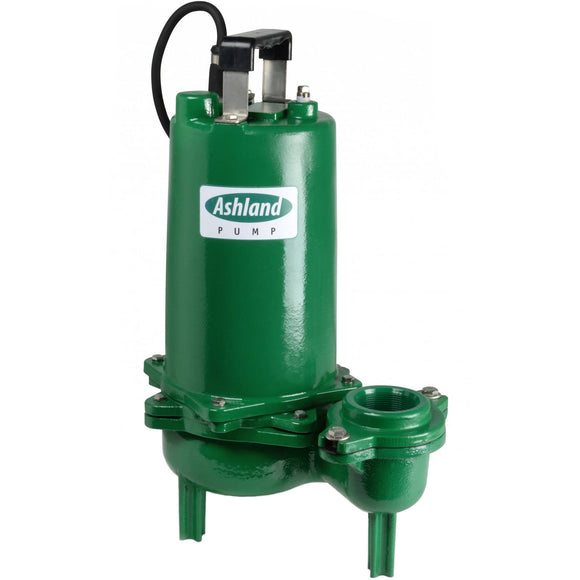

SWH50M1-20 Ashland 1/2HP High Head Sewage Pump, 115VAC Single Phase-1
SWH50M1-20 Ashland 1/2HP High Head Sewage Pump, 115VAC Single Phase-2

SWH50M1-20 Ashland 1/2HP High Head Sewage Pump, 115VAC Single Phase

$1,041.00

Shipping calculated at checkout

Ashland Pump SKU: SWH50M1-20

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC/Induction motor
  • 9 Vane Vortex cast iron impeller
  • 3” Flanged discharge, 2” NPT adapter
  • 2” Solids handling

Specifications

Brand Ashland Pump
Model SWH50M1-20
Switch Type Manual
HP 1/2HP
Voltage 115VAC 60Hz Single Phase
RPM 3450 RPM
NEMA Start Code P
Full Load Amps 12.0 Amps
Cord Power Size 16AWG/3C
Cord Type SOW
Cord O.D. 0.43"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapters
Impeller Type 9 Vane Vortex
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 3450 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1/2HP
Service Factor 1.00

Dimensions

SWH50 Pump Dimensions

Performance Curve

SWH50 Performance Curve Graph
