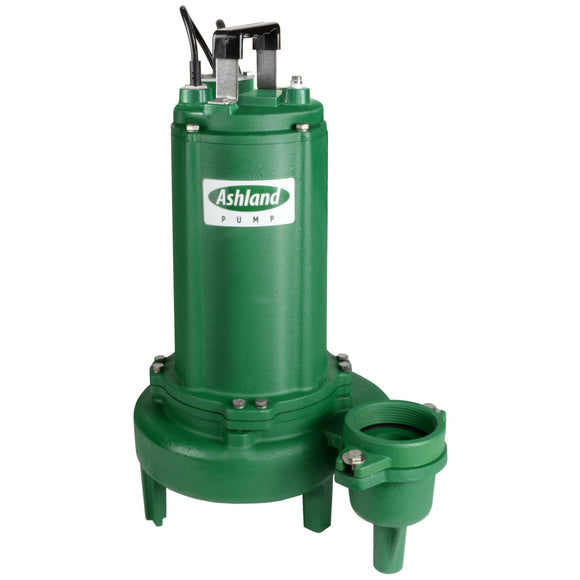

SWFD200M6-20 Ashland 2HP Sewage Pump, 208VAC 3 Phase

$1,834.00

Shipping calculated at checkout

Ashland Pump SKU: SWFD200M6-20

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • 3” Flanged Discharge
  • Heavy duty cast iron Motor Housing and Volute
  • 2-Vane, Semi-open Cast Iron Impeller
  • Mechanical Carbon Ceramic Seal
  • 2” Solids handling

Specifications

Brand Ashland Pump
Model SWFD200M6-20
Switch Type Manual
Power 2 HP
Voltage 208VAC 60Hz 3 Phase
RPM 1750 RPM
Full Load Amps 11.5 Amps
NEMA Start Code P
Cord Type SOW
Cord Power Size 14AWG/4C
Cord O.D. 0.59"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapters
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 2HP
Service Factor 1.00

Dimensions

SWFD200 Pump Dimensions

Performance Curve

SWFD200 Performance Curve Graph
