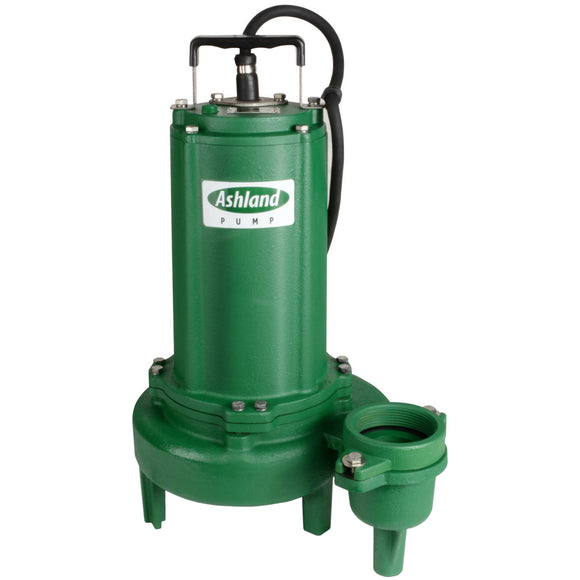

SWF100M3-20 Ashland 1HP Sewage Pump, 230VAC 3 Phase

$1,283.00

Shipping calculated at checkout

Ashland Pump SKU: SWF100M3-20

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Semi-open cast iron impeller
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWF100M3-20
Switch Type Manual
HP 1HP
Voltage 230VAC 60Hz 3 Phase
RPM 1750 RPM
NEMA Start Code P
Full Load Amps 8.0 Amps
Cord Power Size 16AWG/4C
Cord Type SOW
Cord O.D. 0.45"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapter
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 1HP
Service Factor 1.00

Dimensions

SWF100 Pump Dimensions

Performance Curve

SWF100 Performance Curve Graph
