EP45W2-20 Ashland 1/2HP Effluent Pump, 230VAC-1
EP45W2-20 Ashland 1/2HP Effluent Pump, 230VAC-2

EP45W2-20 Ashland 1/2HP Effluent Pump, 230VAC

$571.00

Shipping calculated at checkout

Ashland Pump SKU: EP45W2-20

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

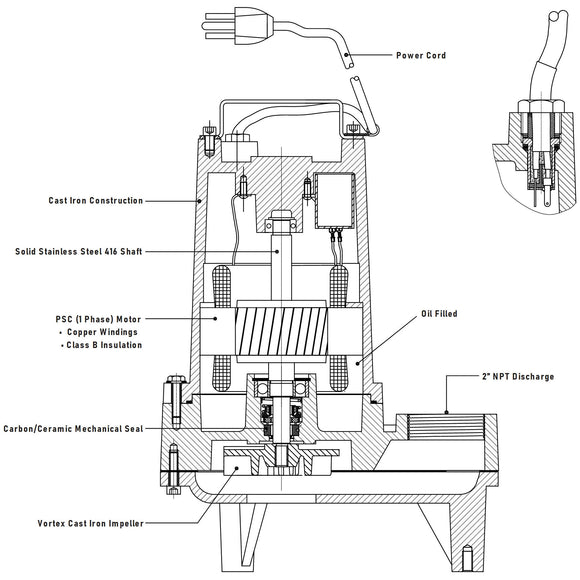

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4” solids handling
  • 2” NPT discharge

Specifications

Brand Ashland Pump
Model EP45W2-20
HP 0.50 HP
Voltage 230VAC 60Hz Single Phase
RPM 3450 RPM
Full Load Amps 5.5 Amps
NEMA Start Code P
Cord Type SJTW 18/3C
Cord Power Size 16AWG/3C
Cord O.D. 0.34"
Discharge Size 2" NPT
Impeller Type Recessed Cast Iron Vortex
Cable Length 20'
Maximum Liquid Temperature 104°F
Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 130°C
Sensor Cord Type 16/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6000
Lower Bearing 6203
