BK5010 4.75" X 5/8" BK Single Groove V-Pulley-1
BK5010 4.75" X 5/8" BK Single Groove V-Pulley-2
BK5010 4.75" X 5/8" BK Single Groove V-Pulley-3

BK5010 4.75" X 5/8" BK Single Groove V-Pulley

$25.74 USD

Shipping calculated at checkout

New Standard Power Transmission SKU: BK5010

30 Day
Return Policy

Ships Fast
in 24 hours

4

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK5010
BK50X5/8
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 4.75"
Pulley Diameter “A” 4.00"
Pulley Diameter “B” 4.40"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 2.0 lbs

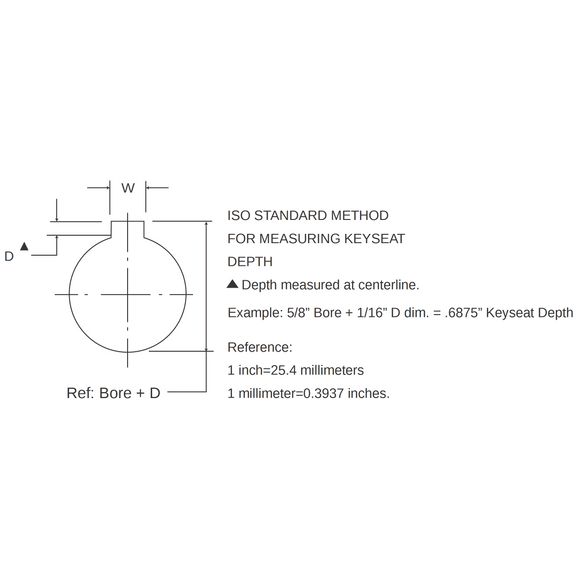

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
