BK2810 2.95" X 5/8" BK Single Groove V-Pulley-1
BK2810 2.95" X 5/8" BK Single Groove V-Pulley-2
BK2810 2.95" X 5/8" BK Single Groove V-Pulley-3

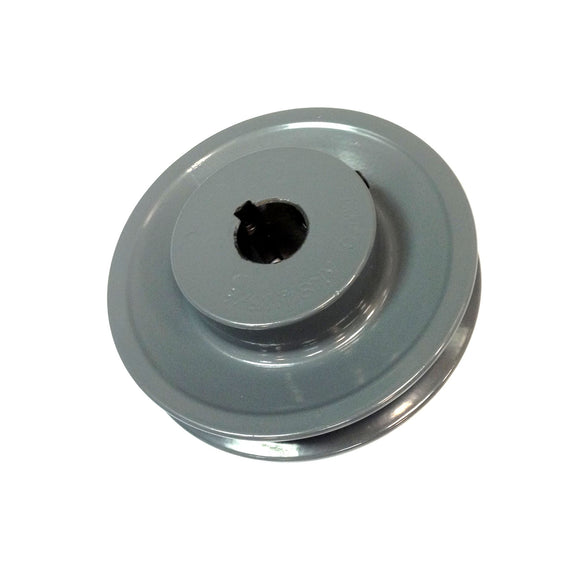

BK2810 2.95" X 5/8" BK Single Groove V-Pulley

$11.23 USD

Shipping calculated at checkout

Leeson Electric (Regal Rexnord) SKU: BK2810 Barcode: 624832033595

30 Day
Return Policy

Ships Fast
in 24 hours

6

In stock!

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number BK2810
BK28X5/8
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 2.95"
Pulley Diameter “A” 2.20"
Pulley Diameter “B” 2.60"

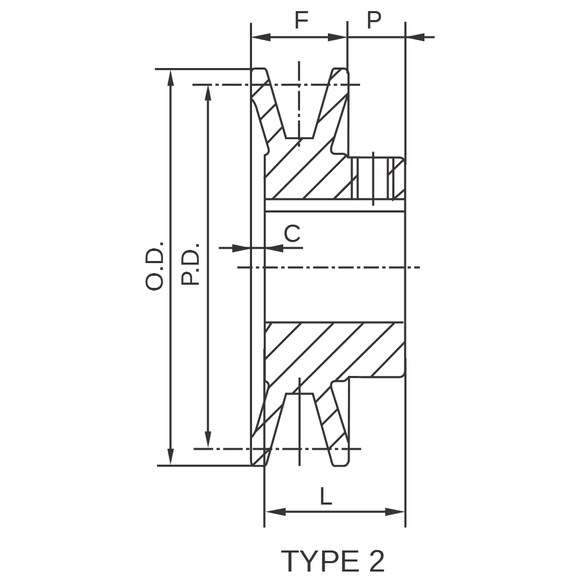

Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.8 lbs

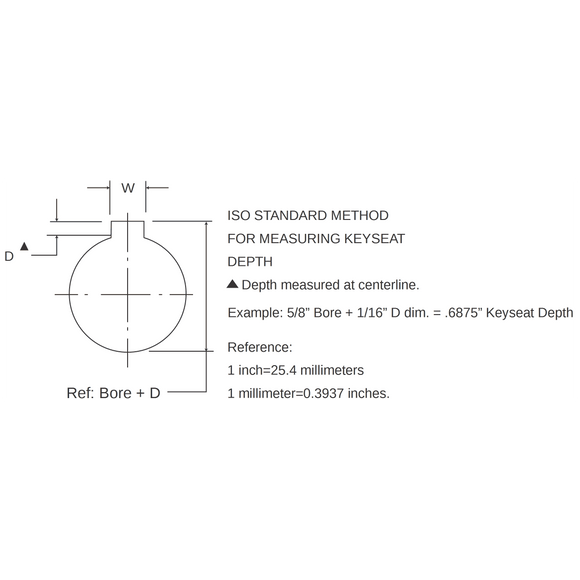

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
UPC 624832033595
