BK34H 3.55" "H" Style BK Single Groove V-Pulley-1
BK34H 3.55" "H" Style BK Single Groove V-Pulley-2

BK34H 3.55" "H" Style BK Single Groove V-Pulley

$15.98 USD

Shipping calculated at checkout

AMEC Industry, Inc SKU: BK34H

30 Day
Return Policy

Ships Fast
in 24 hours

2

In stock!

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged

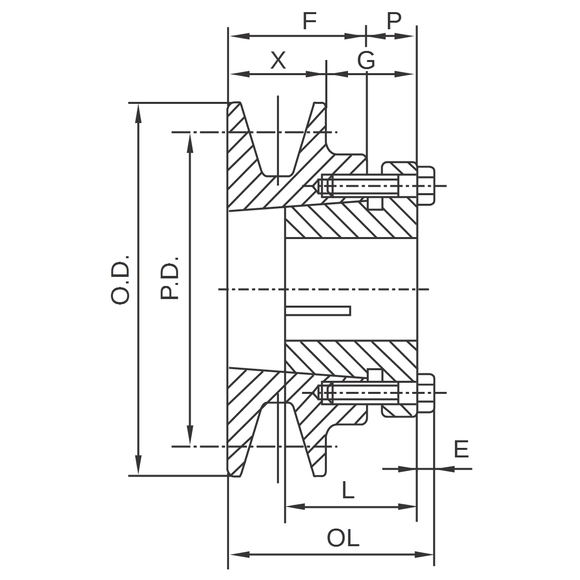

Brand Various
Part Number BK34H
Outside Diameter 3.55"
Pulley Diameter "A" 2.80"
Pulley Diameter "3L" 3.20"
Type 1
Dimension "OL" 1-15/16"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/8"
Dimension "X" 1-5/16"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 1.6 lbs
